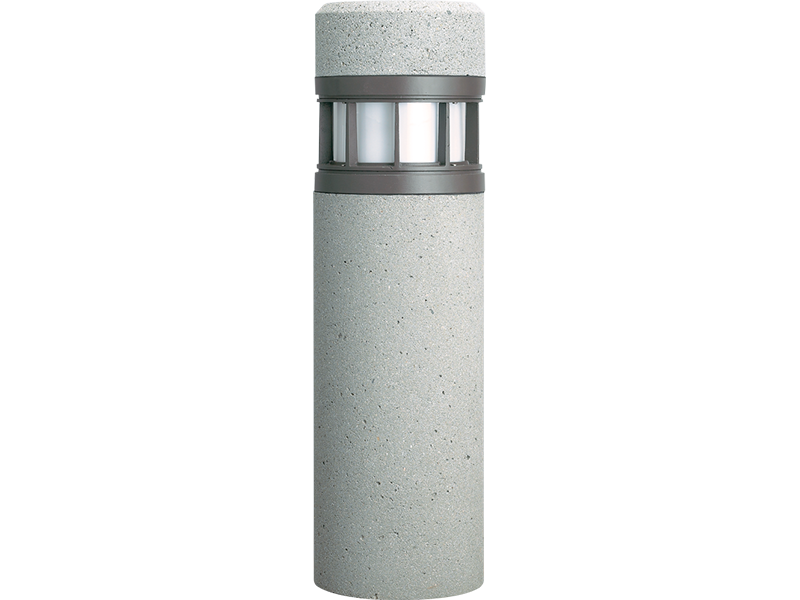

OSC12R 12″ Concrete Bollard – Round

Louvered Cast Grill with Clear Diffuser and Dome Top
Vertical Cast Grill with Opal Diffuser and Dome Top
Vertical Cast Grill with Opal Diffuser and Flat Top
Horizontal Cast Grill with Opal Diffuser and Flat Top
Louvered Cast Grill with Opal Diffuser and Flat Top
Horizontal Cast Grill with Opal Diffuser and Dome Top
OSC12R: Utilizing your choice of horizontal, vertical, or louvered shields providing Type V distribution with LED illumination, the OSC12R provides a versatile concrete bollard that perfectly complements gardens and pathways.
Buy American Act compliant

Features

  • Horizontal, vertical or louvered shields provide Type V distribution in a variety of styles
  • Concrete top and cast aluminum shield remove as one unit to provide access to internal components
  • Natural concrete housing complements gardens, pathways and pedestrian-area applications
  • Available with flat- or dome-shaped concrete top
  • LEDs provide high-efficacy, good color rendering and a variety of color options
  • Finned, extruded aluminum heat sink for maximum heat dissipation
  • Seven standard shield finish options and a wide selection of custom colors complement the architectural elements of any outdoor environment
  • Variety of custom concrete housing finishes available
  • Buy American Act compliant
  • Made Right Here® in the USA

Tools

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Prestressed, reinforced, cast hollow core concrete with a light sand blasted finish.

Housing Top

Cast, prestressed, reinforced concrete.

Shield

Type V distribution. Cast aluminum grill, .188” thick with opal (HG or VG) or clear (LG) UV stabilized acrylic diffuser. Shield is secured to housing with stainless steel tamper-resistant hardware.

Shield Finish

Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability.

Electrical

High-quality mid-power LED board. L70 at 50,000 hours. Prewired at factory for easy field installation. Rated -40ºF minimum starting temperature.

Mounting

Minimum 2” recessed in ground with four-point hot dip galvanized 1/4” A36 steel baseplate. For accurate installation a fullscale mounting template is provided with each bollard and anchor bolt order.

Listings

• cETLus conforms to UL STD 1598 and UL STD 8750; Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for wet locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Downloads

Spec Sheets
IES Files
Instructions
Literature
Tech Info

Shield Finishes

Black

Green

Medium Bronze

Dark Bronze

Satin Aluminum

Gray

White
