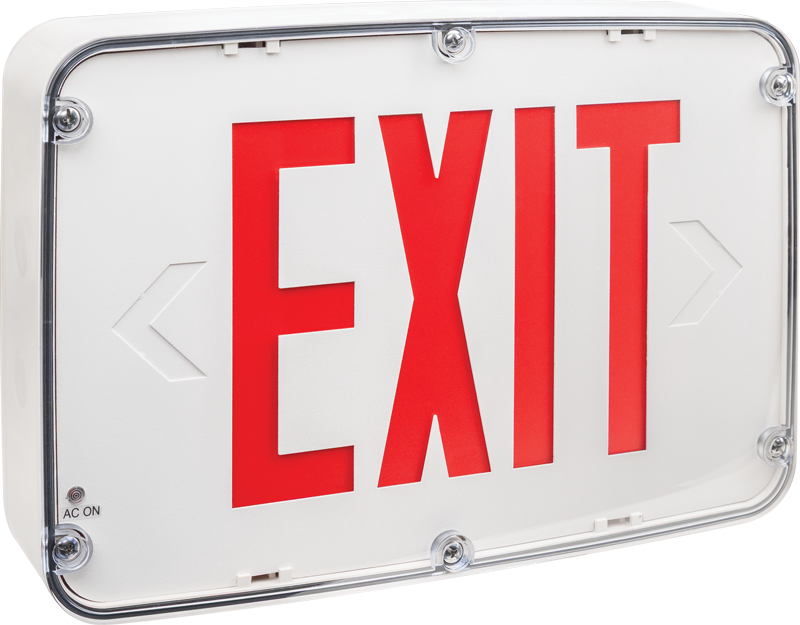

EXIT/IP NEMA 4X/NSF Exit Sign

Red Letters/White Housing Without Arrow Knockouts

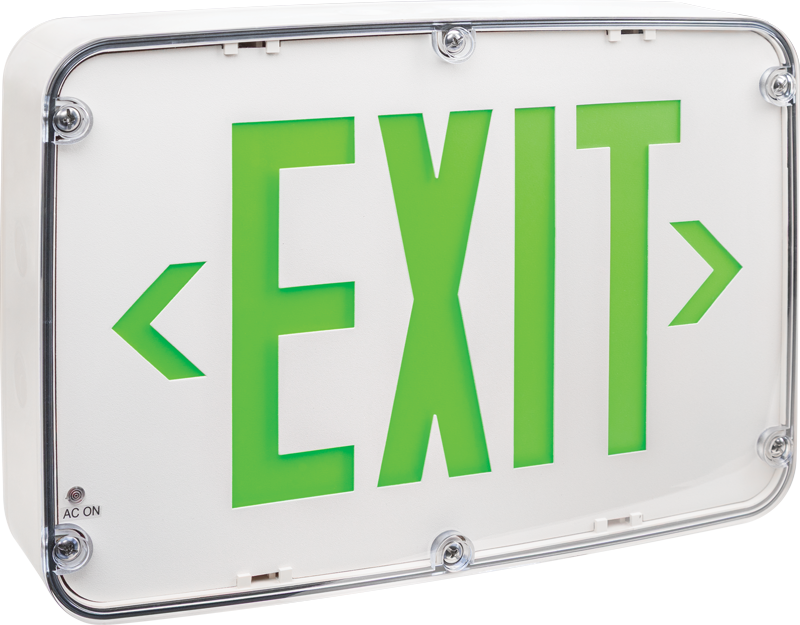

Green Letters/White Housing
Green Letters/White Housing Without Arrow Knockouts

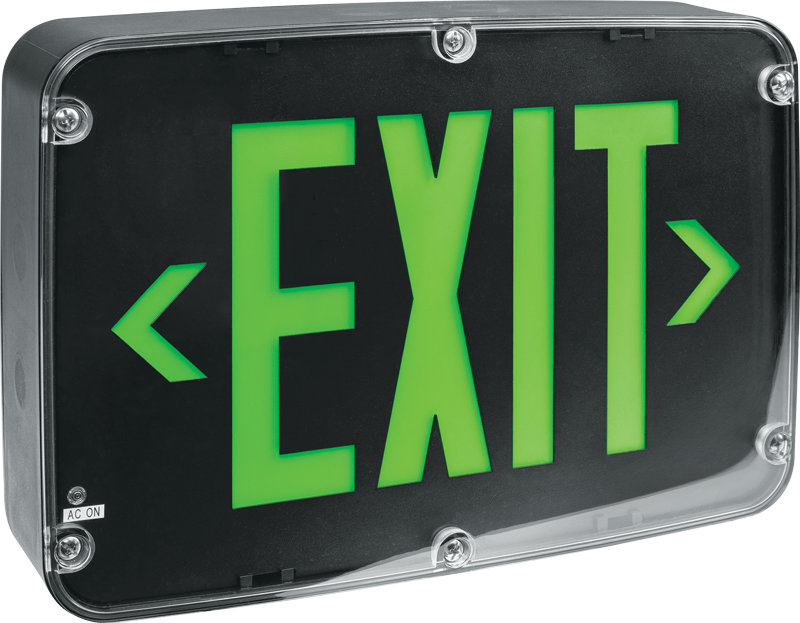

Green Letters/Black Housing

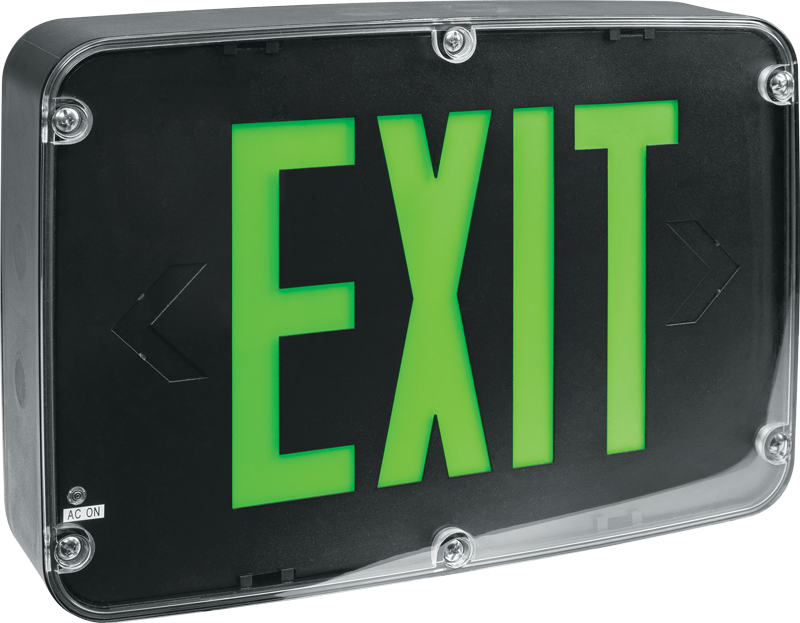

Green Letters/Black Housing Without Arrow Knockouts

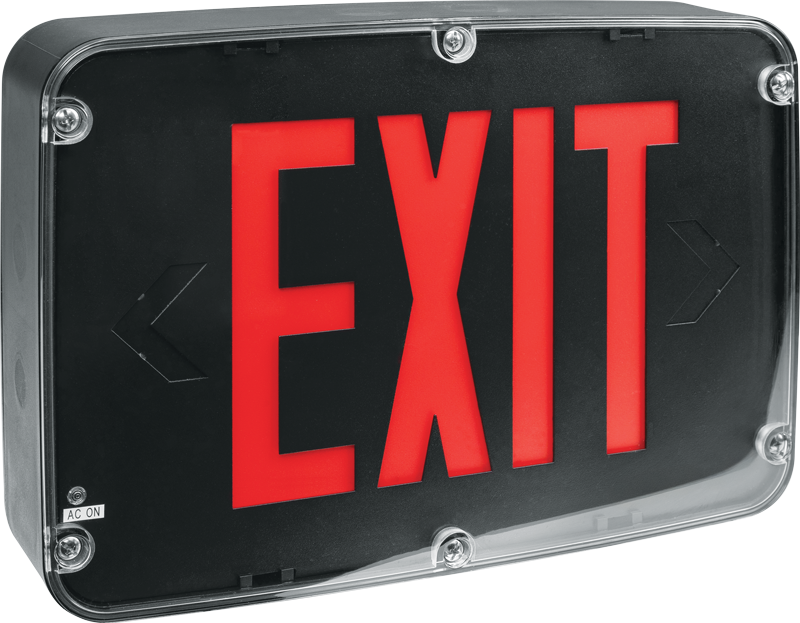

Red Letters/Black Housing
Red Letters/Black Housing Without Arrow Knockouts
EXIT/IP: The EXIT/IP from H.E. Williams, Inc. is a NEMA 4X, NSF, and IP66-rated LED exit sign engineered for food service and demanding environments. With corrosion-resistant construction, tamper-resistant hardware, and emergency battery options, it delivers dependable life safety performance.
UL 924
NEMA 4X
IP66 Rated
NSF

Features

  • NEMA 4X, NSF and IP66 certified for use in food service operations
  • Corrosion-resistant enclosure and high-impact lens for tough environments
  • Tamper-resistant hardware option for vandal-prone areas
  • Ultra-bright, energy-efficient, long-life LEDs in red or green
  • Available as full-time AC powered unit or emergency unit with battery backup
  • Removable directional indicators
  • EM unit provides 90 minutes of emergency operation
  • Dual color LED indicator light alerts on battery condition
  • Dual circuit option (AC-only) connects to two different supplies simultaneously
  • Fully automatic solid-state two rate charger on EM units recharges battery in 24 hours
  • Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing
  • Self-diagnostic option performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes

Tools

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Reinforced polycarbonate construction in white or black finish. Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws.

Electrical

Dual 120/277 voltage standard. 1.2V long life, maintenance-free, rechargeable NiCd battery on EM model.

Mounting

Polycarbonate mounting canopy included for top or end mount. Wall mount with universal knockout pattern and gasket for watertight seal on back. Knockouts provided for conduit feed applications.

Listings

• UL 924 standard as an exit light suitable for dry or damp locations (0°C - +50°C).
• Meets NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• IP66 rated for ingress protection
• NEMA 4X and NSF rated
• Certified to CEC under Title 20 Regulations.

Warranty

5-year limited warranty.

Downloads

Spec Sheets
Instructions

Housing Colors

Industry-Standard White

Black

Accessories

Wireguard
