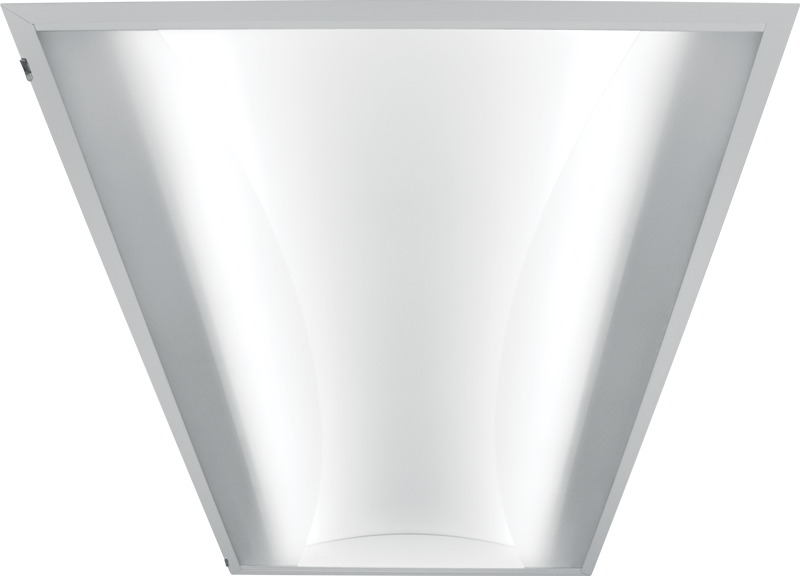

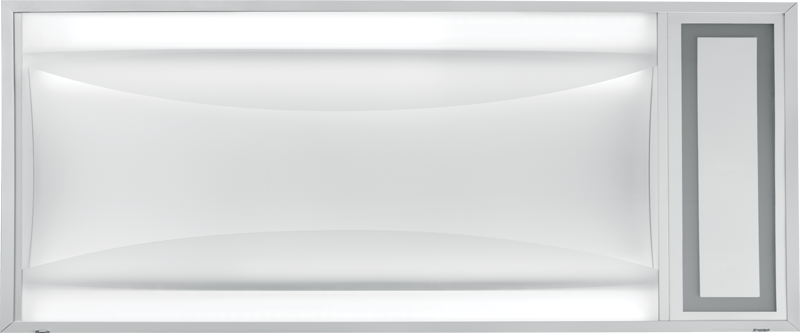

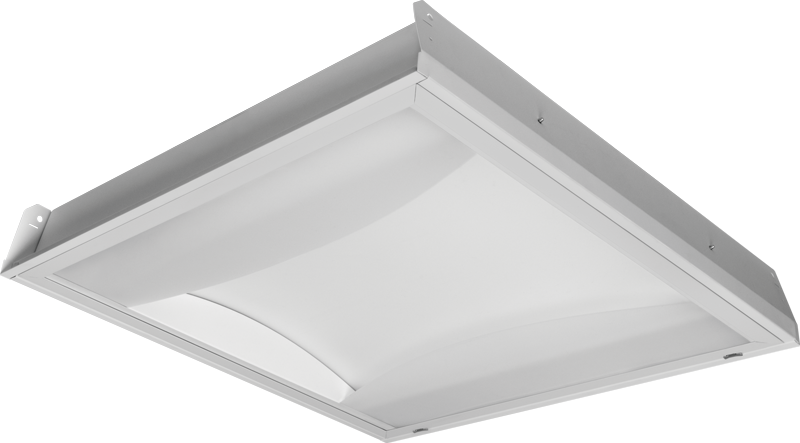

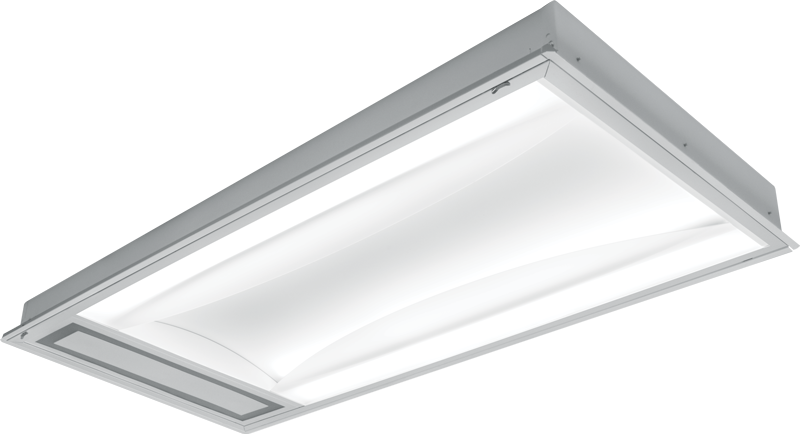

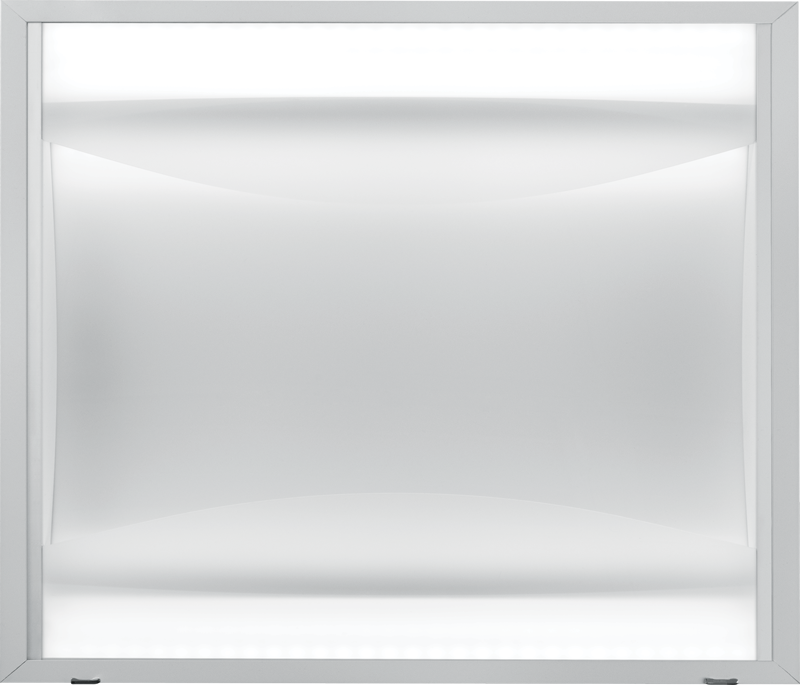

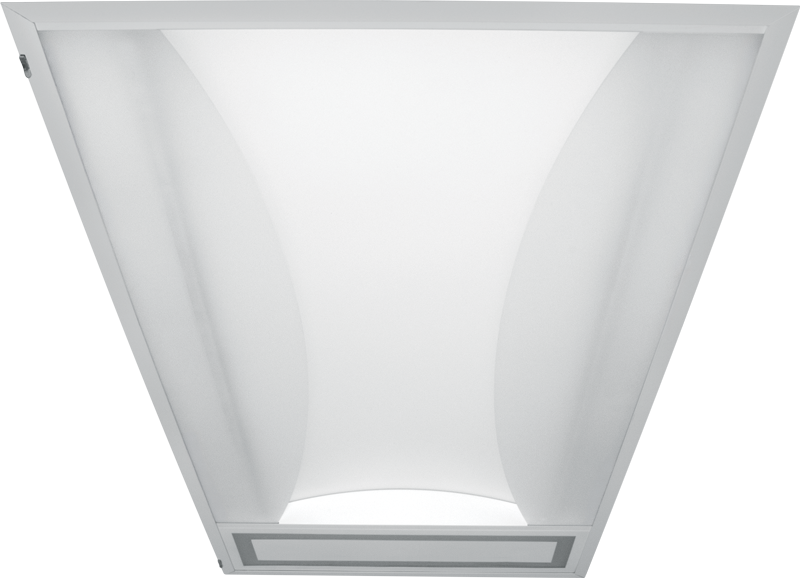

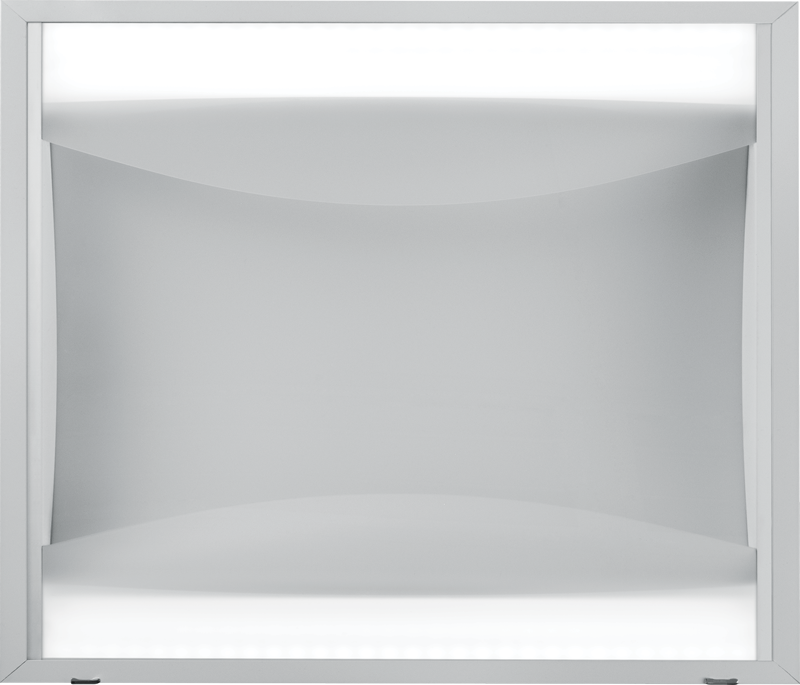

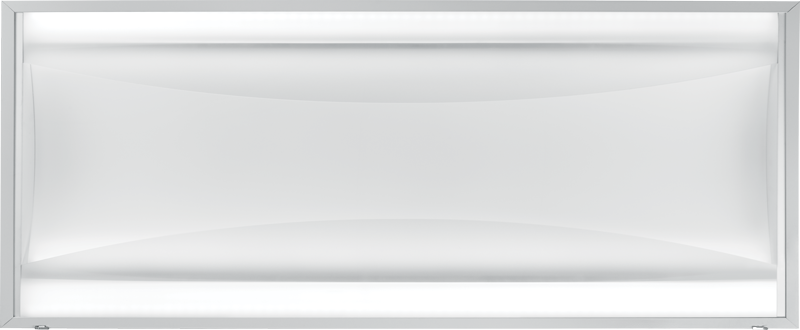

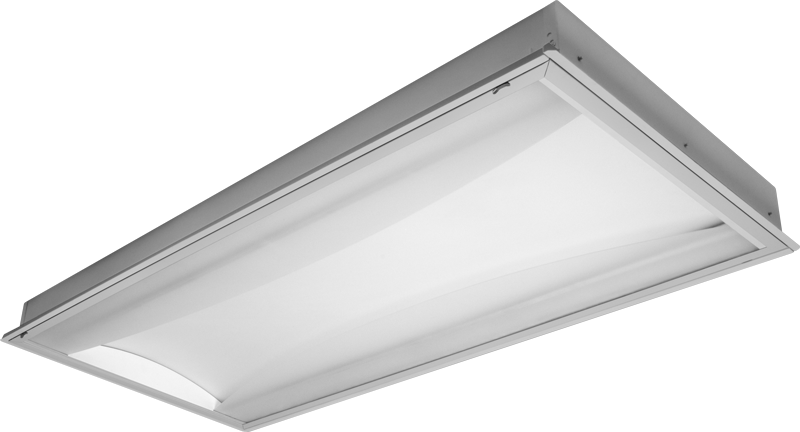

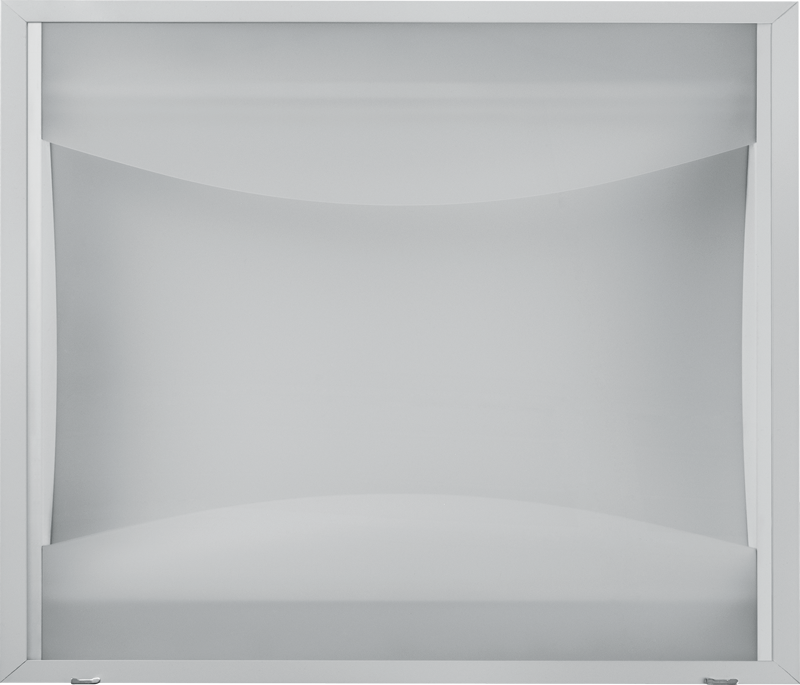

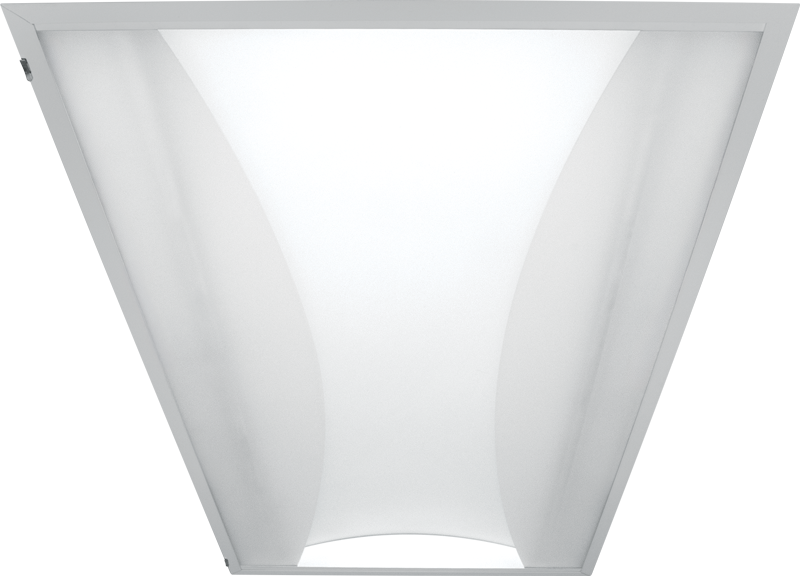

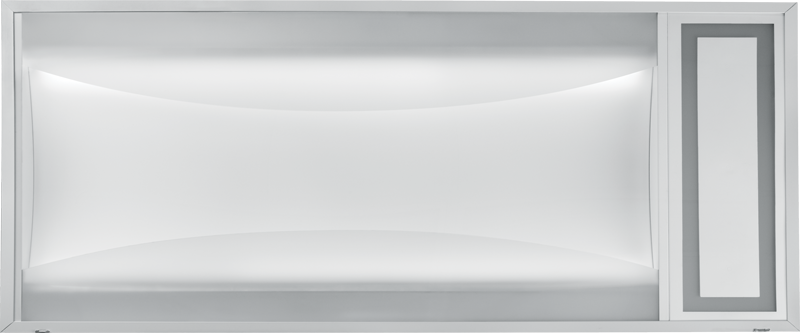

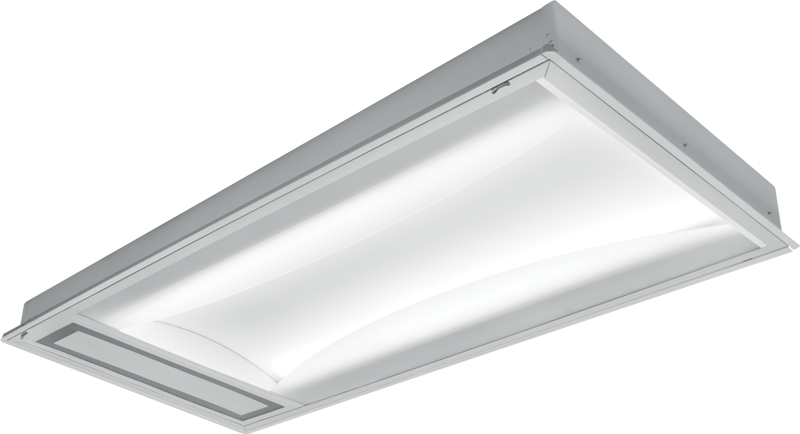

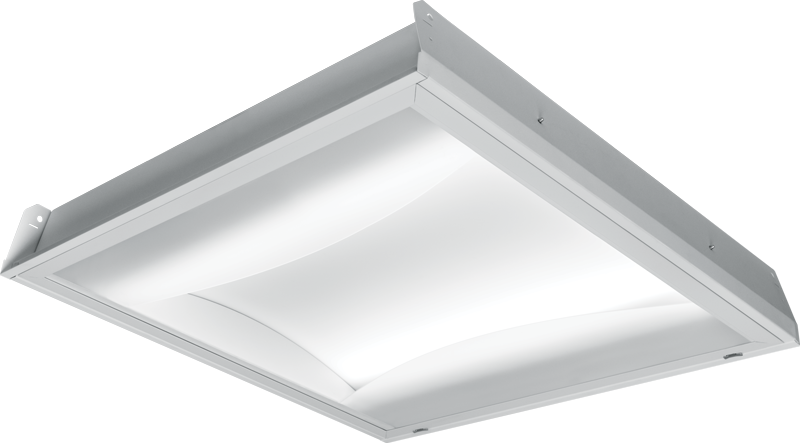

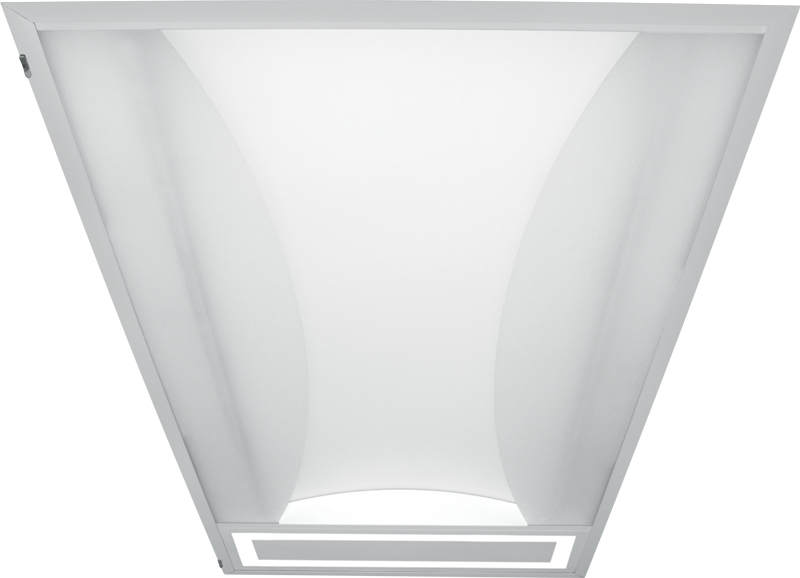

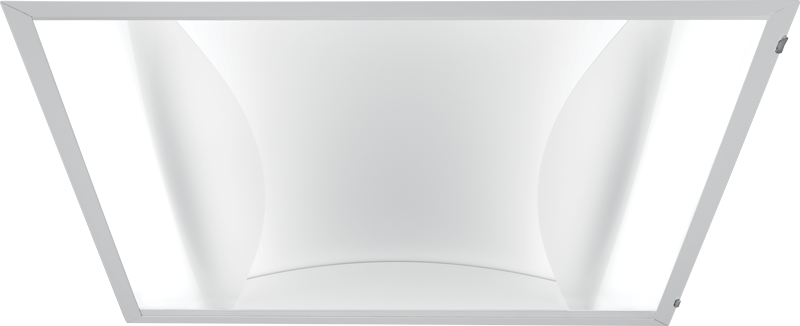

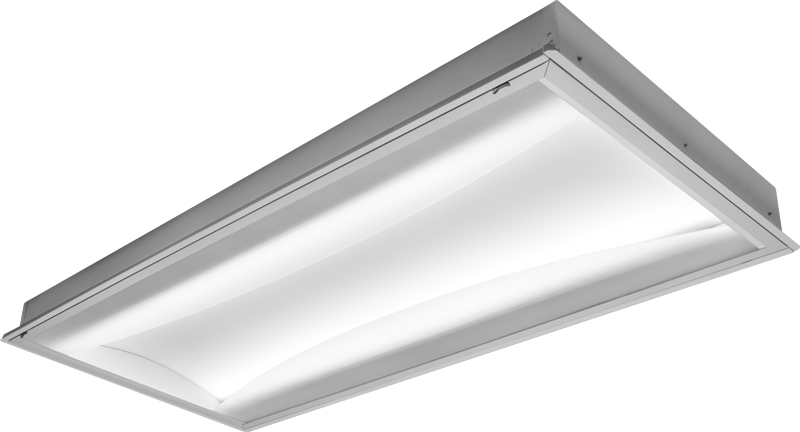

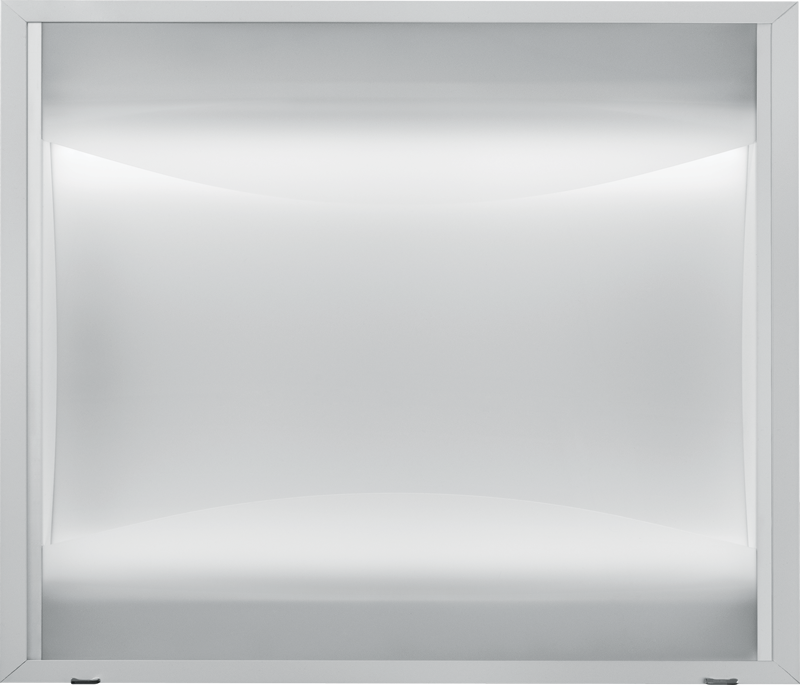

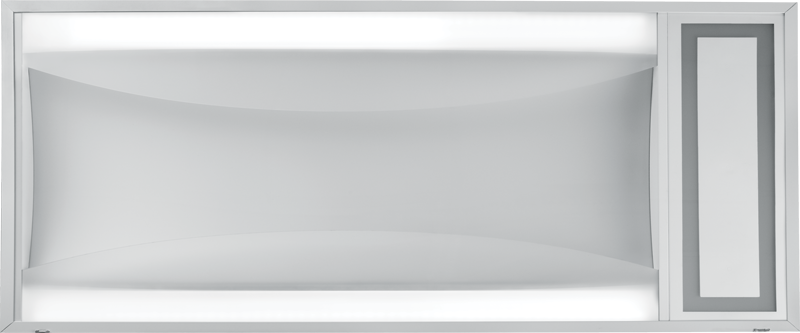

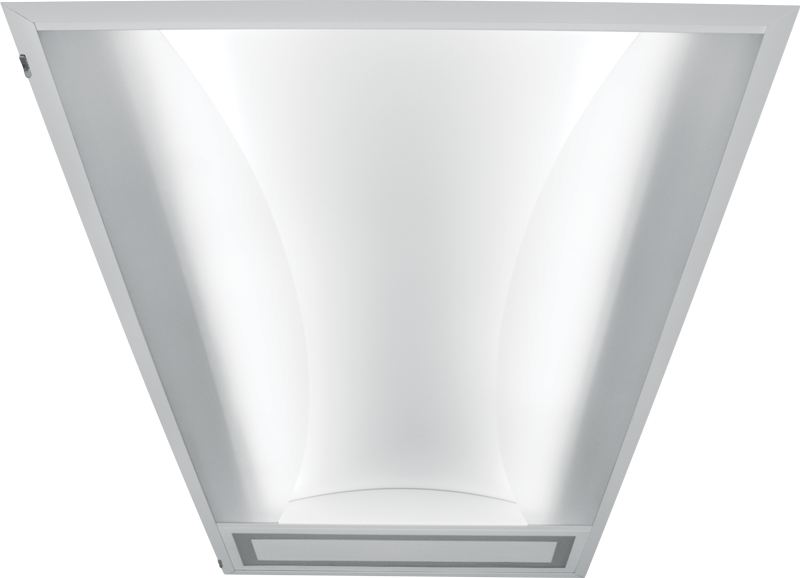

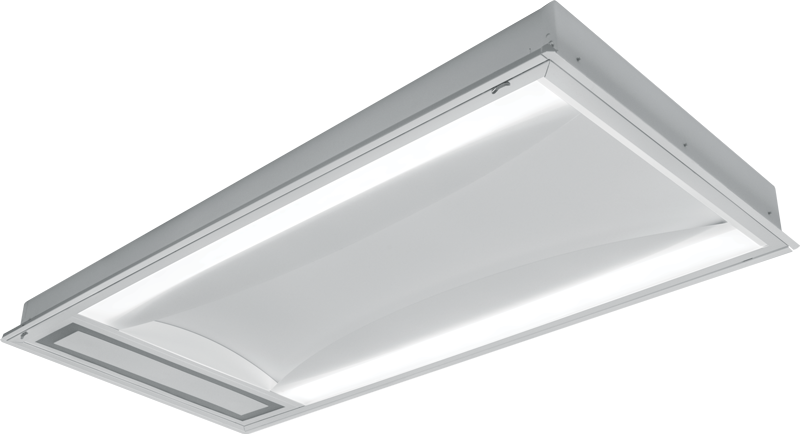

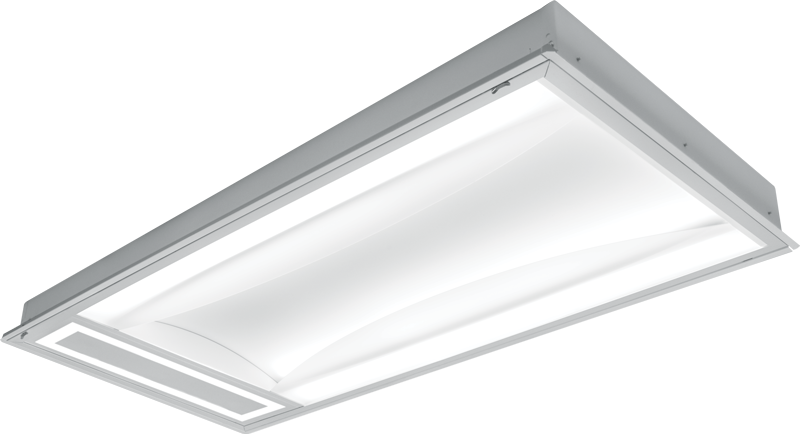

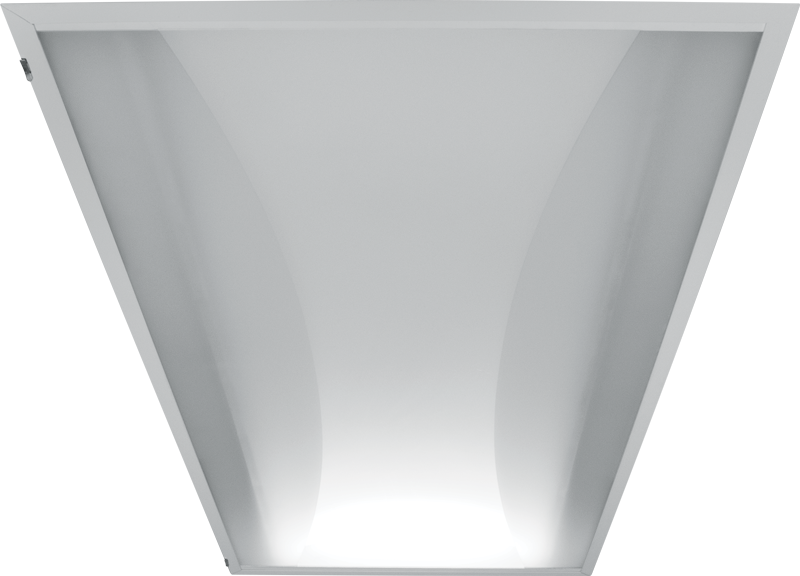

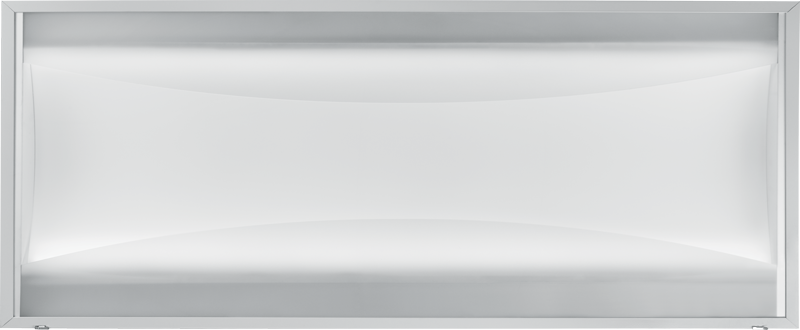

CMR Contour Multi-Function Recessed

Features

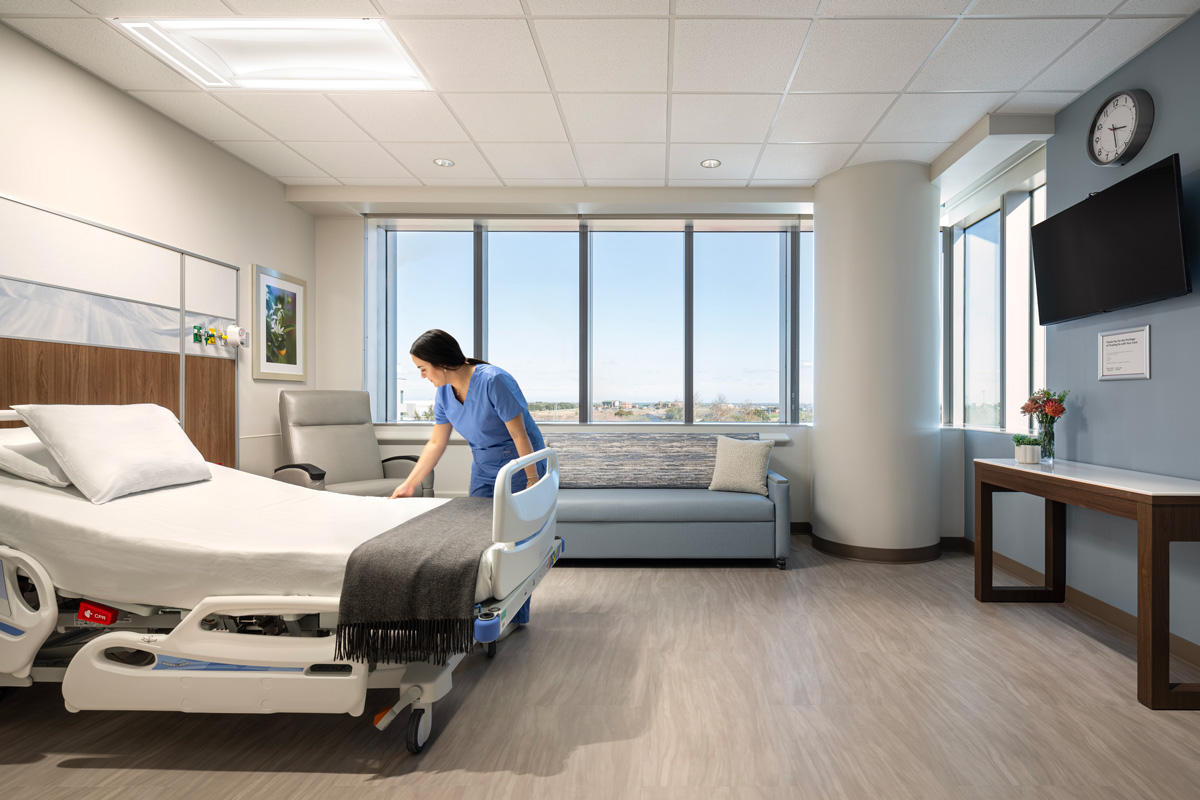

Contoured architectural form integrates seamlessly with modern hospital interiors

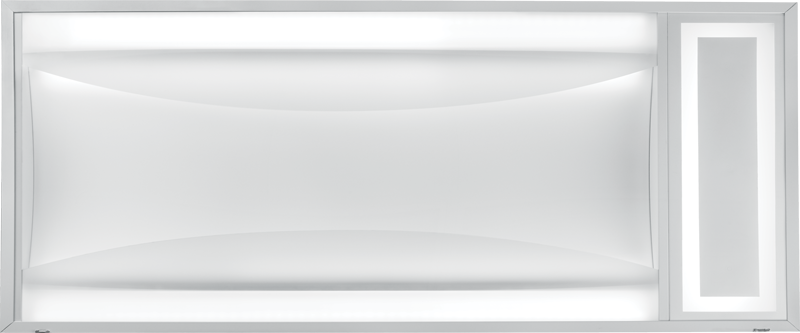

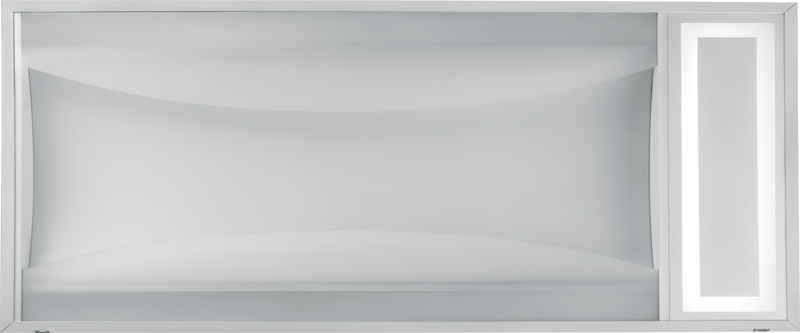

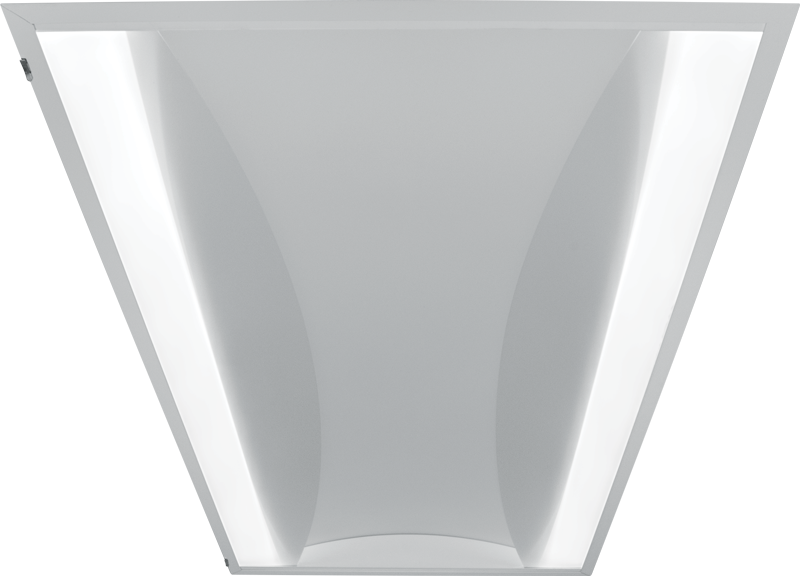

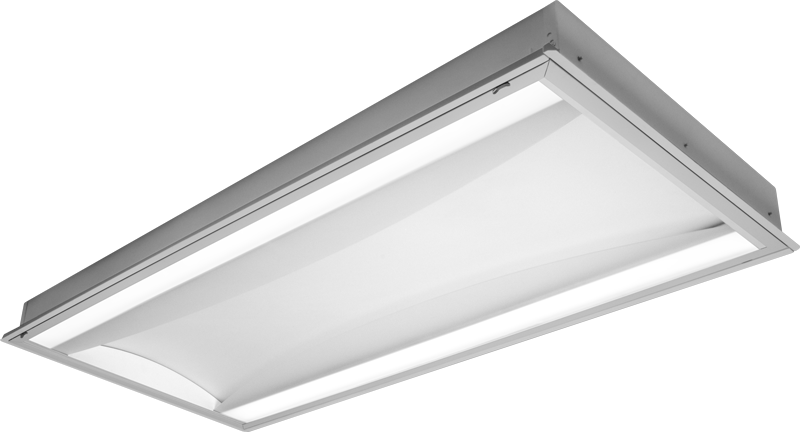

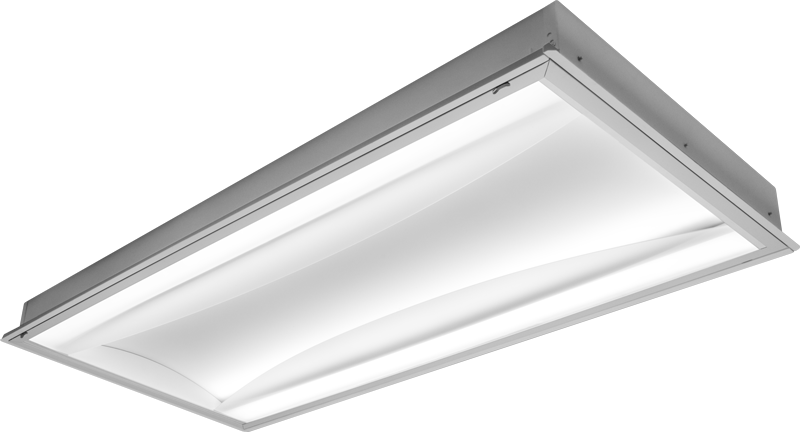

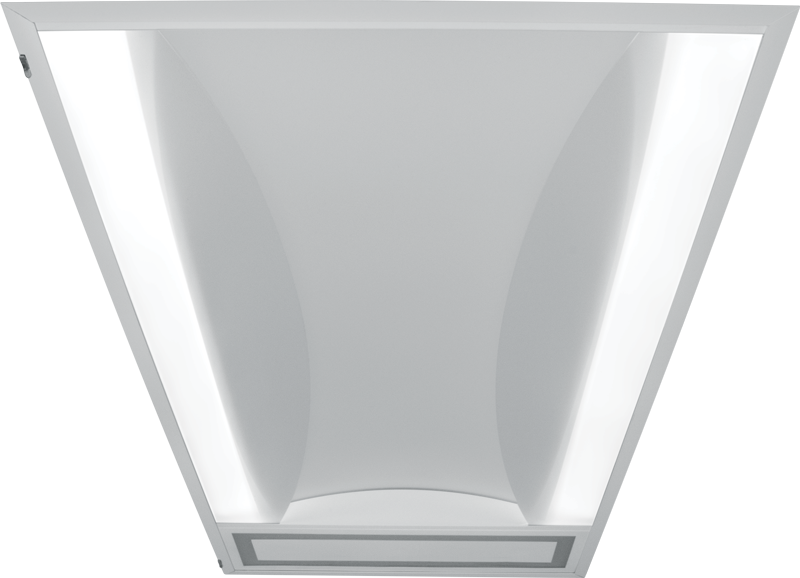

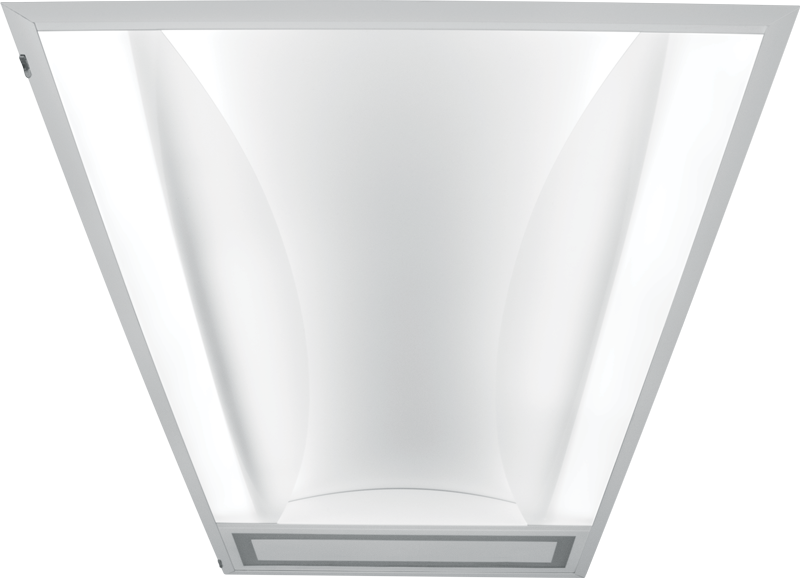

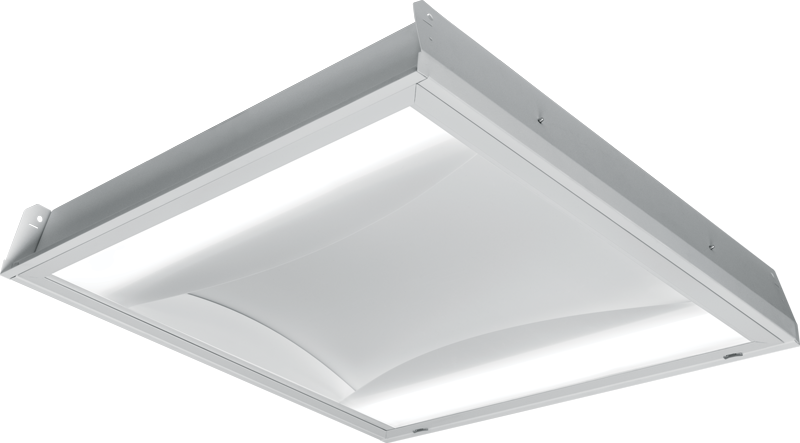

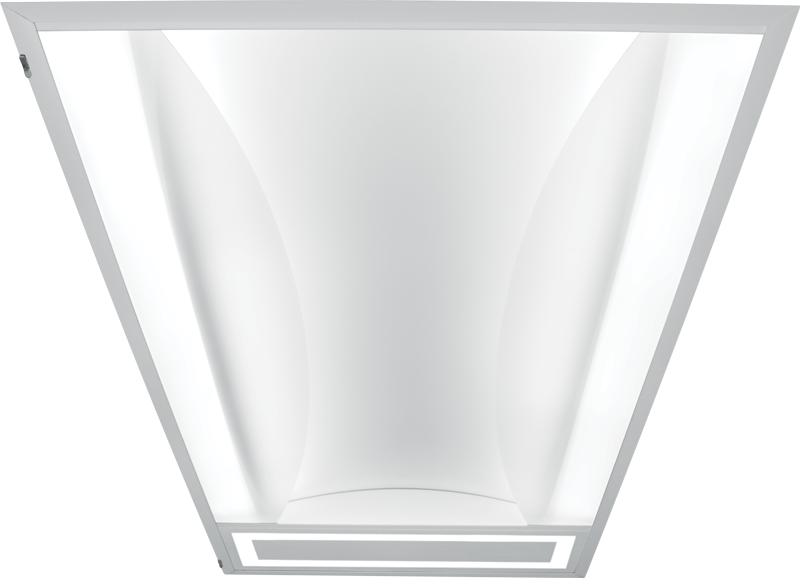

Ambient, exam, reading, and night functions tailor lighting to patient and staff needs
Low UGR enhances visual comfort for reading and night lighting
Optional low-voltage bedside and wall plate controls for convenient access to lighting functions

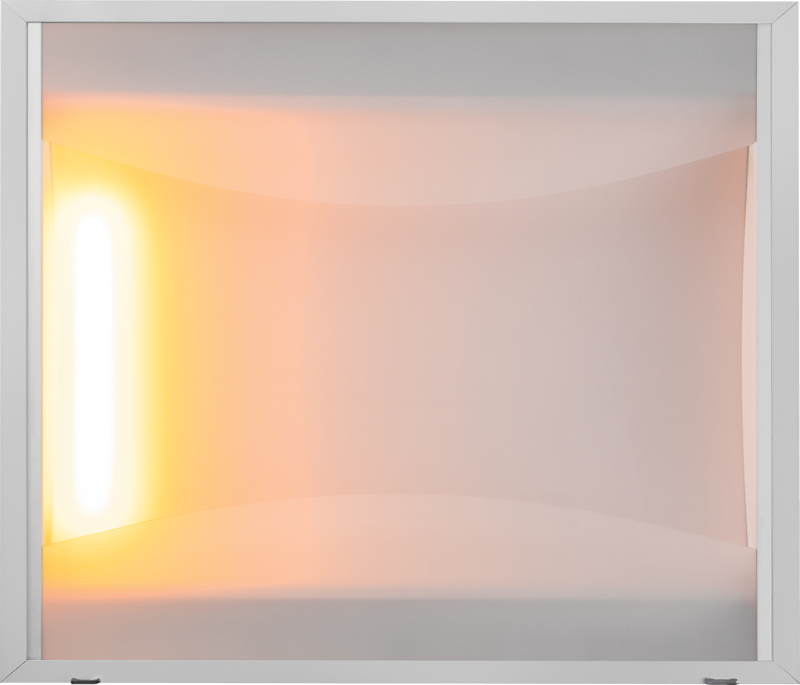

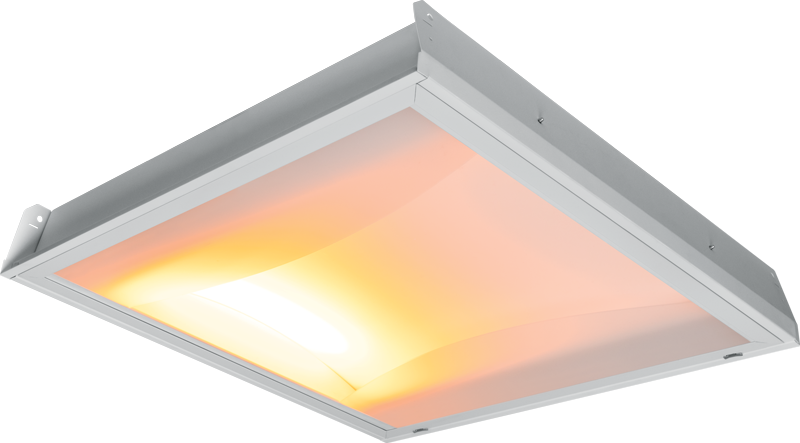

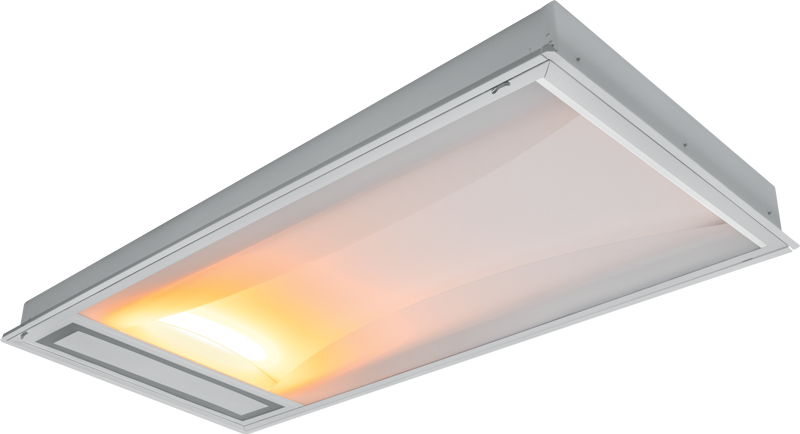

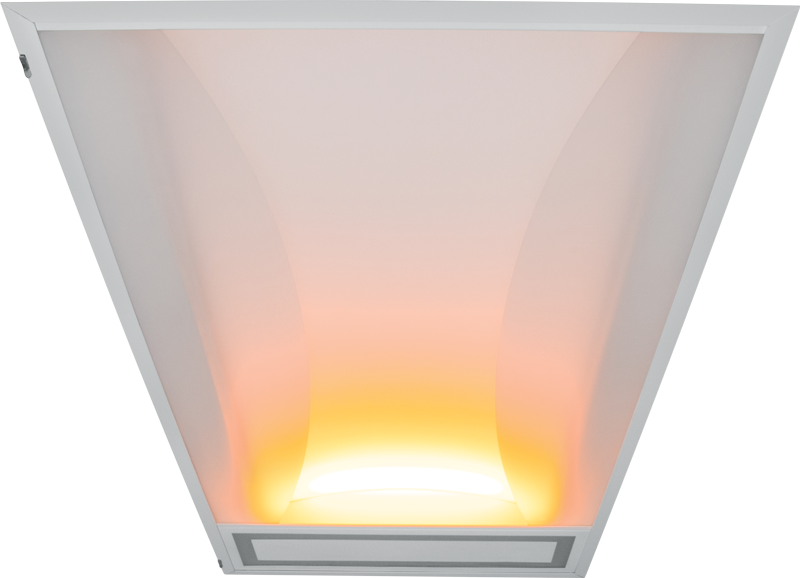

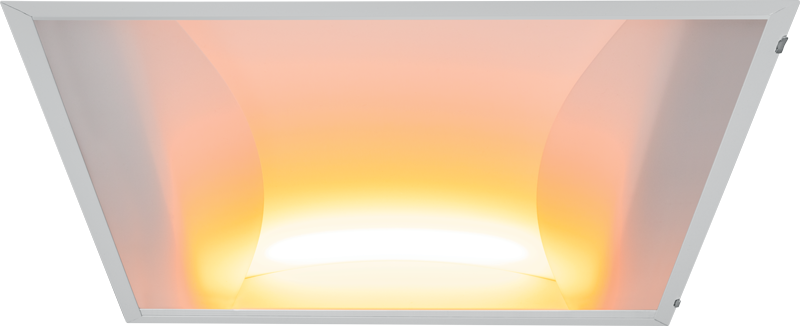

Amber color temperature night light option creates gentle illumination while supporting natural sleep patterns
Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
Room-side accessible
Smooth surface door frame and lens materials simplify cleaning and maintenance
Double gasketing minimizes contaminants
Low UGR meets LEED and WELL requirements
Support human-centric design with adaptive, individualized lighting using tunable white light
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Find your local agent or distributor.

Housing	.040″ formed aluminum.
Door Frame	Hinged, flat, extruded aluminum door frame with optical assembly. Fully enclosed spring-loaded cam latches.
Shielding	Clear acrylic underlay, .060″ thick.
Finish	Highly-reflective non-glare matte white anti-microbial powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 >72,000 hours per IES TM-21. 50/60 Hz constant current driver.
Mounting	NEMA Type “G” 15/16″ or 1″, “NFG” and “SG” 9/16″ grid installations. Factory-installed earthquake clips provided. Flange installation available, shipped separately.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • IC-rated for direct contact with insulation. • City of Chicago Environmental Air approved when specified with CP option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
