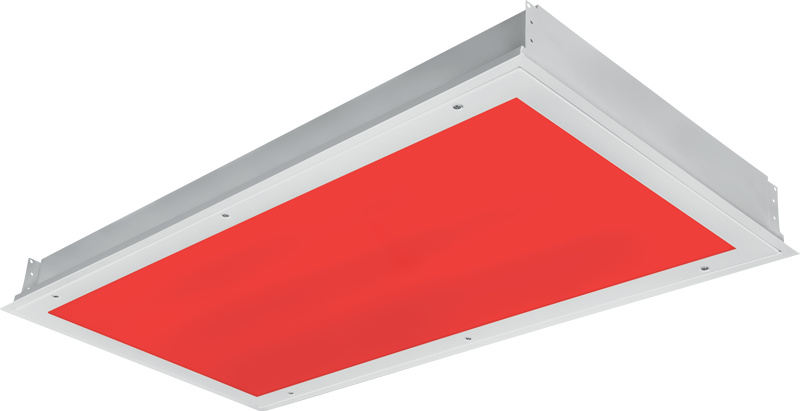

MCT RED Medical Clean Room Troffer

MCT RED: MCT – MIL-Spec Medical Cleanroom Troffer – Engineered for controlled environments. Red and white LED circuits are optimized for vivarium, biosafety, and pharmaceutical applications

Features

625nm Red LEDs provide safe lighting for spectrally-sensitive applications
Red and white LED circuits are optimized for vivarium, biosafety, and pharmaceutical applications
Designed to meet the demanding requirements of controlled environments
NSF approved closed cell foam gasketing in three locations meets all required testing criteria for ISO 5, Class 100 certification
Seam-welded fixture housing and doorframe are designed for infection control
Smooth surface doorframe and lens materials simplify cleaning and maintenance
Optional MIL-STD-461G complies with radiated and conducted emission regulations
Optional plenum access panel allows maintenance personnel to service both the plenum space and fixture components without disturbing the ceiling structure or compromising cleanroom integrity
Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
High-performance up to 132 lm/W
Optional tamper-resistant screws secure door frame to provide protection in high-risk areas
Rated for direct contact with insulation

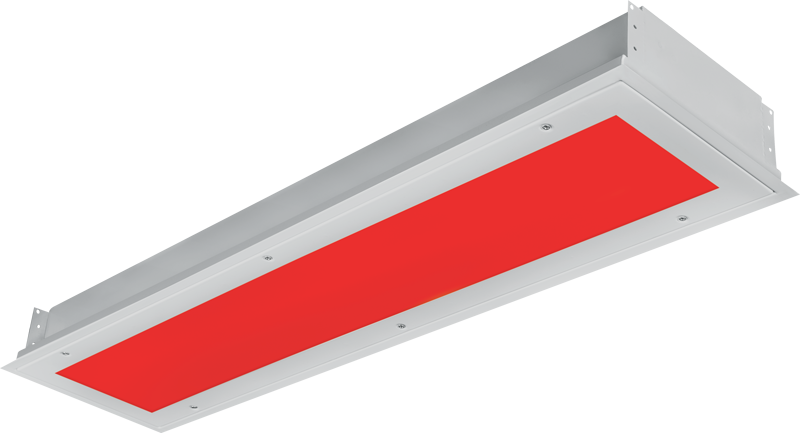

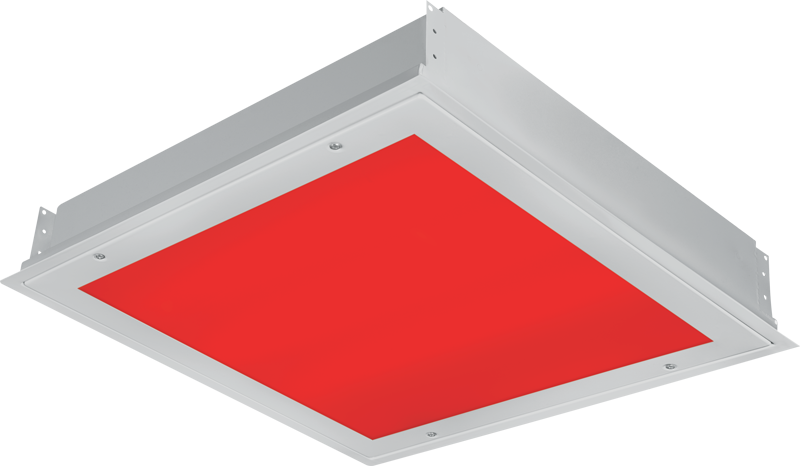

1x4, 2x2, and 2x4 sizes available
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Build America, Buy America and Buy American Act compliant
Made Right Here^® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing	20-gauge die-formed, seam-welded C.R.S. Aluminum and stainless steel options available.
Door Frame	One-piece 20-gauge seam-welded C.R.S. Secured from one side with stainless steel safety cables. Attached to fixture using captive, stainless steel screws.
Shielding	Choice of frosted acrylic lens with smooth clear acrylic or polycarbonate underlay.
Finish	92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 at 50,000 hours. 50/60hz, THD < 10%. Available with red LEDs only, or red and white LEDs. Dedicated driver for each color included to allow dimming of the two circuits individually.
Mounting	NEMA Type “G” 15/16″ or 1-1/2″ grid standard. Drywall flange type available.
Listings	• cCSAus certified as luminaire suitable for wet location under covered ceiling. • IC-rated for direct contact with insulation, lumen restrictions apply. • IP65 rated • ISO 5, Class 100 rated • Suitable for use in BSL 1-4 laboratories in most applications (consult CDC) • NSF/ANSI 2 • Complies with MIL-STD-461G with DIM or DRV drivers. • City of Chicago Environmental Air approved (not available when specified with NSWH) • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited fixture warranty, see details
