MCT RED Medical Clean Room Troffer

Features

  • 625nm Red LEDs provide safe lighting for spectrally-sensitive applications
  • Red and white LED circuits are optimized for vivarium, biosafety, and pharmaceutical applications
  • Designed to meet the demanding requirements of controlled environments
  • NSF approved closed cell foam gasketing in three locations meets all required testing criteria for ISO 5, Class 100 certification
  • Seam-welded fixture housing and doorframe are designed for infection control
  • Smooth surface doorframe and lens materials simplify cleaning and maintenance
  • Optional MIL-STD-461G complies with radiated and conducted emission regulations

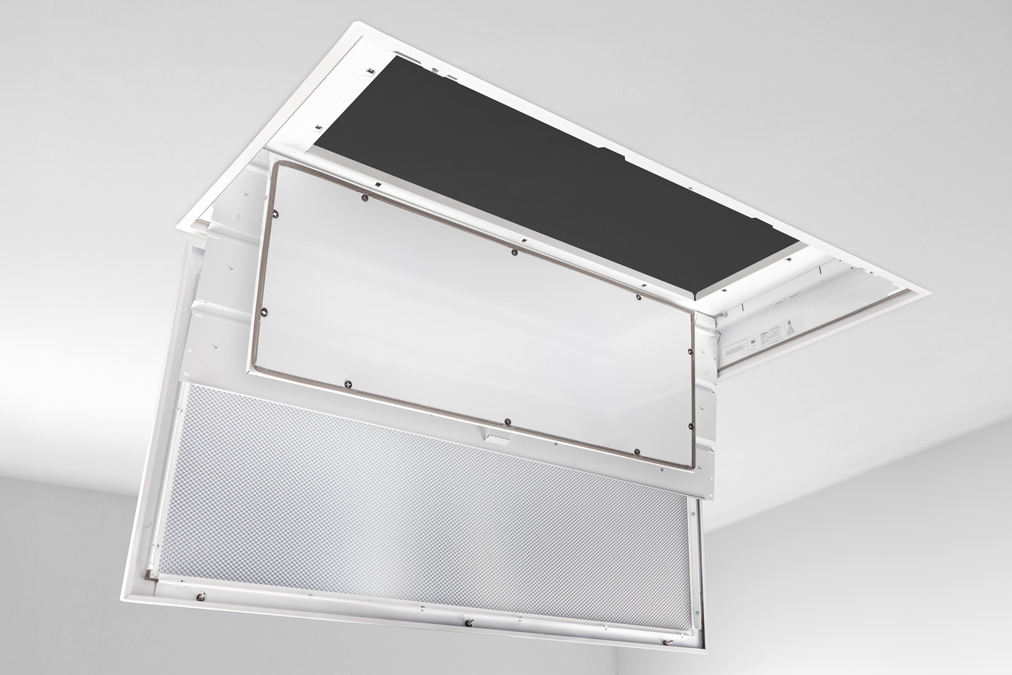

  • Optional plenum access panel allows maintenance personnel to service both the plenum space and fixture components without disturbing the ceiling structure or compromising cleanroom integrity
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • High-performance up to 132 lm/W
  • Optional tamper-resistant screws secure door frame to provide protection in high-risk areas
  • Rated for direct contact with insulation
  • 1x4, 2x2, and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Buy American Act compliant
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

20-gauge die-formed, seam-welded C.R.S. Aluminum and stainless steel options available.

Door Frame

One-piece 20-gauge seam-welded C.R.S. Secured from one side with stainless steel safety cables. Attached to fixture using captive, stainless steel screws.

Shielding

Choice of frosted acrylic lens with smooth clear acrylic or polycarbonate underlay.

Finish

92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 at 50,000 hours. 50/60hz, THD < 10%. Available with red LEDs only, or red and white LEDs. Dedicated driver for each color included to allow dimming of the two circuits individually.

Mounting

NEMA Type “G” 15/16″ or 1-1/2″ grid standard. Drywall flange type available.

Listings

• cCSAus certified as luminaire suitable for wet location under covered ceiling.
• IC-rated for direct contact with insulation, lumen restrictions apply.
• IP65 rated
• ISO 5, Class 100 rated
• NSF/ANSI 2
• Complies with MIL-STD-461G with DIM or DRV drivers.
• City of Chicago Environmental Air approved (not available when specified with NSWH)
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited fixture warranty, see details

Shielding

Pattern #12, .125" Thick

.125" Thick

Pattern #19, .156" Thick
