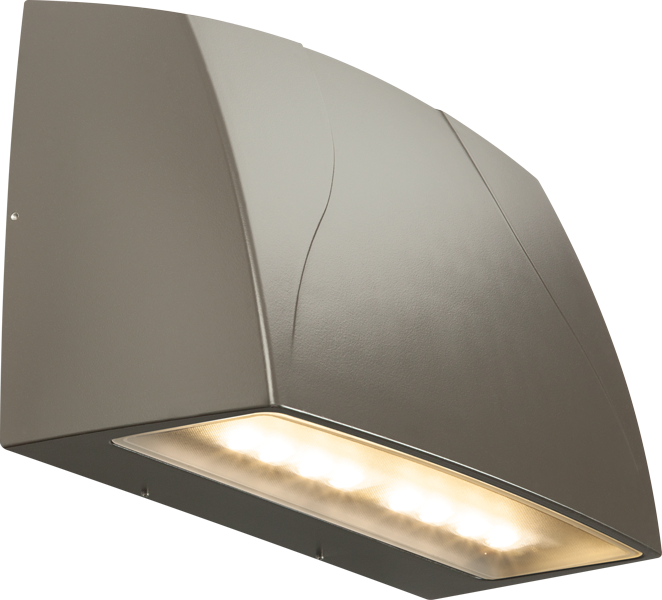

VWPV Voltaire Architectural Wall Pack – Vertical

Features

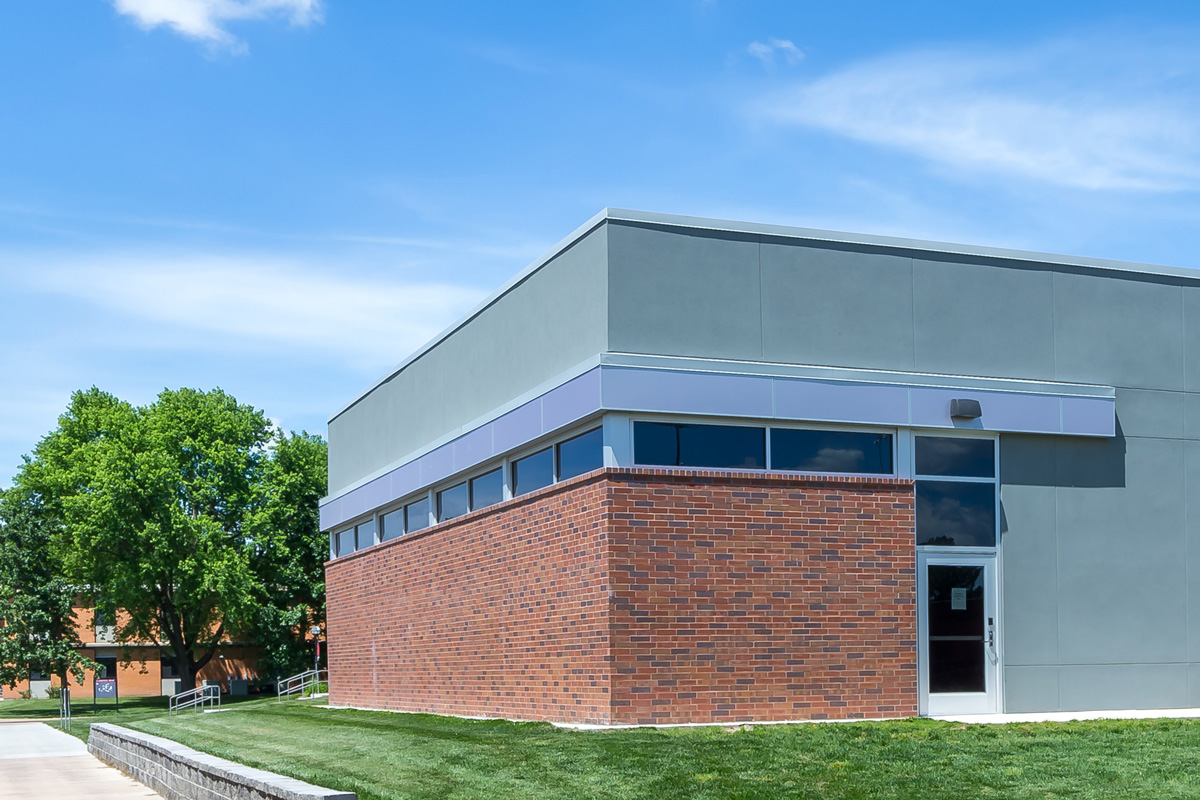

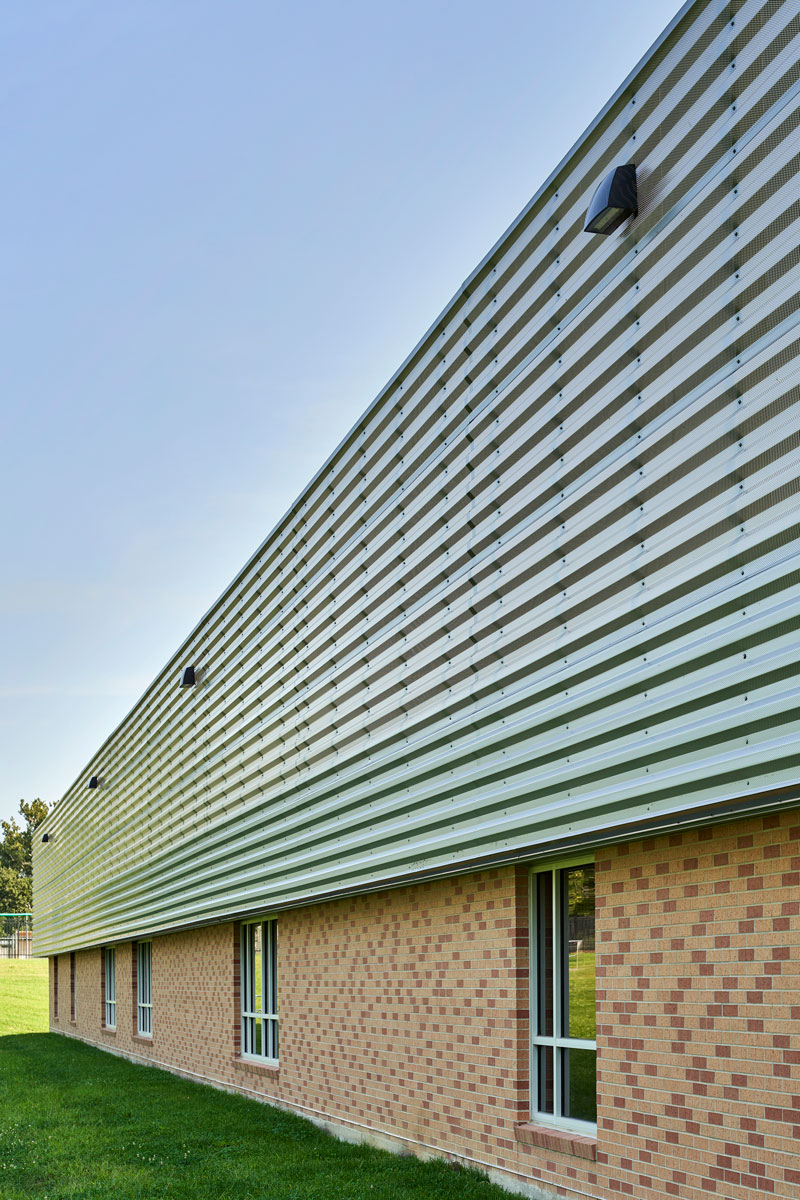

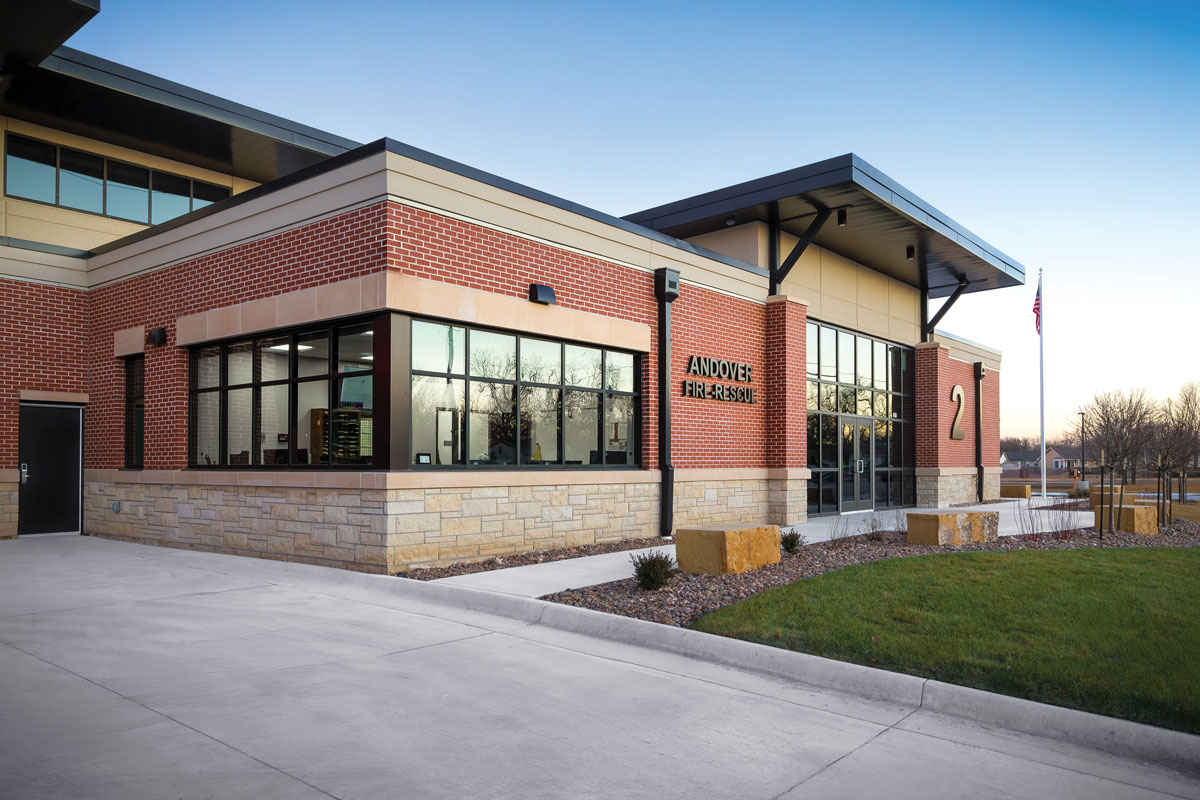

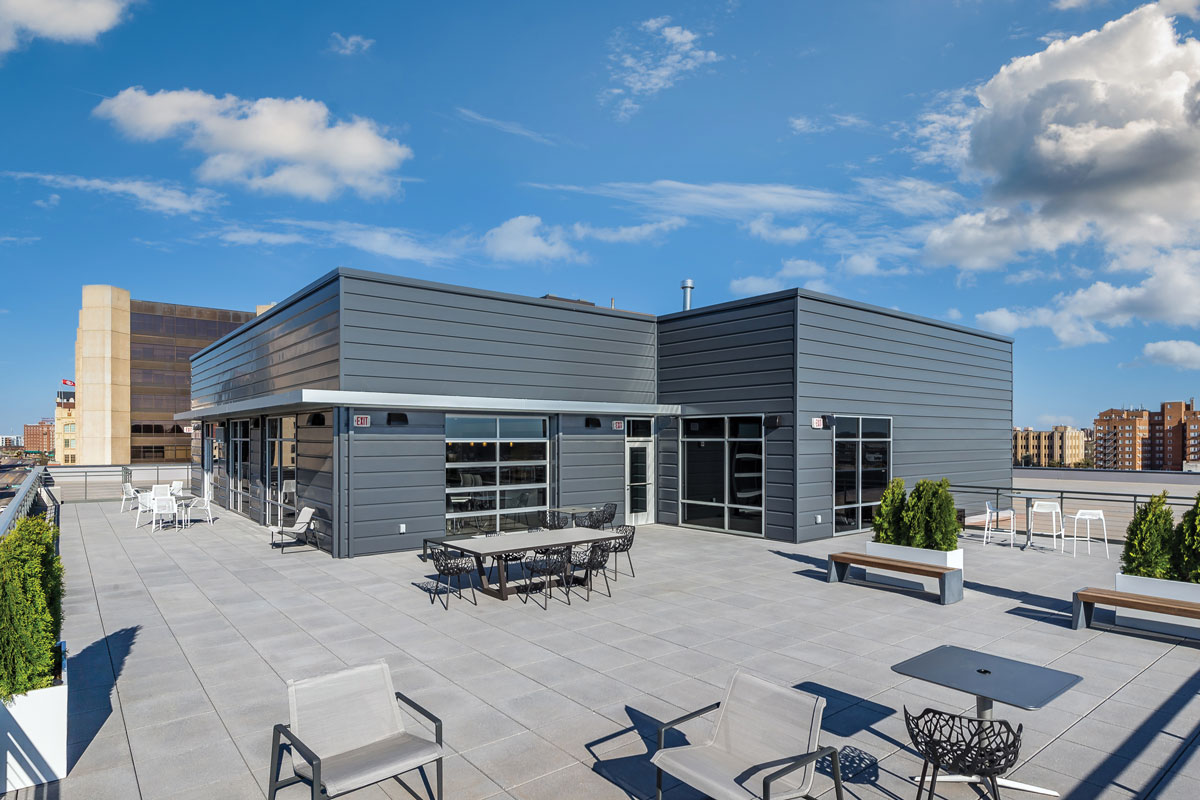

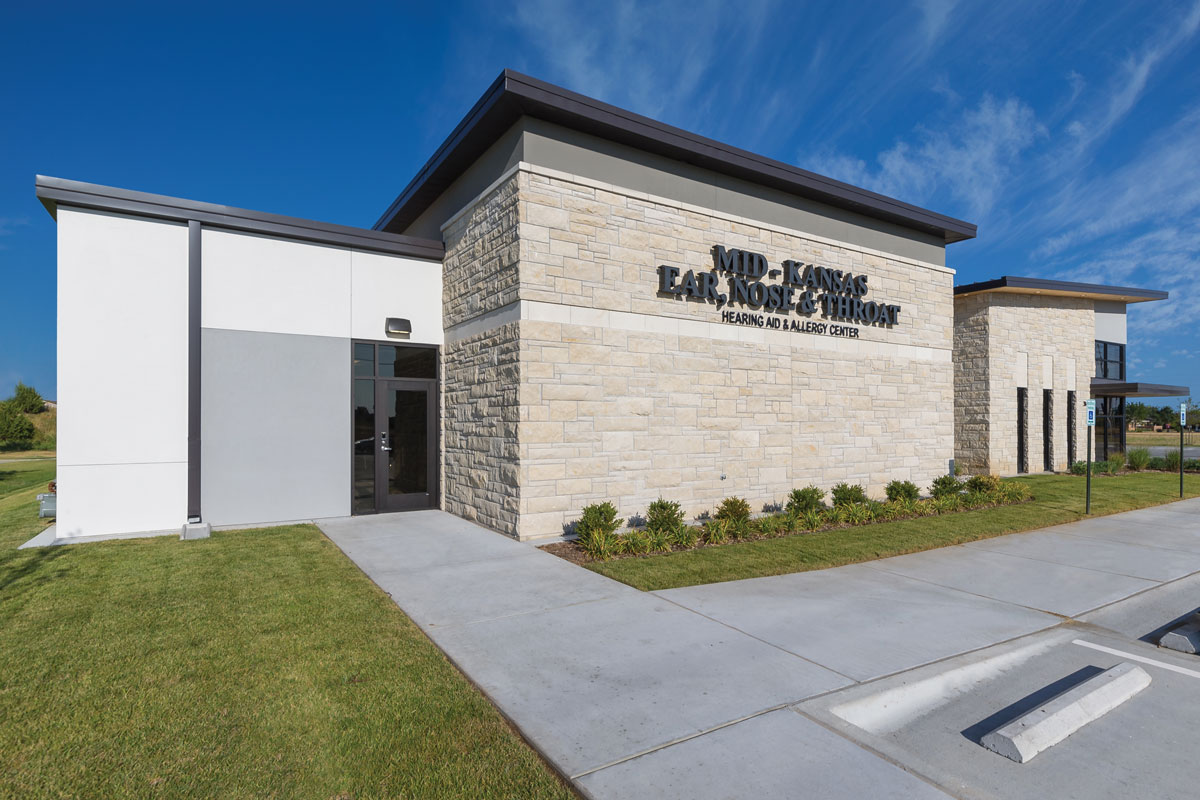

Designed to illuminate sidewalks, entryways, perimeters or facades
Intended for use in both uplight and downlight applications
Blends seamlessly with a variety of architectural styles.

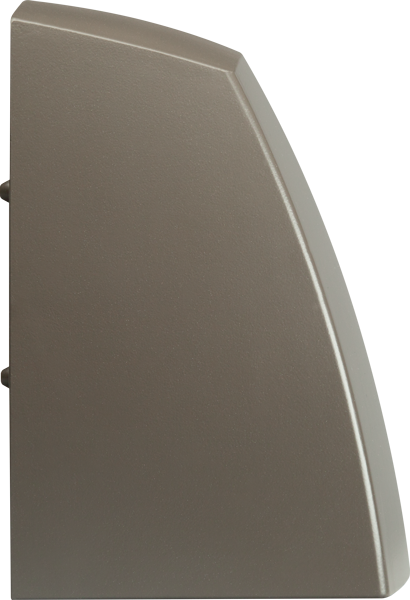

Purposefully modeled to allow runoff of dirt and water for an always-clean appearance
Optional battery, photocell, and tamper-resistant screws
Precision optics provide multiple distribution options
IDA Dark-Sky approved to minimize glare, reduce light trespass and help protect night sky
Seven standard finish options and a wide selection of custom colors complement the architectural elements of any outdoor environment
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	Die-cast aluminum enclosure.
Thermal Management	Integral die-cast aluminum heatsink and LED assembly provide passive thermal management. Rated -30ºC to 40ºC ambient operating temperature (-20ºC to 40ºC with EM/10WC; 0°C to 35°C with EM/10CEC; 0ºC to 39ºC with EM/4W).

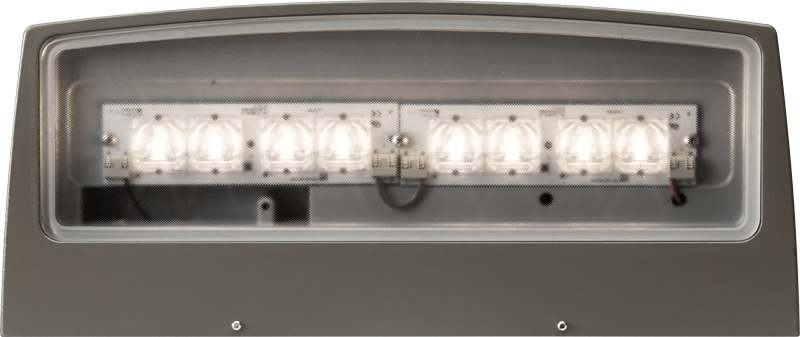

Optical System	Precision, injection-molded, refractive acrylic lensing produces standard IES distributions.
LED Assembly	ANSI 3000K, 4000K, or 5000K CCT, minimum 70 CRI LEDs.
LED Driver	0-10V dimming.
Electrical	120-277, 347, and 480 VAC input range; 50-60Hz; power factor >.90; THD <20% at full load. FCC Class A compliant. 10kA/10kV surge protection standard. Quick-disconnect wiring provided. L70 >50,000 hours per IES TM-21.
Finish	Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability.
Mounting	Surface mounts directly over a 4″ maximum outlet box. Must be anchored to adequate structure that can safely support fixture weight (VWPH = 15 lbs, VWPV = 23 lbs).
Listings	• cCSAus certified as luminaire suitable for wet locations. • FCC Class A compliant. • IDA Dark-Sky approved (downlight applications only). • RoHS compliant. • IP65 rated. • Title 24 compliant with OCCWS FSP-311-L_ option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
