GFR FieldSELECT Round High Bay

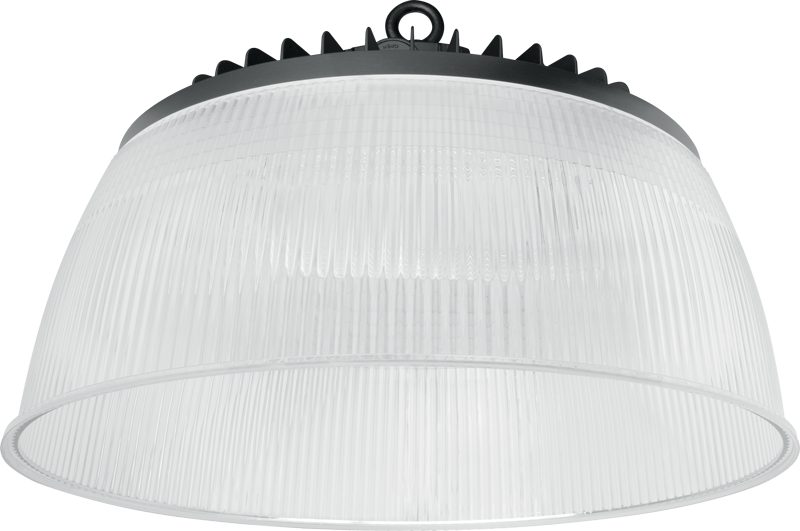

Medium with black finish – reflector option
FieldSELECT switches

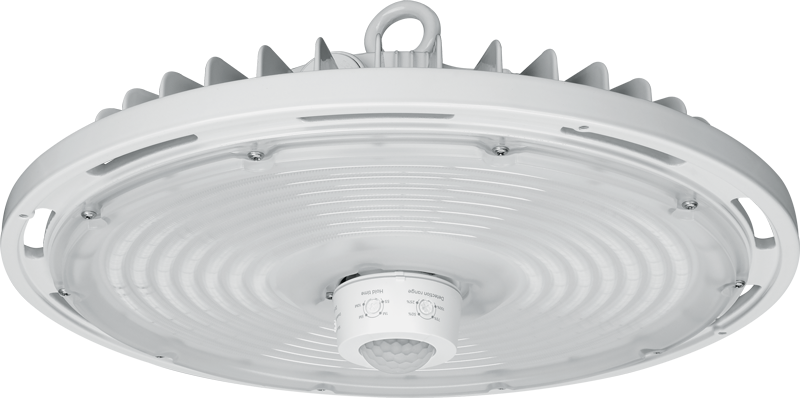

Sensor option

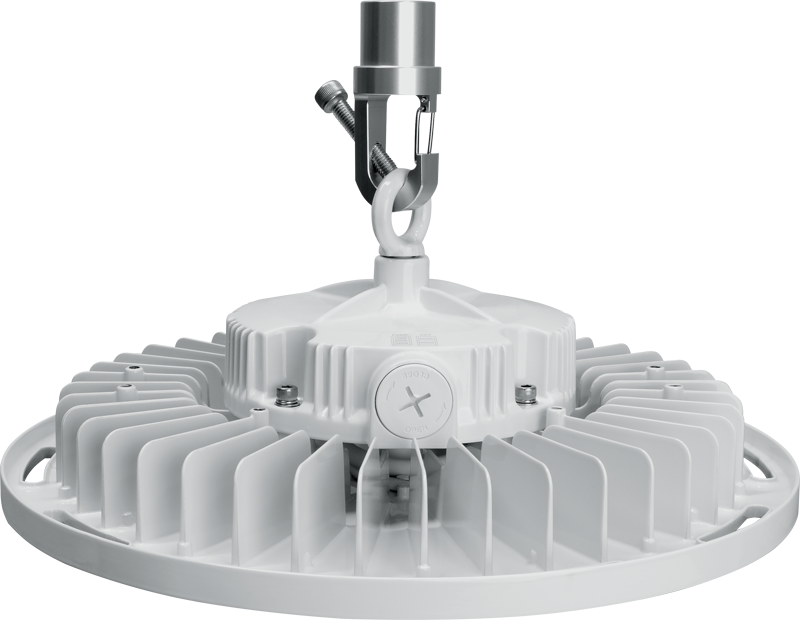

Pendant snap hook option

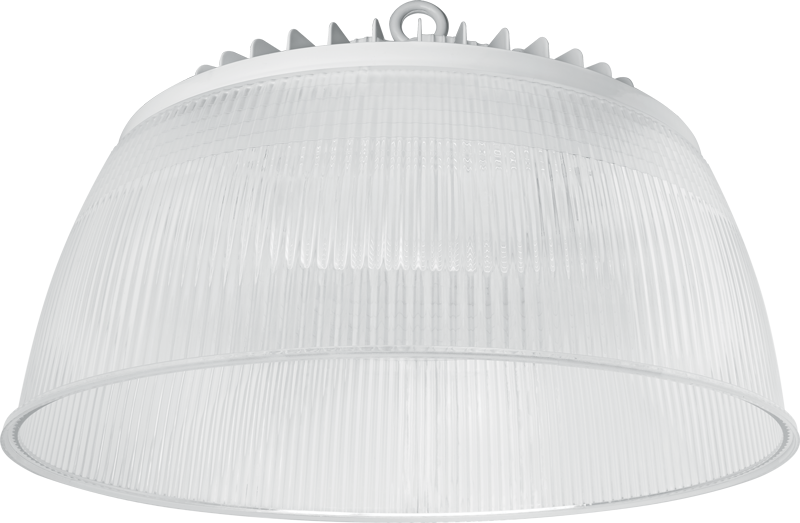

Medium with white finish – reflector option

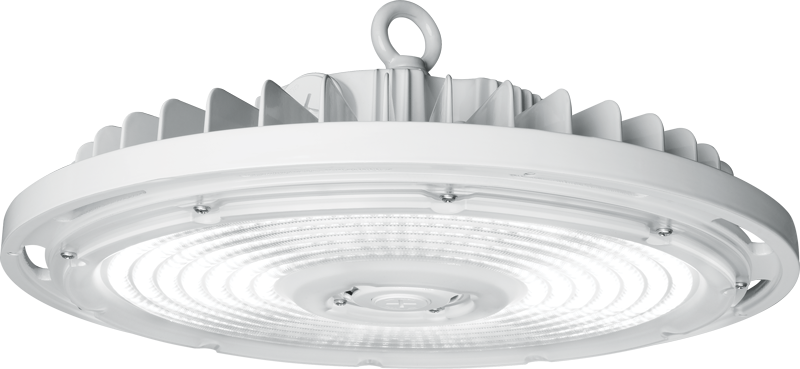

Medium with white finish – on

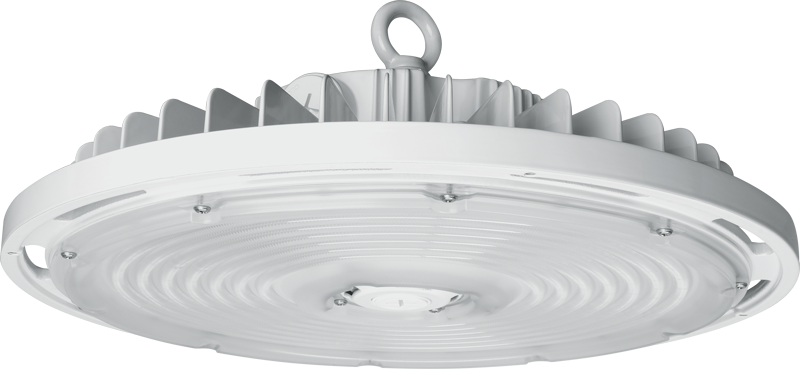

Medium with white finish – off

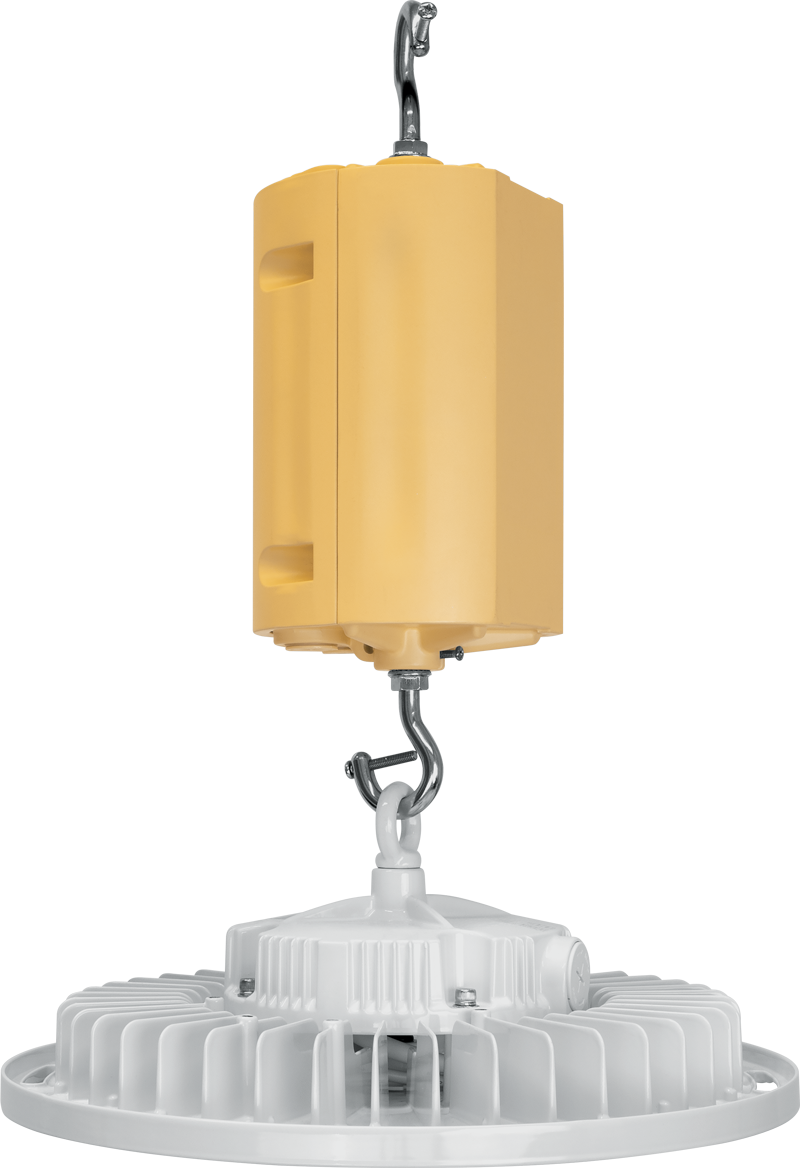

EM battery option

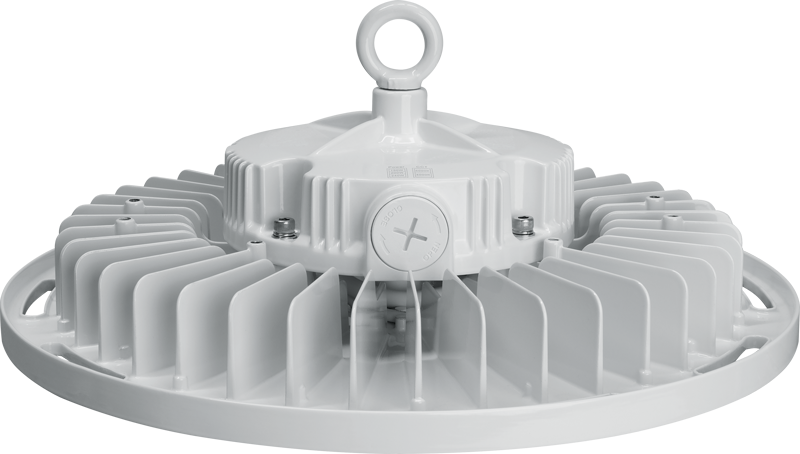

Medium with white finish – back view

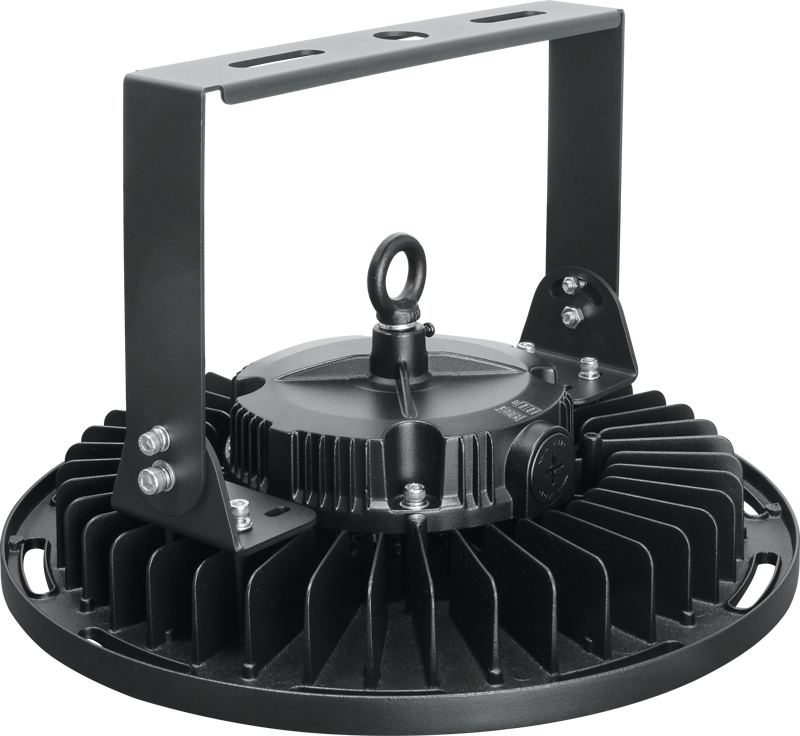

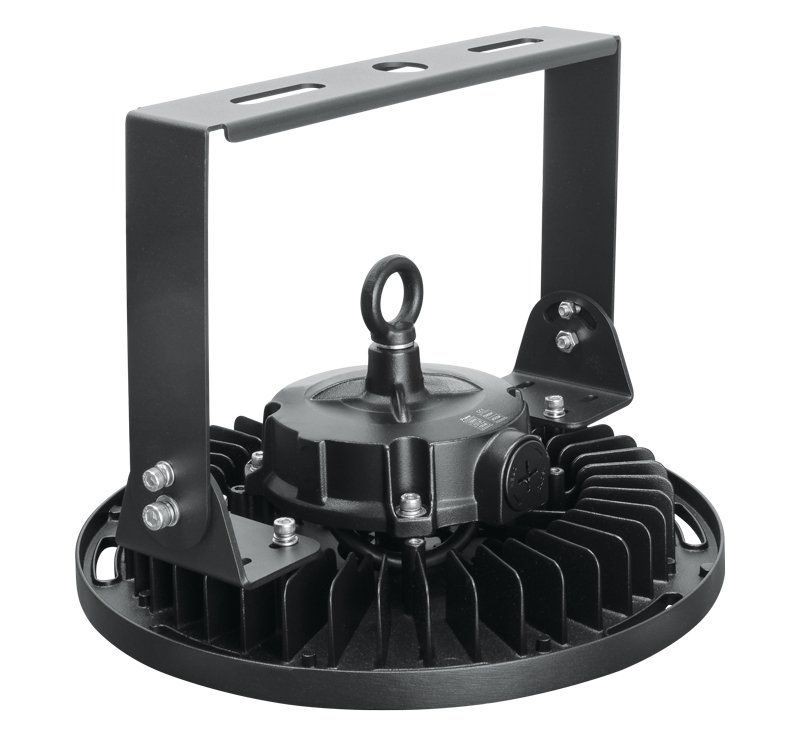

Yoke option with black finish

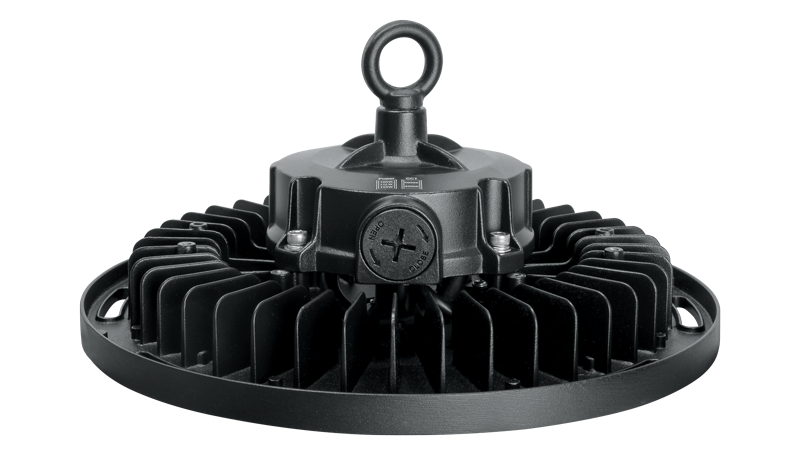

Small with black finish – back view

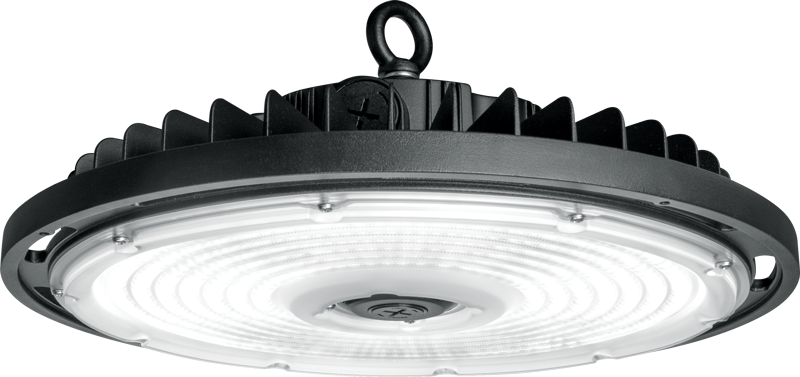

Medium with black finish – on

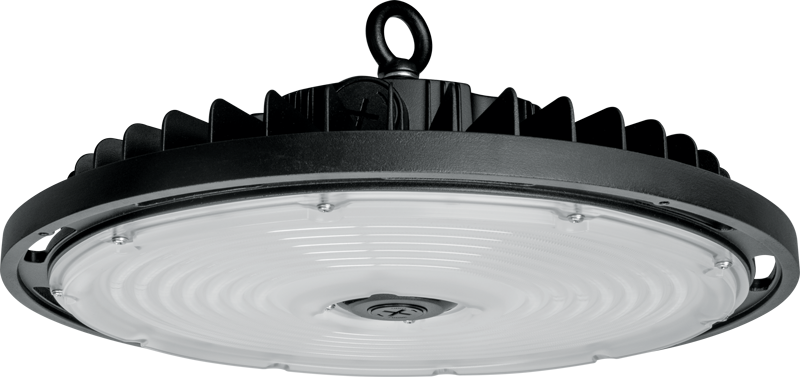

Medium with black finish – off

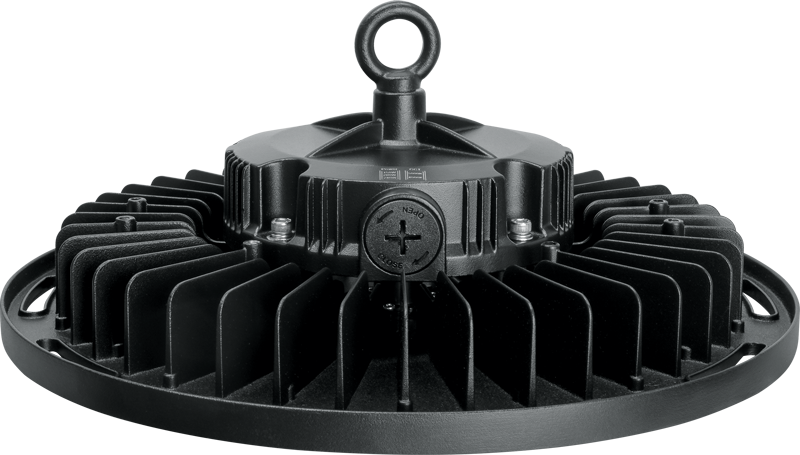

Medium with black finish – back view

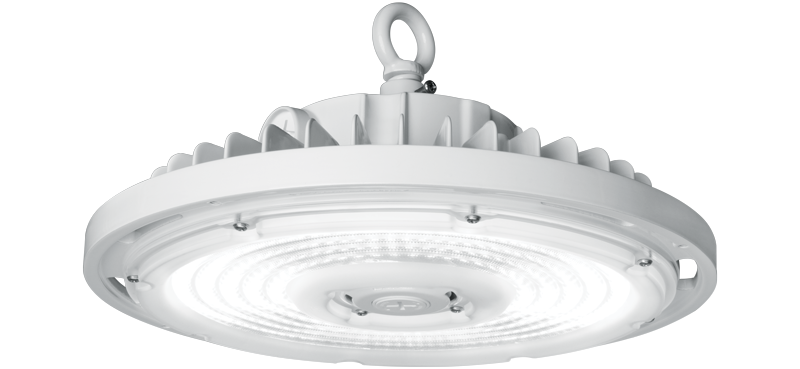

Small with white finish – on

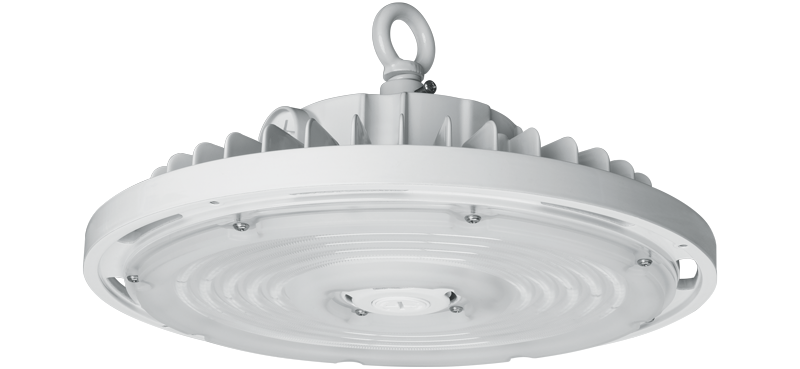

Small with white finish – off

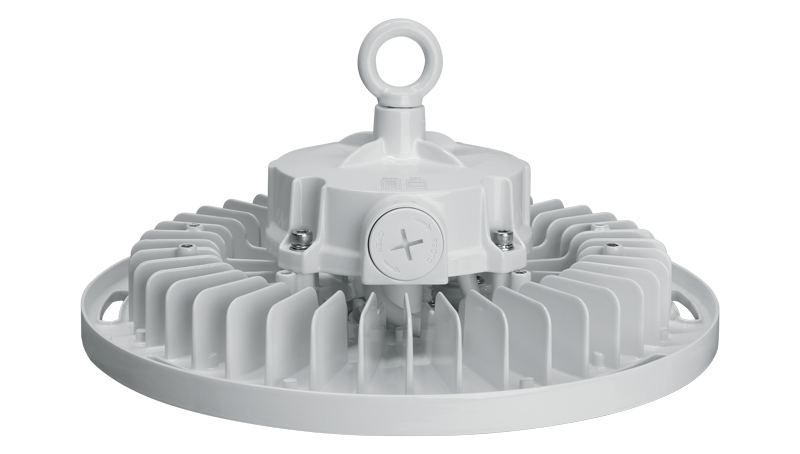

Small with white finish – back view
Yoke option with black finish

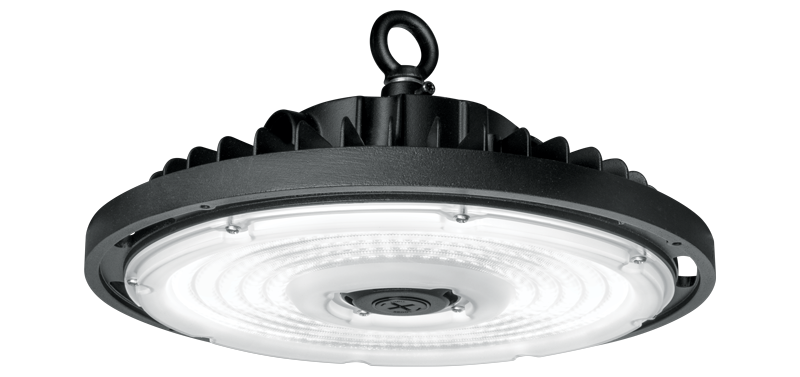

Small with black finish – on

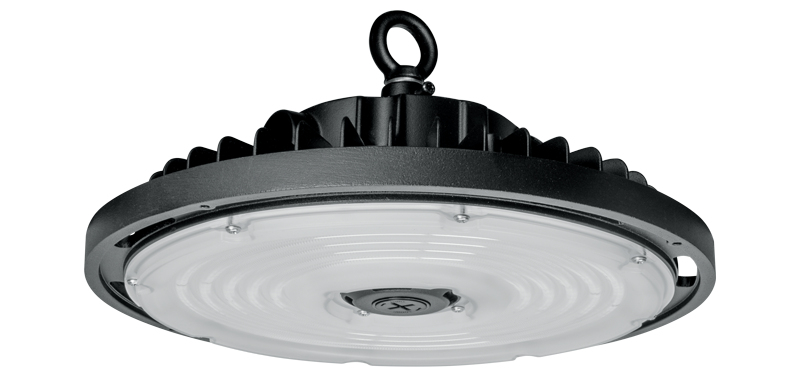

Small with black finish – off
GFR: GFR Round High Bay LED features a sealed IP65 housing, IK09 impact resistance, and up to 167 lm/W efficacy, with field-selectable color temperature and lumen output.
DLC Premium Qualified logo
IK09 Rated
IP65 Rated

Features

  • Easily change the color temperature and lumen output on-site with built-in switches, providing ultimate flexibility

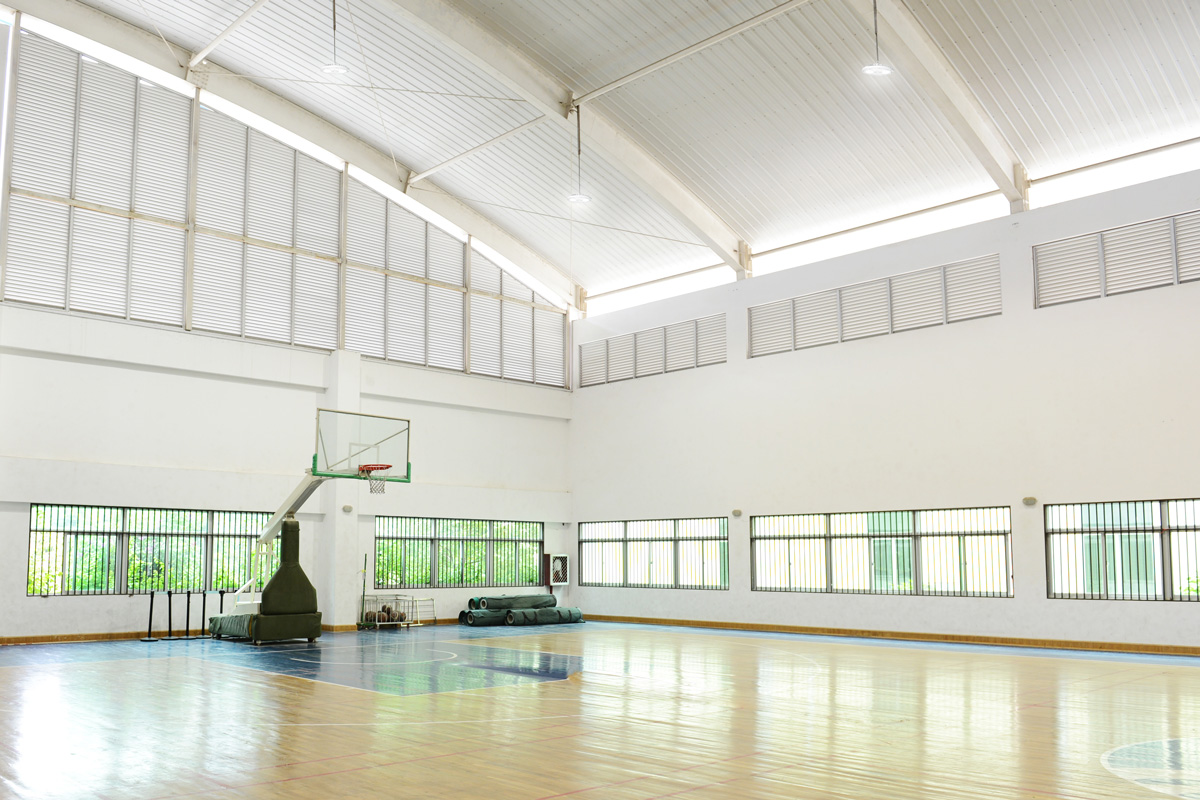

  • Suited for high-ceiling spaces such as warehouses, cold storage, manufacturing, and gymnasiums
  • IK09 impact-resistant housing withstands contact from debris and equipment
  • IP65 rated against dust and water ingress
  • 6kV integrated surge protection maintains operation through voltage spikes
  • Included eyebolt for immediate suspension mounting out of the box
  • Optional surface mount yoke bracket allows up to 180° of aiming adjustability
  • Reflector, sensor, and battery backup options available
  • High-performance up to 167 lm/W
  • High efficacies up to 167 lm/W for greater energy savings
  • DLC Compliant

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Find your local agent or distributor.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing

Die cast aluminum.

Shielding

Clear polycarbonate lens.

Finish

Premium powder-coat.

Electrical

High-quality mid-power LED boards. L70 >146,000 hours. 50/60 Hz constant current driver. Less than 20% THD and PF >0.90. 6kV internal surge protection, standard. -40°C to +50°C ambient operating temperature. 0°C to 50°C with EM battery.

Mounting

Suspended using eyebolt, provided. 6′ AC power and dimming cords included. Fixture weight is 3.7lbs for GFRS and 6lbs for GFRM.

Listings

• cULus listed as LED luminaire suitable for wet locations.
• IP65 rated.
• IK09 rated.
• DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, search HBRSR on the DLC Qualified Products List at www.designlights.org/QPL.

Warranty

5-year limited warranty.
