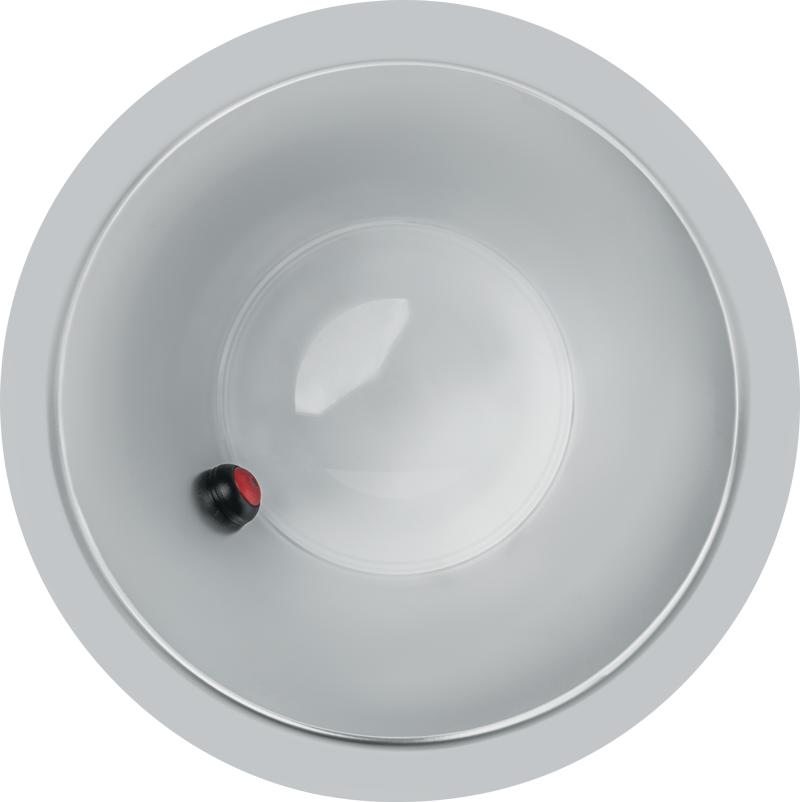

6LDR 6" Lite Downlight – Round
Features
- Simple and quick installation in new construction or remodel applications
- Rated for direct contact with insulation
- Heavy-duty mounting springs secure fixture
- Maximize energy savings with efficacies up to 120 lm/W
- Top diffuser in trim enhances uniformity and minimizes glare
- Low UGR meets LEED and WELL requirements
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Heat Sink |
Aluminum. |
|
Trim |
Low-iridescent anodized aluminum with 1/2″ standard flange and diffuse polycarbonate lens at top of open reflector. Semi-specular finish standard. |
|
Electrical |
High-quality mid-power LED boards. L70 >70,000 hours. 25ºC max ambient operating temperature. 50/60 Hz constant current driver. |
|
Mounting |
Recessed. 20 ga. galvanized steel mounting pan for new construction. Remodel kit option includes receiver bracket hardware. Compatible with ø6-1/2″ ceiling cutout. Heavy-duty mounting springs accommodate ceiling thicknesses from 1/2″ - 2-1/2″. Provided with 15″ plenum-rated cable. New construction mounting pan accessory available. For remodel installations, the minimum plenum height from the top of 5/8″ sheetrock is 7-1/4″. Weight 2.25 lbs. |
|
Listings |
• cETLus listed as LED luminaire suitable for dry or damp locations. |
|
Warranty |
5-year limited warranty, see details |
Reflector Finish Details
White
Clear Semi-Spec
Black
Matte White Trim
