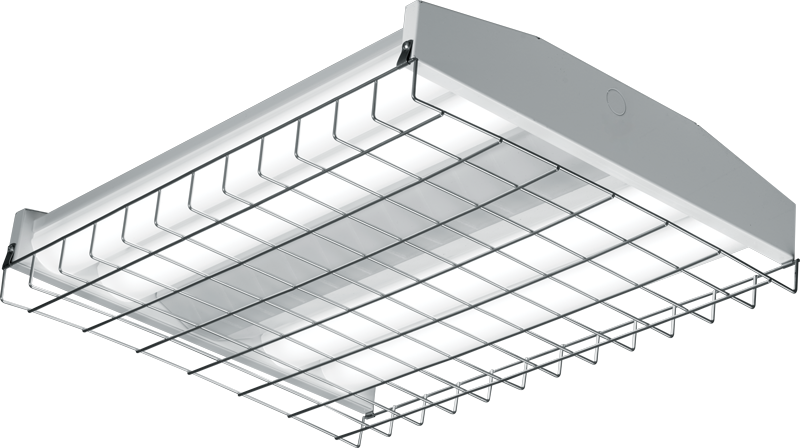

GH Compact Modular High Bay

Features

  • Scalable design up to 72,000 lumens
  • Optimized for single-person installation
  • Multiple shielding and distribution options
  • High-performance up to 154 lm/W
  • Frosted lens reduces glare
  • Energy-saving alternative designed to replace traditional HID or fluorescent high bays
  • Variety of mounting options for surface and suspended applications
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • DLC Compliant
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing

Die-formed steel housing.

Shielding

Frosted acrylic.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 at 65,000 hours. 40°C maximum ambient operating temperature standard. 55°C max when specified with HA option. 45°C max when specified with EM battery. 50/60 Hz constant current driver.

Mounting

Suspended. Surface mount kit available. Indoor applications only.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Finishes

Black

Bronze

Nickel

Alum

Silver

White

200+ RAL Colors

Compatible Controls

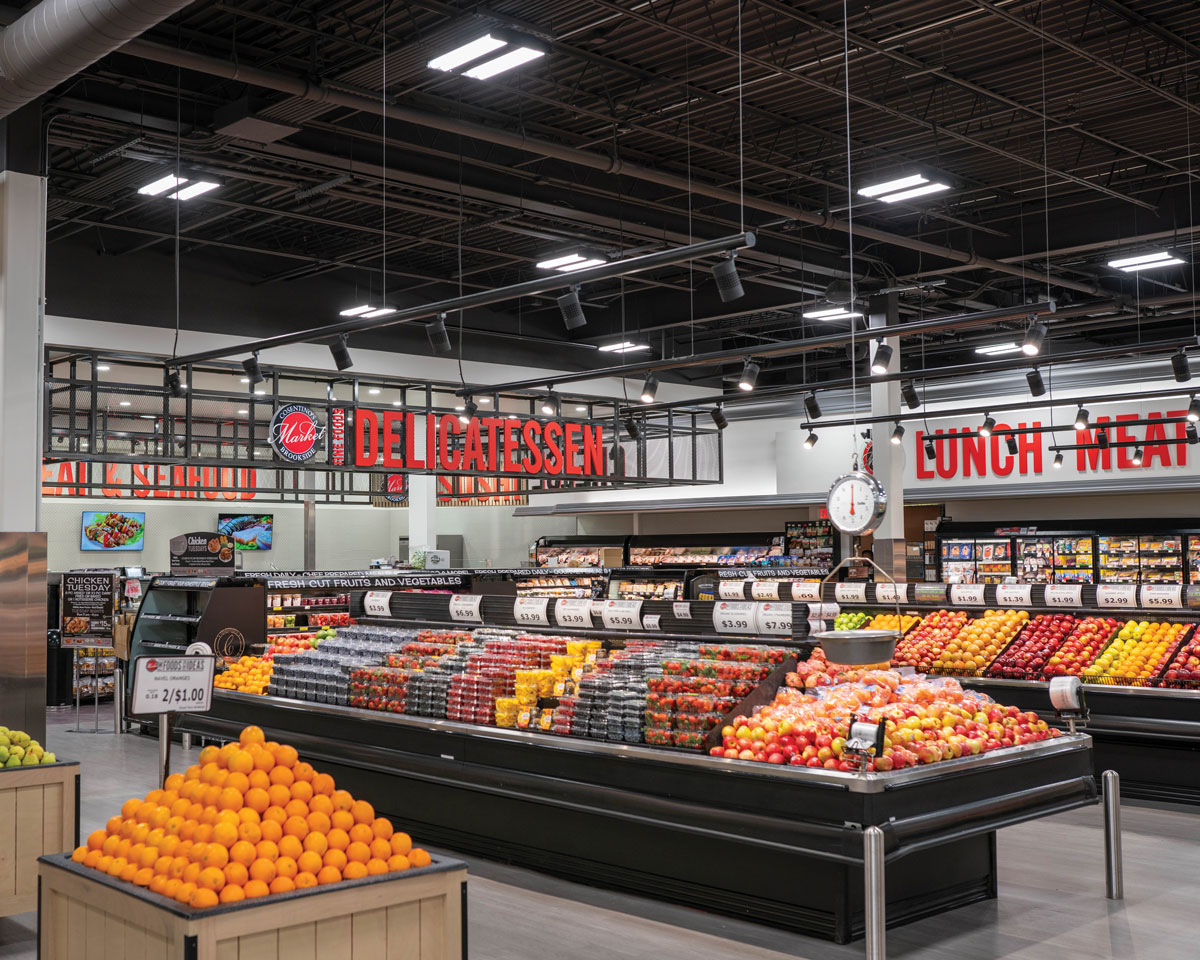

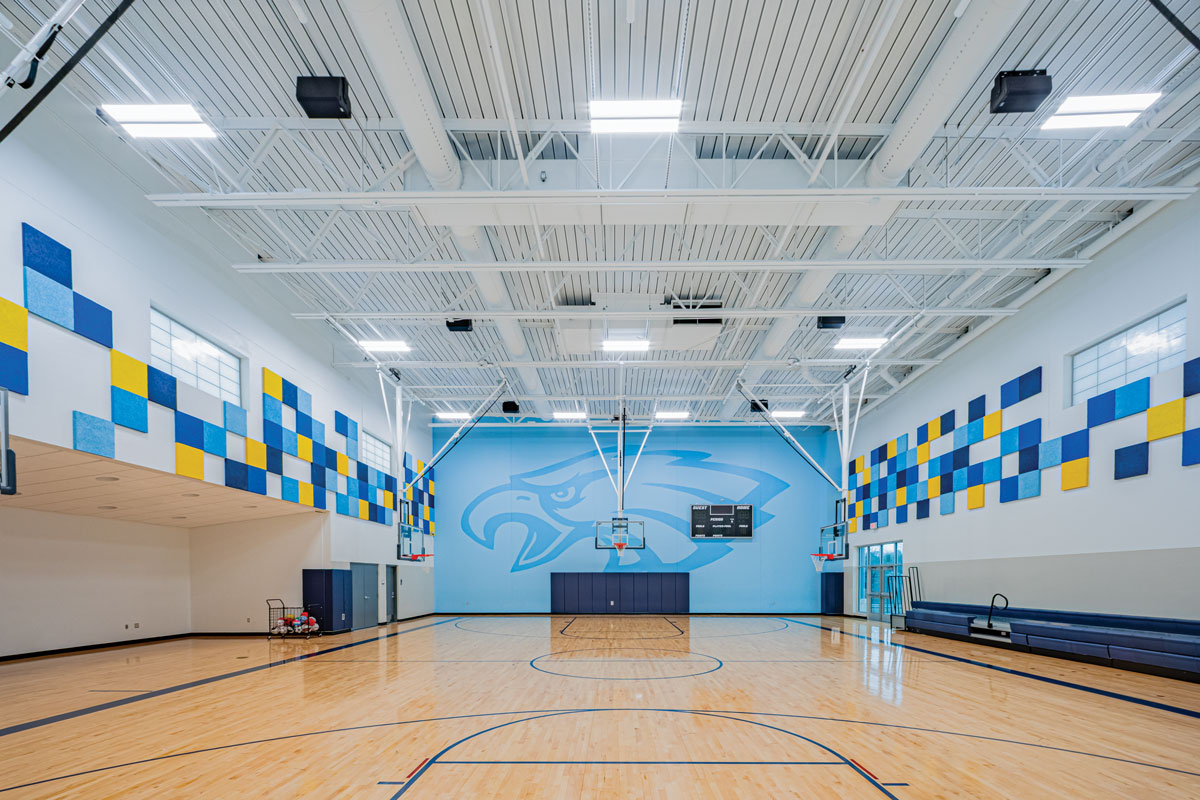

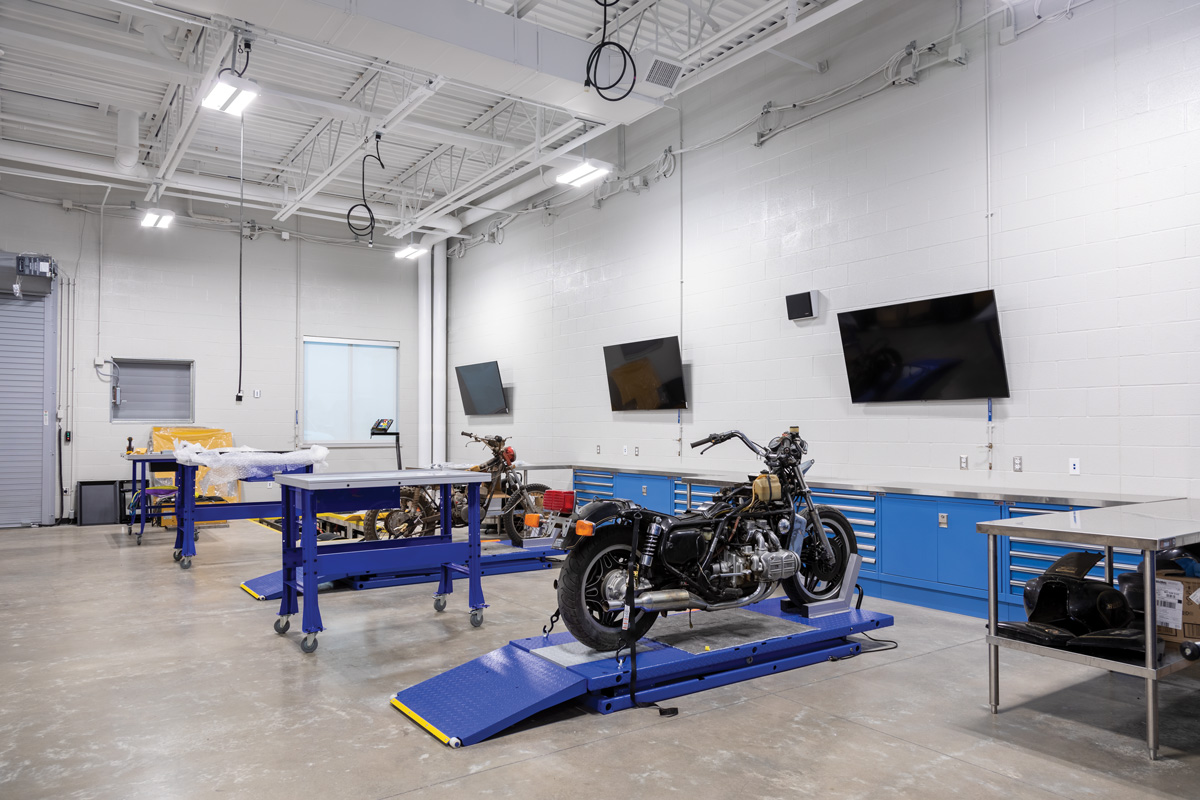

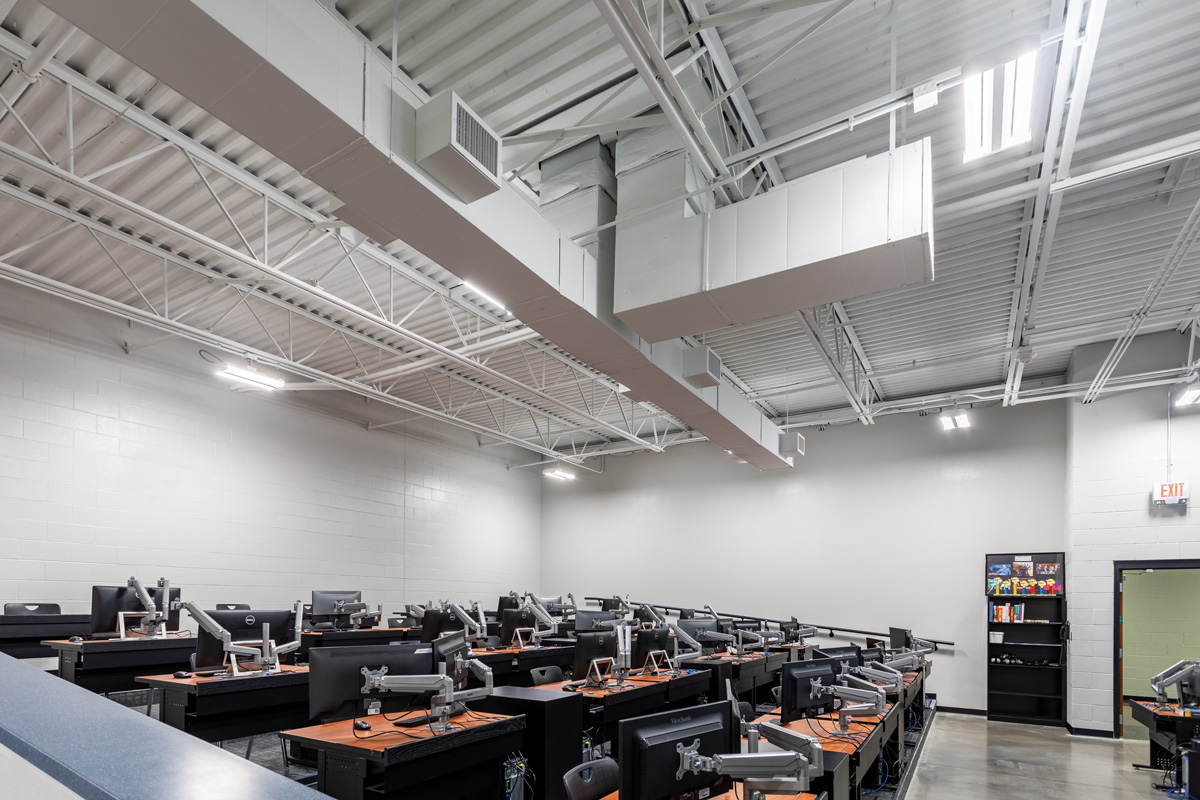

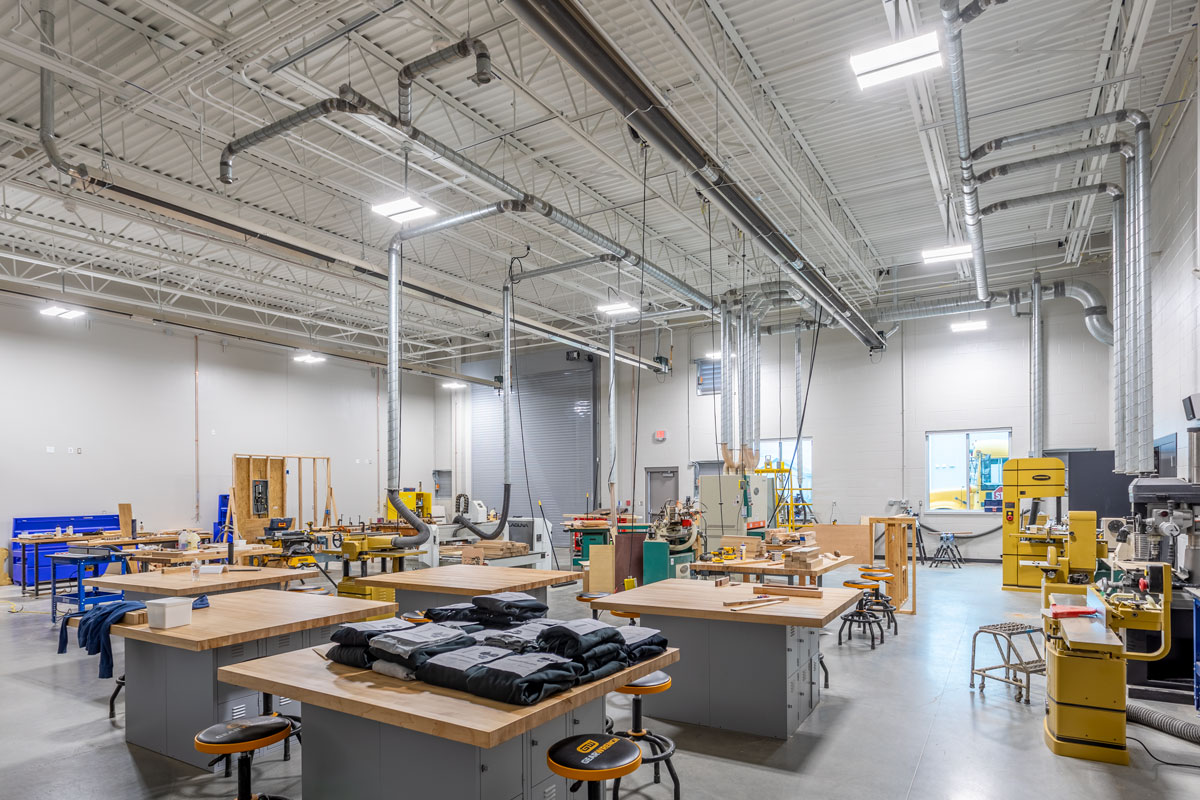

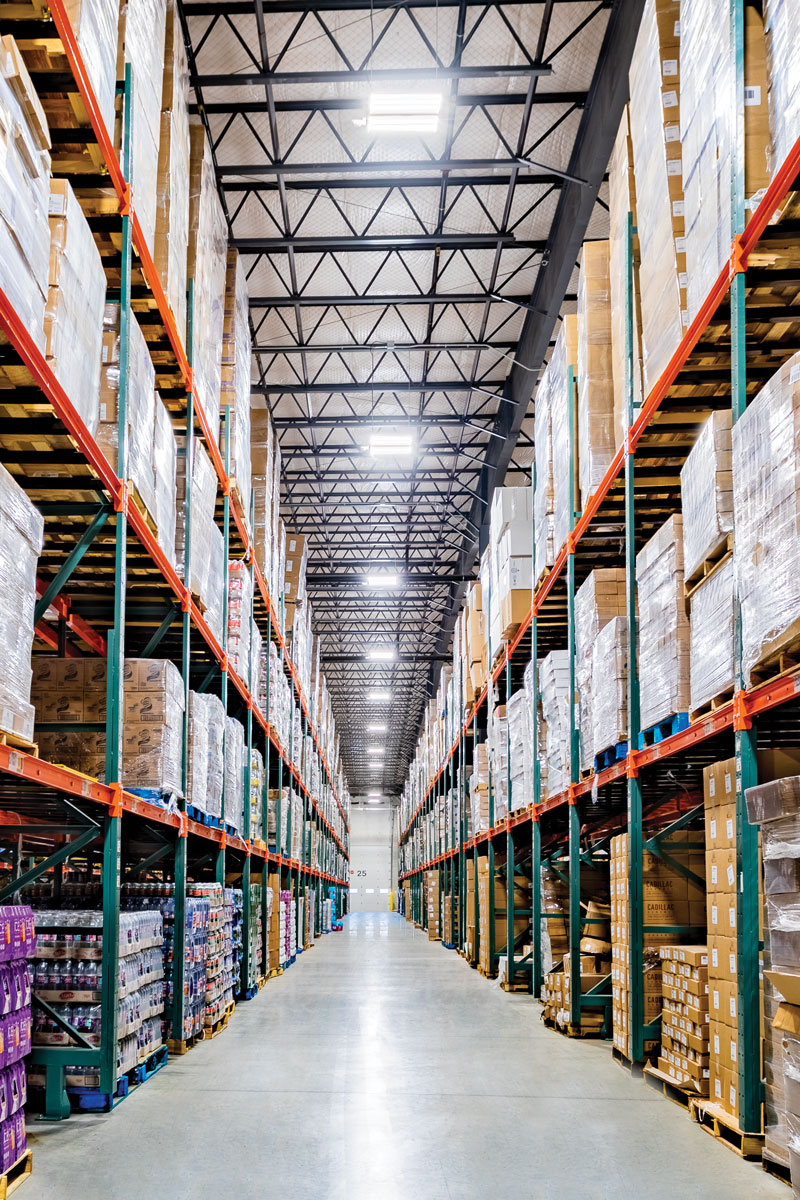

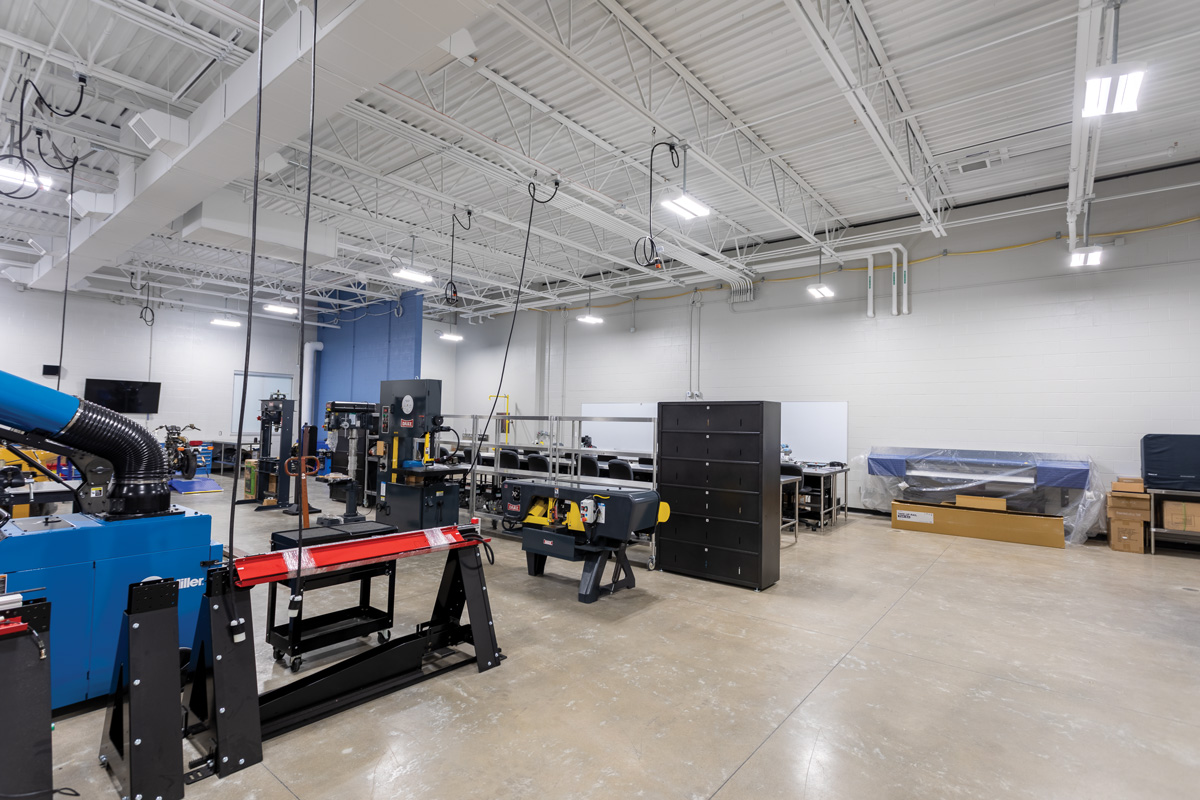

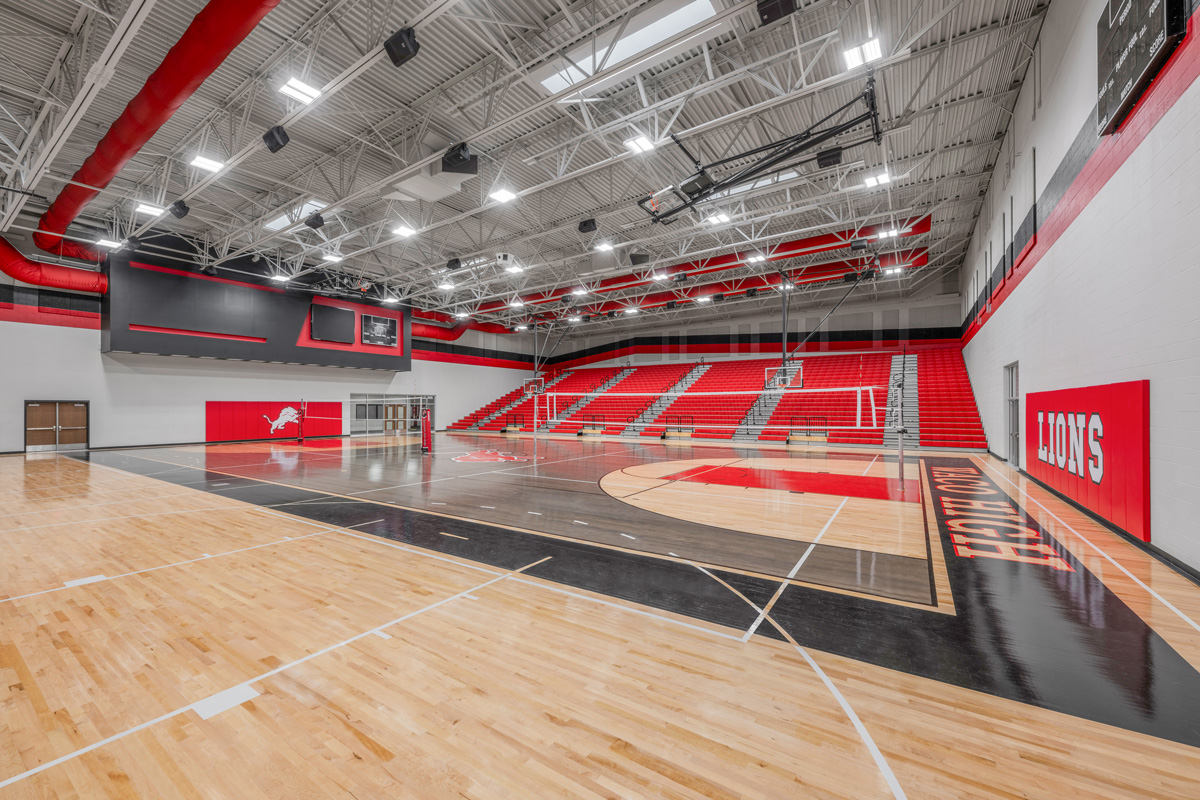

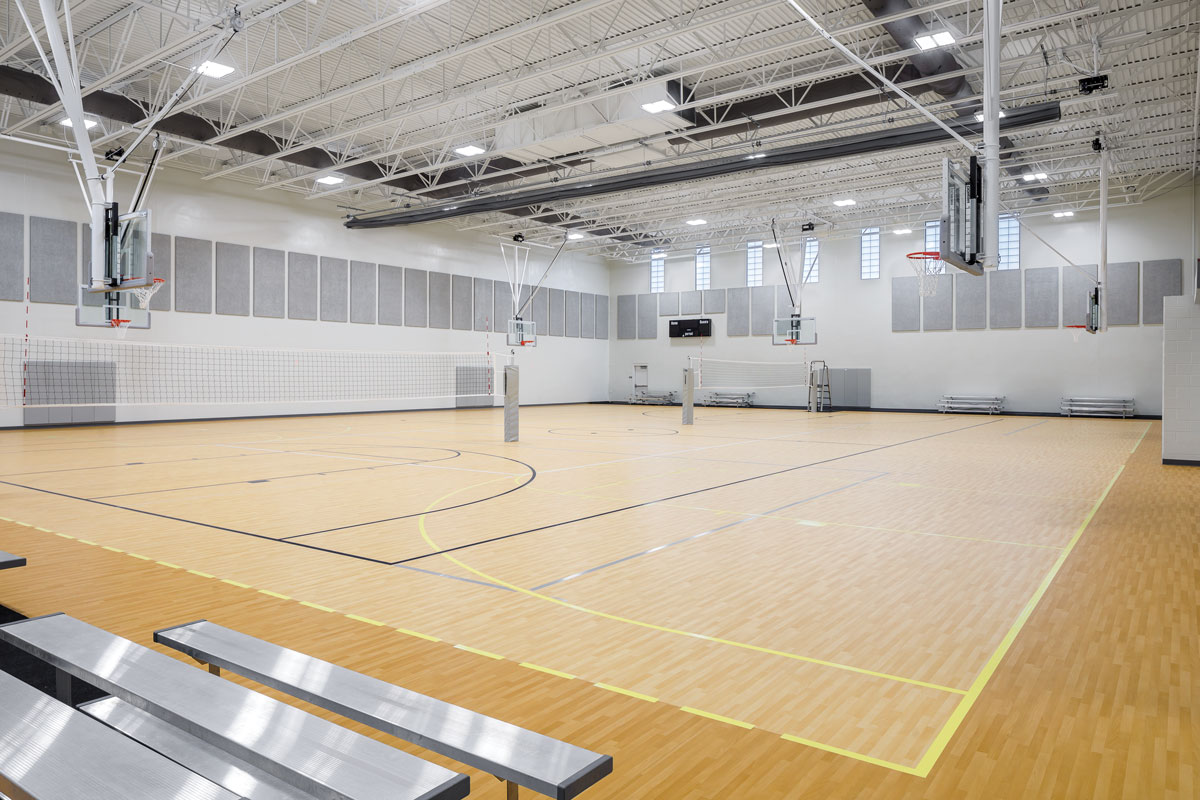

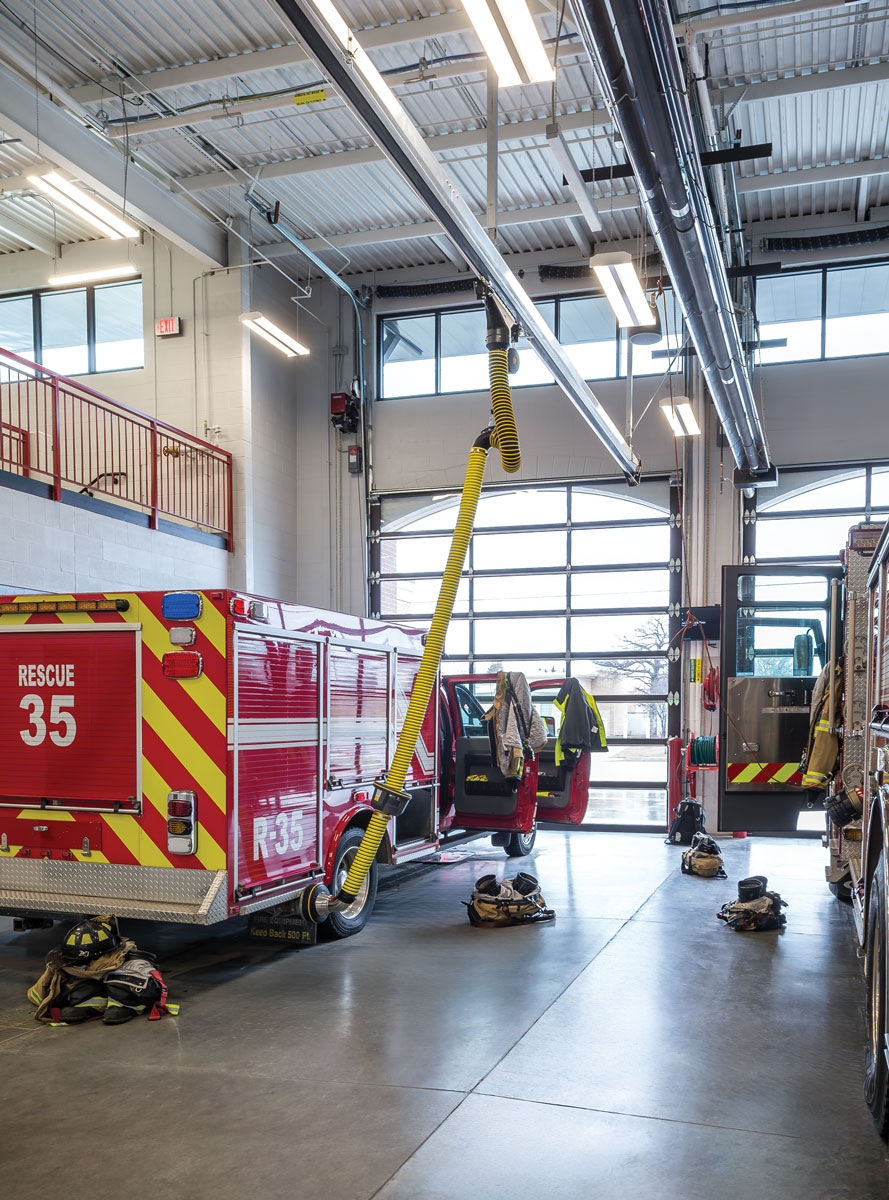

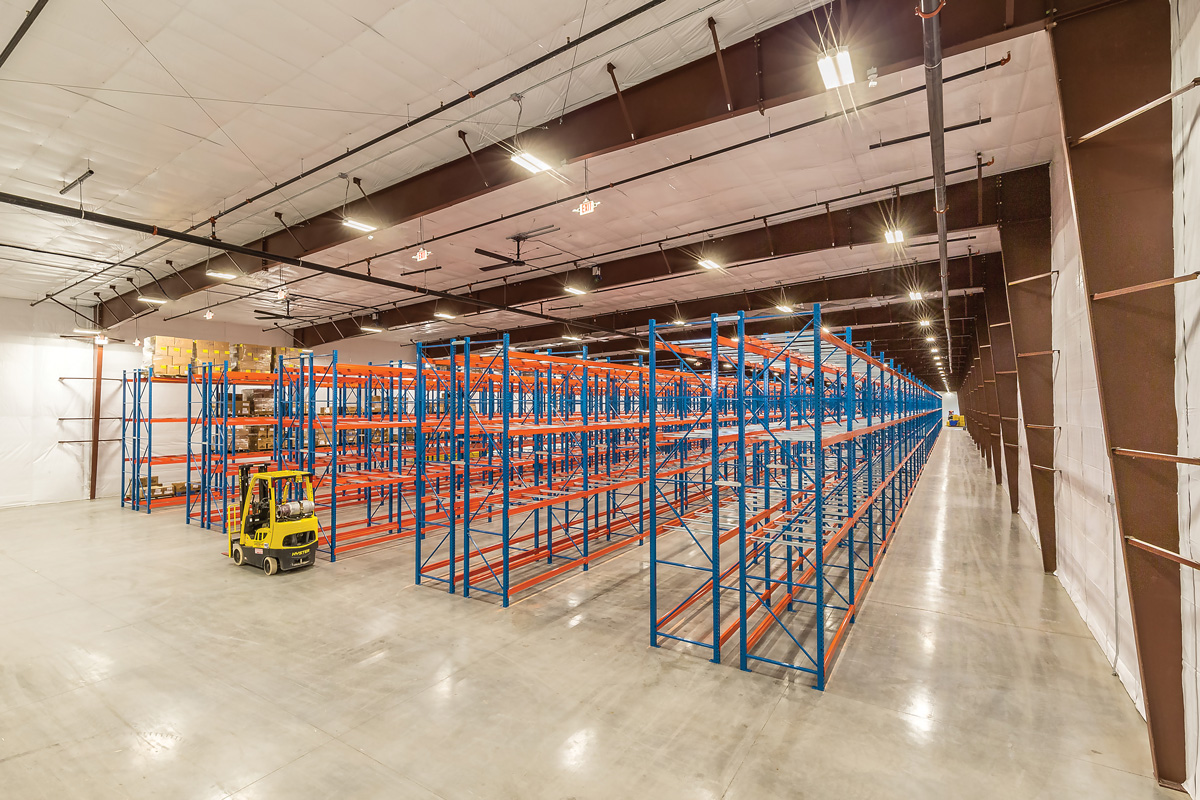

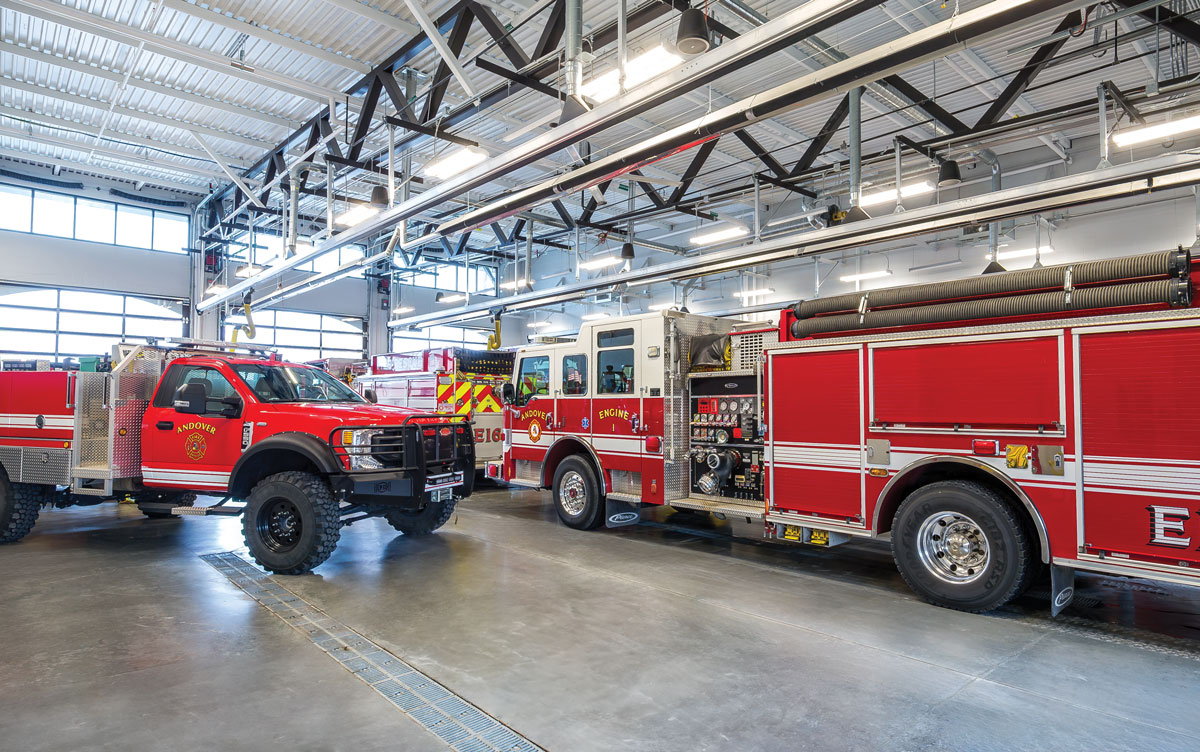

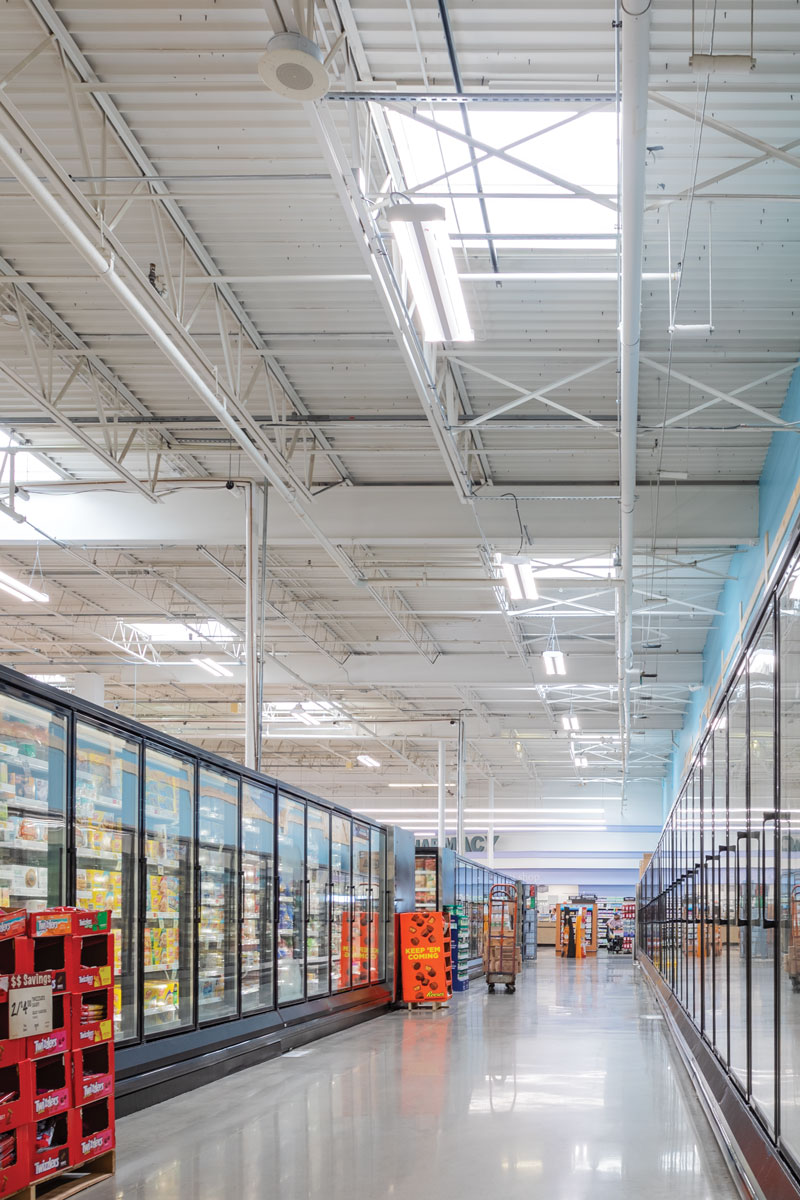

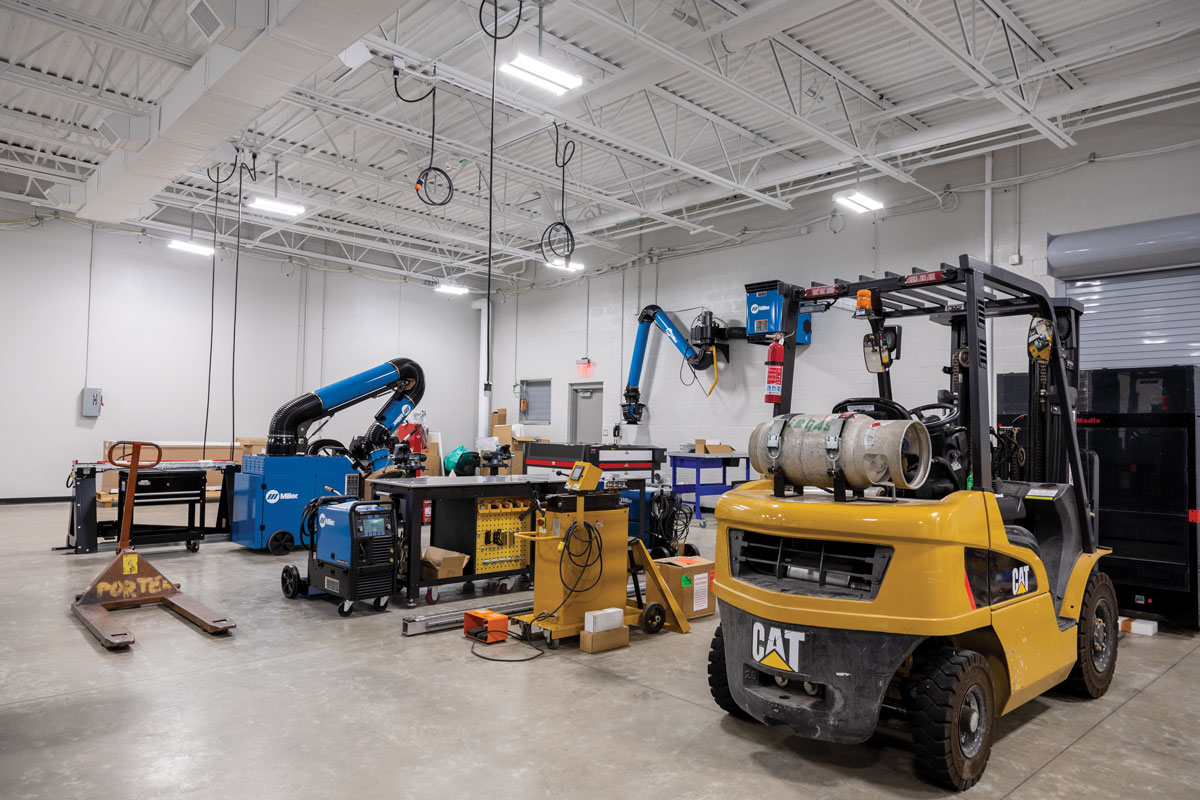

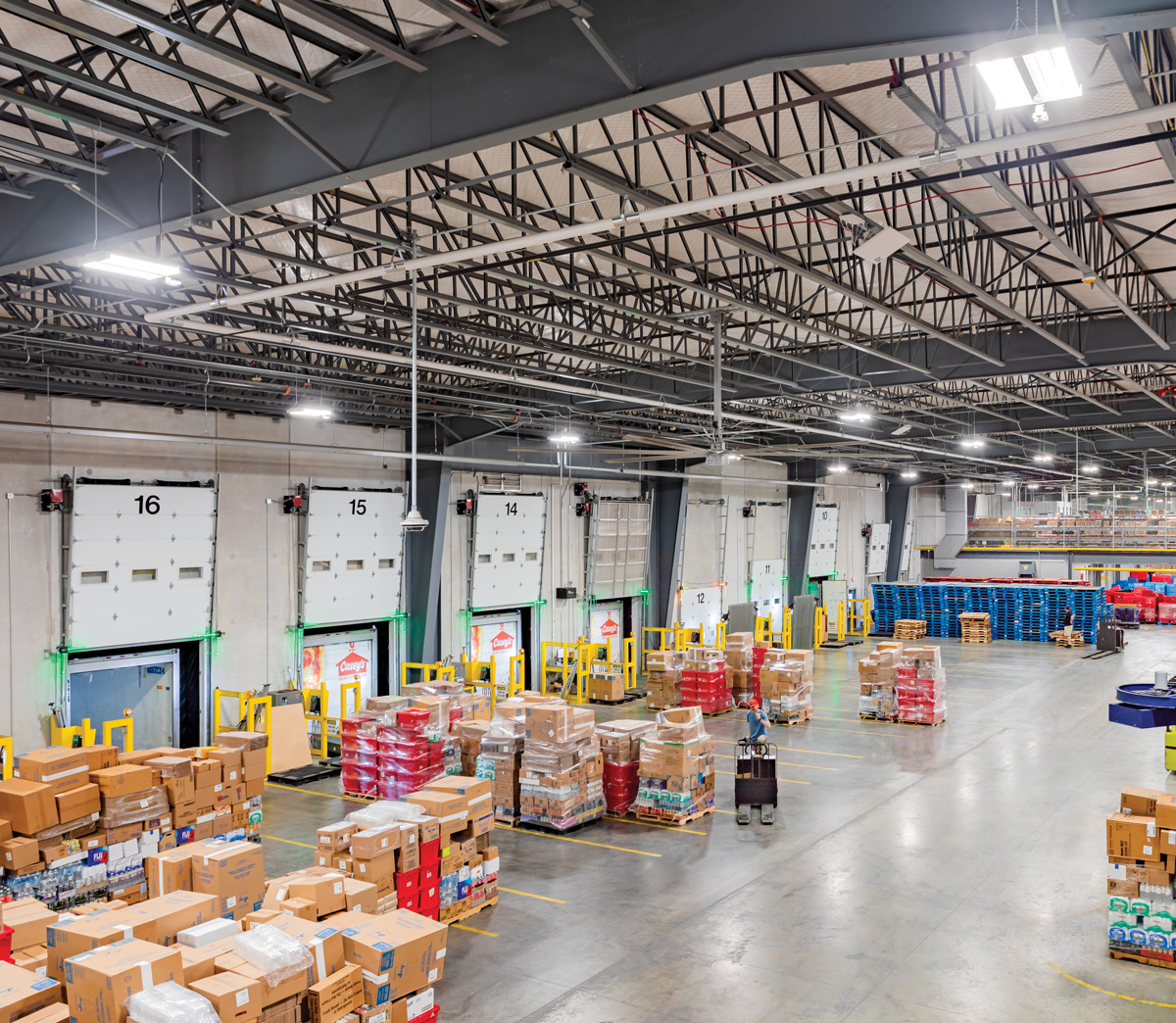

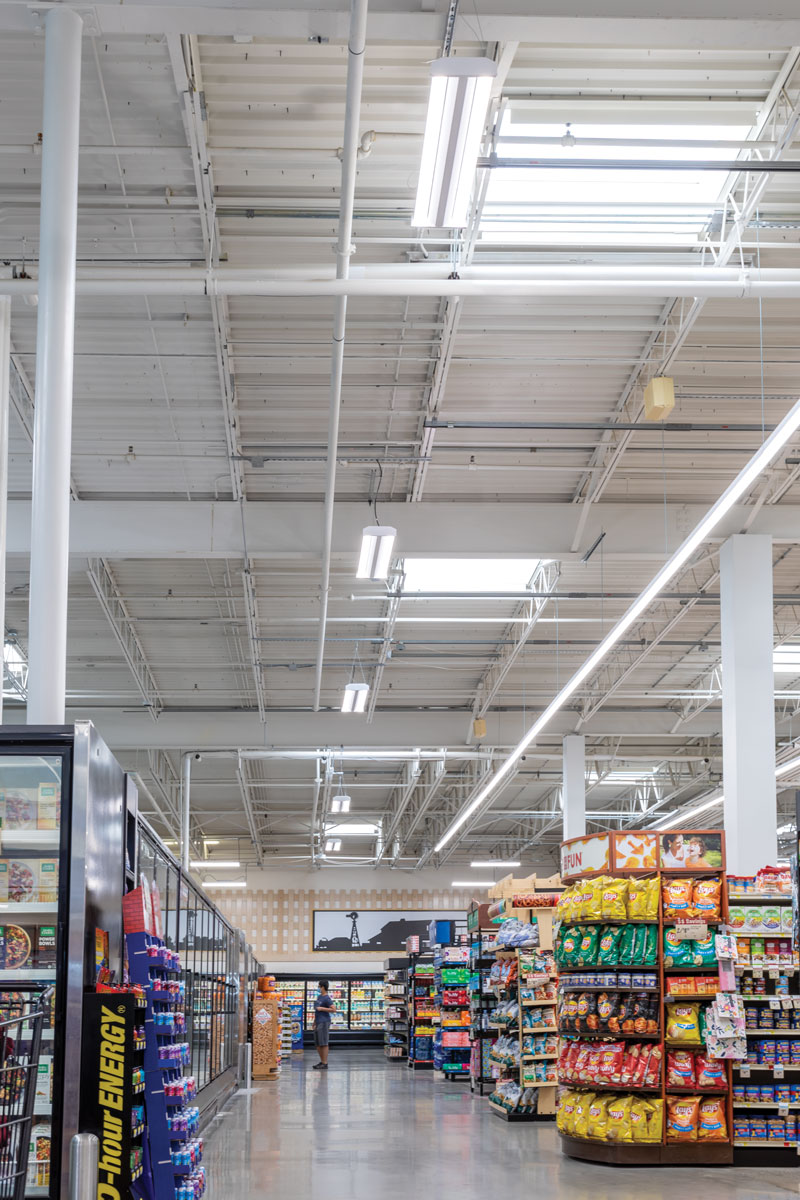

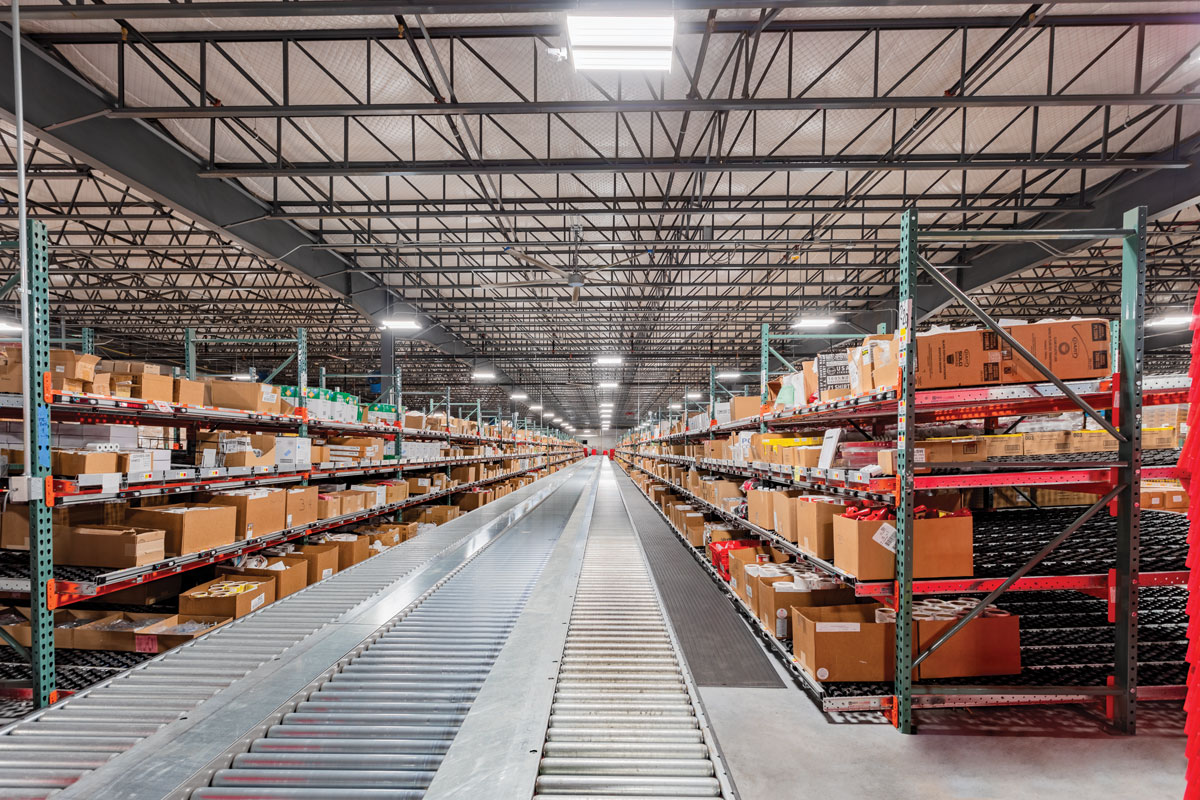

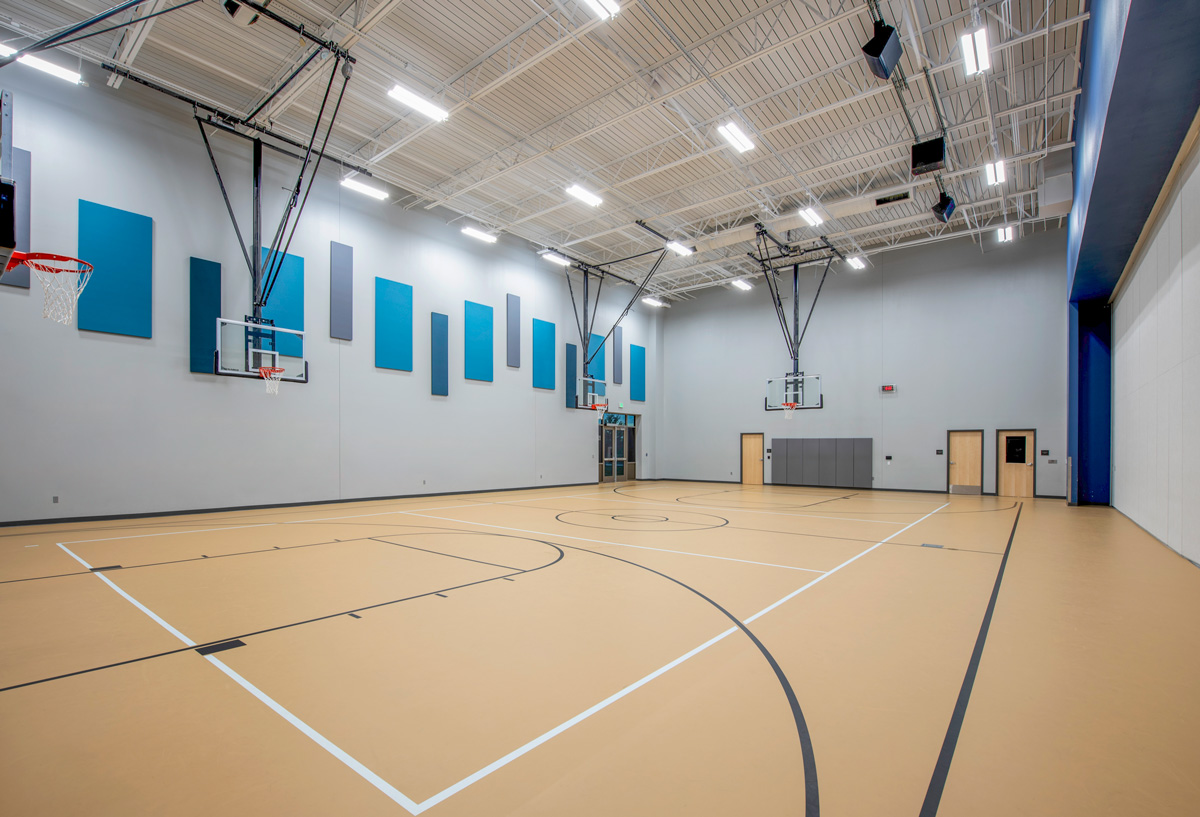

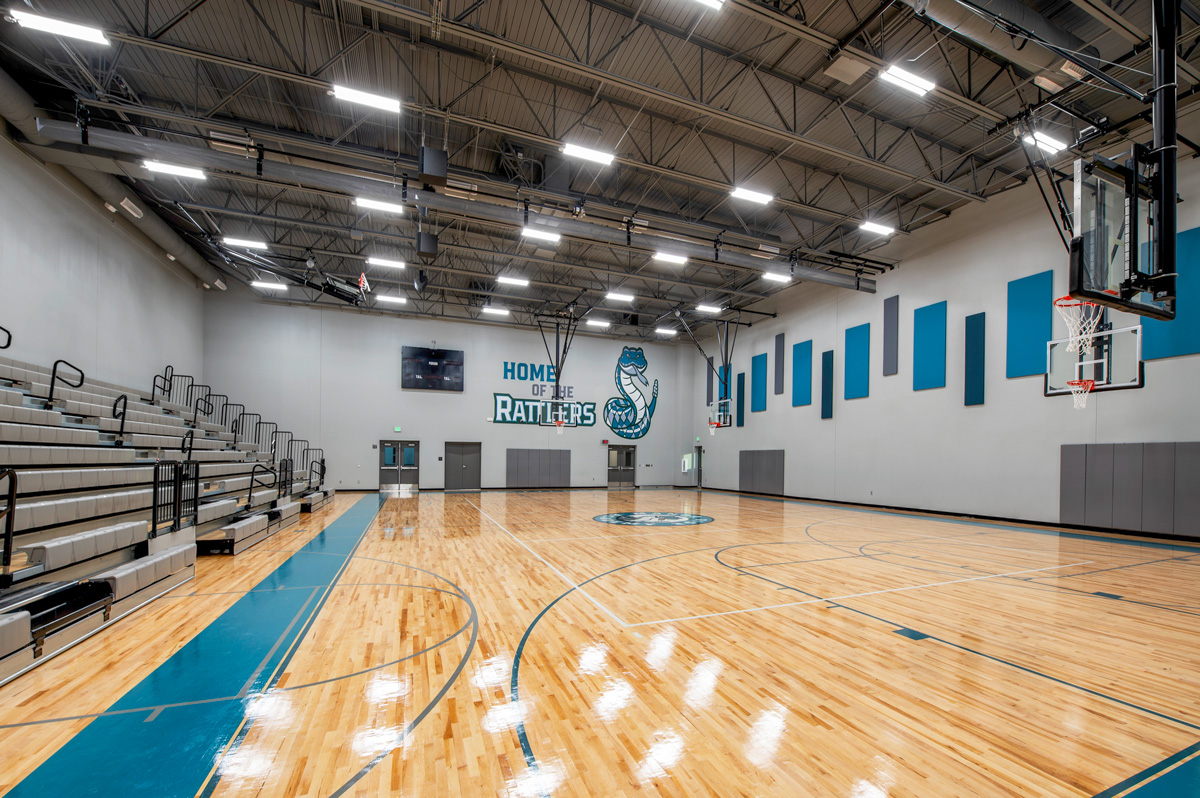

Inspiration
