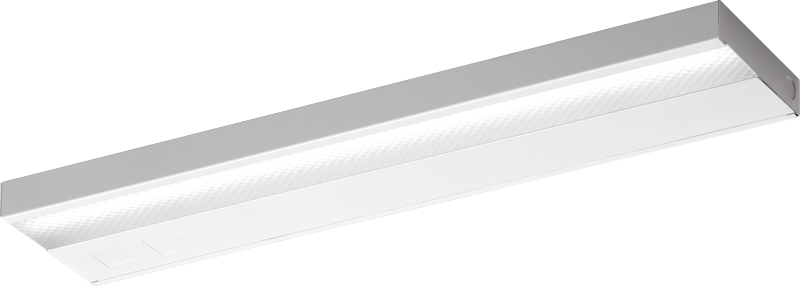

1SF Under Cabinet

Features

Delivers uniform, glare-free task lighting for work areas
Small profile installs inconspicuously in confined spaces
Available with attractive rocker switch for easy on/off
Housing keyhole slots and knockouts provide quick and easy installation
All-welded construction provides long lasting performance
Optional anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
1', 2', 3', and 4' lengths available
High-performance up to 117 lm/W
Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	20-gauge die-formed, welded C.R.S.
Shielding	Diffuse matte acrylic, .080″ thick.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board(s). 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.
Mounting	Surface.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	20-gauge die-formed, welded C.R.S.
Shielding	Diffuse matte acrylic, .080″ thick.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L85 at 50,000 hours. Low- voltage DC fixture, to be fed by Class 2 power supply.
Mounting	Surface.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details
