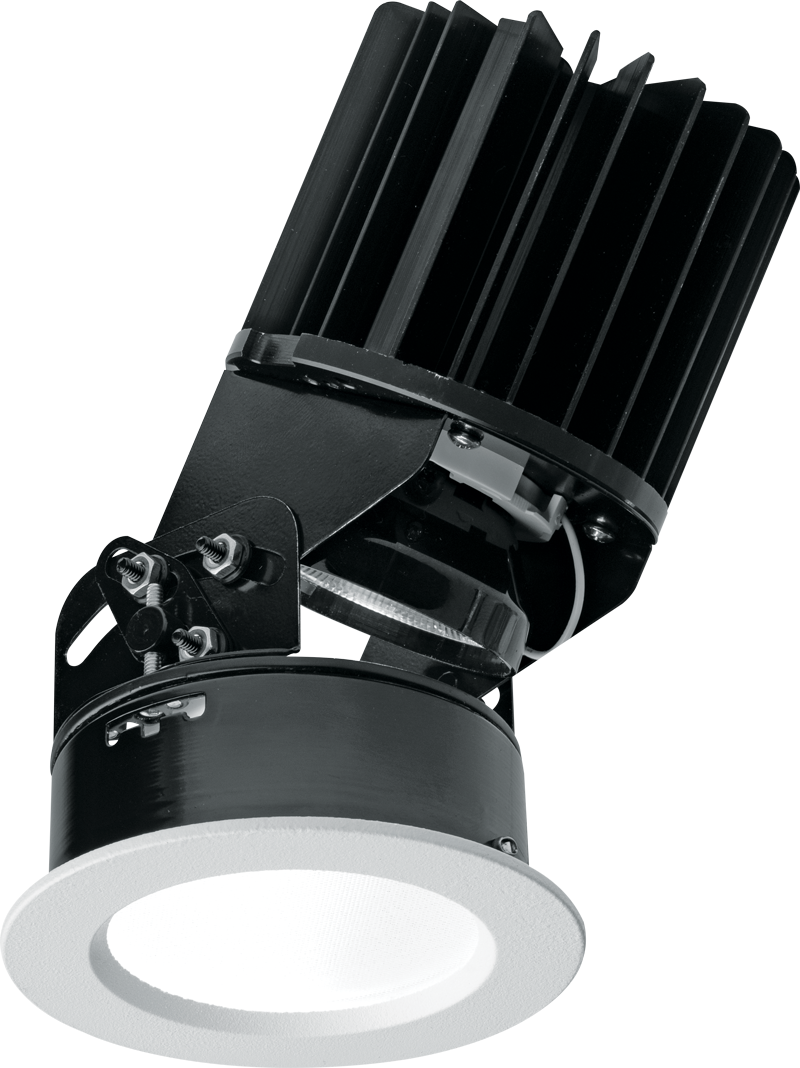

2AR 2″ Adjustable Downlight – Round

Features

  • 2" aperture is unobtrusive in small scale spaces
  • Adjustable aim with 0° - 45° tilt and 360° rotation

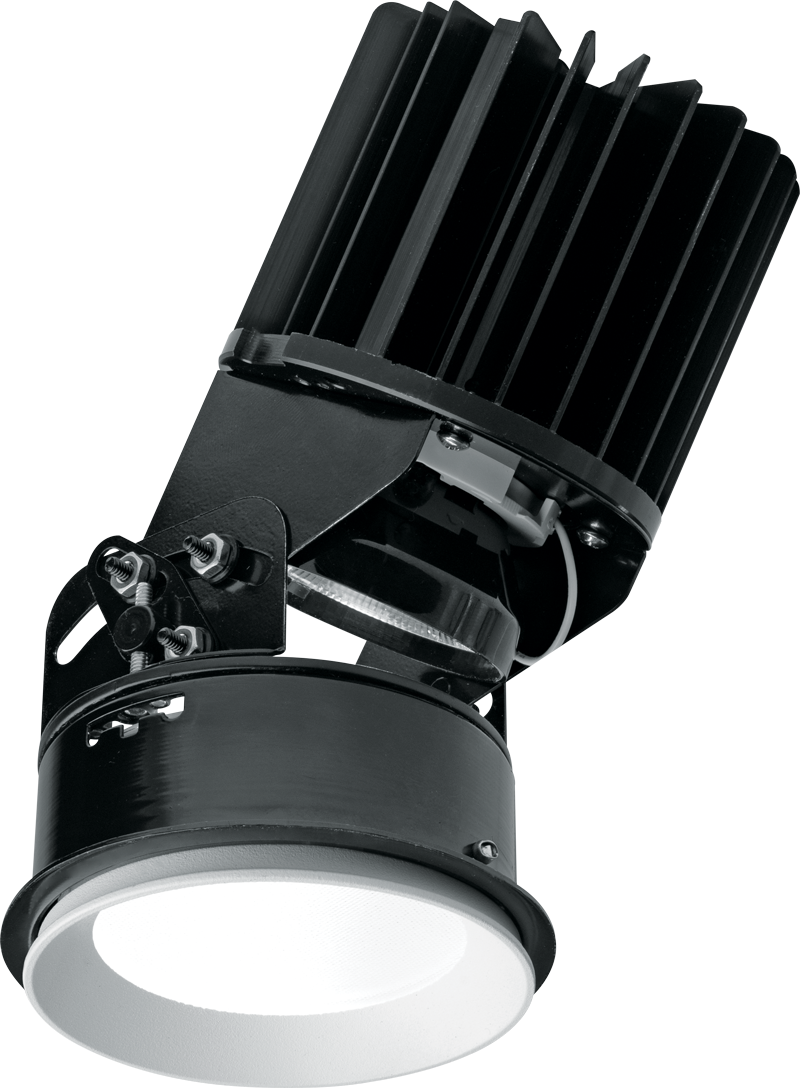

  • Zero-flange trim options for modern ceiling
  • Etched degree markers and directional indicator make it simple to fine-tune the illumination angle
  • Beam angles ranging from 15º narrow to 35º wide for tailored performance

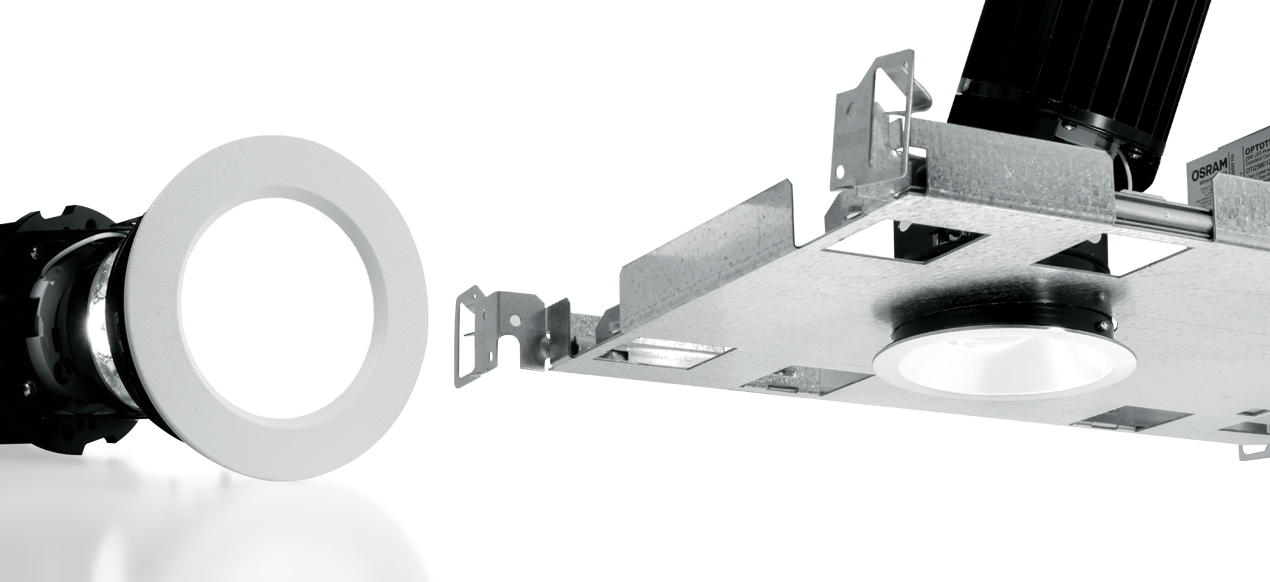

  • New construction mounting pan, IC-rated, or pan-less remodel kit available
  • Contemporary design provides glare-free illumination for a soft ceiling appearance

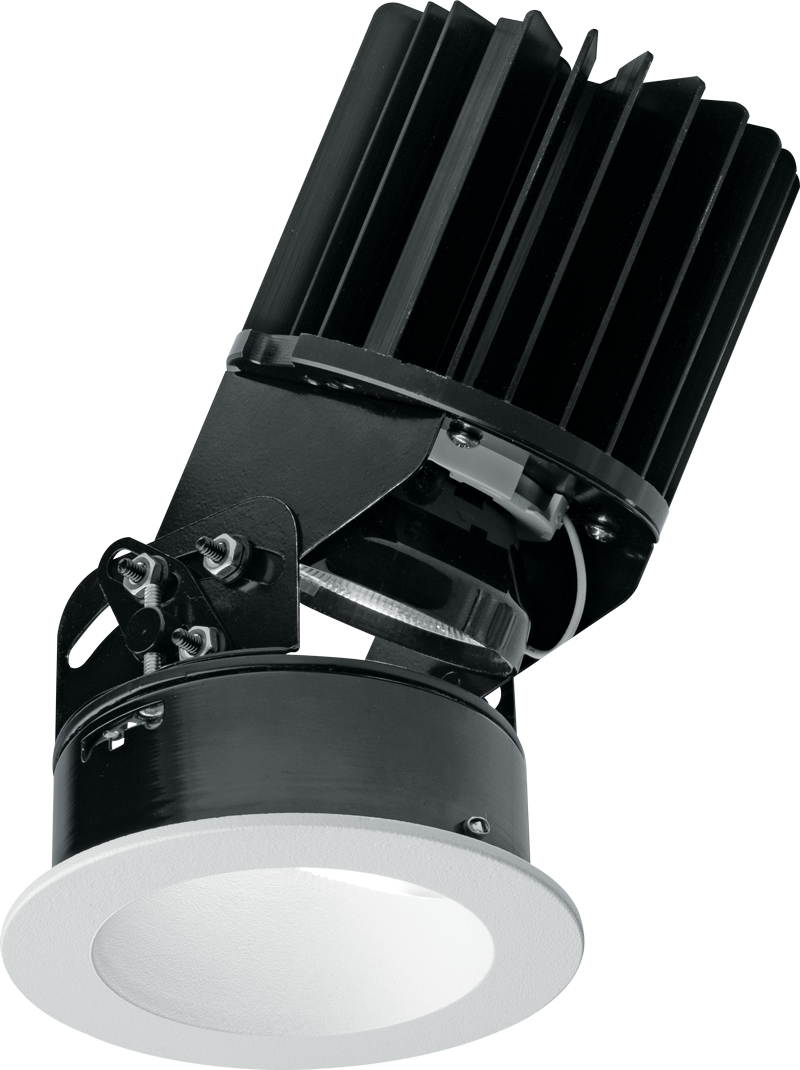

  • Choice of open reflector or die-cast flush, regressed or angled lensed trims to complement interior styles
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Die-cast aluminum spun and stamped articulating mechanism with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Mounting clips allow for ceiling thickness from 1/2″ – 13/16″.

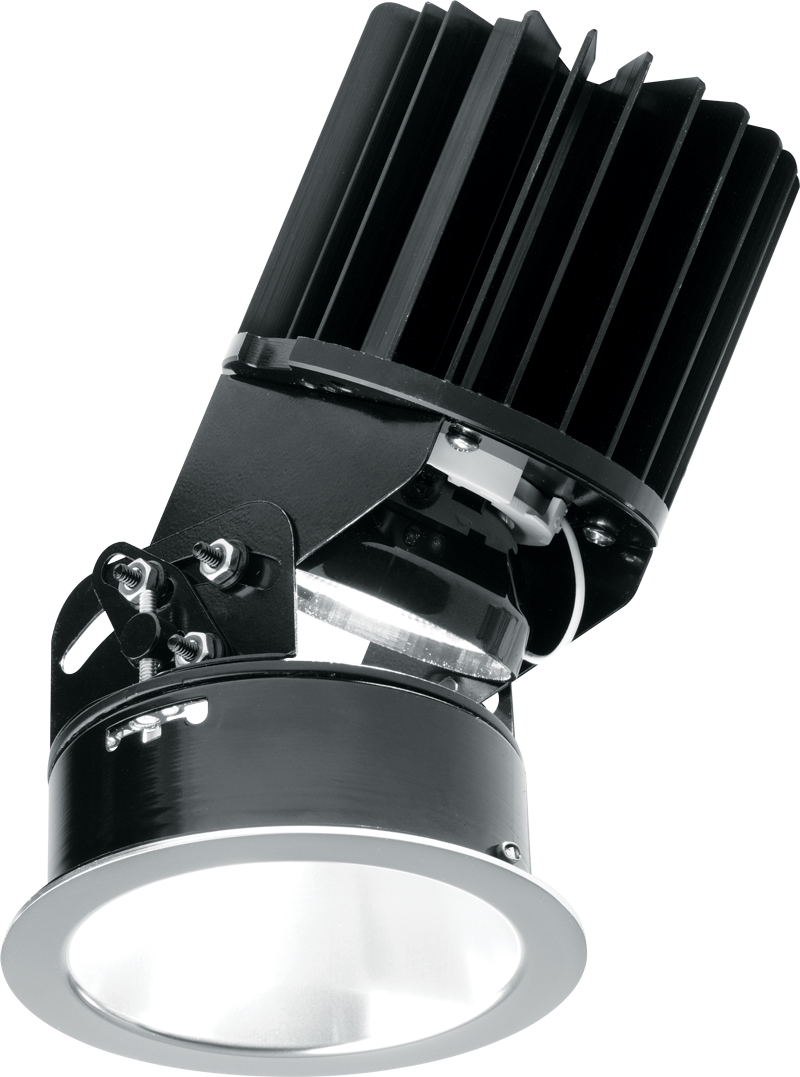

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70 > 44,000 hours. Reported L90 = 28,000 hours. Estimated L70 = 117,000 hours.

Mounting

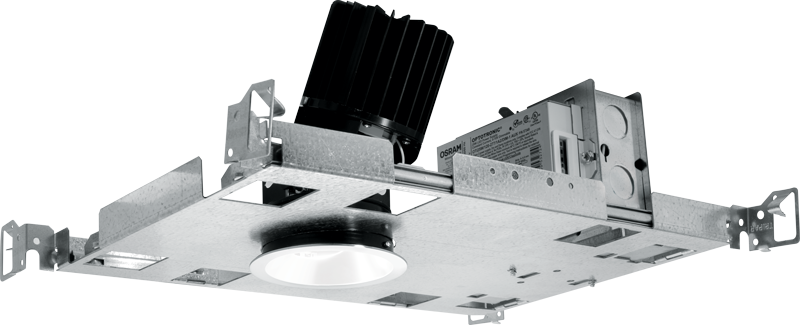

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. N and R mounting types for use in non-fire rated installations only. Minimum 17″ O.C. marked spacing required for L12 and L15 lumen packages when specified with R Mounting Type.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum spun and stamped articulating mechanism with forged aluminum heat sink. Mounting clips allow for ceiling thickness from 1/2″ – 13/16″.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to node. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Low- voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. N and R mounting types for use in non-fire rated installations only. Minimum 17″ O.C. marked spacing required for P12 and P14 static white and P7 and P9 tunable white lumen packages when specified with R Mounting Type. Nodes cannot be mounted above hard ceilings

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

System Requirements

• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system
• For additional PoE info, see details
• Consult factory for design support

Housing

Die-cast aluminum spun and stamped articulating mechanism with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Mounting clips allow for ceiling thickness from 1/2″ – 13/16″.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Recessed. 20 ga. galvanized steel mounting pan. N mounting type for use in non-fire rated installations only. Top access required for driver maintenance.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum spun and stamped articulating mechanism with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Mounting clips allow for ceiling thickness from 1/2″ – 13/16″.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70 > 44,000 hours. Reported L90 = 28,000 hours. Estimated L70 = 117,000 hours.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. N and R mounting types for use in non-fire rated installations only. Minimum 17″ O.C. marked spacing required when specified with R Mounting Type.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Reflector Finishes

Black

White

Clear Semi-Spec

Trim Types

Open

Flush

Regressed

Angled

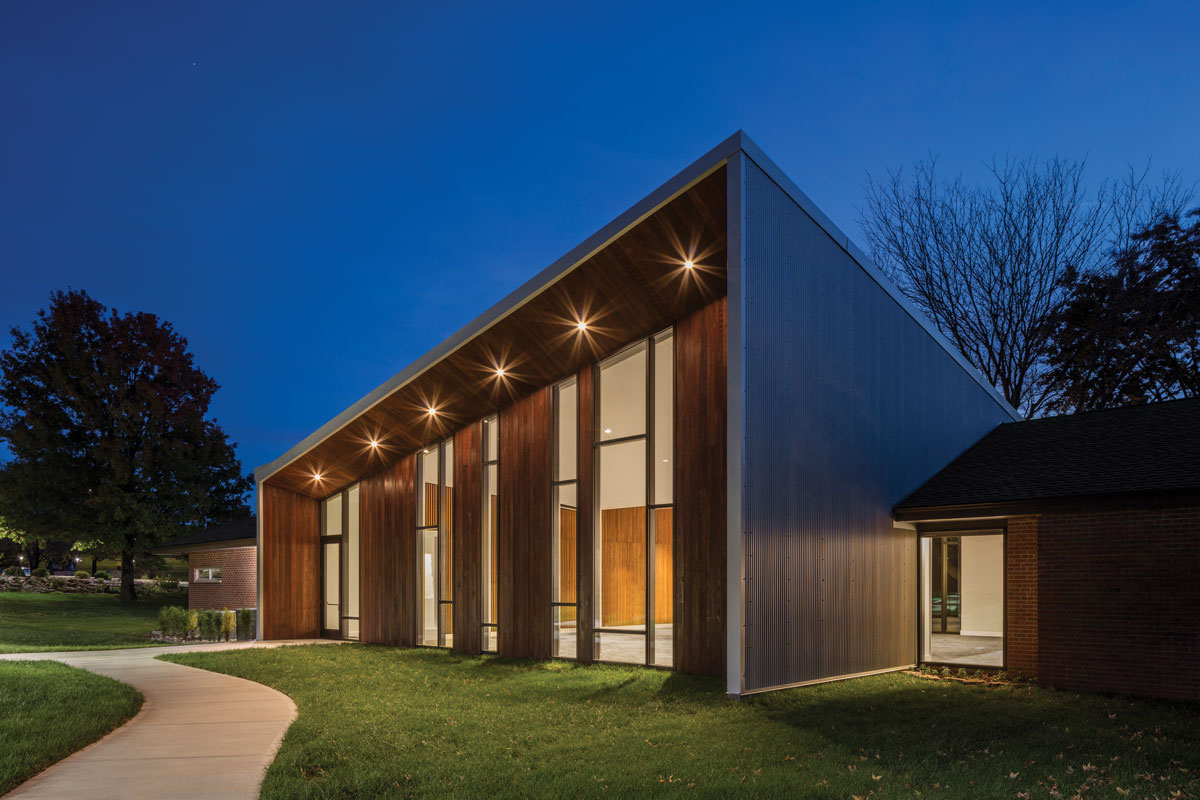

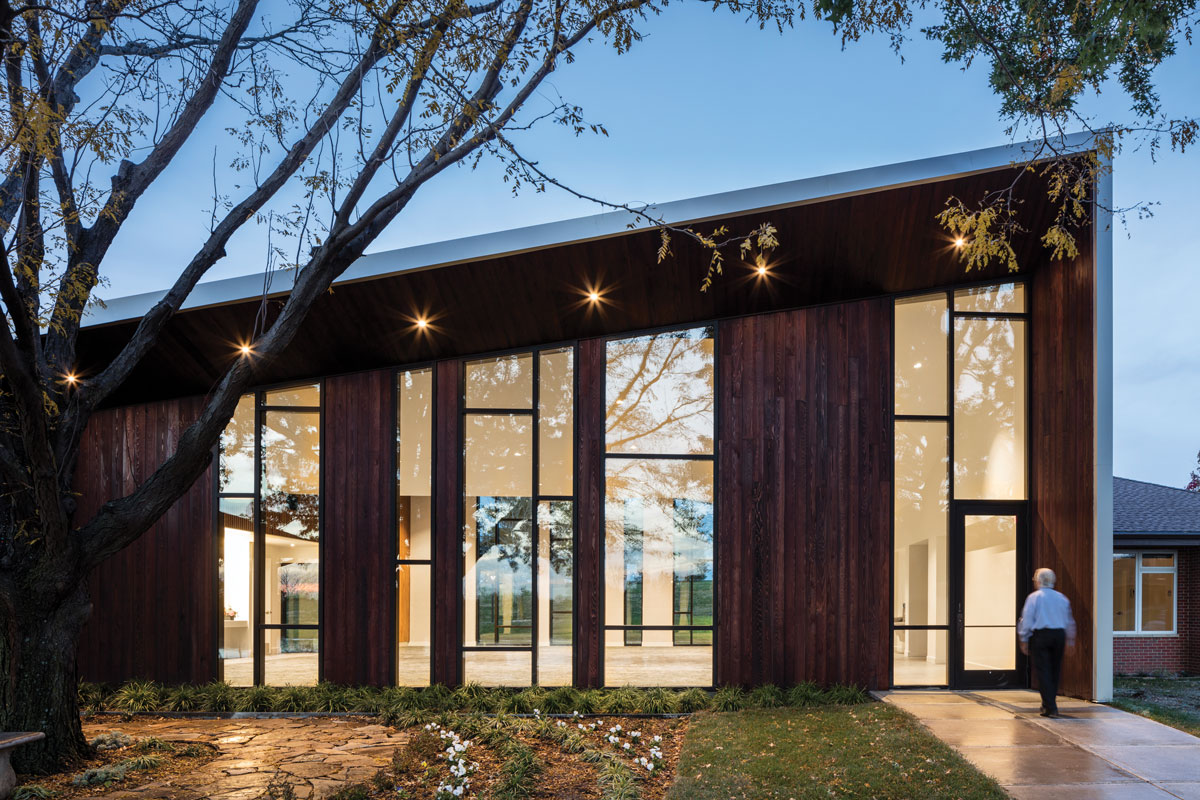

Inspiration
