2DR 2″ Downlight – Round

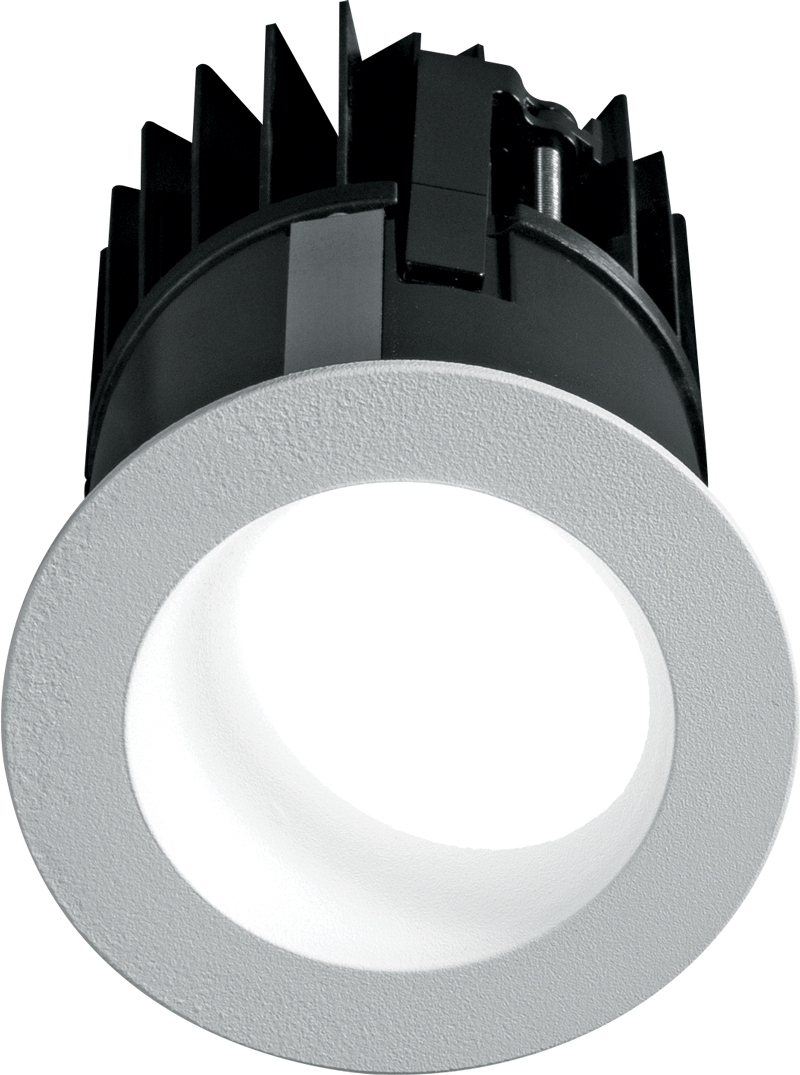

Angled Lens with Wall Wash Distribution and White Trim

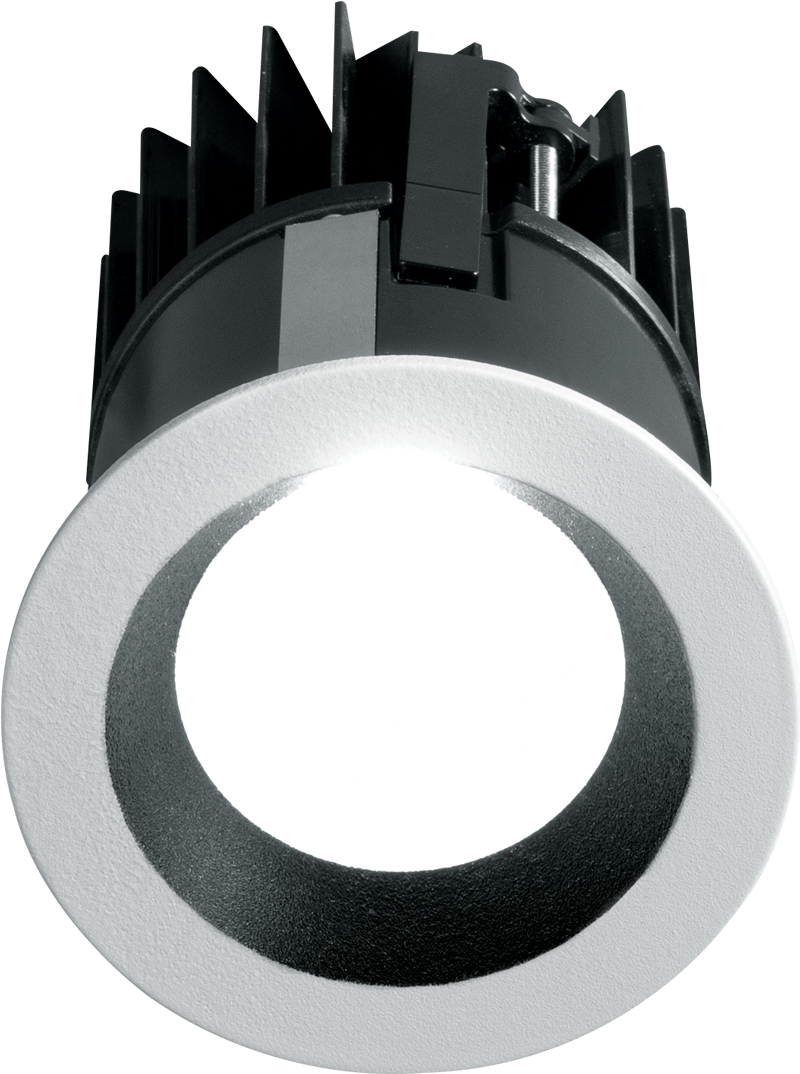

Regressed Lens with Black Texture Splay with White Trim

2DR: The modern design of the 2 inch round LED downlight from Williams provides tailored performance with wide, medium, narrow, spot, and wall wash distributions and die cast trim choices including flush, regressed and angled lens.

Features

2" aperture is unobtrusive in small scale spaces

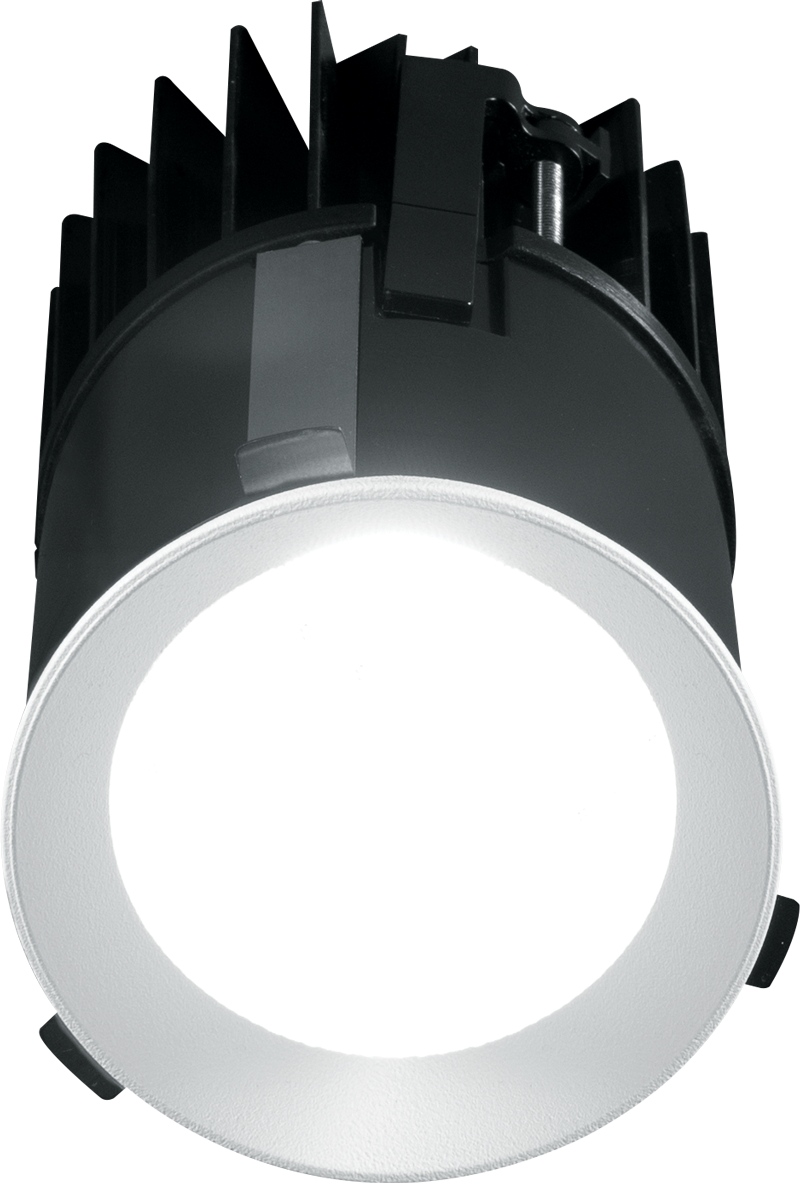

Zero-flange trim options for modern ceiling
Beam angles ranging from 8º spot to 70º wide for tailored performance
New construction mounting pan, IC-rated, or pan-less remodel kit available
Contemporary design provides glare-free illumination for a soft ceiling appearance
Die-cast trim includes flush, regressed or angled lens
Open reflector with nine finishes complements any interior style
ENERGY STAR® certified, Title 24 | JA8 compliant
Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
Deliver scalable, data-driven smart buildings with Platformatics PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
Buy American Act compliant
Wireless in-fixture control solutions available
Available with BIOS^® state-of-the-art LED white light circadian solutions
Made Right Here^® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-3/8″.
Open Reflector	Low-iridescent anodized aluminum. Clear semi-specular finish standard.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70 > 55,000 hours. Reported L90=49,000 hours. Estimated L70=179,000 hours.

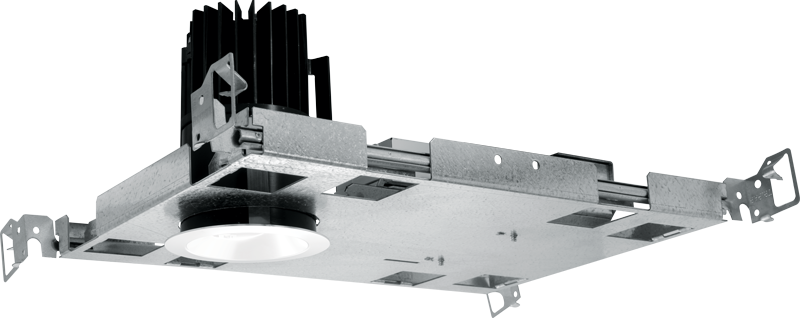

Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Minimum 12-1/2″ O.C. marked spacing required for L20 and L25 lumen packages when specified with R Mounting Type and L15 lumen package when specified with S Distribution.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC or TD options. • ENERGY STAR® certified in select configurations, see www.energystar.gov • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Title 24 (JA8) compliant in select configurations, see energy.ca.gov • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-3/8″.
Open Reflector	Low-iridescent anodized aluminum. Clear semi-specular finish standard.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to node. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Low- voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Minimum 12-1/2″ O.C. marked spacing required for P15 static white (S Distribution only), P20 and P23 static white, P12 and P15 tunable white lumen packages when specified with R Mounting Type. Nodes cannot be mounted above hard ceilings
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC or TD options. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details • Consult factory for design support

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-3/8″.
Open Reflector	Low-iridescent anodized aluminum. Clear semi-specular finish standard.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan. Top access required for driver maintenance.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC or TD options. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-3/8″.
Open Reflector	Low-iridescent anodized aluminum. Clear semi-specular finish standard.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens. Diffuse acrylic lens standard with A Trim Type.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70 > 55,000 hours. Reported L90 = 49,000 hours. Estimated L70 = 179,000 hours.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Minimum 12-1/2″ O.C. marked spacing required for L12 lumen package when specified with R Mounting Type.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC or TD options. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
