BAR Indirect Architectural Recessed

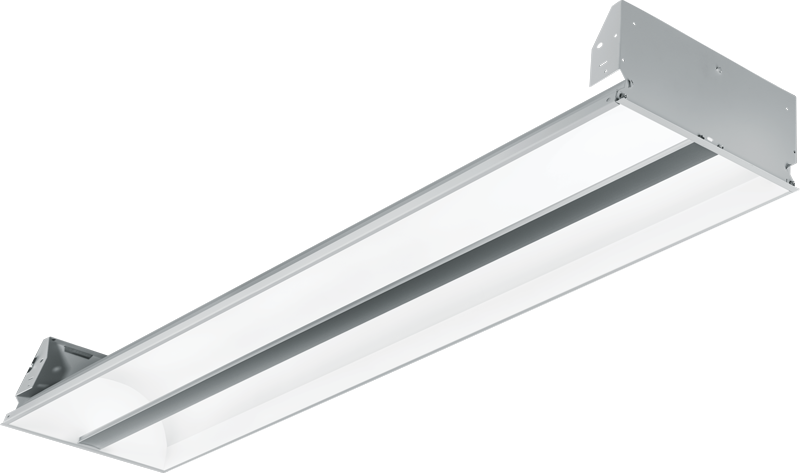

1'x4'
2'x2'

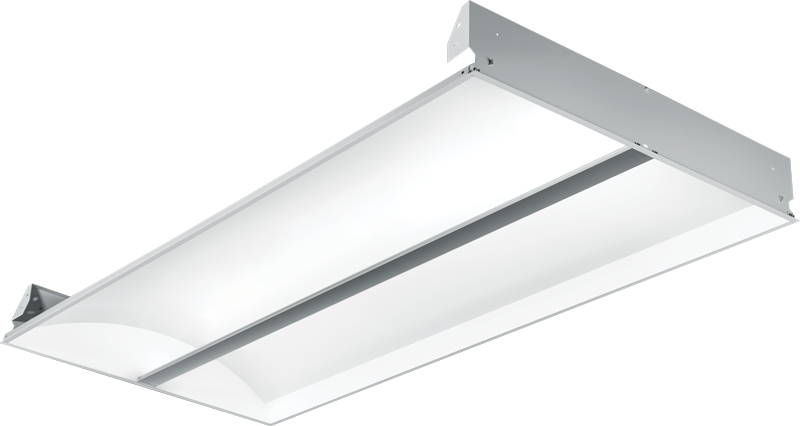

2'x4'

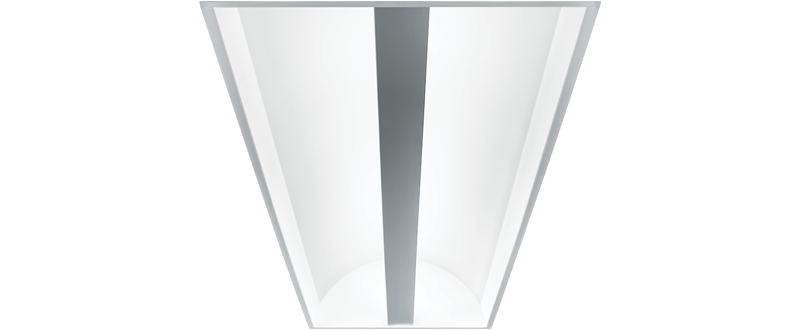

1'x4' Front View

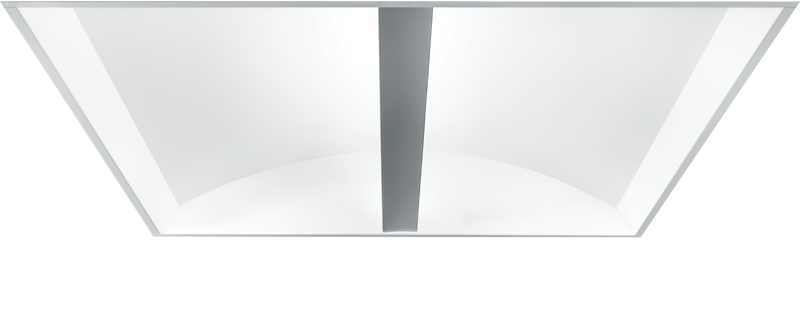

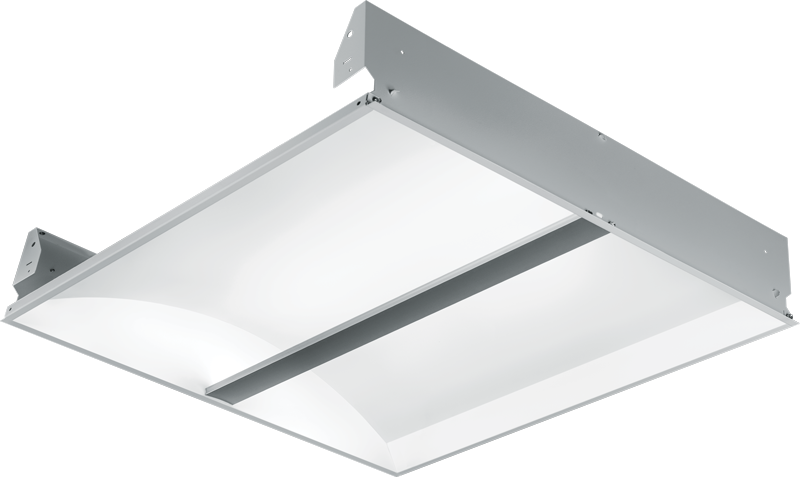

2'x2' Front View

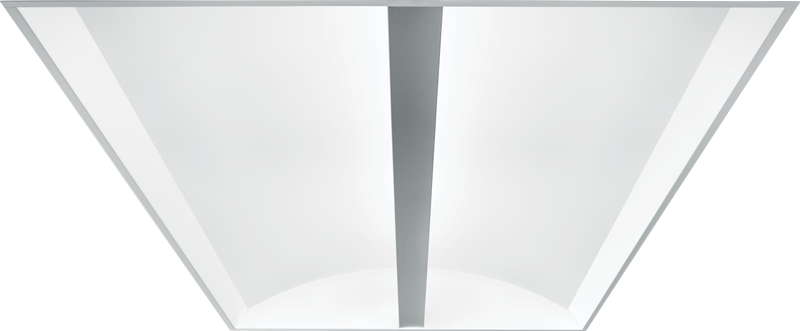

2'x4' Front View

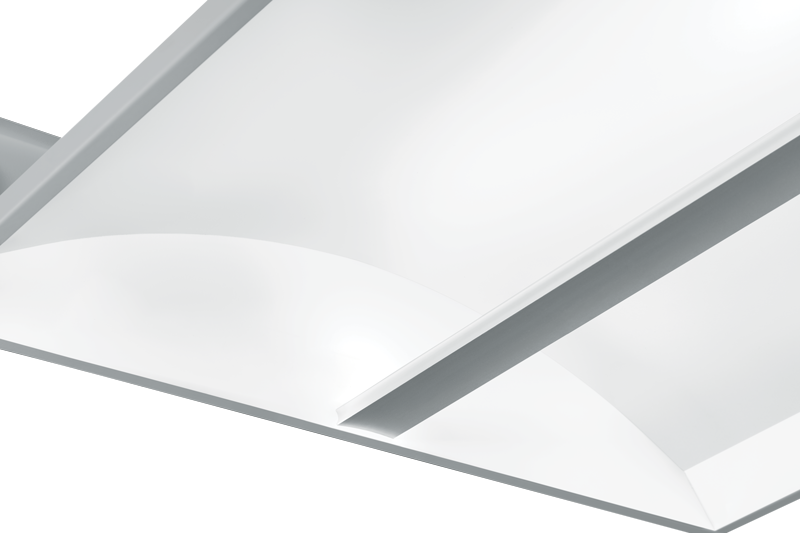

Detail View

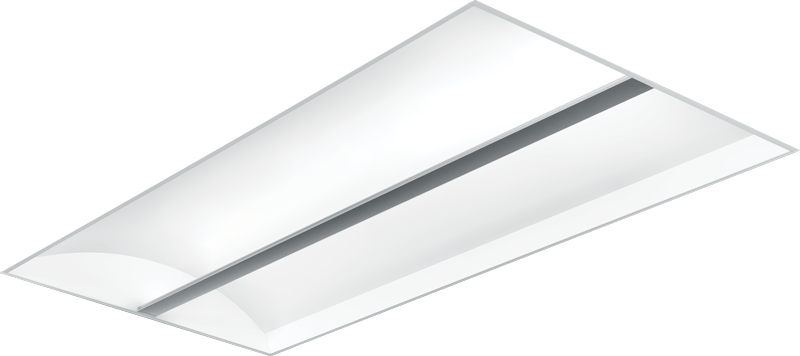

BAR: Williams BAR Indirect LED troffer with curved housing and central aluminum rail features soft, even illumination and visual comfort in 1×4, 2×2, and 2×4 sizes for sophisticated lighting across diverse applications.
Build American, Buy American compliant
Tunable White
IC-Rated
Low UGR
Chicago Plenum / CCEA Compliant

Features

  • Unique curved housing with central linear element delivers sophisticated illumination across diverse applications
  • Indirect design provides soft, even light distribution for visual comfort
  • Anodized aluminum rail creates architectural focal point
  • Simple lift-and-shift driver box provides easier access than traditional enclosures
  • 1×4, 2×2, and 2×4 sizes suit multiple design scenarios
  • IC-rated for direct contact with insulation
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Low UGR meets LEED and WELL requirements
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Find your local agent or distributor.

Specifications

Housing

Precision die-formed 22-gauge C.R.S. with anodized aluminum center bar

Finish

95% reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. 50/60 Hz constant current driver. Tunable White products use LEDs of multiple shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall kit accessories available, shipped separately.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• City of Chicago Environmental Air approved when specified with CP option.
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details
