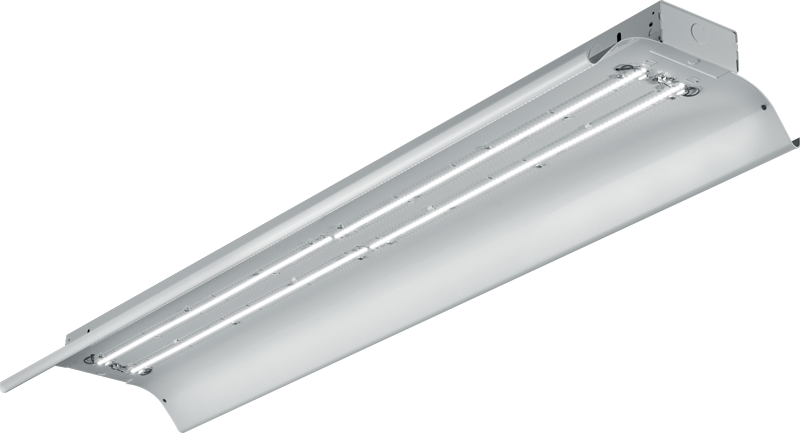

80 Standard Industrial
Features
- For light industrial applications and low to medium mounting heights
- One quarter-turn fastener secures reflector and housing
- Channel connector furnished for continuous row applications
- Diverse selection of mounting accessories for surface and suspended applications
- High-performance up to 164 lm/W
- Optional wireguard provides added protection
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Quick-connect wiring options for continuous row mounting
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
Tools
Quantity Estimator
Estimate fixture quantities and light levels.
Product Builder
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Housing Or Reflector |
22-gauge die-formed C.R.S. |
|
Finish |
92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. 40°C maximum ambient operating temperature. 50°C maximum ambient operating temperature with HA Option, lumen restrictions apply. 50/60 Hz constant current driver. |
|
Mounting |
Surface or suspended. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american. |
|
Warranty |
5-year limited warranty, see details |
