CX Continuous Cove

Features

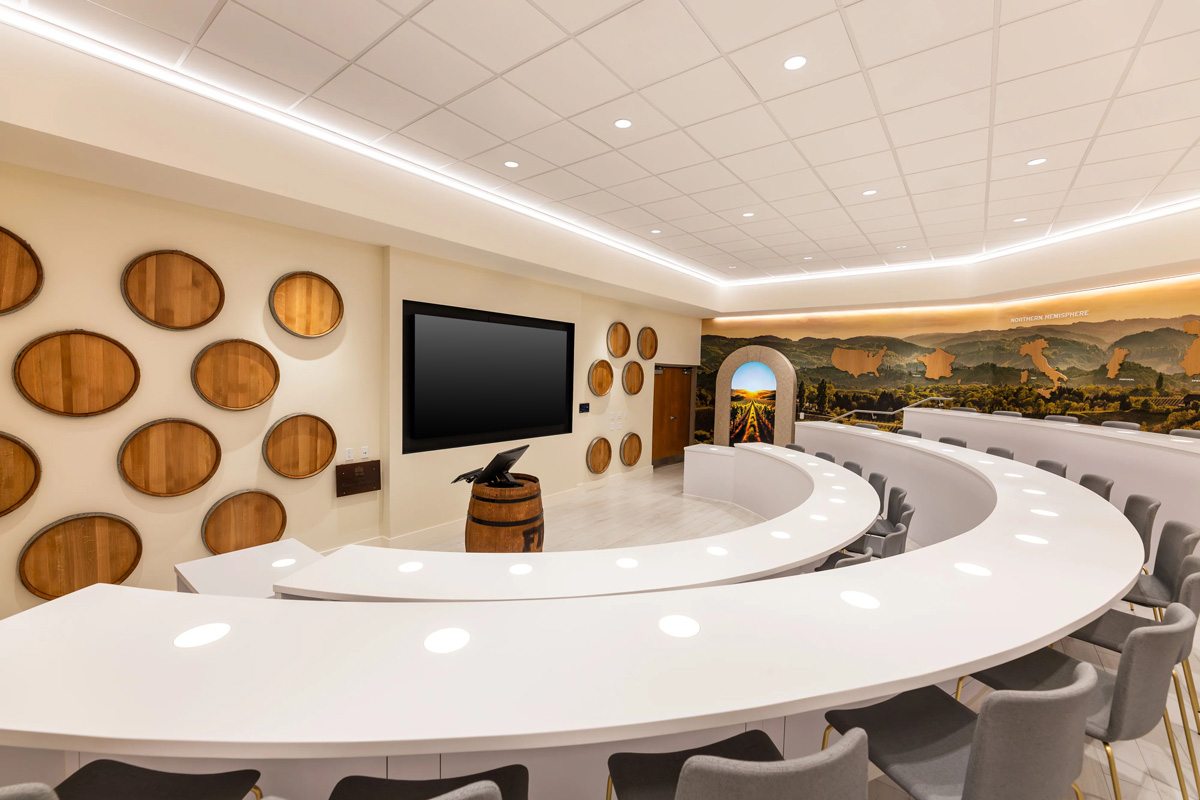

Provides soft, uniform illumination for contractor and extruded coves
Field-adjustable to the inch ensures a perfect fit
Design spaces quickly with the Linear Product Builder
Exceptional performance and value
Multiple dimming options and integral emergency battery
Quick-connect wiring for simple lay-in installation
Lightweight fixture assembly, 2.2 lbs/ft
Deliver scalable, data-driven smart buildings with Platformatics PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Create rich, vibrant designs with lasting visual impact using the full visible light spectrum
Buy American Act compliant
Available with Avi-on wireless fixture controls
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	Formed sheet metal.
Shielding	Extruded diffuse acrylic lens.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21.
Mounting	Lay-in cove.
Listings	• cCSAus certified as luminaire suitable for dry and damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

Housing	Formed sheet metal.
Shielding	Extruded diffuse acrylic lens.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Lay-in cove.
Listings	• cCSAus certified as luminaire suitable for dry and damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details • Consult factory for design support

Housing	Formed sheet metal.
Shielding	Extruded diffuse acrylic lens.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Lay-in cove.
Listings	• cCSAus certified as luminaire suitable for dry and damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

Housing	Formed sheet metal.
Shielding	Extruded diffuse acrylic lens.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	Five color, mid-power ERP-Lumenetix araya5 LED modules and contols. On board thermal and optical feedback ensure color consistency of <2 step MacAdam ellipse (SDCM) and L70>50,000 hours. In-line spectral capture and storage results in consistent CRI and CCT across all arrays.
Mounting	Lay-in cove.
Listings	• cCSAus certified as luminaire suitable for dry and damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
