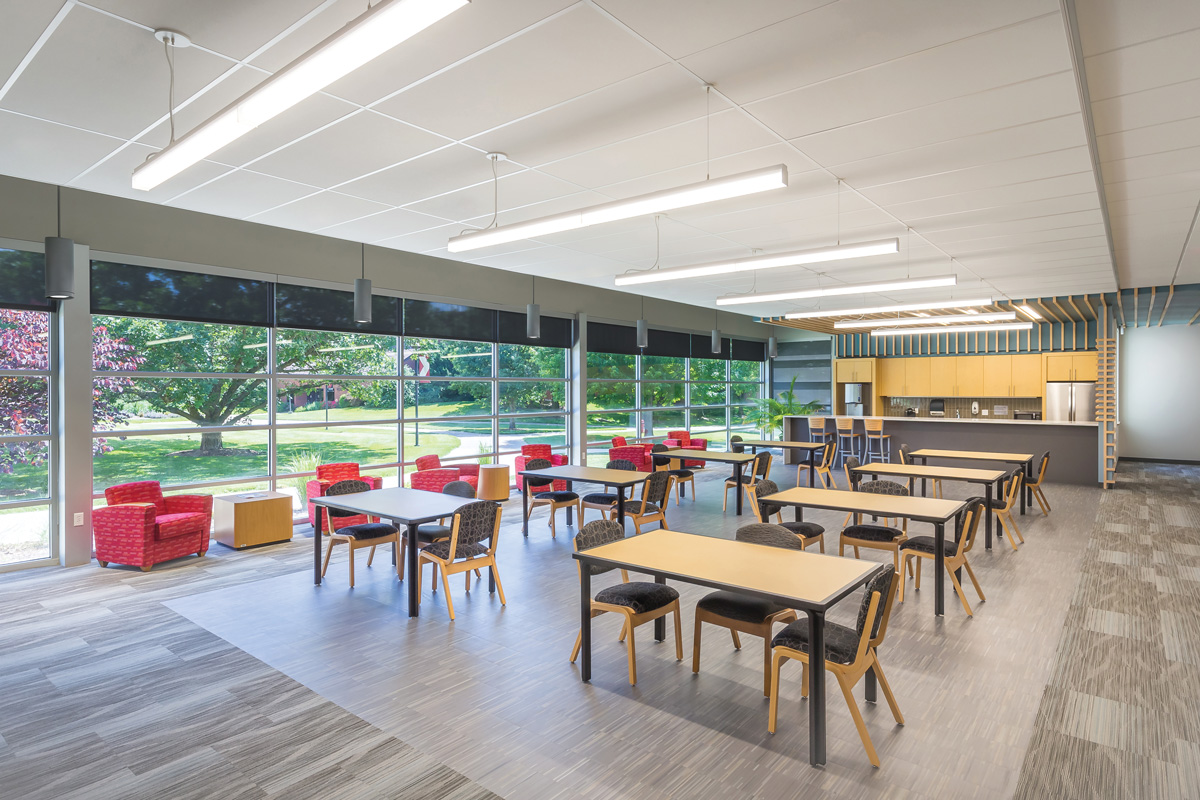

LLM Architectural Slimline – Suspended

Features

Slim, low-profile suspended-mount fixture provides an architectural alternative to standard wrap-around fixtures
Round or square profile provides design choices for a variety of applications
Quality, frosted, extruded acrylic lens snaps securely in place to provide gentle diffused illumination
Slim end plates are designed to conform to lens shape and prevent unsightly light leaks
Internal, self-aligning joining method ensures straight rows
2', 4', 6', and 8' lengths available
High-performance up to 150 lm/W
Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
Quickly lay out projects and simplify ordering with our Linear Product Builder
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	20-gauge die-formed C.R.S.
Shielding	Frosted, matte acrylic, round or square profile.
Finish	Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L80 >72,000 hours per IES TM-21. 50/60 Hz constant current driver.
Mounting	Suspended (hanging hardware required).
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • UL 924 available. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	20-gauge die-formed C.R.S.
Shielding	Frosted, matte acrylic, round or square profile.
Finish	Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Suspended (hanging hardware required).
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details

Housing	20-gauge die-formed C.R.S.
Shielding	Frosted, matte acrylic, round or square profile.
Finish	Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 > 50,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses. 50/60 Hz constant current driver.
Mounting	Suspended (hanging hardware required).
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
