V2DR 2″ Vandal-Resistant Downlight – Round

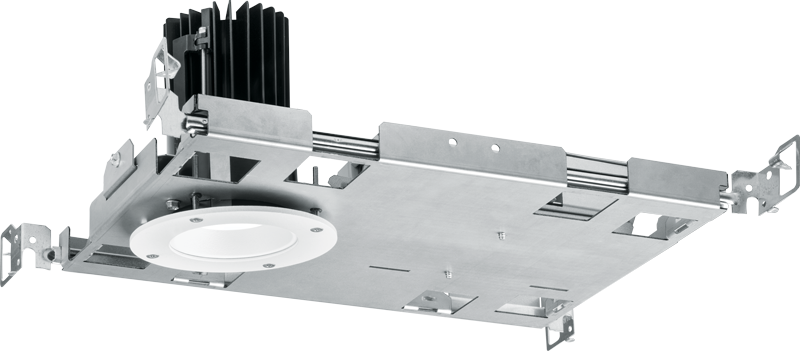

Pan with Regressed Lens and White Trim Finish

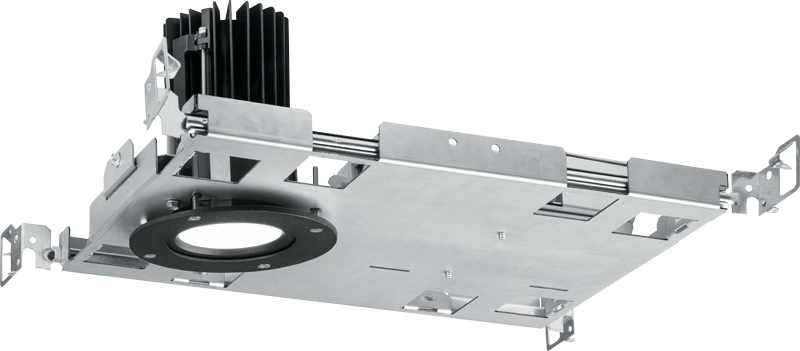

Pan with Flush Lens and Black Trim Finish

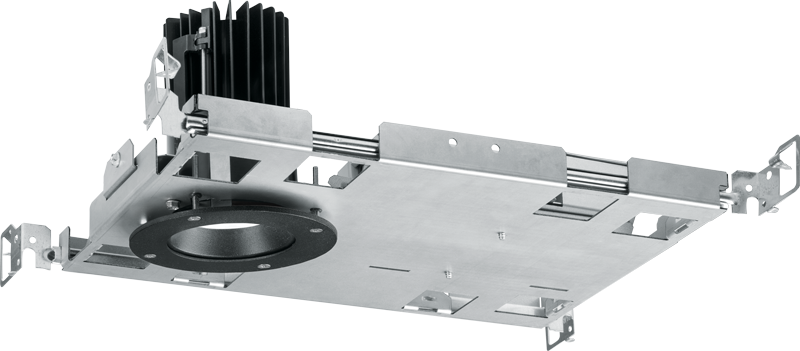

Pan with Regressed Lens and Black Trim Finish

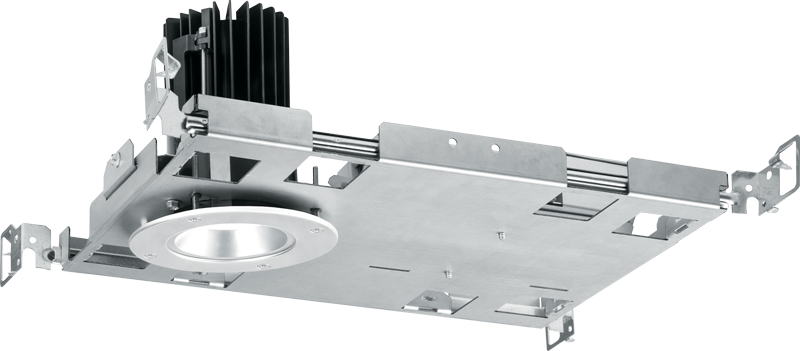

Pan with Regressed Lens and Clear Semi-Specular Finish
Pan with Flush Lens and Clear Semi-Specular Finish
V2DR: Williams V2DR vandal downlight delivers secure, glare-free illumination for behavioral health, education, and correctional spaces. Anti-ligature, tamper-resistant, and made in the USA.
Buy American Act compliant
Low UGR
WET/CC

Features

  • Ideal for schools, behavioral health facilities, correctional institutions and other vandal-prone areas
  • Anti-ligature design with tamper-resistant fasteners
  • 2″ aperture is unobtrusive in small scale spaces
  • Anti-microbial trim option suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
  • Contemporary design provides glare-free illumination for a soft ceiling appearance
  • Low-glare optical system supports LEED and WELL certification requirements
  • Low UGR meets LEED and WELL requirements
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-1/8″ max.

Lensed Trim

Die-cast aluminum frame with 1/8″ microprismatic, polycarbonate lens. Aluminum vandal ring is secured with four stainless steel, tamper-resistant screws, (1) tamper-resistant tool provided.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70 > 55,000 hours. Reported L90=49,000 hours. Estimated L70=179,000 hours.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction. Top access required when specified with EM battery or controls other than DIM, DIM1, DIM LINE.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.

Warranty

5-year limited fixture warranty, see details

Downloads

Spec Sheets
IES Files
Instructions
Literature
Tech Info
Videos

Reflector Finishes

Black

White

Clear Semi-Spec
