VWPH Voltaire Architectural Wall Pack – Horizontal

Features

  • Designed to illuminate sidewalks, entryways, perimeters or facades
  • Intended for use in both uplight and downlight applications
  • Blends seamlessly with a variety of architectural styles
  • Purposefully modeled to allow runoff of dirt and water for an always-clean appearance
  • Optional battery, photocell, and tamper-resistant screws
  • Precision optics provide multiple distribution options
  • IDA Dark-Sky approved to minimize glare, reduce light trespass and help protect night sky
  • Seven standard finish options and a wide selection of custom colors complement the architectural elements of any outdoor environment
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Die-cast aluminum enclosure.

Thermal Management

Integral die-cast aluminum heatsink and LED assembly provide passive thermal management. Rated -30ºC to 40ºC ambient operating temperature (-20ºC to 40ºC with EM/10WC; 0°C to 37°C with EM/10CEC; 0ºC to 39ºC with EM/4W).

Optical System

Precision, injection-molded, refractive acrylic lensing produces standard IES distributions.

LED Assembly

ANSI 3000K, 4000K, or 5000K CCT, minimum 70 CRI LEDs.

LED Driver

0-10V dimming.

Electrical

120-277, 347, and 480 VAC input range; 50-60Hz; power factor >.90; THD <20% at full load. FCC Class A compliant. 10kA/10kV surge protection standard. Quick-disconnect wiring provided. L70 >50,000 hours per IES TM-21.

Finish

Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability.

Mounting

Surface mounts directly over a 4″ maximum outlet box. Must be anchored to adequate structure that can safely support fixture weight (VWPH = 15 lbs, VWPV = 23 lbs).

Listings

• cCSAus certified as luminaire suitable for wet locations.
• FCC Class A compliant.
• IDA Dark-Sky approved (downlight applications only).
• RoHS compliant.
• IP65 rated.
• Title 24 compliant with OCCWS FSP-311-L_ option.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Finishes

Black

Green

Medium Bronze

Dark Bronze

Satin Aluminum

Gray

White

200+ RAL Colors

Compatible Controls

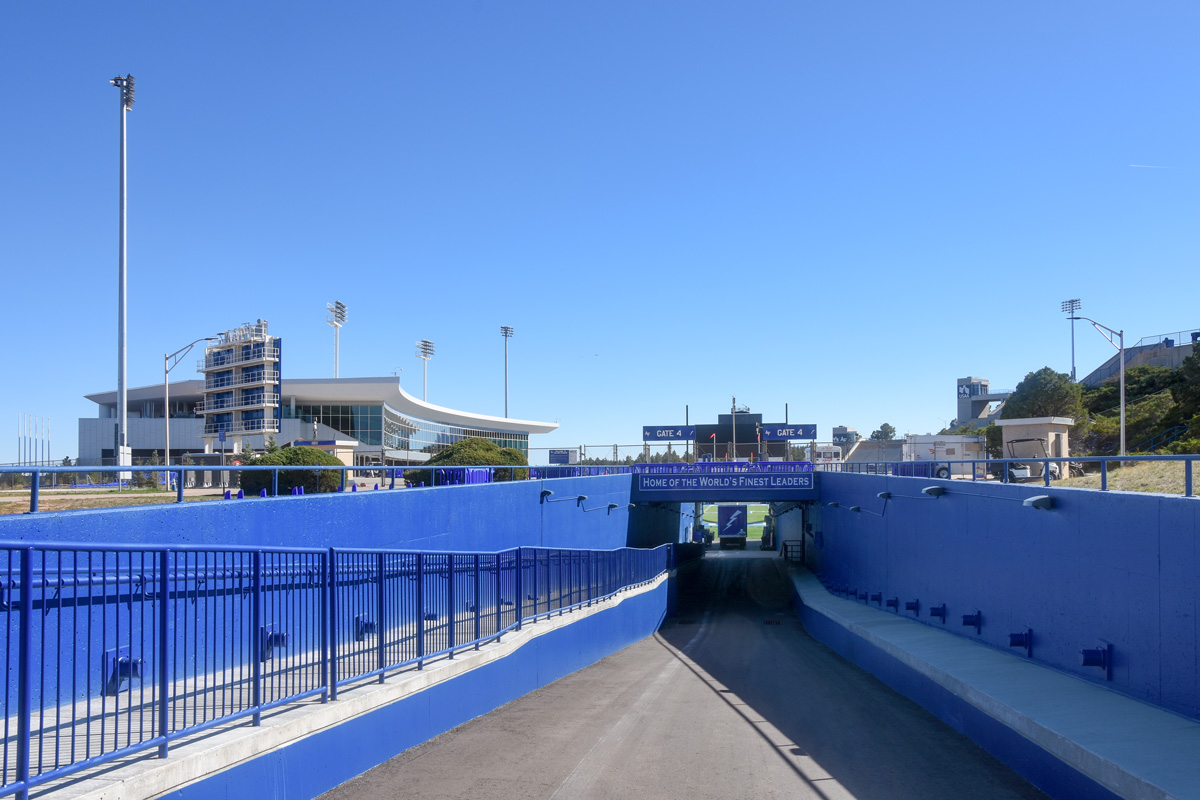

Inspiration
