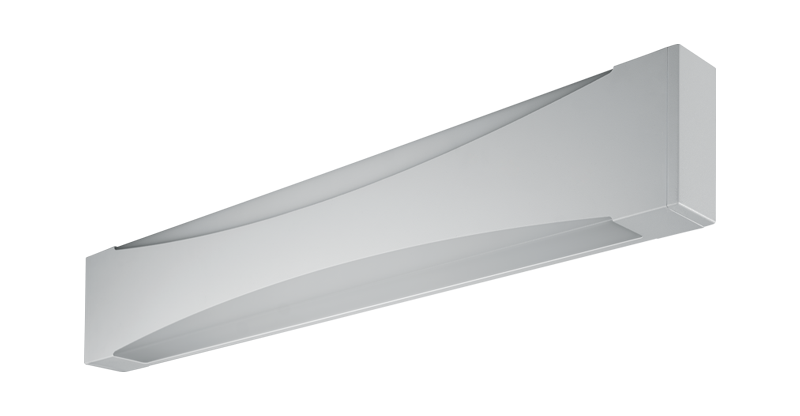

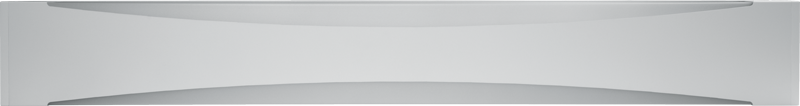

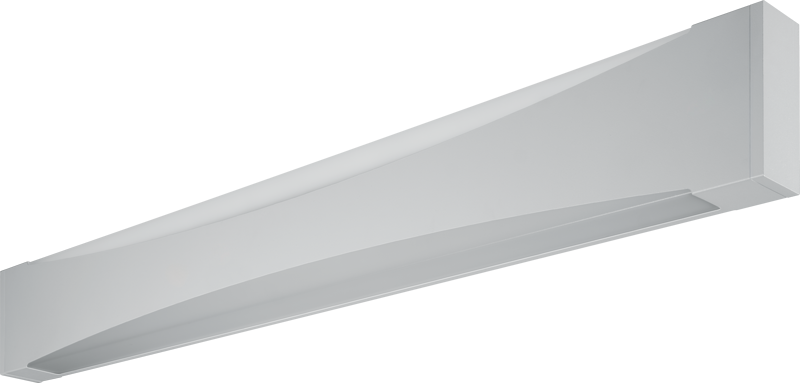

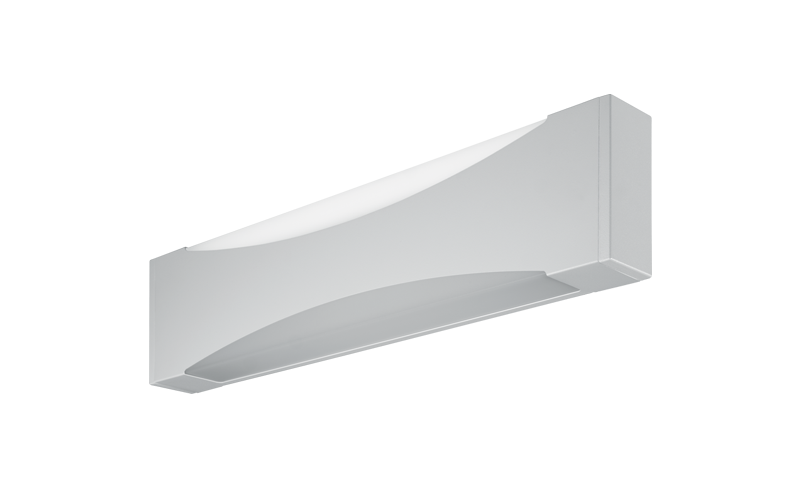

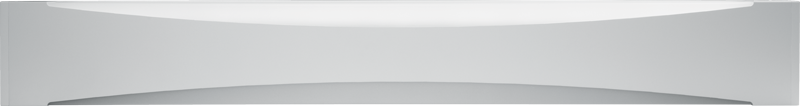

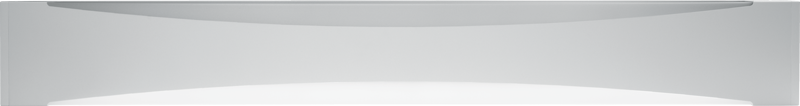

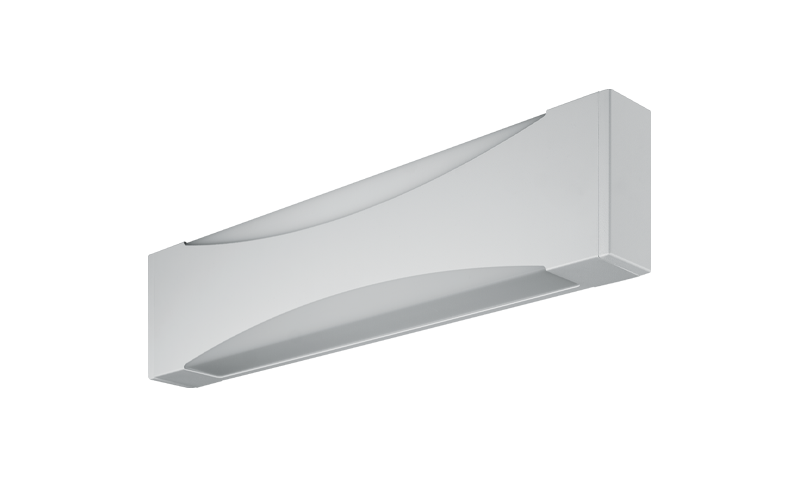

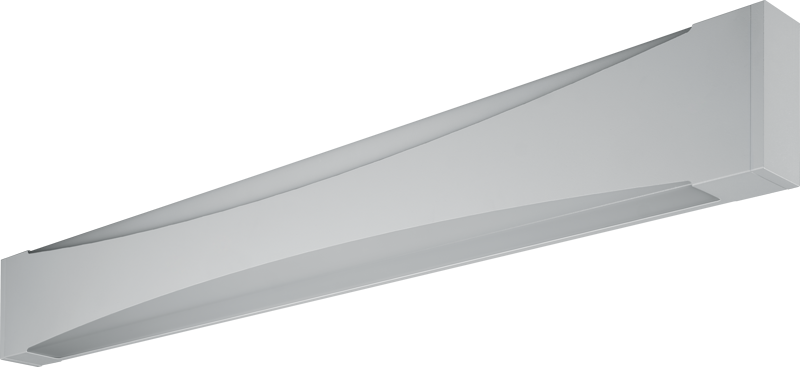

CW Contour Headwall
Features
- Contoured architectural form integrates seamlessly with modern interiors
- Low-profile style meets ADA compliance standards

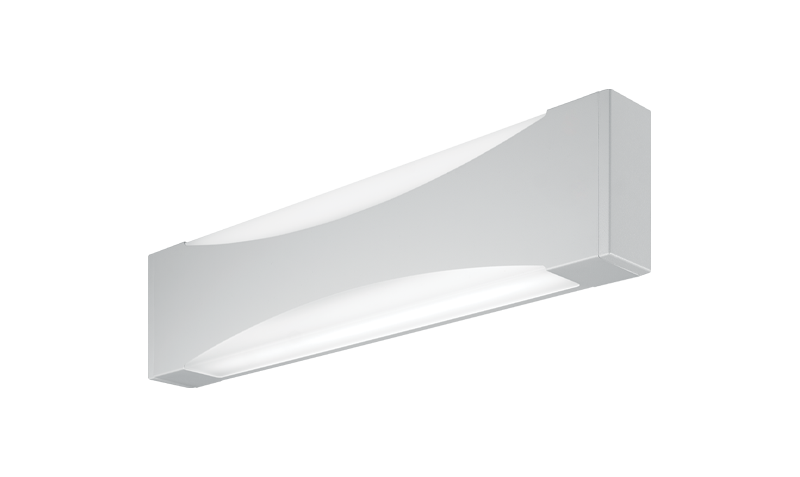

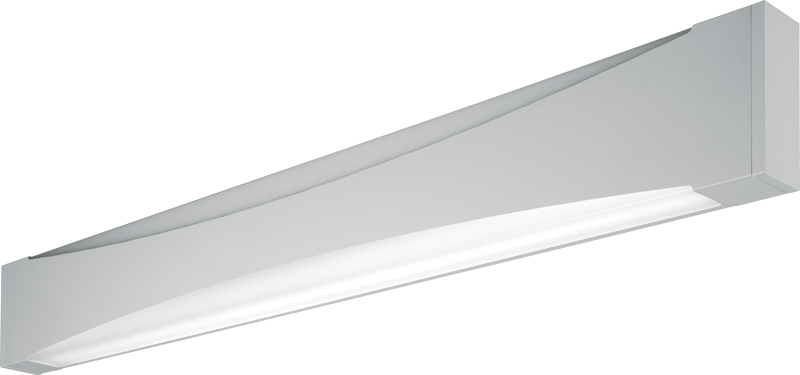

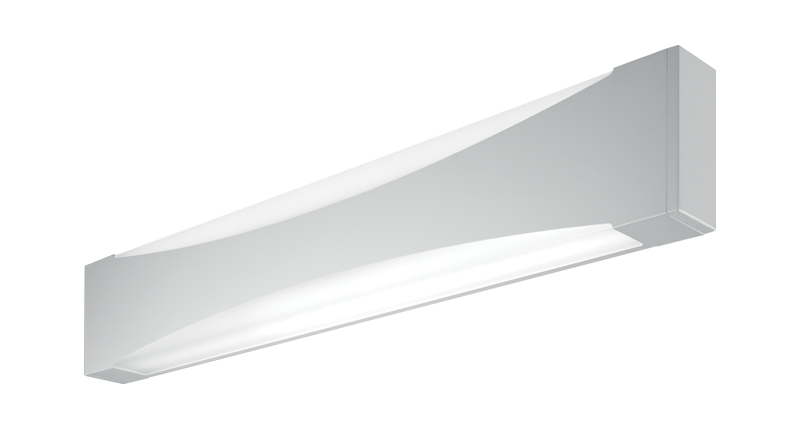

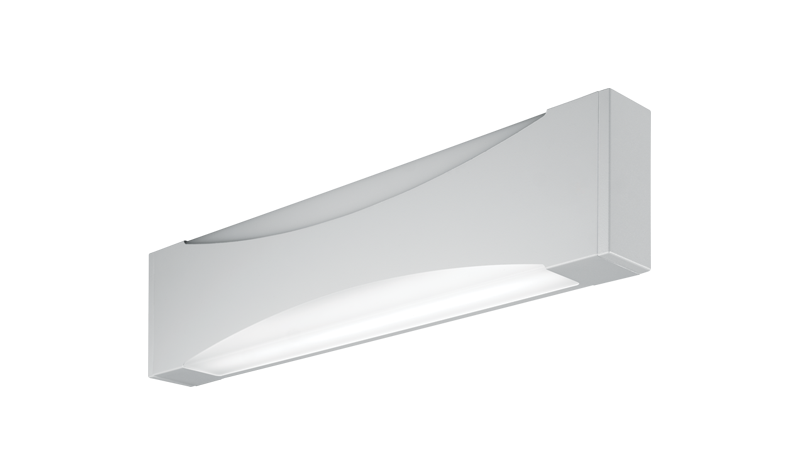

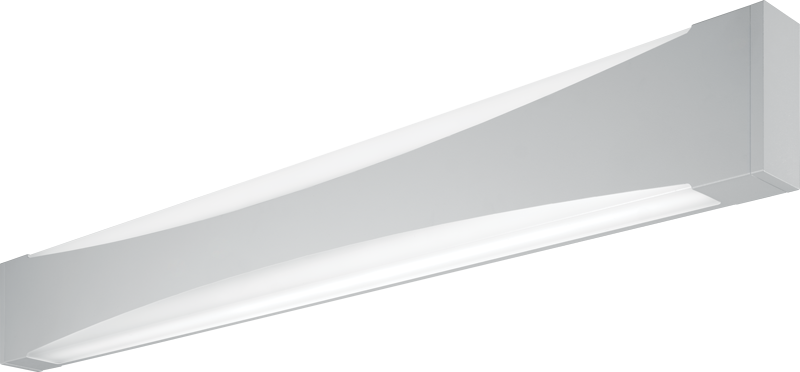

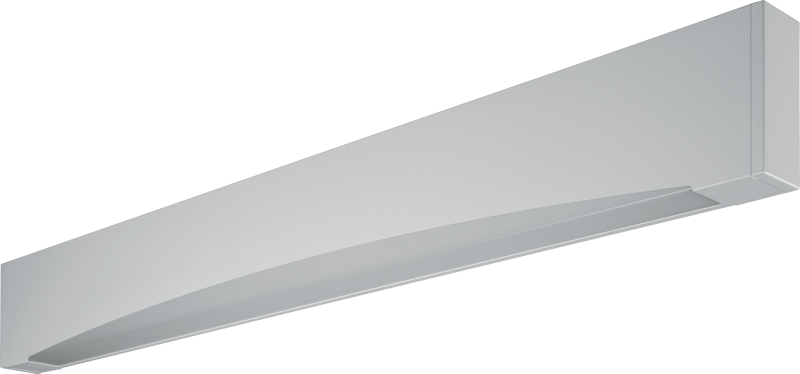

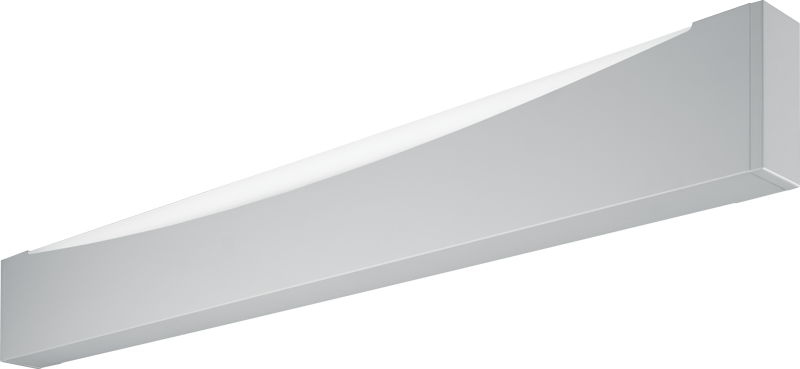

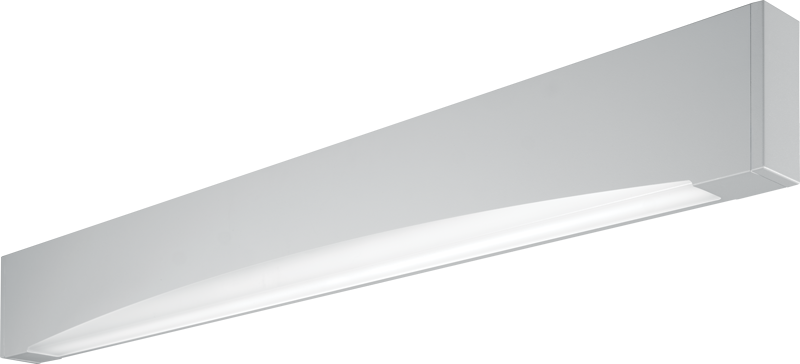

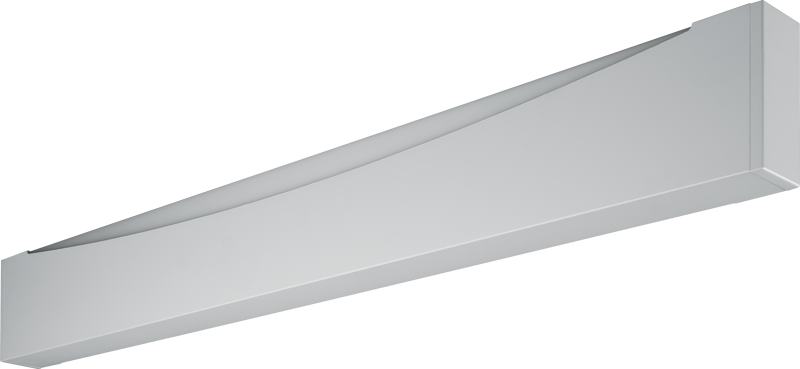

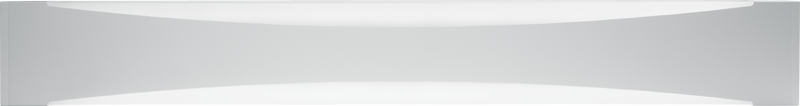

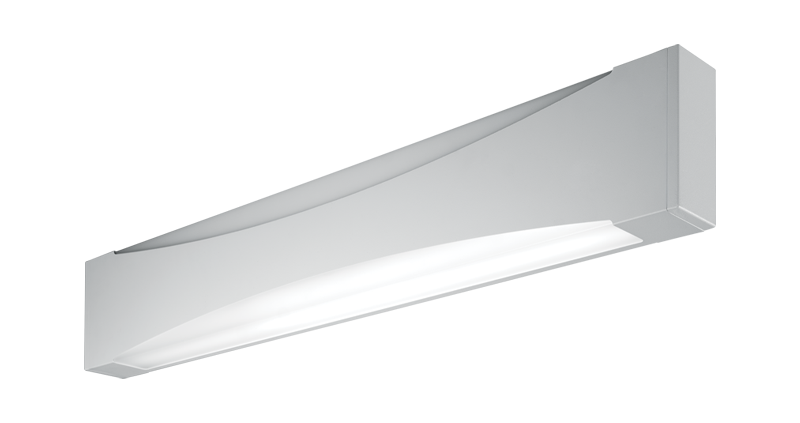

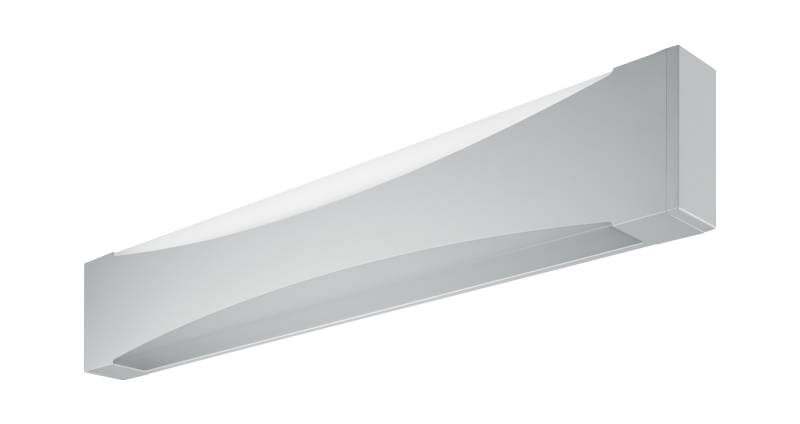

- Direct and indirect lighting with closed top or bottom options available
- Tamper-resistant screws are provided for vandal-prone areas
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Low-voltage controller wall plate accessories provide easy access for healthcare personnel
- Six standard finish options and a wide selection of custom colors complement architectural elements
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Find your local agent or distributor.
Specifications
|
Housing |
20-gauge die-formed, welded C.R.S. with die-cast aluminum end caps. Tamper-resistant Torx Pin screws and (1) tamper-resistant tool provided. |
|
Shielding |
Diffuse matte acrylic, .080″ thick. |
|
Finish |
Textured anti-microbial matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. L70 >72,000 hours per IES TM-21. 50/60 Hz constant current driver. |
|
Mounting |
Wall mounts over horizontal junction box, flush to wall. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. |
|
Warranty |
5-year limited warranty, see details |
Finishes
Black
Bronze
Nickel
Alum
Silver
White
200+ RAL Colors
