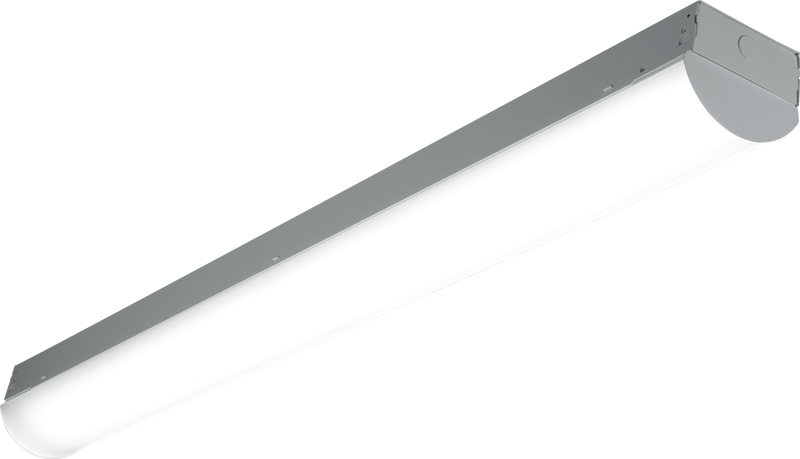

76R Round Lens Strip

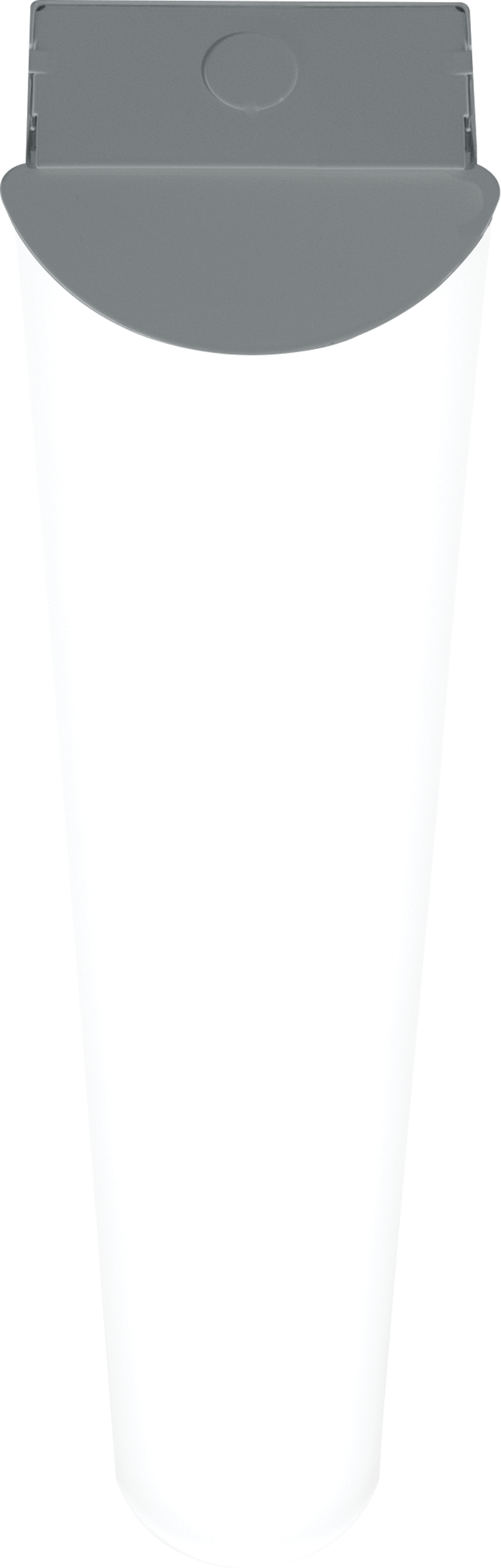

End View
76R: The diffuse acrylic round lens enhances the standard strip by providing uniformity and reducing glare. Available in 4' and 8' lengths with special reflector options for precise light distribution.
Build American, Buy American compliant
DLC Qualified
UL 924

Features

  • Diffuse acrylic lens enhances uniformity and minimizes glare
  • Diverse selection of mounting accessories for surface and suspended applications
  • Special reflectors available for precise light distribution
  • High-performance up to 154 lm/W
  • Channel connector furnished for continuous row applications (included with 8′ units only)
  • 40ºC max ambient operating temperature
  • Optional wireguard provides added protection
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • 4' and 8' lengths available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Quick-connect wiring options for continuous row mounting
  • DLC Compliant
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing

22-gauge die-formed C.R.S.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Shielding

Linear ribbed diffuse acrylic

Electrical

High-quality mid-power LED boards. L70 at 60,000 hours. 40°C maximum ambient operating temperature. 50°C maximum ambient operating temperature with HA Option, lumen restrictions apply. 50/60 Hz constant current driver.

Mounting

Surface (ceiling or wall) or suspended (hanging hardware required).

Listings

• cETLus conforms to UL STD 1598. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for damp locations.
• UL 924 available.
• DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

 5-year limited warranty, see details

Downloads

Spec Sheets
IES Files
Revit Files
Instructions
Literature
Tech Info

Finishes

Black

Bronze

Nickel

Alum

Silver

White

200+ RAL Colors
