4DS 4.5″ Downlight – Square

4DS: The square shape of the 4DS LED downlight accentuates architectural styles in a 4 inch aperture for unobtrusive illumination in small scale spaces

Features

Beam angles ranging from 25º narrow to 60º wide for tailored performance
4 inch aperture is unobtrusive in small scale spaces
Square shape accentuates architectural styles

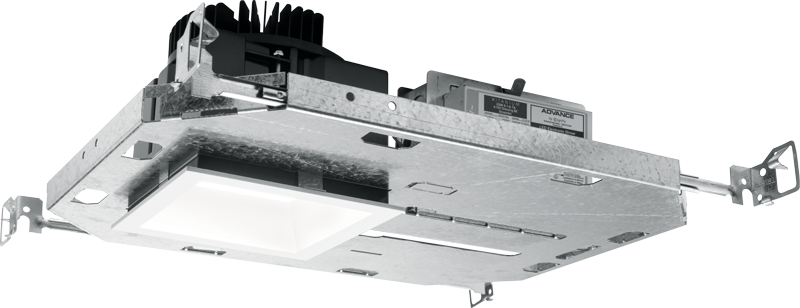

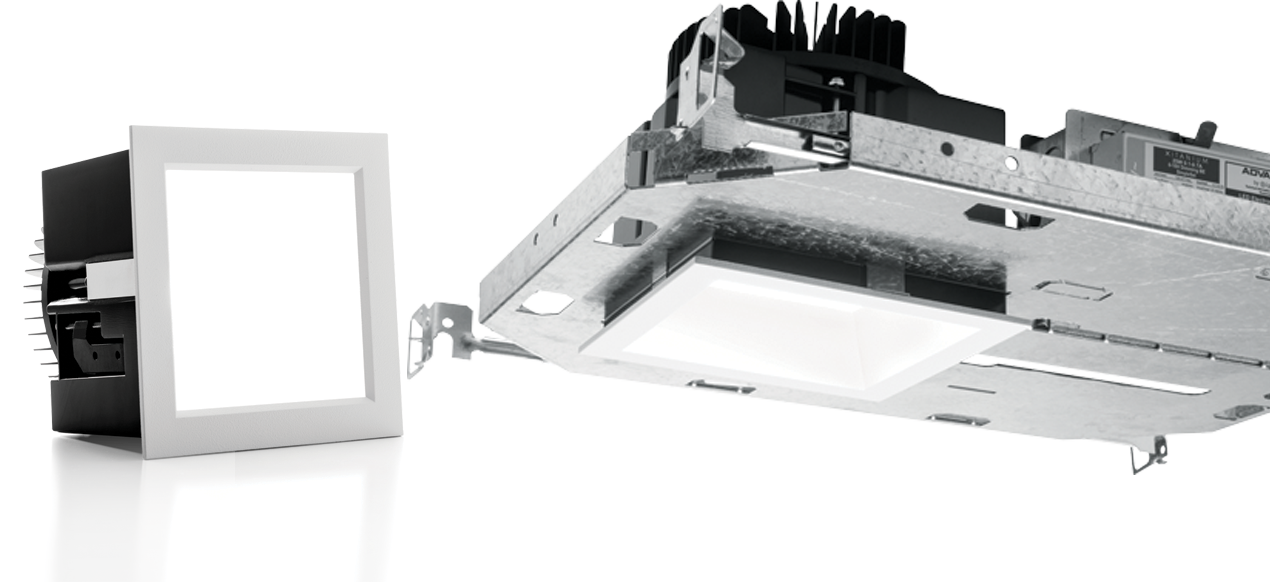

New construction mounting pan, IC-rated, or pan-less remodel kit available

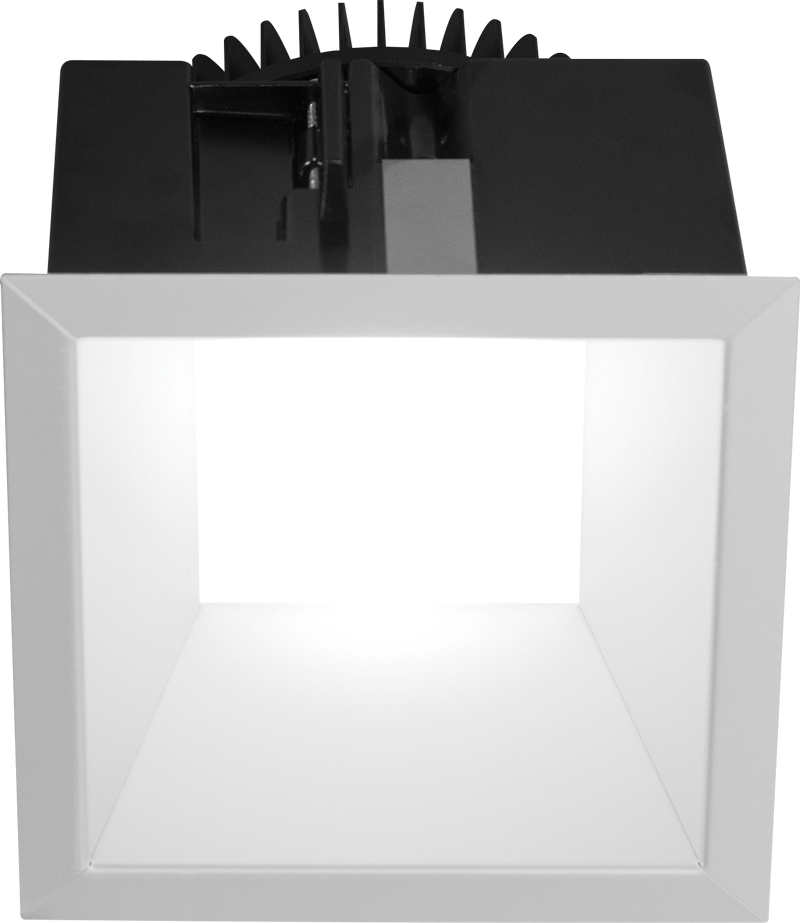

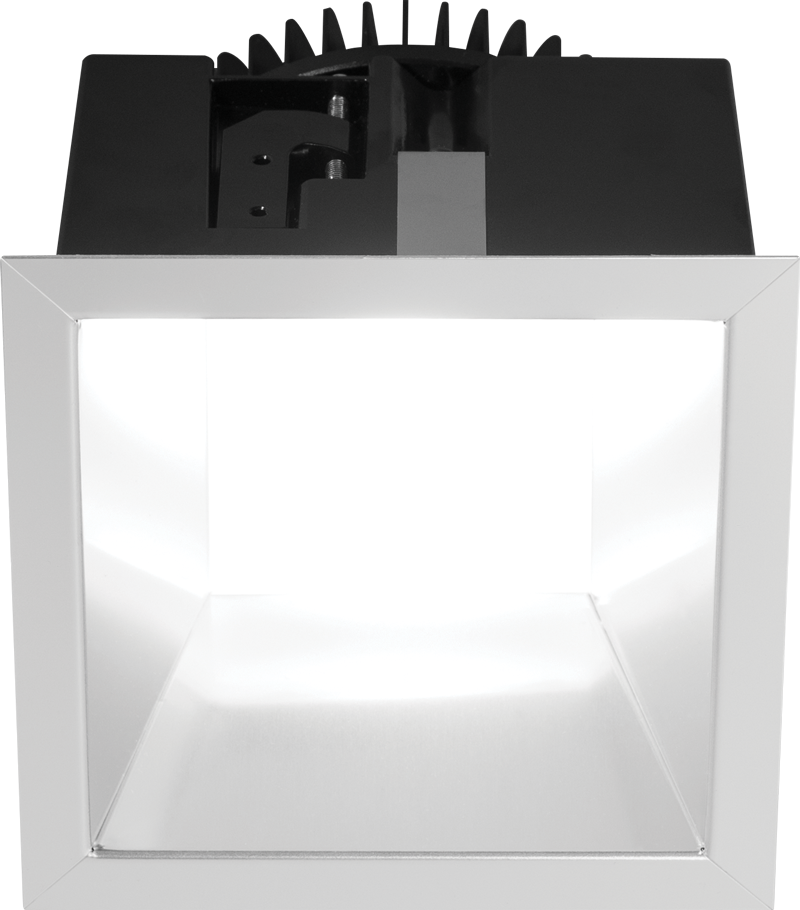

Open reflector with seven finishes complements any interior style

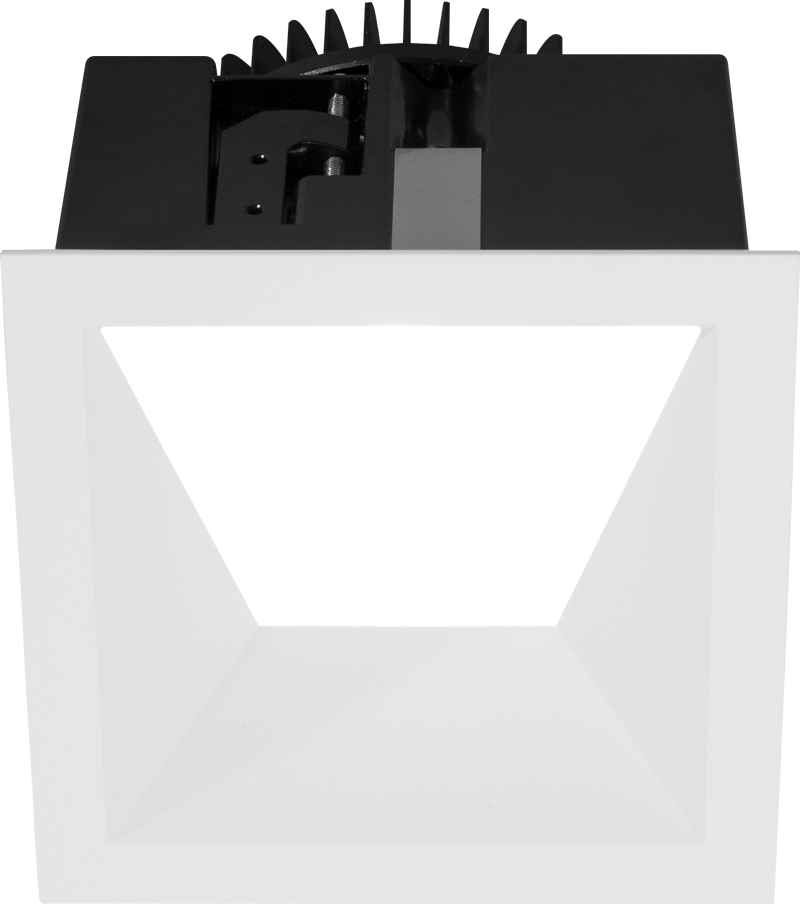

Die-cast trim choices include flush, regressed or angled lens
Contemporary design provides glare-free illumination for a soft ceiling appearance

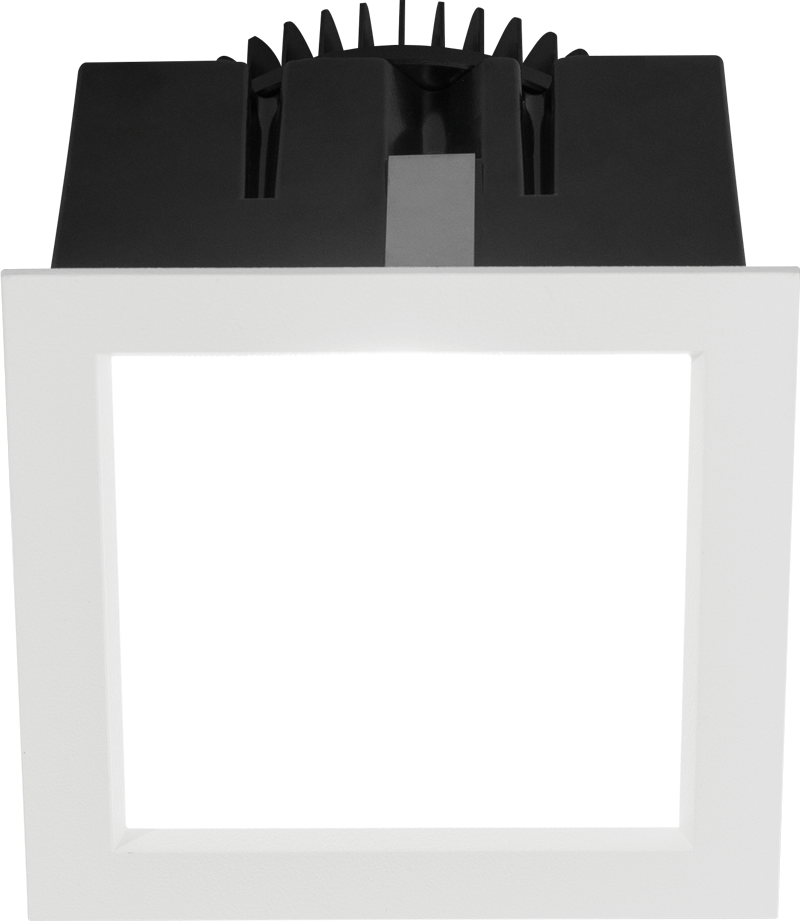

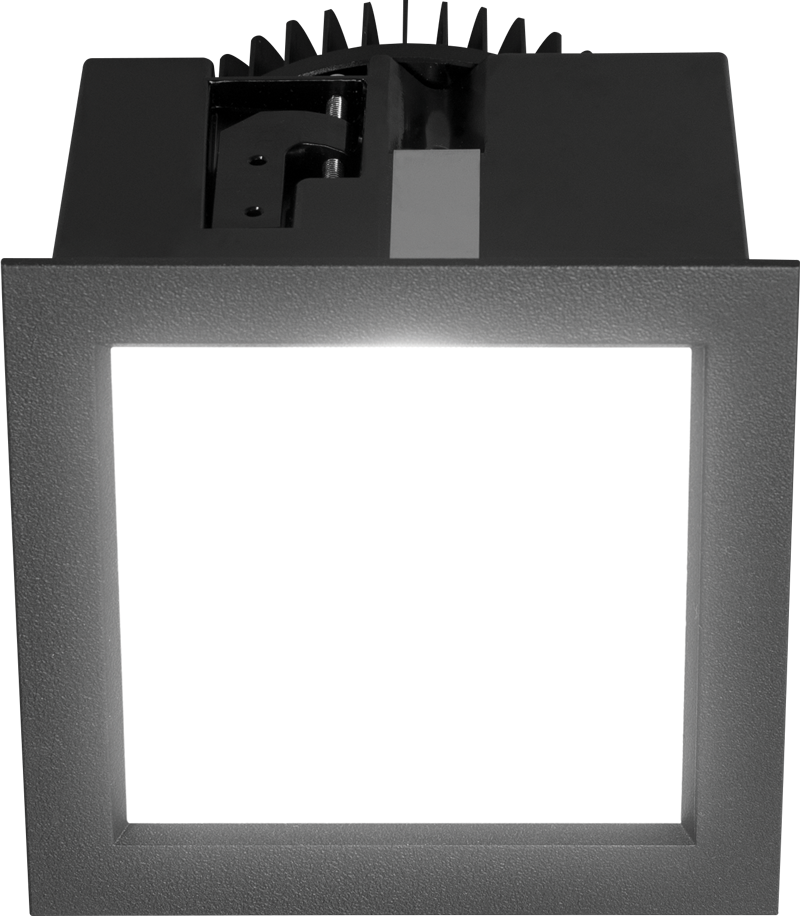

IP65-rated die-cast trim includes easy-to-clean flush lens
Fully room-side accessible
Title 24 | JA8 compliant
Spring clip retention system eliminates trim sag
Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
Low UGR meets LEED and WELL requirements
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
Create rich, vibrant designs with lasting visual impact using the full visible light spectrum
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
Open Reflector	Low-iridescent anodized aluminum with top diffuser.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L40 lumen package.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IP65 rated trim when specified with IP option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Title 24 (JA8) compliant in select configurations, see www.cacertappliances.energy.ca.gov. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
Open Reflector	Low-iridescent anodized aluminum.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens.
Electrical	High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for P35 and P49 lumen packages.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IP65 rated trim when specified with IP option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
Open Reflector	Low-iridescent anodized aluminum with top diffuser.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens.
Electrical	High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IP65 rated trim when specified with IP option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
Open Reflector	Low-iridescent anodized aluminum with top diffuser.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IP65 rated trim when specified with IP option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
Open Reflector	Low-iridescent anodized aluminum with top diffuser. Clear semi-specular finish standard.
Lensed Trim	Die-cast aluminum frame with microprismatic, acrylic lens.
Electrical	High-performance Class 2 CSP RGBW LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>60,000 hours (all colors). Reported L90: Red: >23,000 hours, Green: >44,000 hours, Blue: >60,000 hours, White: >48,000 hours
Control	DMX enabled; controllers provided by others.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IP65 rated when specified with IP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american
Warranty	5-year limited warranty, see details
