LRX2 2″ Wide Linear Recessed
Features
- Sleek design incorporates clean lines, slim styling, and diffused matte acrylic lens

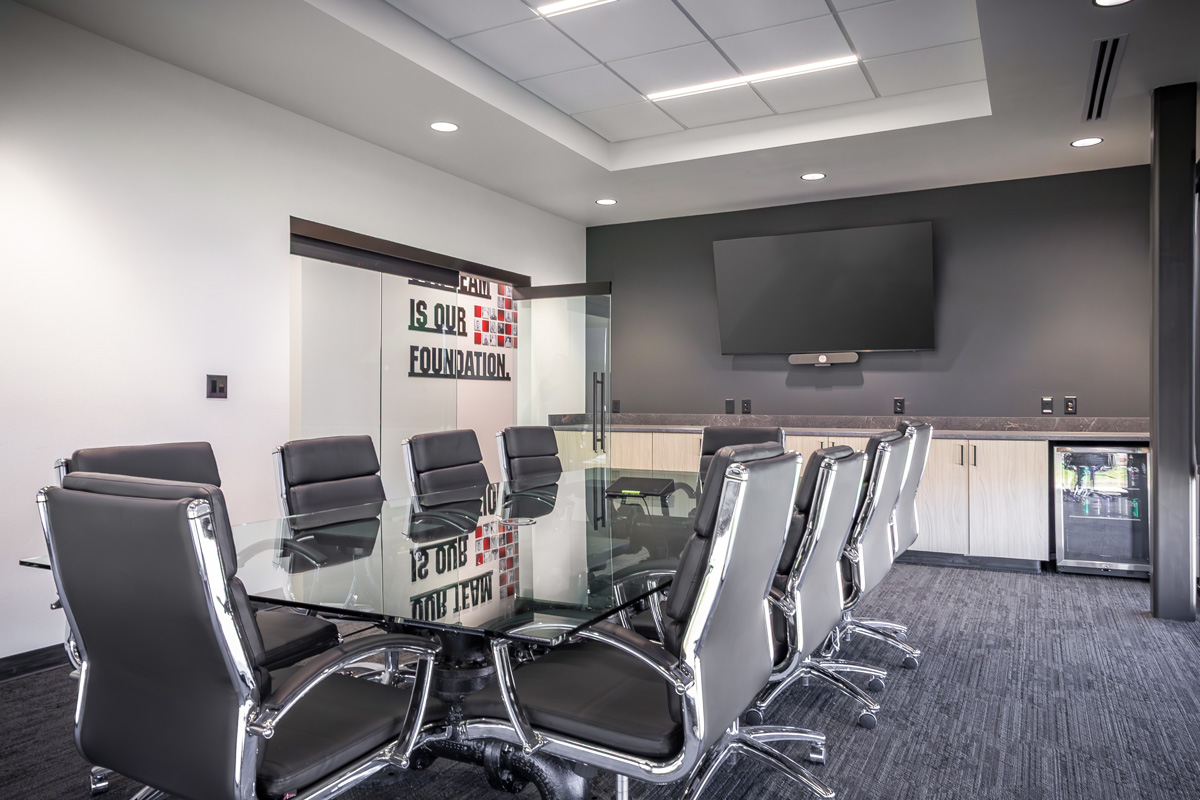

- Attractive source of direct lighting for use in offices, hallways, conference rooms or common areas
- Lift and shift lens allows easy access to internal components
- For use as stand-alone fixture or in continuous rows
- Grid or hardpan ceilings
- High-performance, seamless illumination
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
Tools
Quantity Estimator
Estimate fixture quantities and light levels.
Product Builder
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Housing |
22-gauge die-formed, C.R.S. |
|
Shielding |
Lift-and-shift flat diffused matte acrylic, .080″ thick. |
|
Finish |
92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. L70 >50,000 hours. 50/60 Hz constant current driver. |
|
Mounting |
NEMA Type “G” 15/16″ or 1″ grid standard. 9/16″ narrow-face grid and drywall flange types available. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. • City of Chicago Environmental Air approved when specified with CP option. • IC-rated for direct contact with insulation. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american. |
|
Warranty |
5-year limited warranty, see details |
