FRM Recessed Architectural Frame

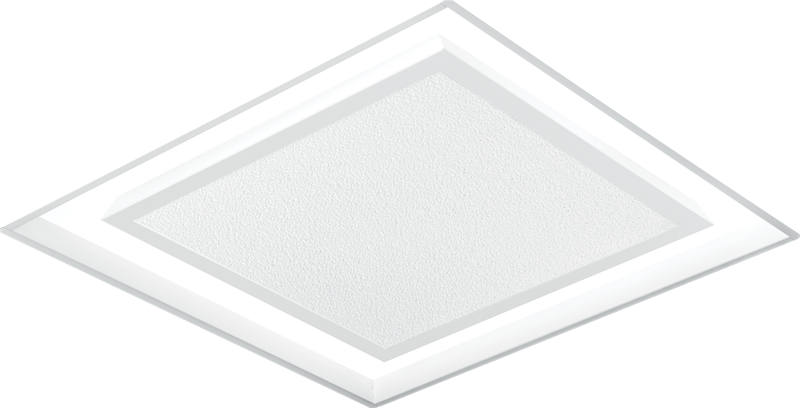

Ceiling material center

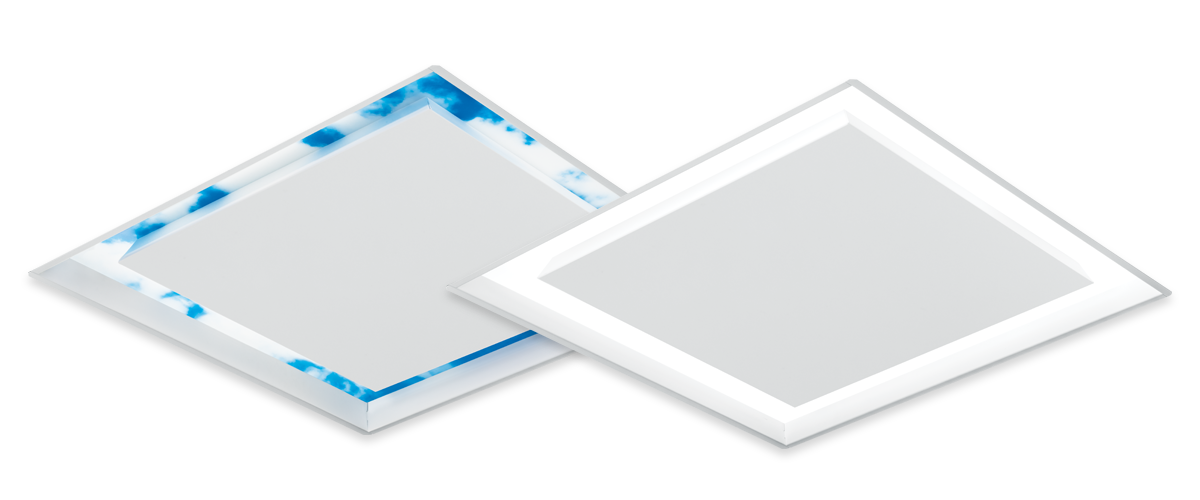

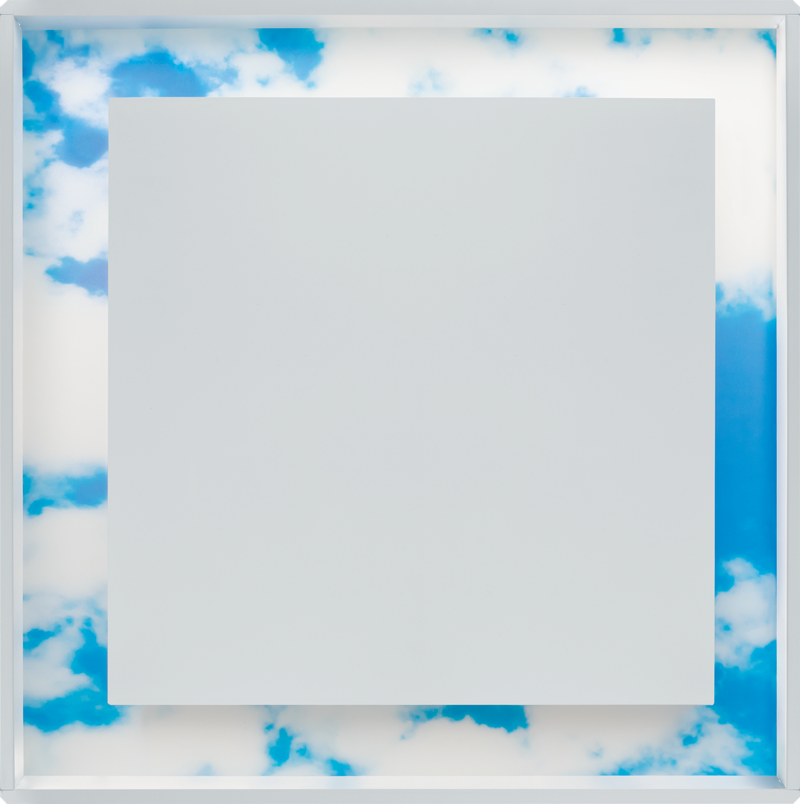

Sky lens

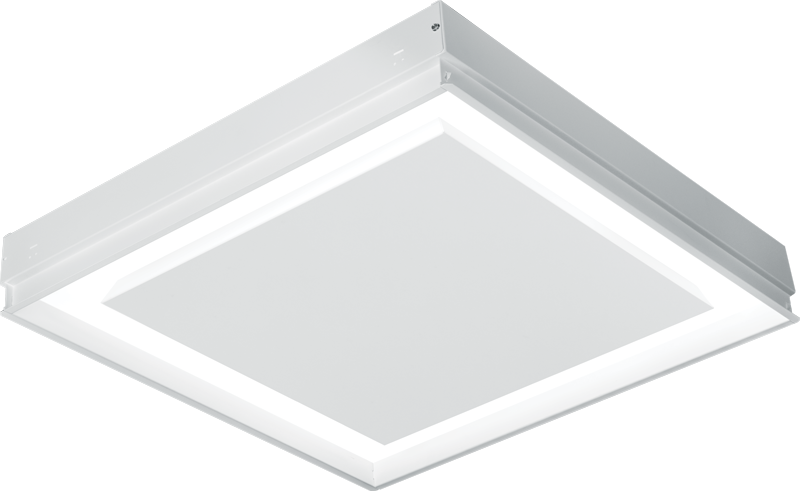

2'x2'

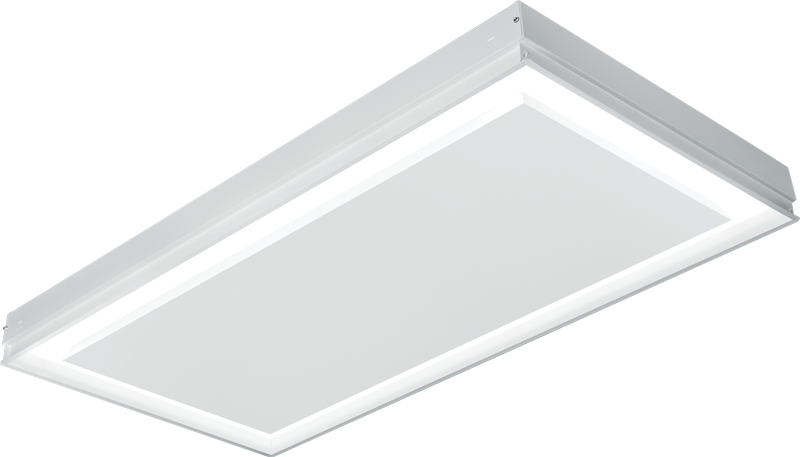

2'x4'

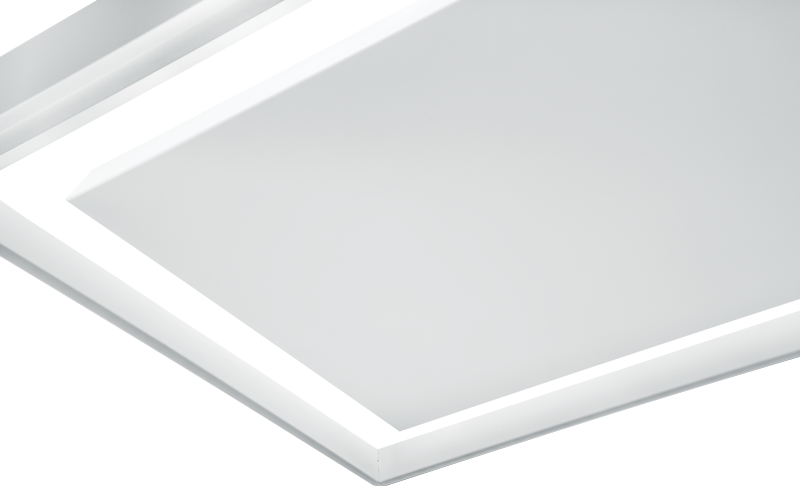

Detail View

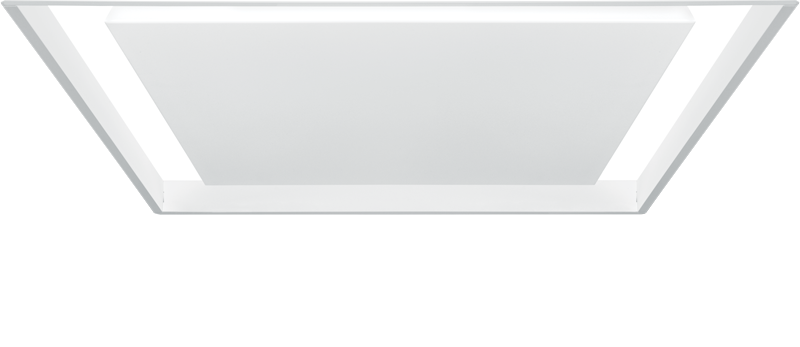

2'x2' Front View

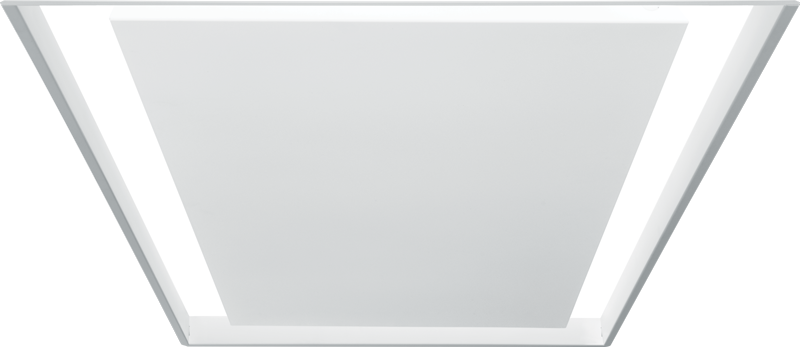

2'x4' Front View
FRM: Williams FRM architectural troffer combines square format with continuous linear design. Features regressed lens, diffuse illumination, and room-side access for workplaces, education, and healthcare applications.
Build American, Buy American compliant
Low UGR
Chicago Plenum / CCEA Compliant
Tunable White

Features

  • Developed for workplaces, learning centers and healthcare campuses
  • Square shape and regressed design complement the MX2 continuous series
  • Ceiling material center option creates clean architectural continuity
  • Cloud graphic shielding option simulates natural daylight for a relaxing atmosphere
  • Diffuse lens provides enhanced visual comfort
  • Fully room-side accessible with hinged center panel simplifies maintenance
  • 2x2 and 2x4 sizes available
  • IC-rated for direct contact with insulation
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Low UGR meets LEED and WELL requirements
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Precision die-formed 22-gauge C.R.S.

Shielding

Diffuse acrylic lens

Finish

95% reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. 50/60 Hz constant current driver. Tunable White products use LEDs of multiple shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall kit accessories available, shipped separately.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• City of Chicago Environmental Air approved when specified with CP option.
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details
