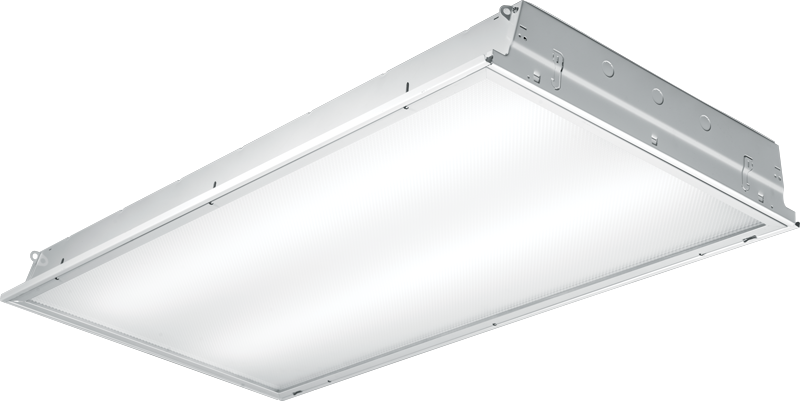

V50 Vandal-Resistant Static Troffer

Features

Ideal for potentially rough environments such as recreational facilities, schools, supervised behavioral centers, or other vandal-prone areas
Impact-resistant prismatic lens with polycarbonate overlay provides added security
Tamper-resistant screws secure door frame
Fully gasketed door option allows for use in light moisture vandal environments such as locker rooms
T-slot steel hinge ensures positive retention when door is opened
Back reinforcement ribs and rolled-edge channel provide added strength
Integral T-bar clips quickly secure fixture to structure. (2x2 and 2x4 only)
IC-rated for direct contact with insulation
High-performance up to 124 lm/W
Double or triple gasketing options available
Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
Listed for wet location under covered ceiling option
1x4, 2x2, and 2x4 sizes available
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	22-gauge die-formed C.R.S.
Door Frame	.050″ flat extruded aluminum, with mitered corners. T-slot steel hinge allows reversible hinging and latching. Fully enclosed spring-loaded cam latches secured with six tamper- resistant, tri-grove screws.
Shielding	Frosted acrylic, pattern #12, .157″ thick chemically welded to clear polycarbonate, .177″ thick.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 at 50,000 hours. 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange type available.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • IC-rated for direct contact with insulation • City of Chicago Environmental Air approved when specified with CP option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
