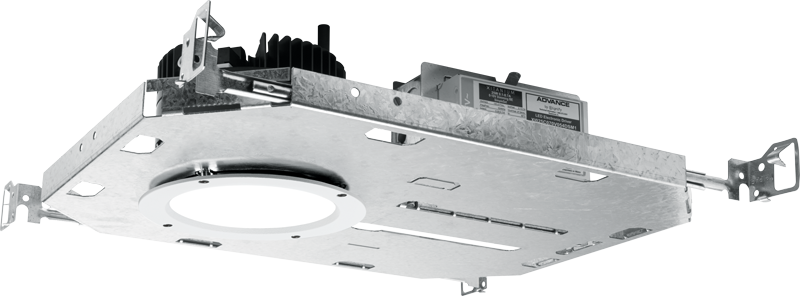

V4DR 4.5″ Vandal-Resistant Downlight – Round

V4DR: The vandal-resistant design of the 4 inch round LED downlight features die-cast trim options to achieve the perfect style for any space.

Features

Ideal for schools, behavioral health facilities, correctional institutions, and other vandal-prone areas
Anti-ligature design with tamper-resistant fasteners
Accepted by the New York State Office of Mental Health for use in inpatient facilities
IP65-rated die-cast trim includes easy-to-clean flush lens
Beam angles ranging from 25° narrow to 50° wide for tailored performance
4 inch aperture is unobtrusive in small scale spaces
Die-cast trim choices include flush or regressed lens
Contemporary design provides glare-free illumination for a soft ceiling appearance
Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
Low UGR meets LEED and WELL requirements
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/8″ max. TC option required for ceiling thicknesses greater than 1-1/4″.
Lensed Trim	Die-cast aluminum frame with 1/8” micro-prismatic, polycarbonate lens with 1/8” clear polycarbonate underlay. Trim is secured with four stainless steel, tamper-resistant screws.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Minimum 24″ O.C. marked spacing required for L34 and L37 lumen packages.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • ISO 5, Class 100 rated. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/8″ max. TC option required for ceiling thicknesses greater than 1-1/4″.
Lensed Trim	Die-cast aluminum frame with 1/8” micro-prismatic, polycarbonate lens with 1/8” clear polycarbonate underlay. Trim is secured with four stainless steel, tamper-resistant screws.
Electrical	High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • ISO 5, Class 100 rated. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/8″ max. TC option required for ceiling thicknesses greater than 1-1/4″.
Lensed Trim	Die-cast aluminum frame with 1/8” micro-prismatic, polycarbonate lens with 1/8” clear polycarbonate underlay. Trim is secured with four stainless steel, tamper-resistant screws.
Electrical	High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • ISO 5, Class 100 rated. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 1-7/8″ max. TC option required for ceiling thicknesses greater than 1-1/4″.
Lensed Trim	Die-cast aluminum frame with 1/8” micro-prismatic, polycarbonate lens with 1/8” clear polycarbonate underlay. Trim is secured with four stainless steel, tamper-resistant screws.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • ISO 5, Class 100 rated. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
