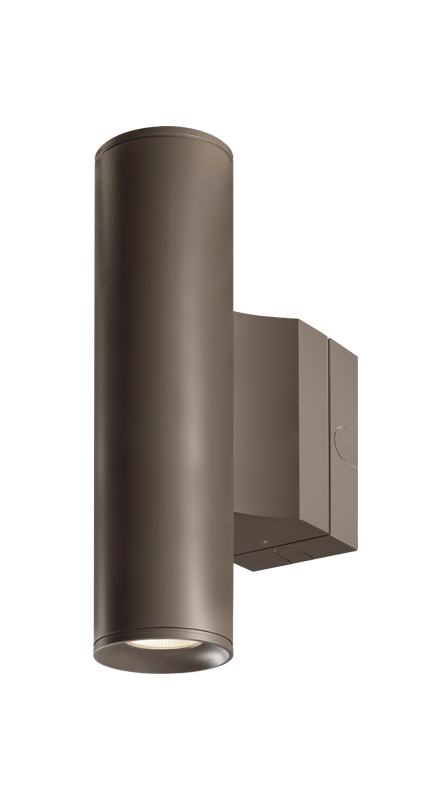

W4CRDI 4″ Wet Location Direct/Indirect Cylinder

Features

Direct and indirect light combine to brighten canopies and softly accent vertical surfaces
Sleek architectural form delivers refined, high-performance outdoor illumination
Slim profile enables precise light control, highlighting facades and design details
Durable aluminum housing and die-cast trim engineered for year-round exposure
Sealed IP-rated design guards internal components from water, dust, and debris
Pairs with Williams indoor cylinders for seamless exterior-to-interior continuity
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Beam angles ranging from 21º spot to 56º wide for tailored performance
Maximize energy savings with efficacies up to 126 lm/W
Buy American Act compliant
Made Right Here^® in the USA

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	Extruded aluminum with die-cast aluminum accent ring.
Finish	Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability. Salt spray tested, 3,000 hours (ASTM B117).
Trim	Die-cast aluminum frame with micro-prismatic, glass lens.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Estimated L70>105,000 hours. 50/60 Hz, THD <10%. Rated -10ºC to 40ºC ambient operating temperature. 0ºC to 40ºC with EM battery.
Mounting	Surface, pendant, or wall mount.
Listings	• cCSAus conforms to UL STD 1598 and UL STD 8750. Certified to CAN/CSA STD C22.2 No. 250.2-20. Suitable for wet locations. • ANSI/UL Standard 2108 • IP66 rated. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited fixture warranty, see details
