CMH Contour Multi-Function Headwall

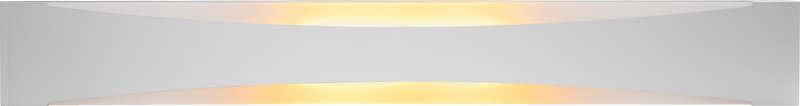

4' amber uplight and downlight on

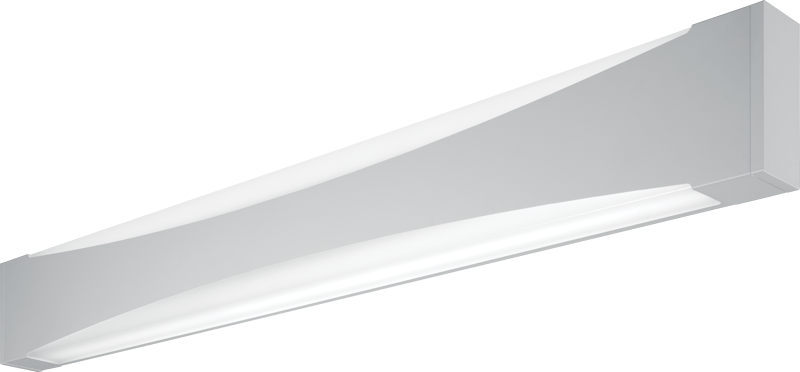

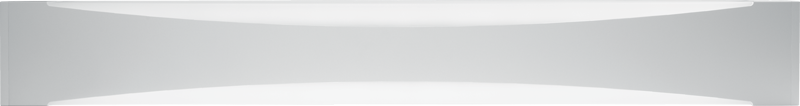

4' uplight and downlight on

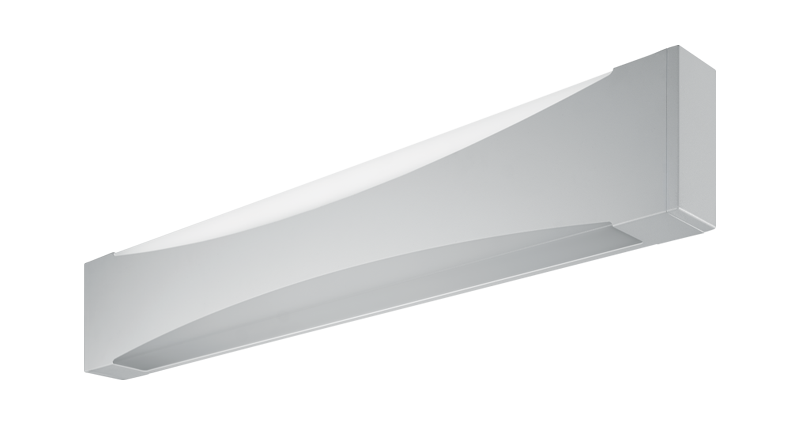

3' uplight on

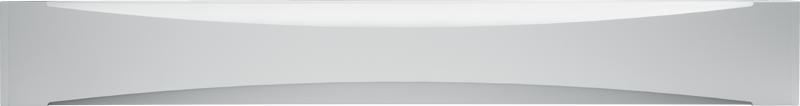

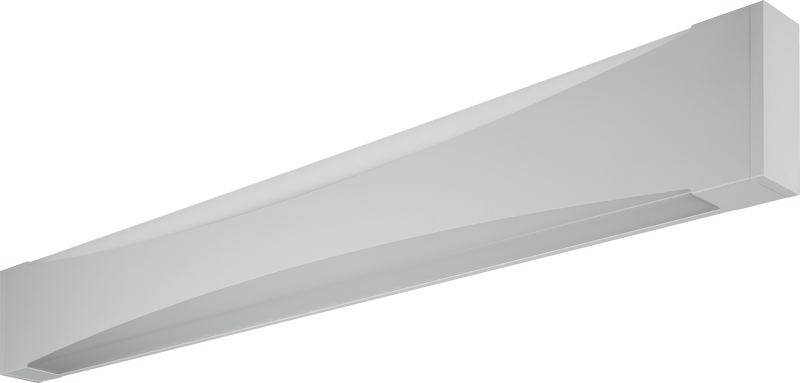

4' uplight on
4' uplight on

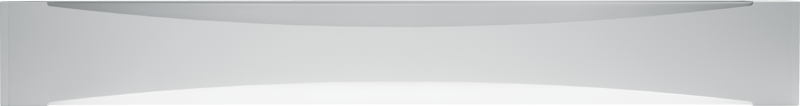

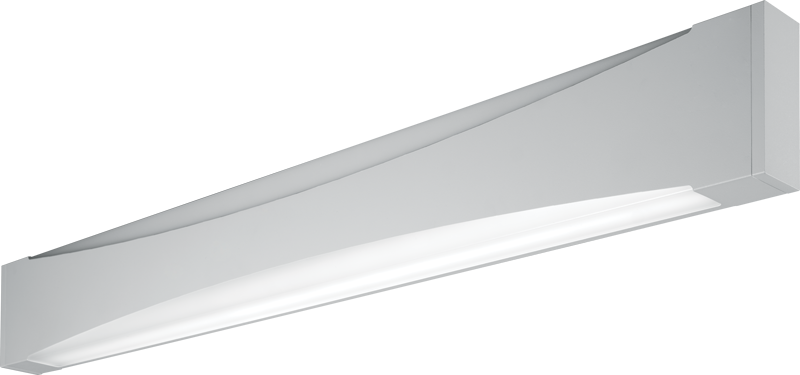

4' downlight on
4' downlight on

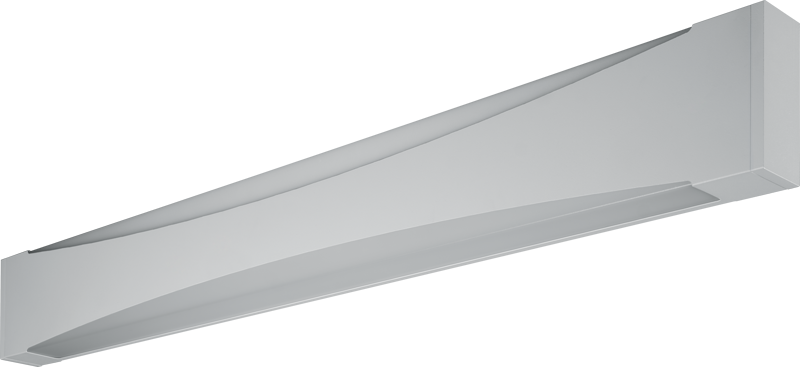

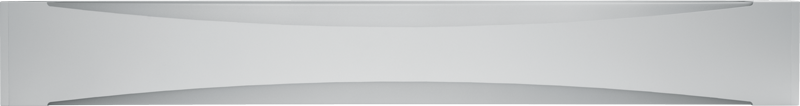

4' uplight and downlight off
4' uplight and downlight off
4' uplight and downlight on

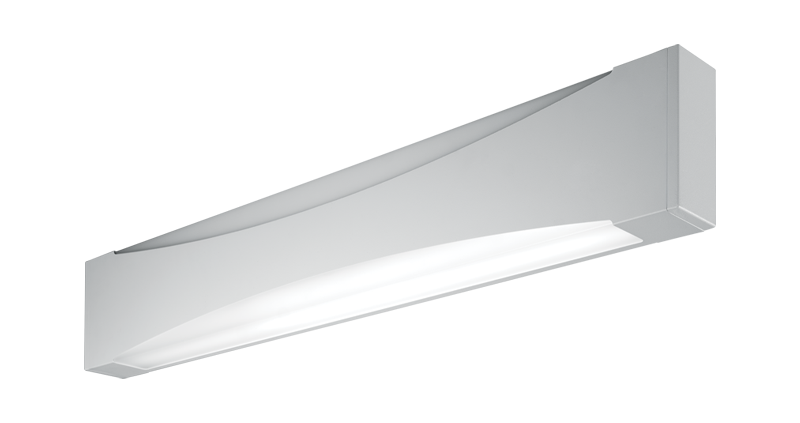

3' downlight on

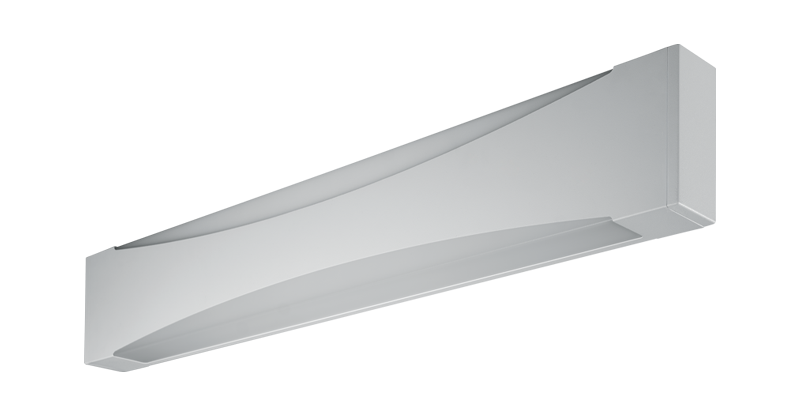

3' uplight and downlight off

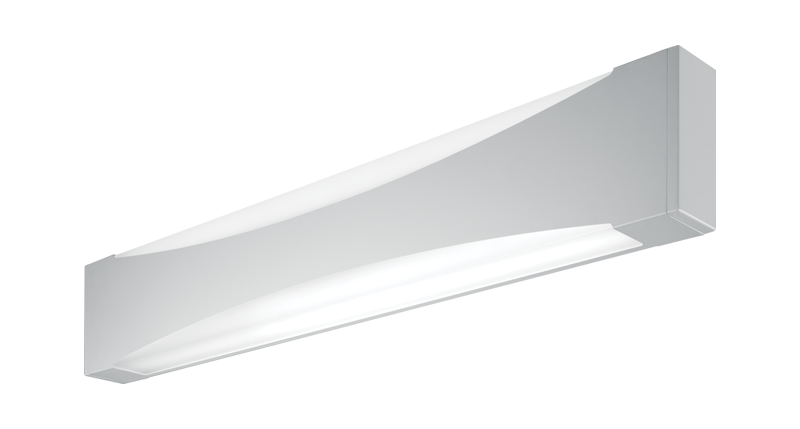

3' uplight and downlight on

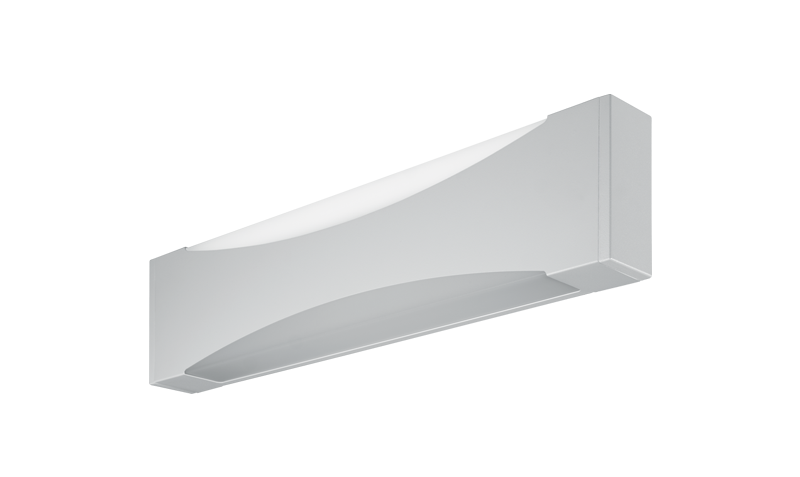

2' uplight on

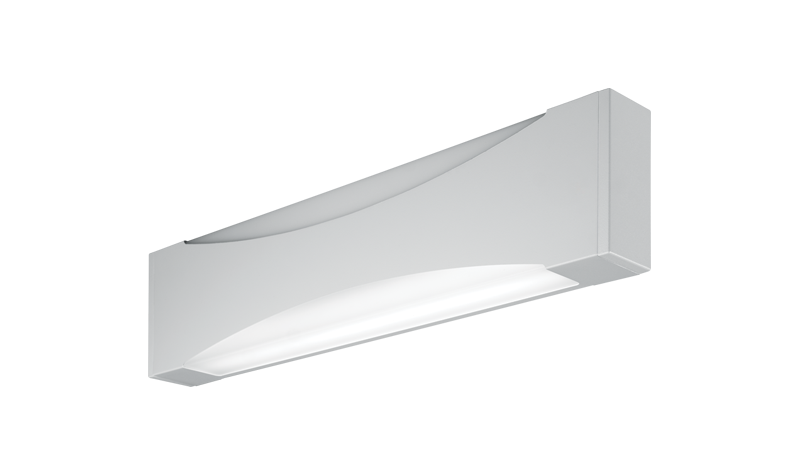

2' downlight on

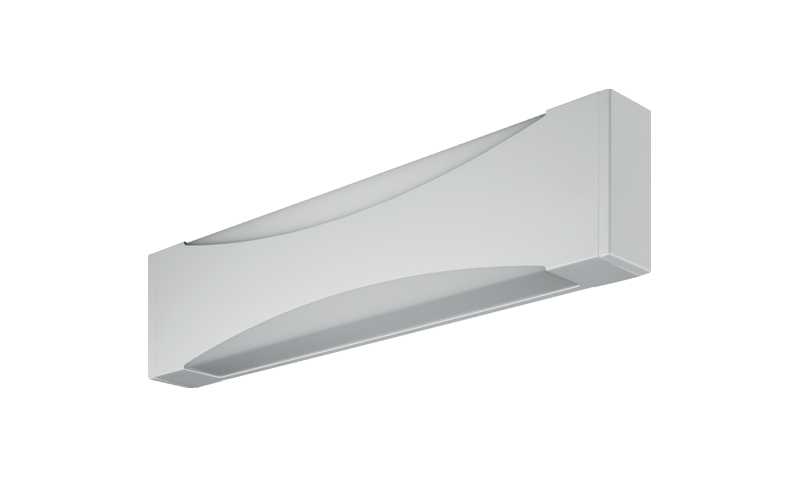

2' uplight and downlight off

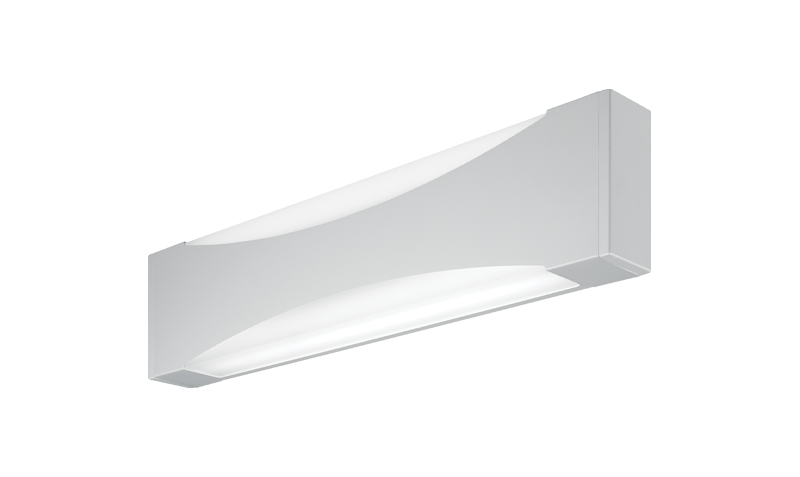

2' uplight and downlight on

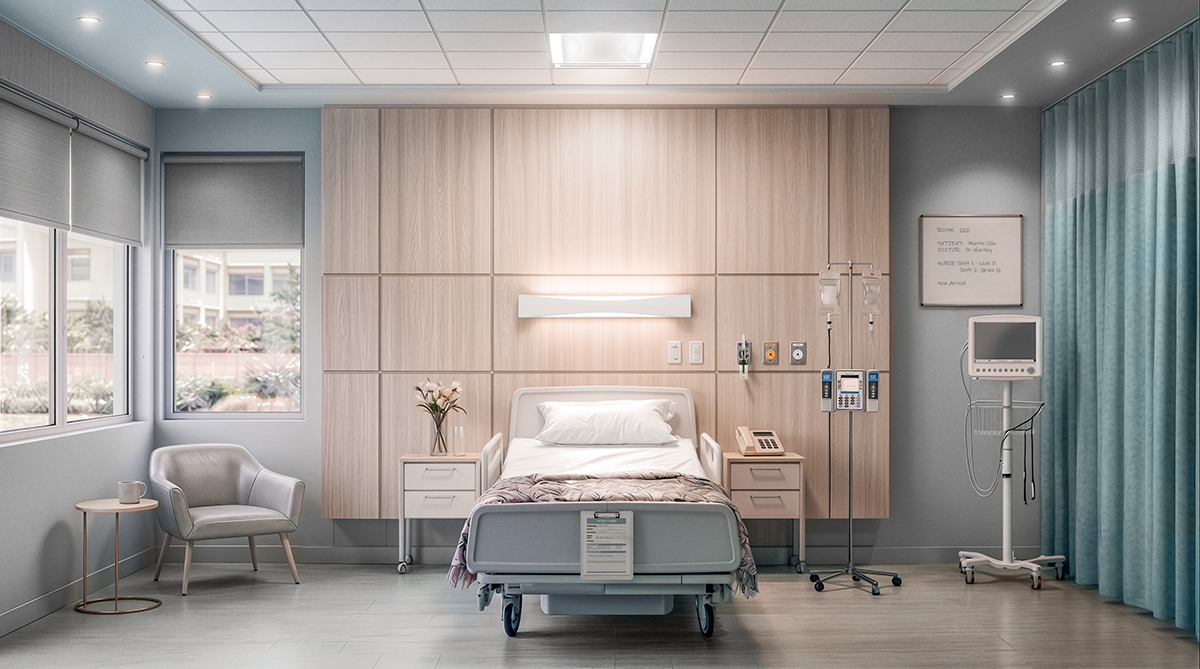

CMH: Enhance patient room comfort with the CMH Contour Multi-Function Headwall featuring ADA-compliant low-profile styling, independently controlled up/down lighting, tunable white and amber night light options, anti-microbial finish, and patient-friendly bedside controls. Designed for modern healthcare interiors and proudly Made Right Here® in the USA with BABA and BAA compliance.
Build American, Buy American compliant
ADA Compliant
Tunable White

Features

  • Contoured architectural form integrates seamlessly with modern hospital interiors
  • Low-profile style meets ADA compliance standards
  • Meets IES recommendations for patient rooms
  • Independently controlled up and down modes create personalized ambiance
  • Low-voltage controller and pull chain options provide patients with bedside lighting control
  • Tamper-resistant screws are provided for vandal-prone areas
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Amber color temperature night light option provides gentle illumination while supporting natural sleep patterns
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Low-voltage controller wall plate accessories provide easy access for healthcare personnel
  • Six standard finish options and a wide selection of custom colors complement architectural elements
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Find your local agent or distributor.

Specifications

Housing

20-gauge die-formed, welded C.R.S. with die-cast aluminum end caps. Tamper-resistant Torx Pin screws and (1) tamper-resistant tool provided.

Shielding

Diffuse matte acrylic, .080″ thick.

Finish

Textured anti-microbial matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 >72,000 hours per IES TM-21. 50/60 Hz constant current driver.

Mounting

Wall mounts over horizontal junction box, flush to wall.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• ADA compliant
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details
