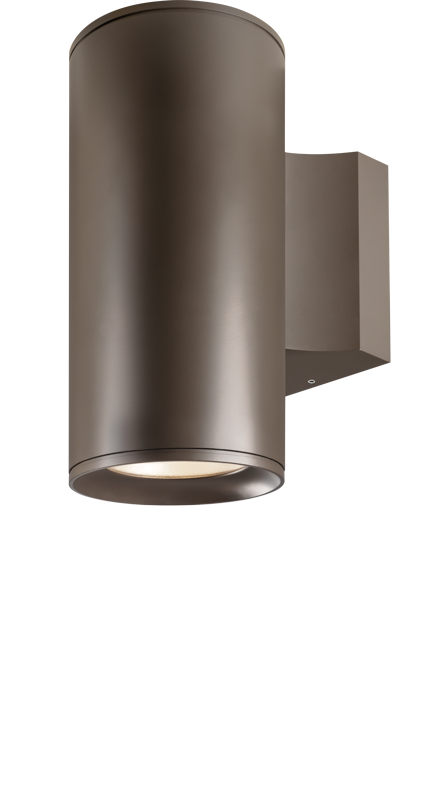

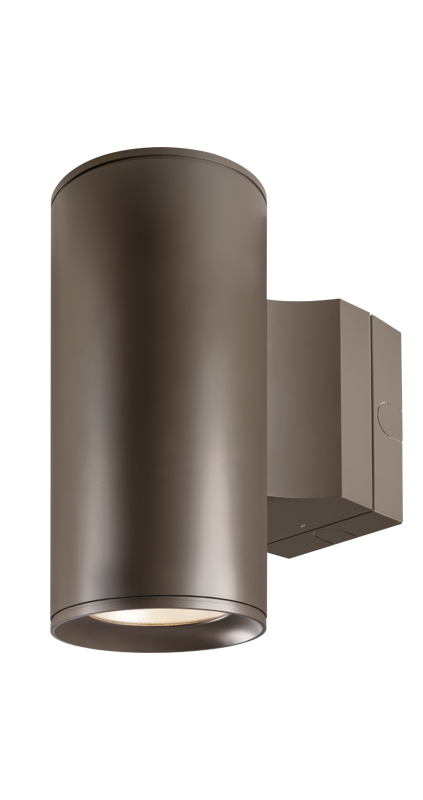

W6CRDI COMPACT 6.5″ Wet Location Direct/Indirect Cylinder

Features

Direct and indirect light combine to brighten canopies and softly accent vertical surfaces
Sleek architectural form delivers refined, high-performance outdoor illumination
Bold profile creates a strong visual statement across large exterior surfaces
Durable aluminum housing and die-cast trim engineered for year-round exposure
Sealed IP-rated design guards internal components from water, dust, and debris
Pairs with Williams indoor cylinders for seamless exterior-to-interior continuity
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Buy American Act compliant
Made Right Here^® in the USA

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	Extruded aluminum with die-cast aluminum accent ring.
Finish	Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability. Salt spray tested, 3,000 hours (ASTM B117).
Trim	Die-cast aluminum frame with micro-prismatic, glass lens.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Estimated L70>105,000 hours. 50/60 Hz, THD <10%. Rated -10ºC to 40ºC ambient operating temperature. 0ºC to 40ºC with EM battery.
Mounting	Surface, pendant, or wall mount.
Listings	• cCSAus conforms to UL STD 1598 and UL STD 8750. Certified to CAN/CSA STD C22.2 No. 250.2-20. Suitable for wet locations. • ANSI/UL Standard 2108 • IP66 rated. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited fixture warranty, see details
