AIW Architectural Indirect Wall Mount

Features

  • Complementary to Williams' AI3 Series, the decorative and versatile AIW provides functional indirect illumination

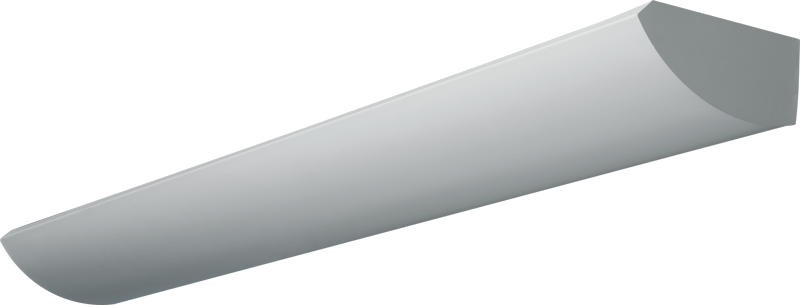

  • Non-perforated housing or 33% open perforation beneath LEDs offers choice of appearance
  • Translucent matte white acrylic over perforations provides uniform, luminous effect
  • Fixture attaches to wall bracket for simple installation
  • Driver and wireway assembly remove for easy maintenance
  • Self-aligning joining method ensures straight rows
  • High-performance up to 122 lm/W
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • Quickly lay out projects and simplify ordering with our Linear Product Builder
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

20-gauge die-formed, welded C.R.S.

Reflective Surfaces

92% minimum average reflective white polyester powder coat on interior steel components.

Shielding

Die-formed C.R.S. white polyester powder coated diffuser. Frosted acrylic.

Finish

Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. 50/60 Hz constant current driver.

Mounting

Fixture attaches to wall mounted, powder coated, die-formed C.R.S. bracket.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Finishes

Black

Bronze

Nickel

Alum

Silver

White

200+ RAL Colors

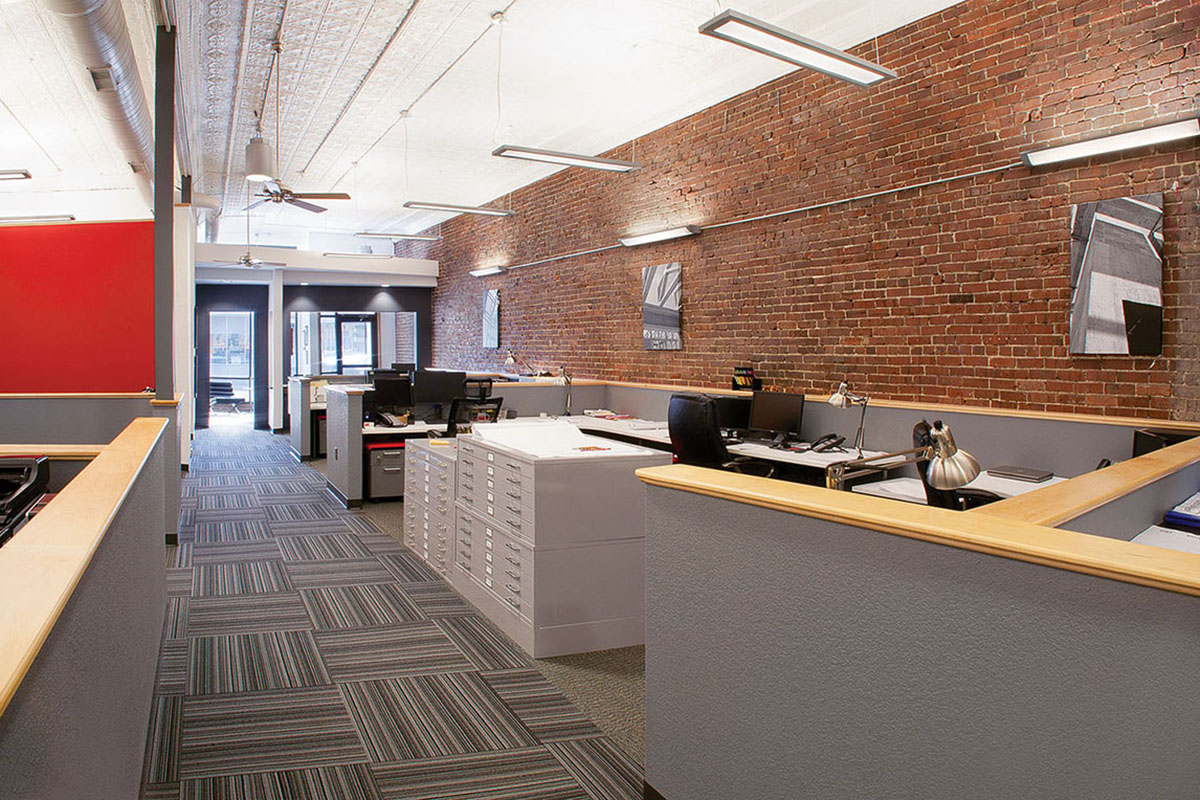

Inspiration
