BP: Sporting selectable lumens and CCT, the Backlit Flat Panel LED technology offers efficient and flexible illumination to your lighting needs; available in quickship
DLC Qualified
Low UGR
IP5X Rated

Features

  • Available on QuickShip
  • Easily change the color temperature and lumen output on-site with built-in FieldSELECT™ switches, providing ultimate flexibility
  • Surface mount kit provides design continuity where ceiling access is restricted
  • Skylight kit creates architectural design aesthetic
  • Parabolic louver kit provides classic styling detail with modern performance specifications
  • Backlit LED technology provides efficient and uniform lighting
  • Simple and quick installation
  • Seamless design prevents light leak
  • Rigid back enclosure prevents warping
  • PMMA lens minimizes the risk of yellowing from UV exposure
  • Shipped in 4-packs to reduce job-site waste
  • Optional factory-installed battery backup provides 90 minutes of emergency illumination
  • Rated for direct contact with insulation
  • Low UGR meets LEED and WELL requirements
  • DLC Compliant

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing

Aluminum frame with steel die-formed back enclosure.

Optics

Backlit PMMA lenses with PS diffuser.

Finish

Non-glare matte white polyester powder coat. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L90 >54,000 hours. 25ºC max ambient operating temperature. 50/60 Hz constant current driver.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. Factory-installed earthquake clips provided for NEMA Type “NFG” and “SG” 9/16” grid installations. Skylight, surface mount, parabolic louver, drywall kit, and suspended options are available and shipped separately.

Listings

• cULus listed as LED luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• IP5X rated.
• DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.

Warranty

 5-year limited warranty, see details

Downloads

Spec Sheets
IES Files
Revit Files
Quickship | Product Numbers
  • Quickship Brochure
  • BP-14-LS/8CS-EM/8W-QS-DIM-UNV
  • BP-14-LS/8CS-QS-DIM-UNV
  • BP-22-LS/8CS-EM/8W-QS-DIM-UNV
  • BP-22-LS/8CS-QS-DIM-UNV
  • BP-24-LS/8CS-EM/8W-QS-DIM-UNV
  • BP-24-LS/8CS-QS-DIM-UNV
Instructions
Literature
Tech Info

Mounting

Recessed

Surface Mount Kit

Skylight Kit

Parabolic Louver Kit

Suspended

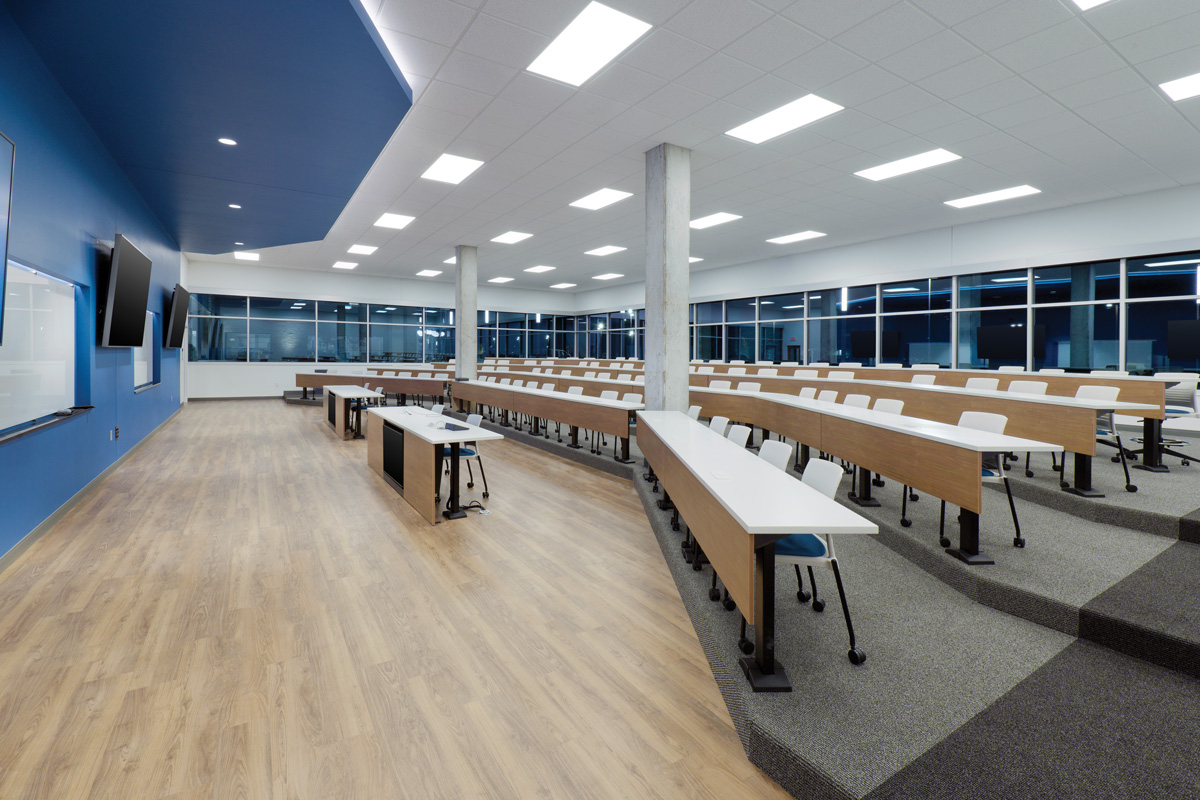

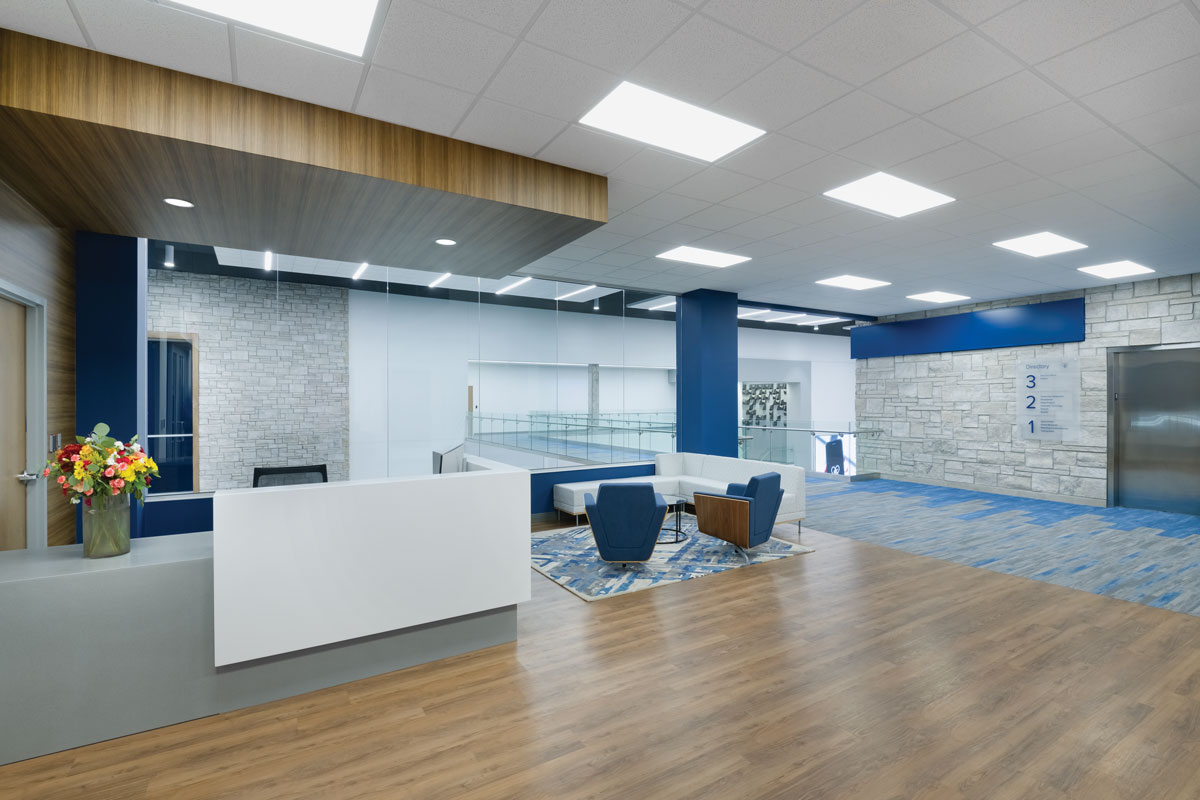

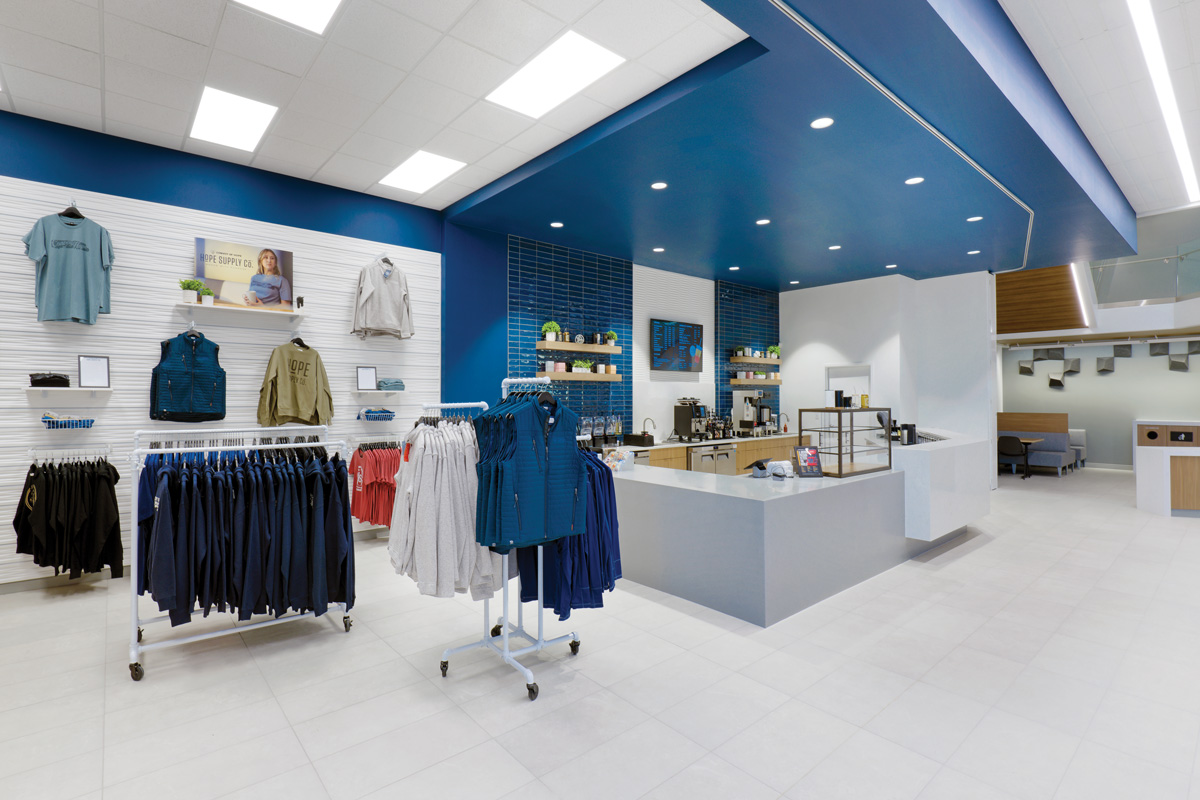

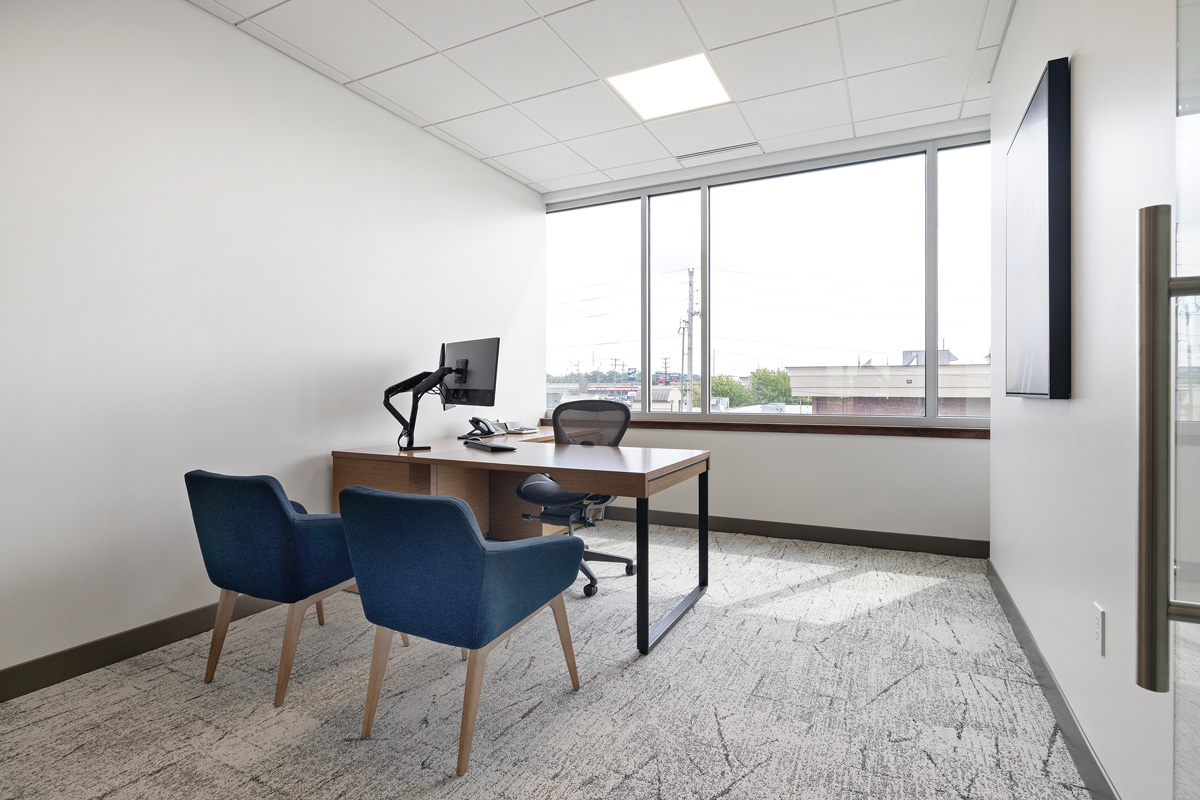

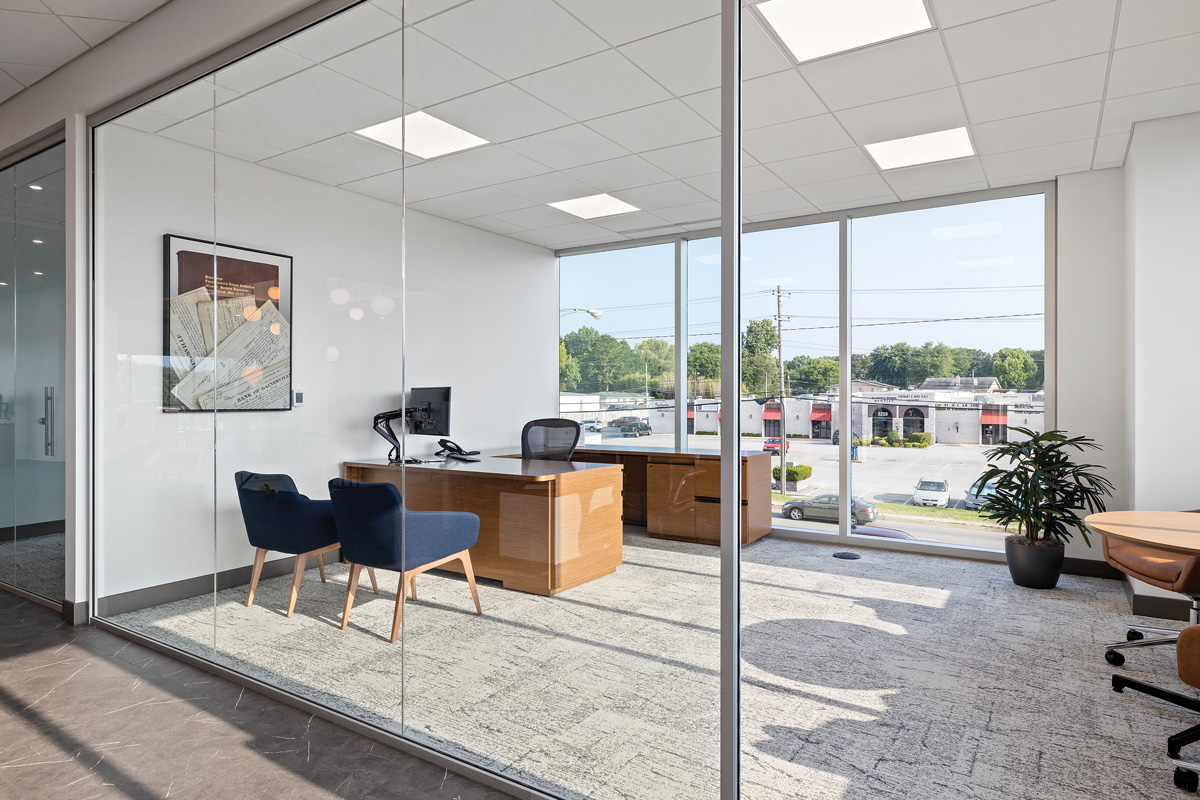

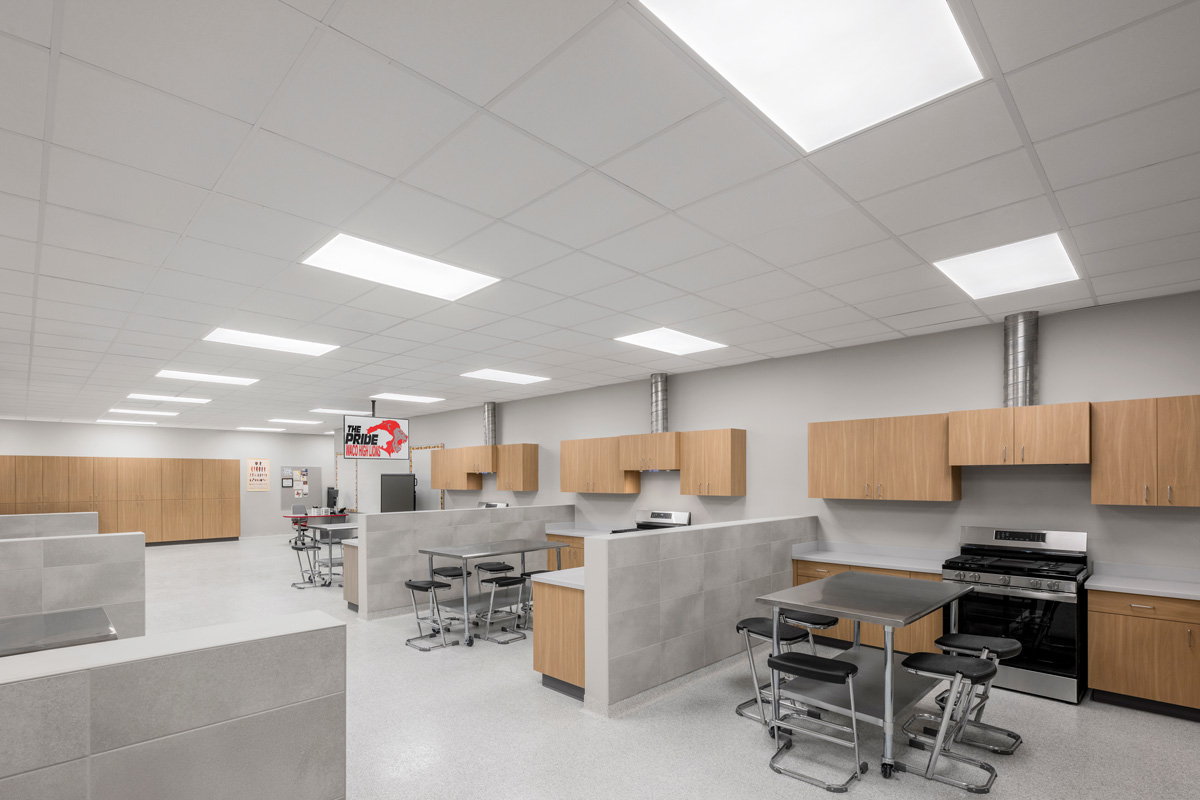

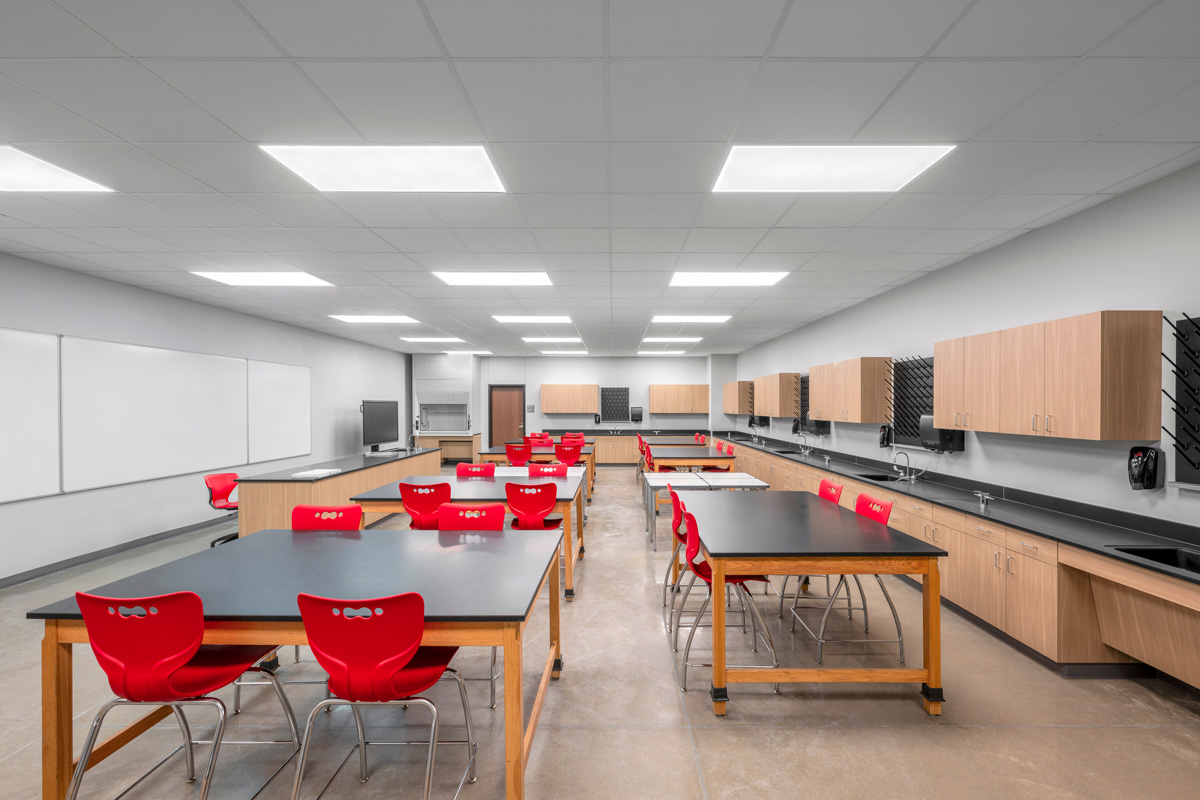

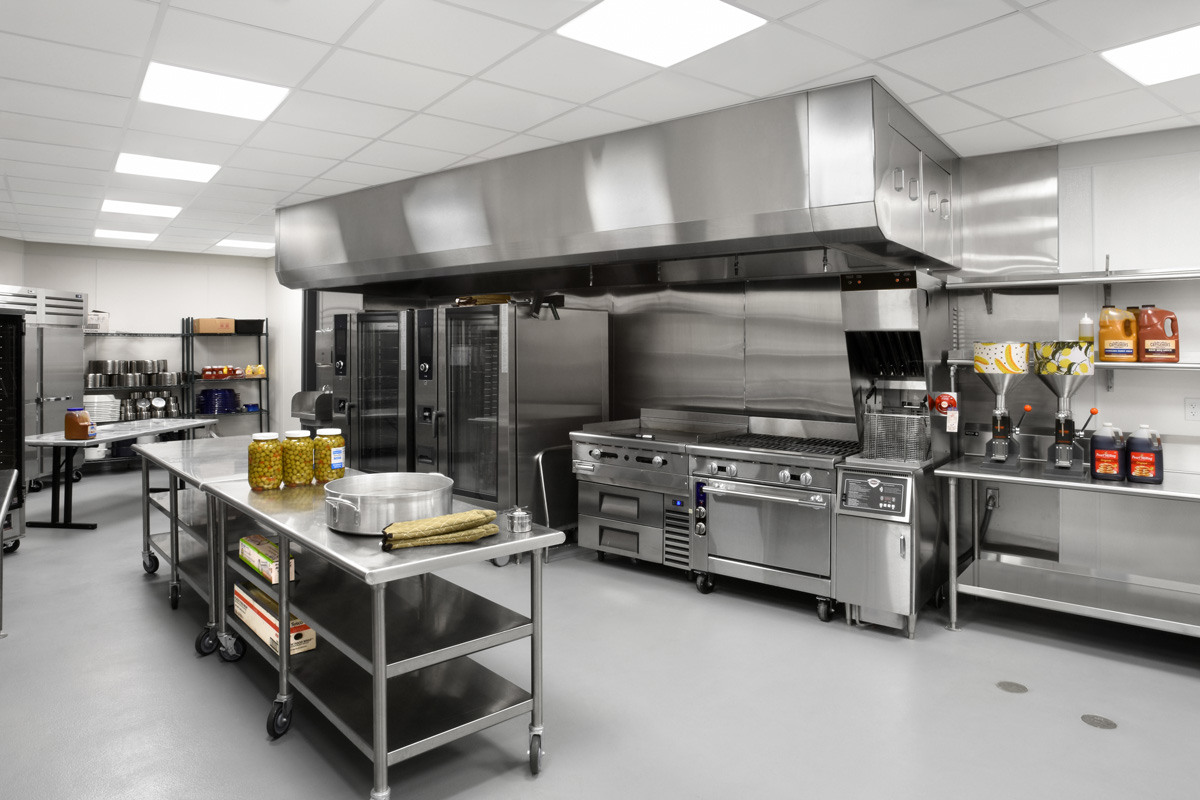

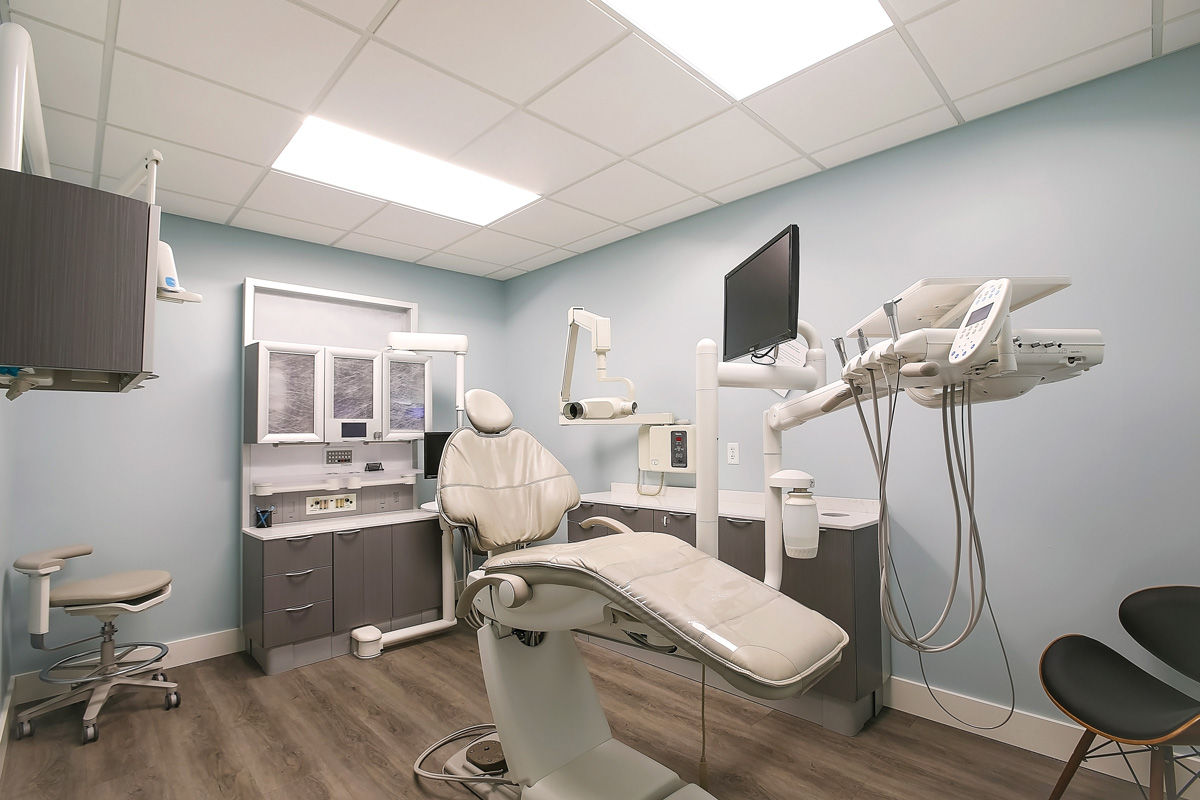

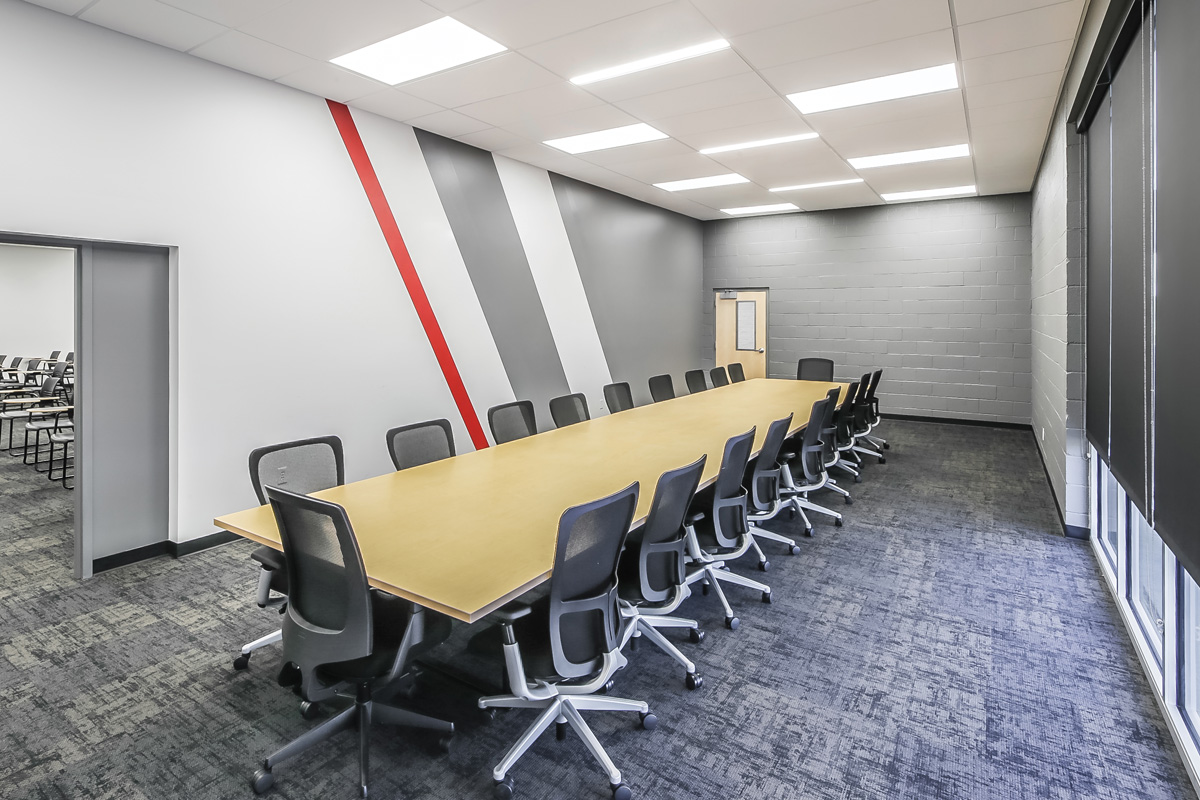

Inspiration
