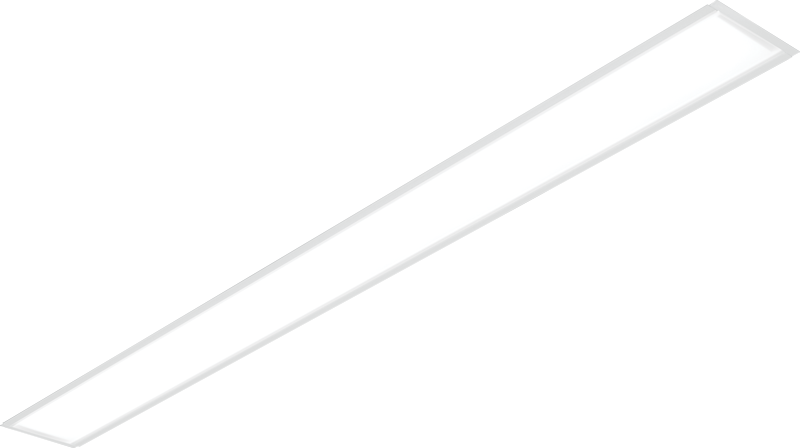

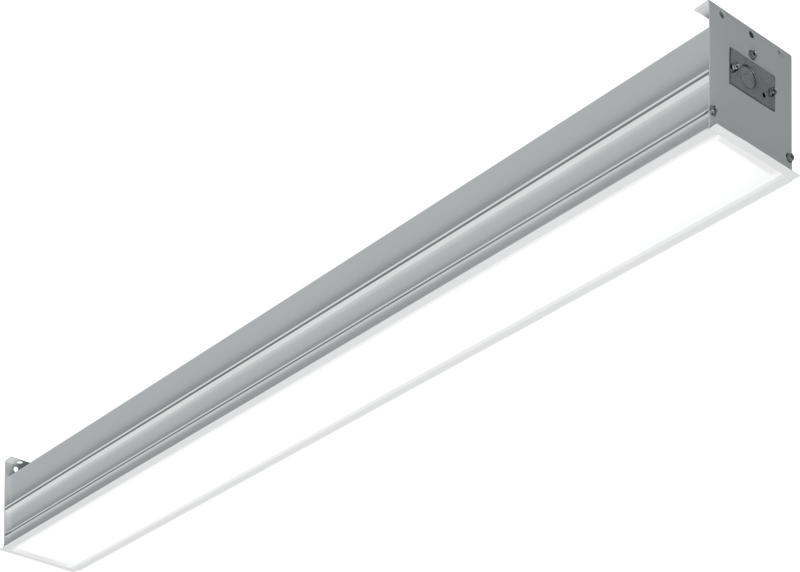

MX4R 4″ Continuous – Recessed

Features

  • Create elegant spaces with a seamless, continuous row of illumination
  • Specify in one inch increments to create a perfect fit
  • High-performance up to 121 lm/W
  • Flat and regressed lenses give designers a variety of looks
  • Linear extrusion contains snap-in light rails for ease of installation and maintenance
  • Versatile MX4 system includes recessed, surface, suspended and in-wall mounting
  • Fully illuminated corner configurations available
  • Diffuse acrylic lens provides uniform illumination for visual comfort
  • Design spaces quickly with the Linear Product Builder
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Available with BIOS® state-of-the-art LED white light circadian solutions
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Extruded aluminum.

Shielding

Extruded, flat, diffuse acrylic lens.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. 50/60 Hz constant current driver.

Mounting

MX4RT: Drywall mount allowing for ceiling materials 1/4″ - 2″ thick. Fixture to be installed prior to drywall or finished ceiling material. MX4RG: NEMA Type “G” standard

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• City of Chicago Environmental Air approved when specified with CP option
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

Housing

Extruded aluminum.

Shielding

Extruded, flat, diffuse acrylic lens.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

MX4RT: Drywall mount allowing for ceiling materials 1/4″ - 2″ thick. Fixture to be installed prior to drywall or finished ceiling material. MX4RG: NEMA Type “G” standard

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

System Requirements

• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system
• For additional PoE info, see details

Housing

Extruded aluminum.

Shielding

Extruded, flat, diffuse acrylic lens.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses. 50/60 Hz constant current driver.

Mounting

MX4RT: Drywall mount allowing for ceiling materials 1/4″ - 2″ thick. Fixture to be installed prior to drywall or finished ceiling material. MX4RG: NEMA Type “G” standard.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• City of Chicago Environmental Air approved when specified with CP option.
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

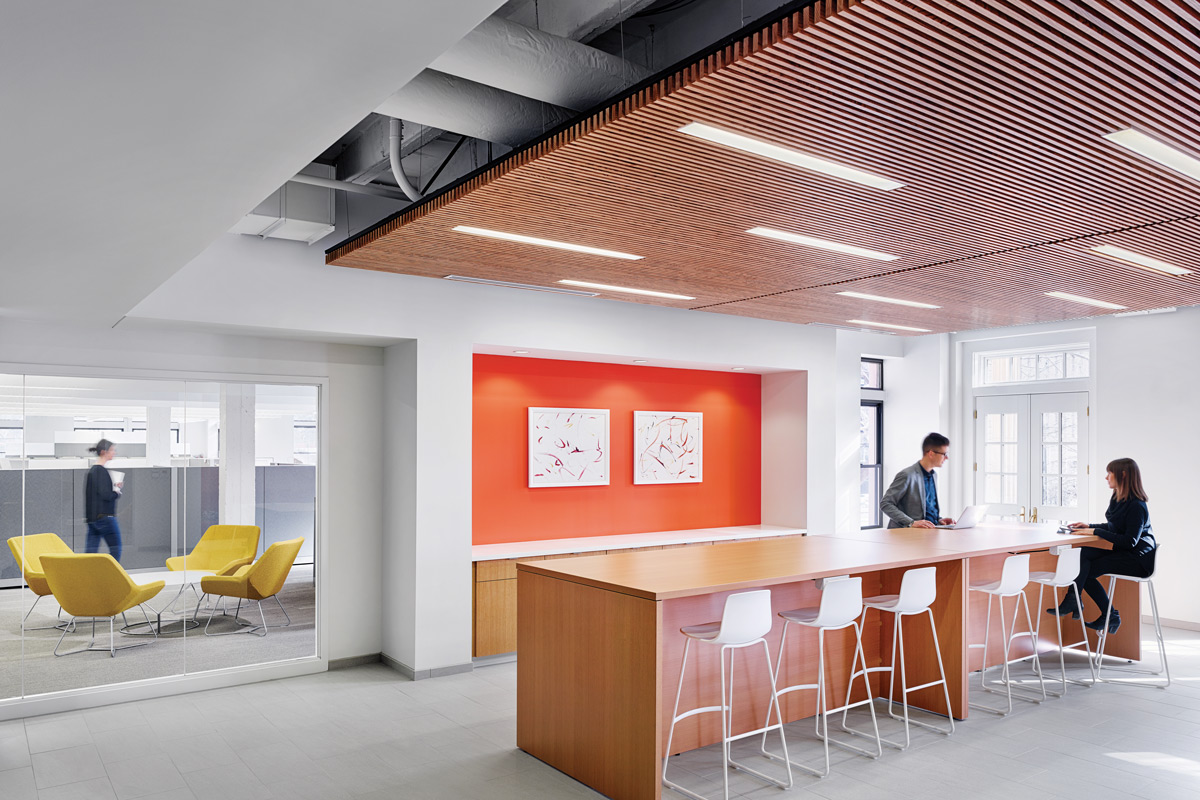

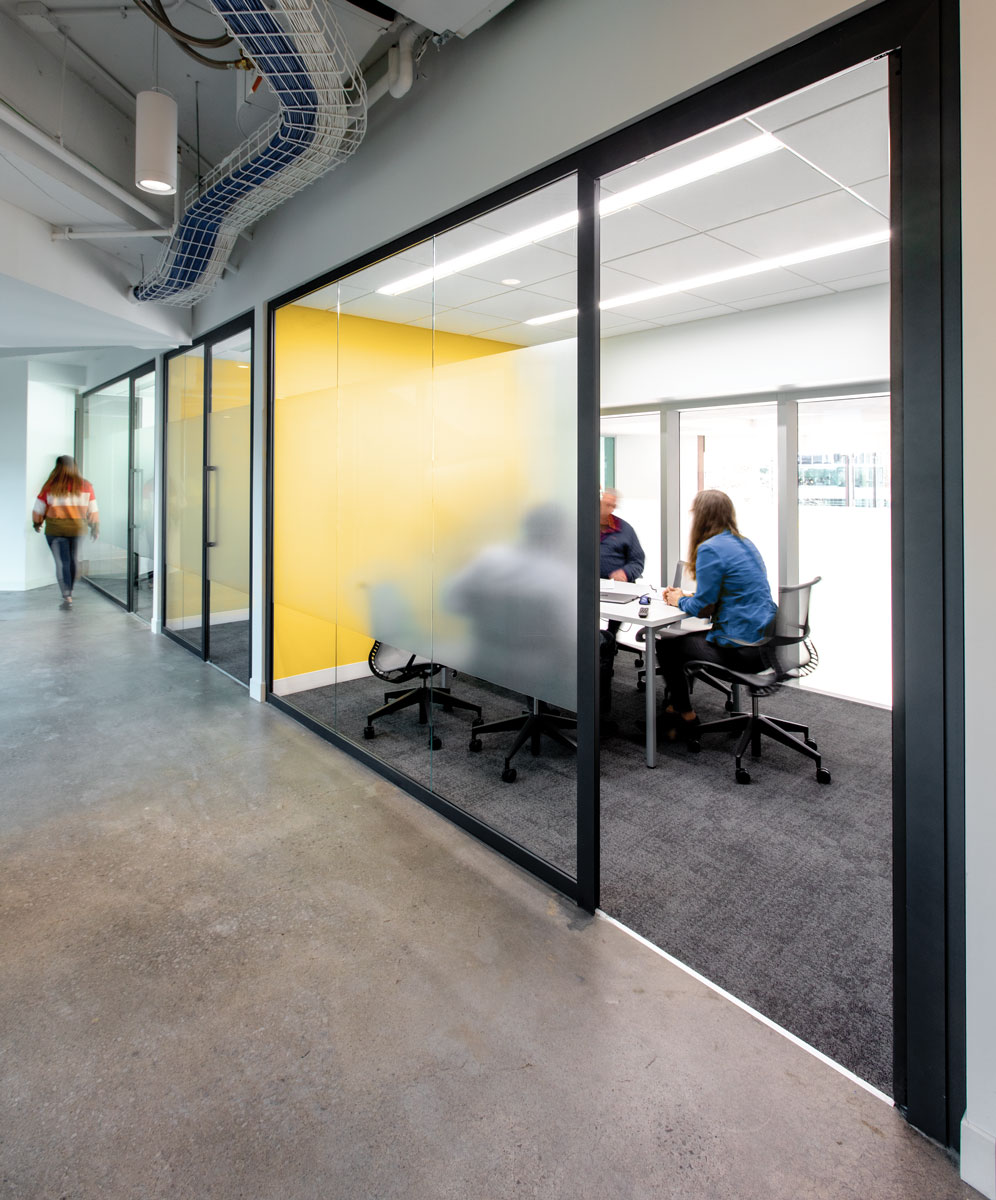

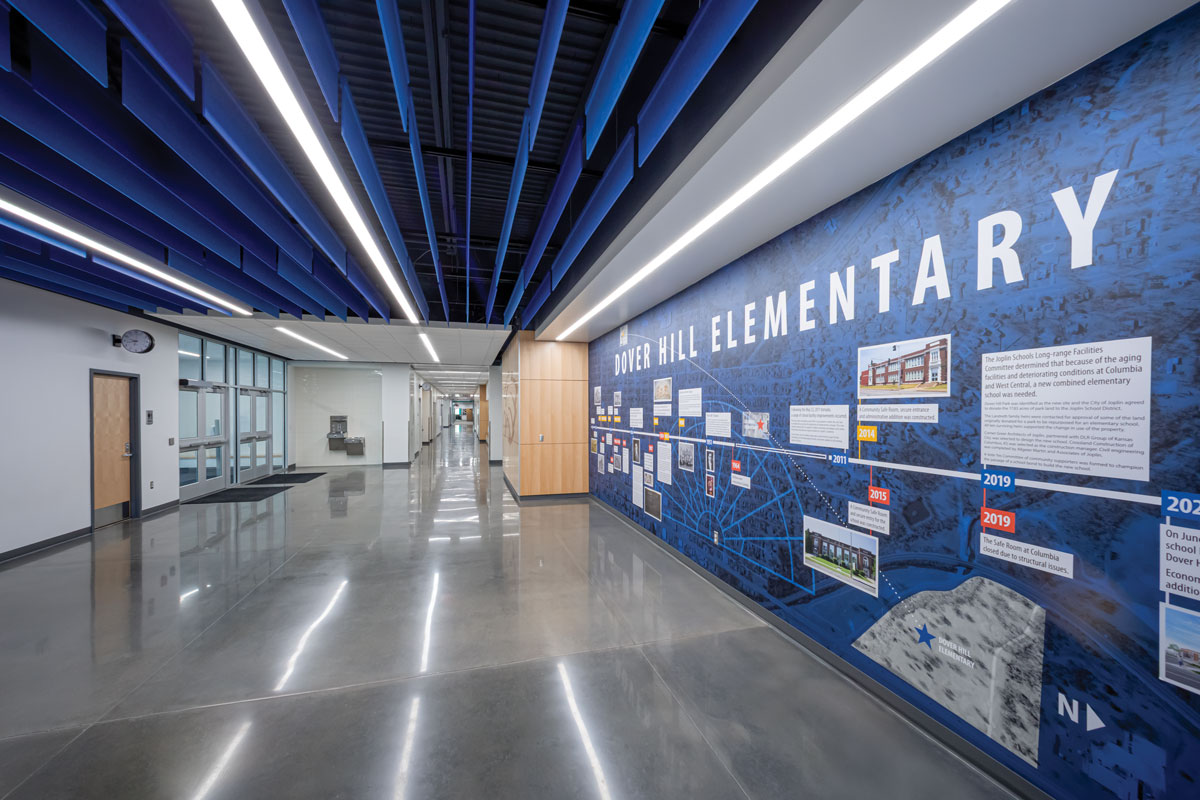

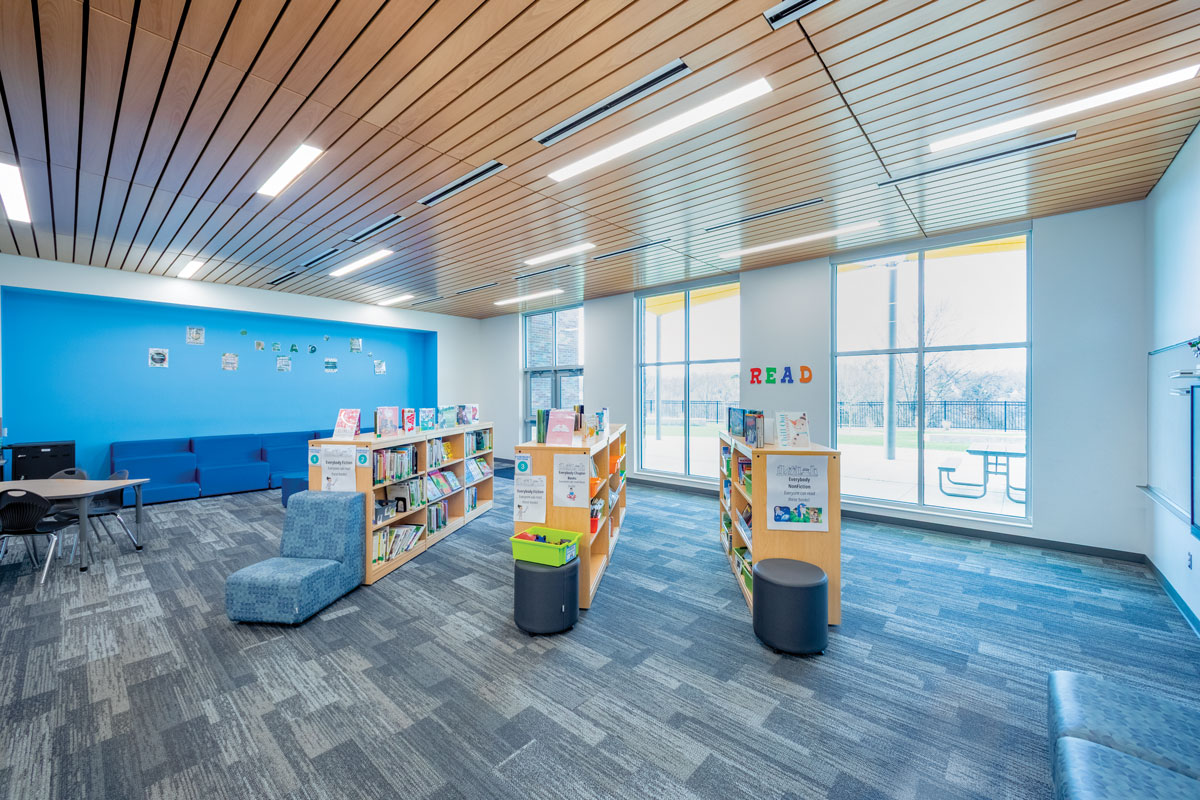

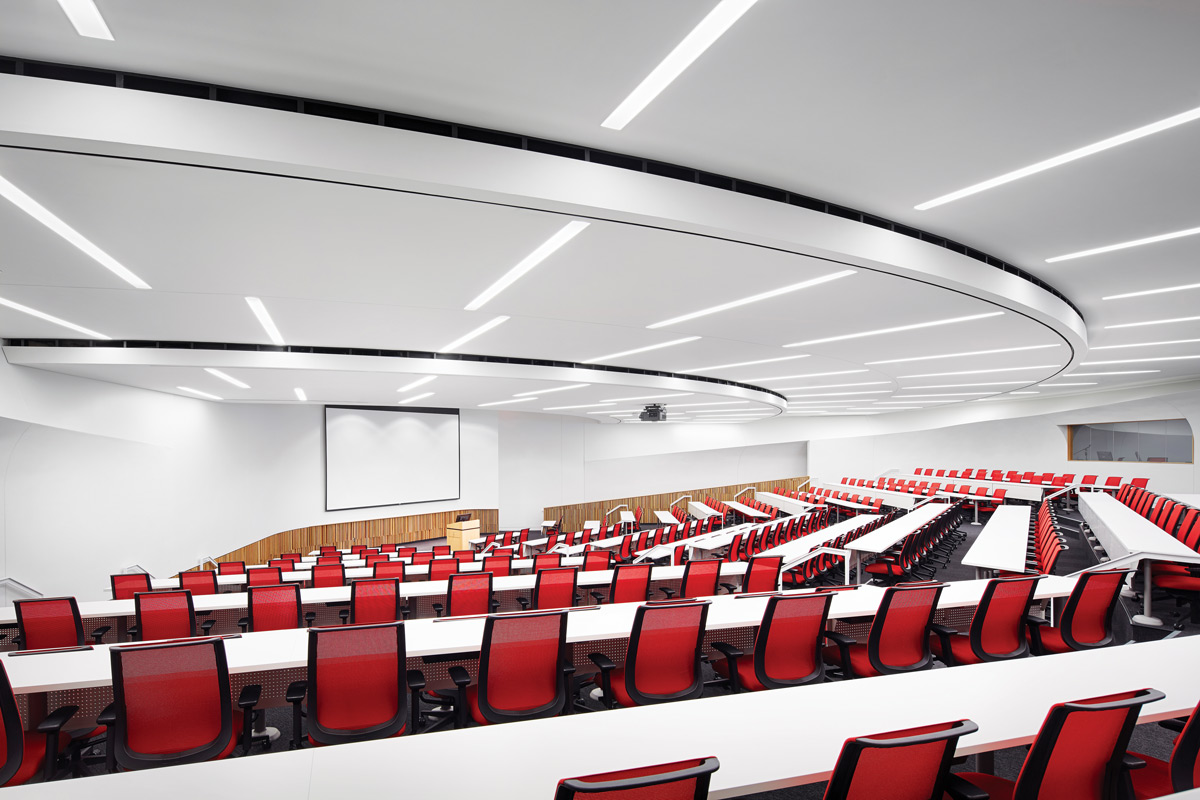

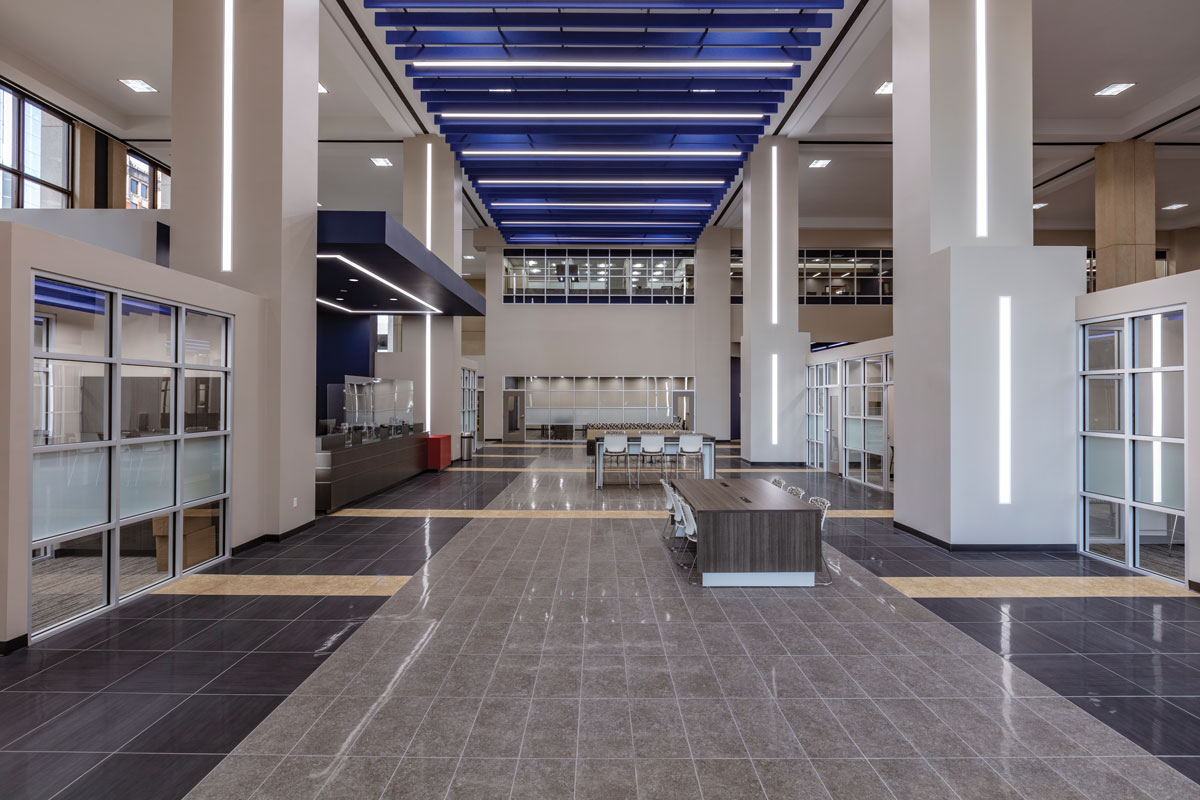

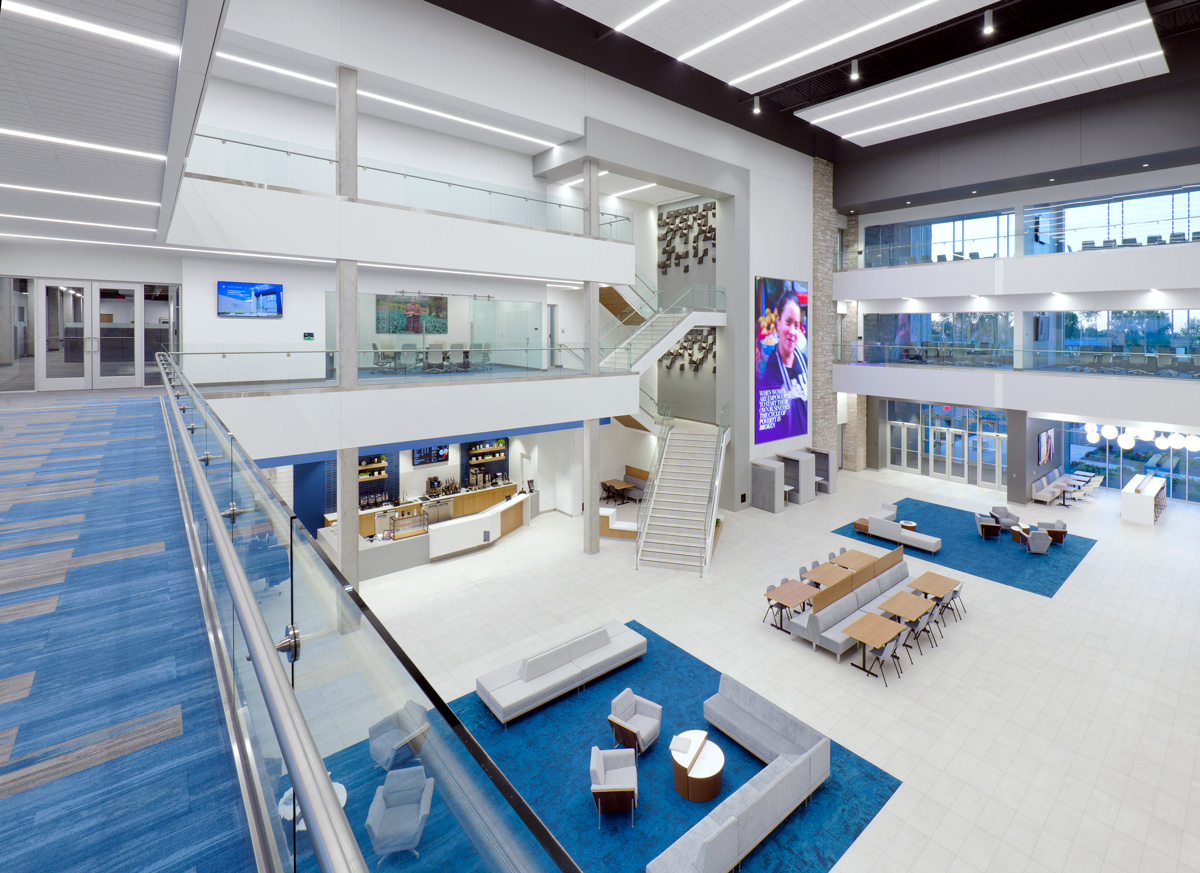

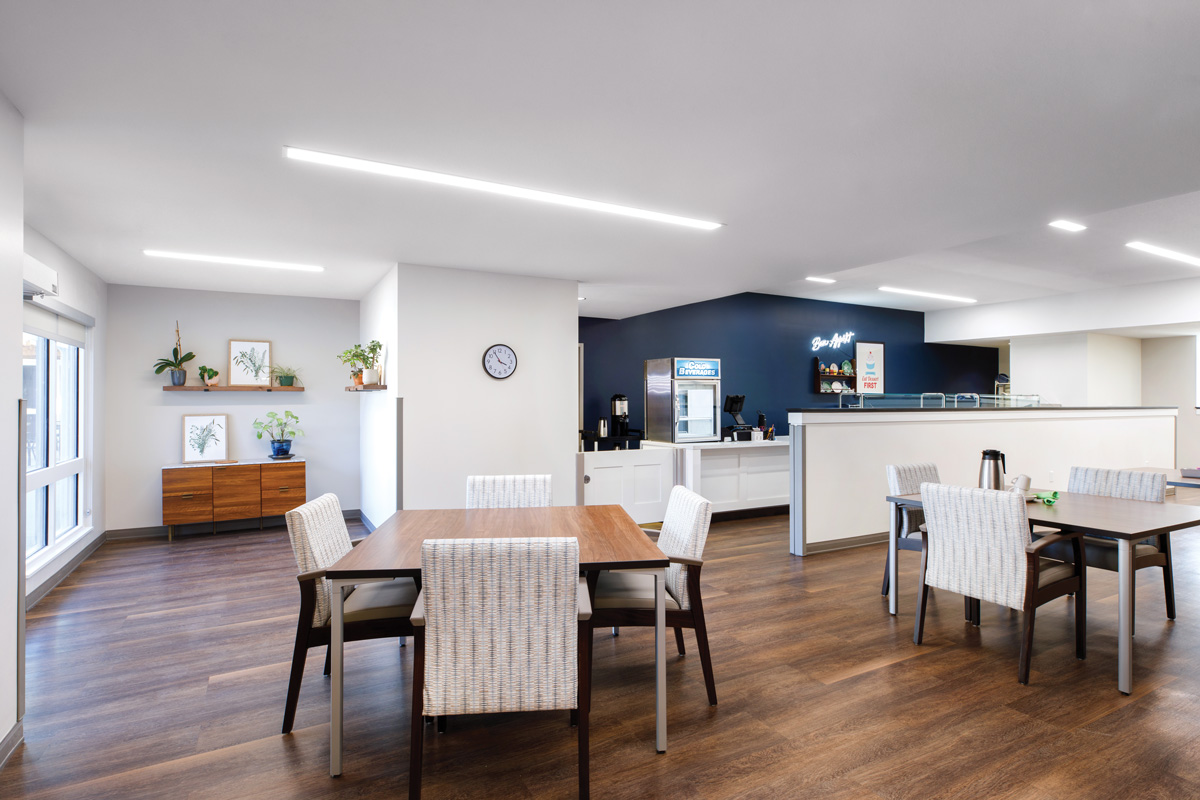

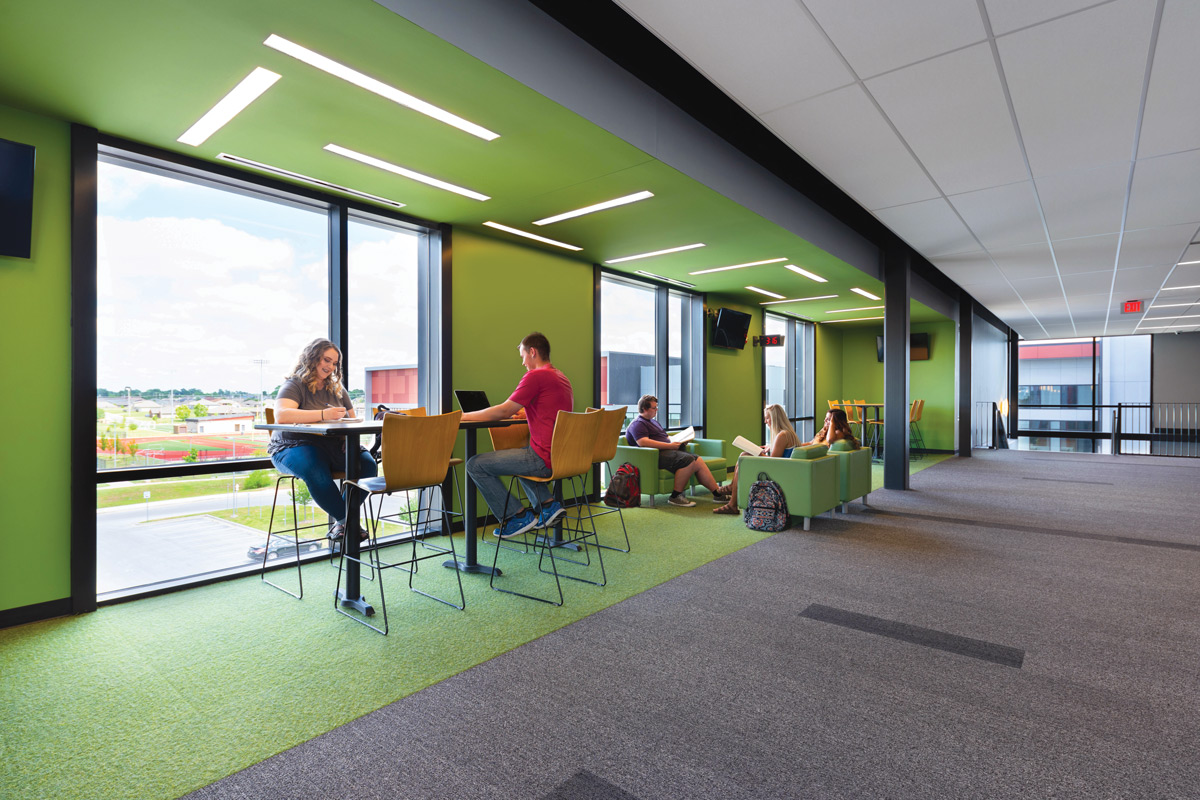

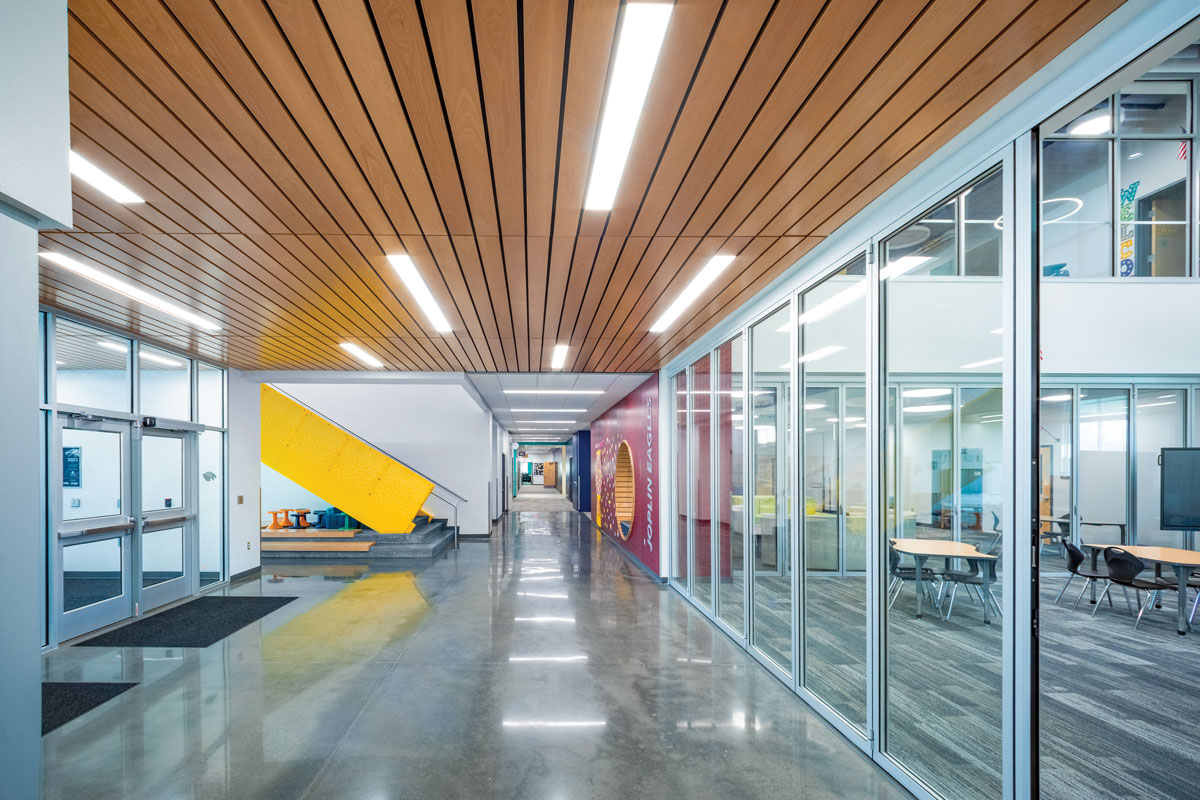

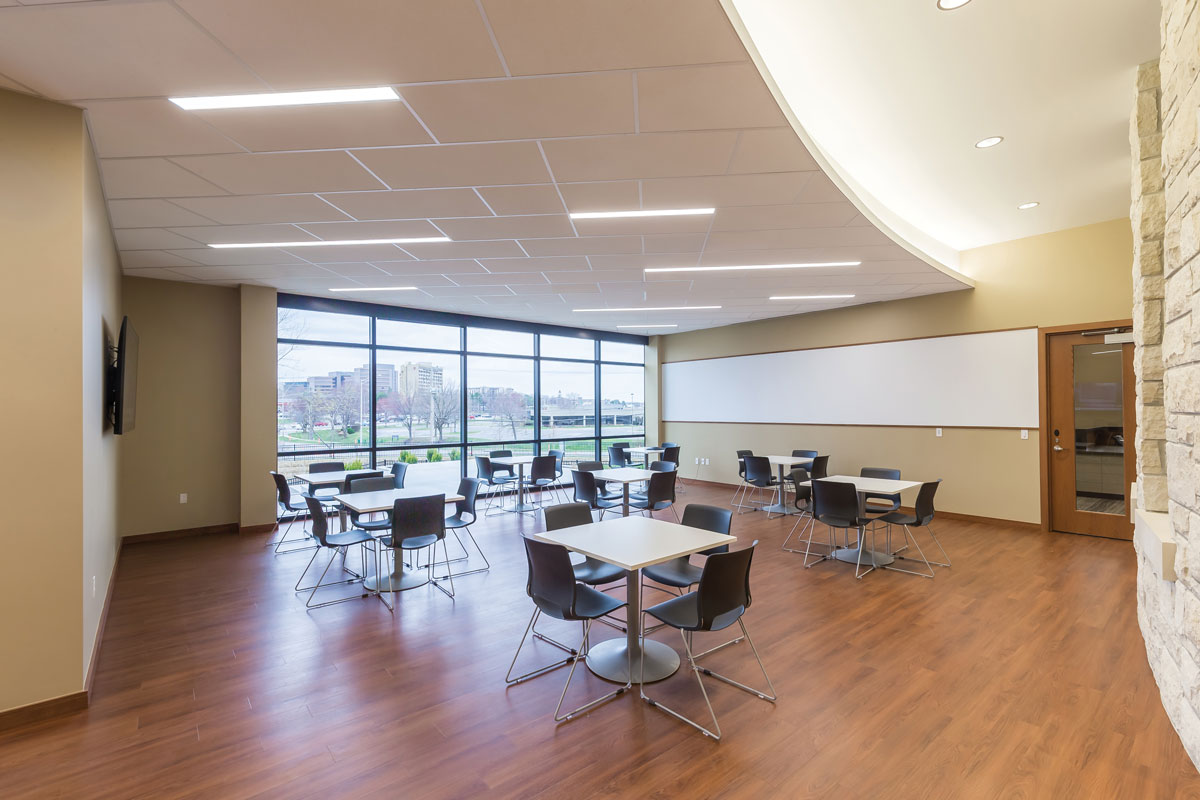

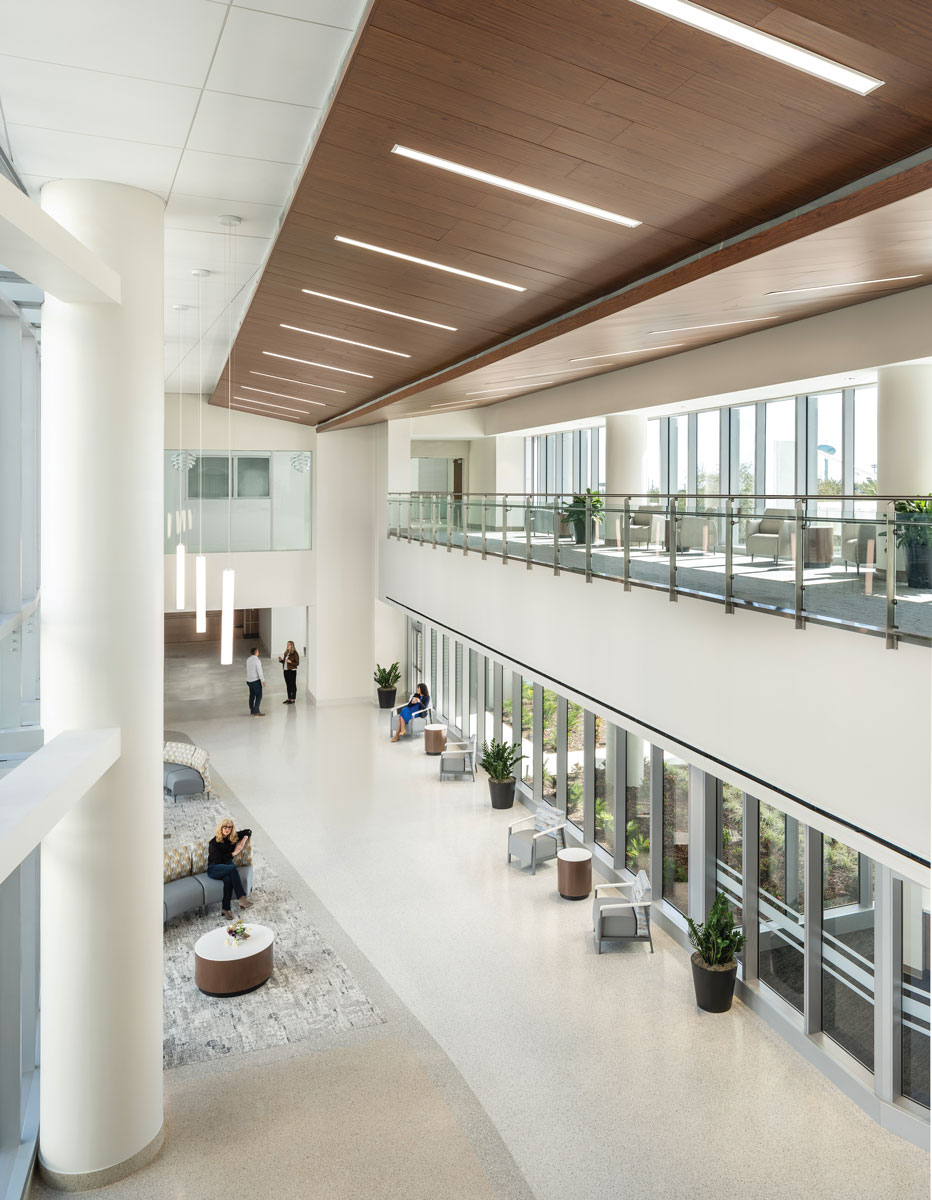

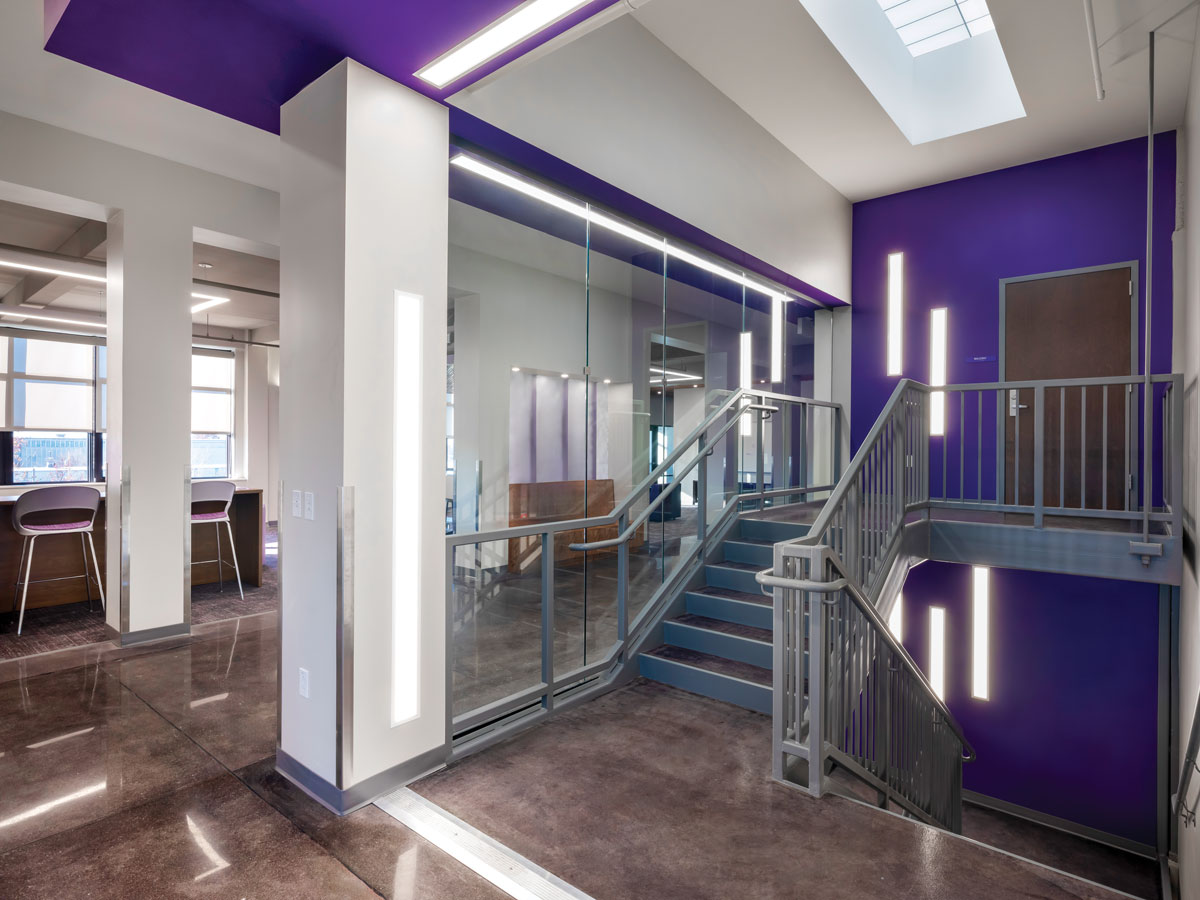

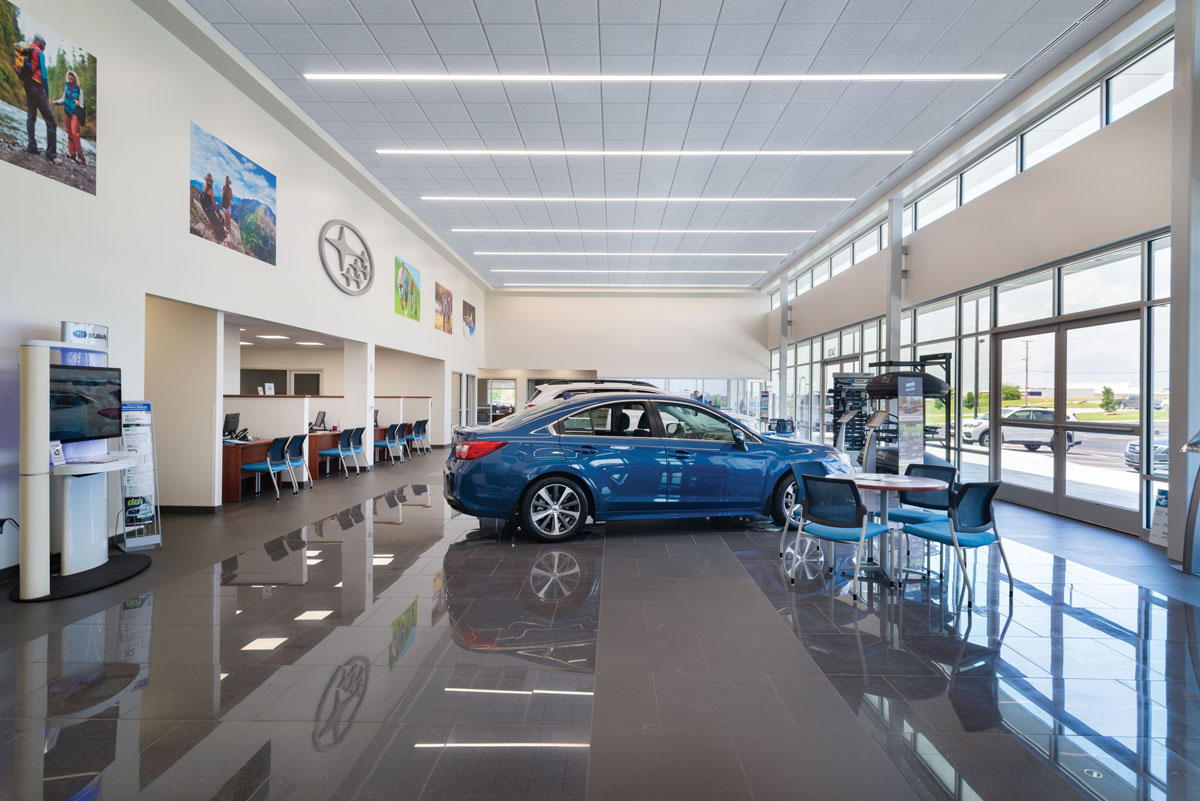

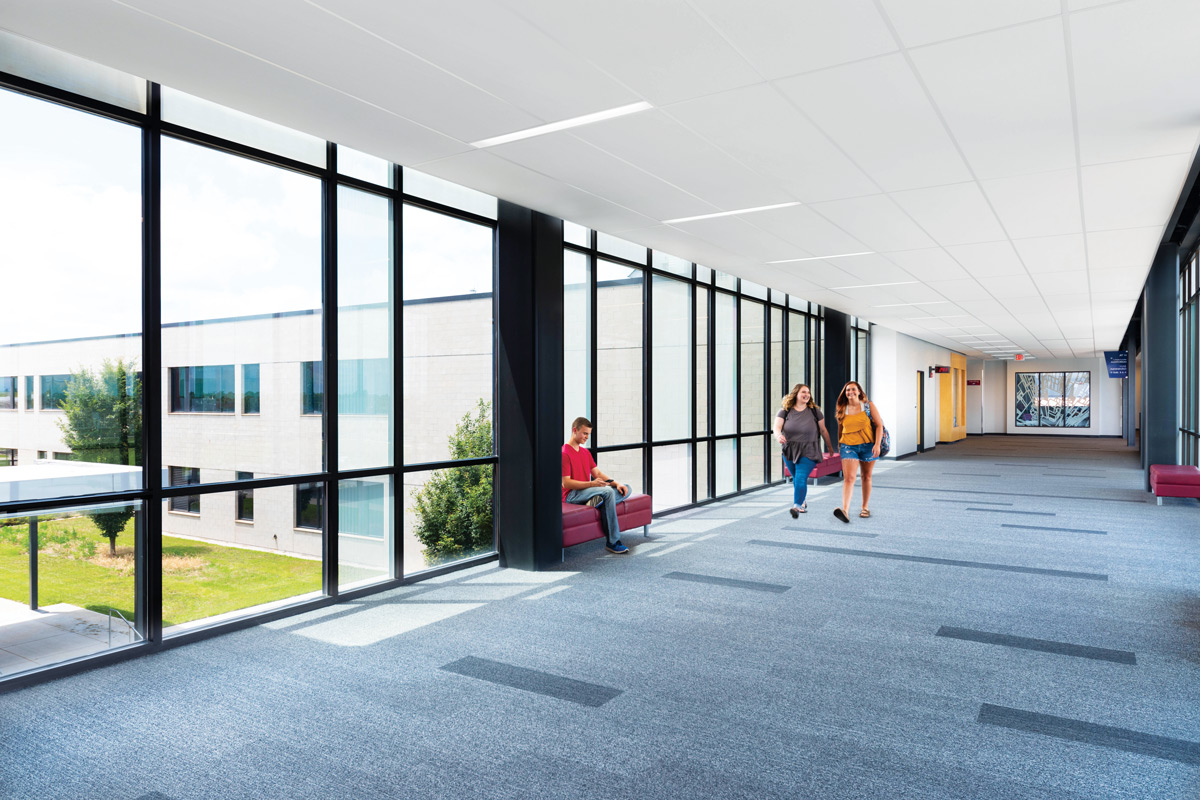

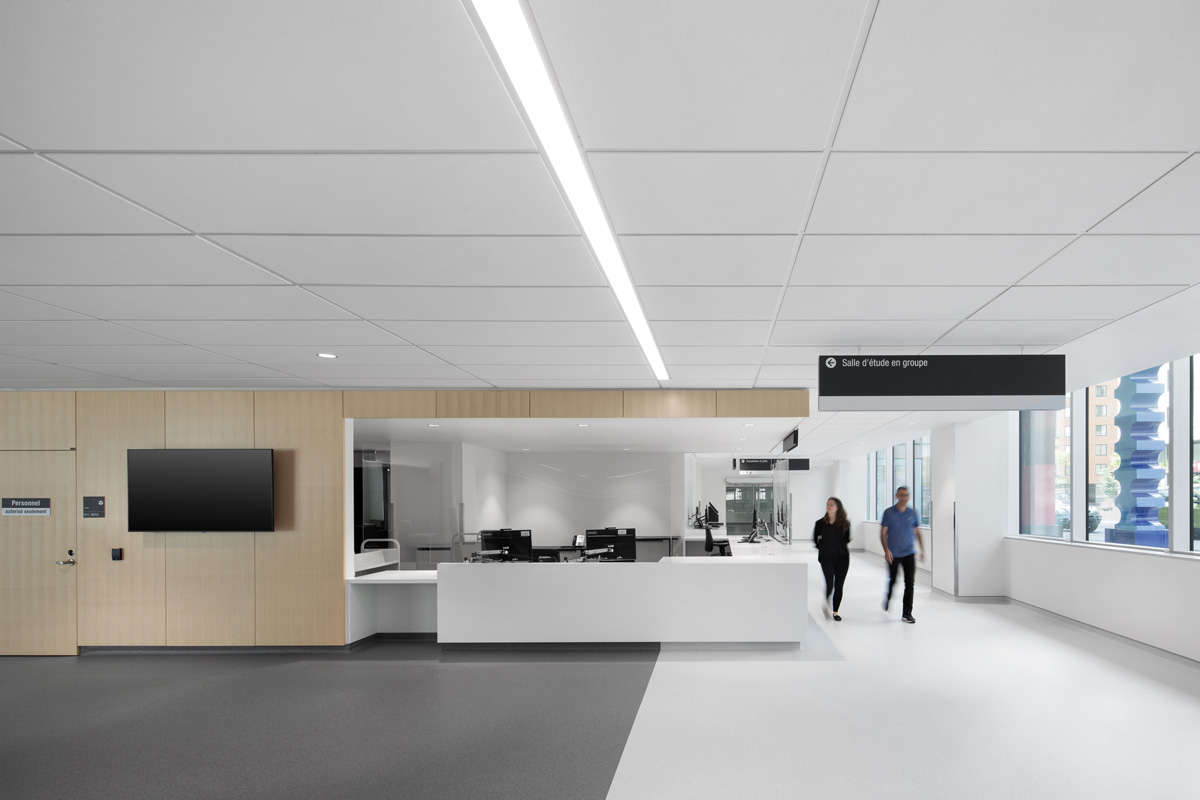

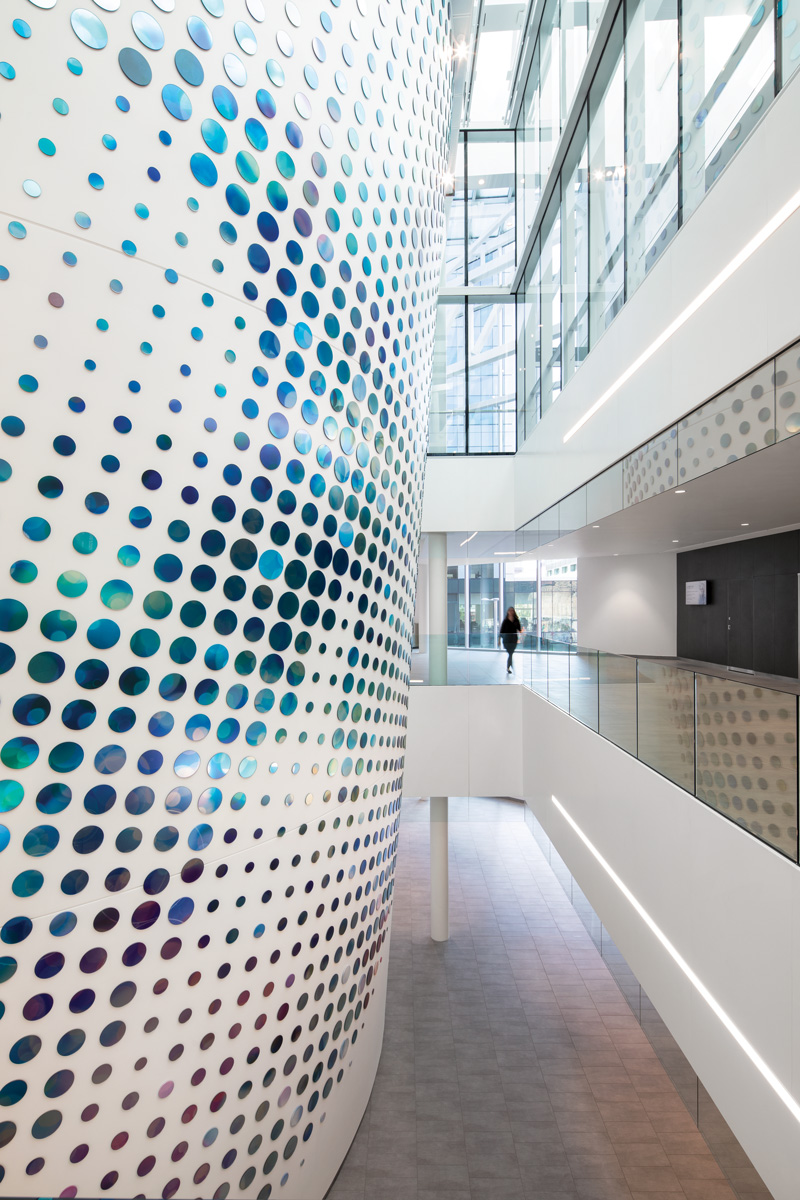

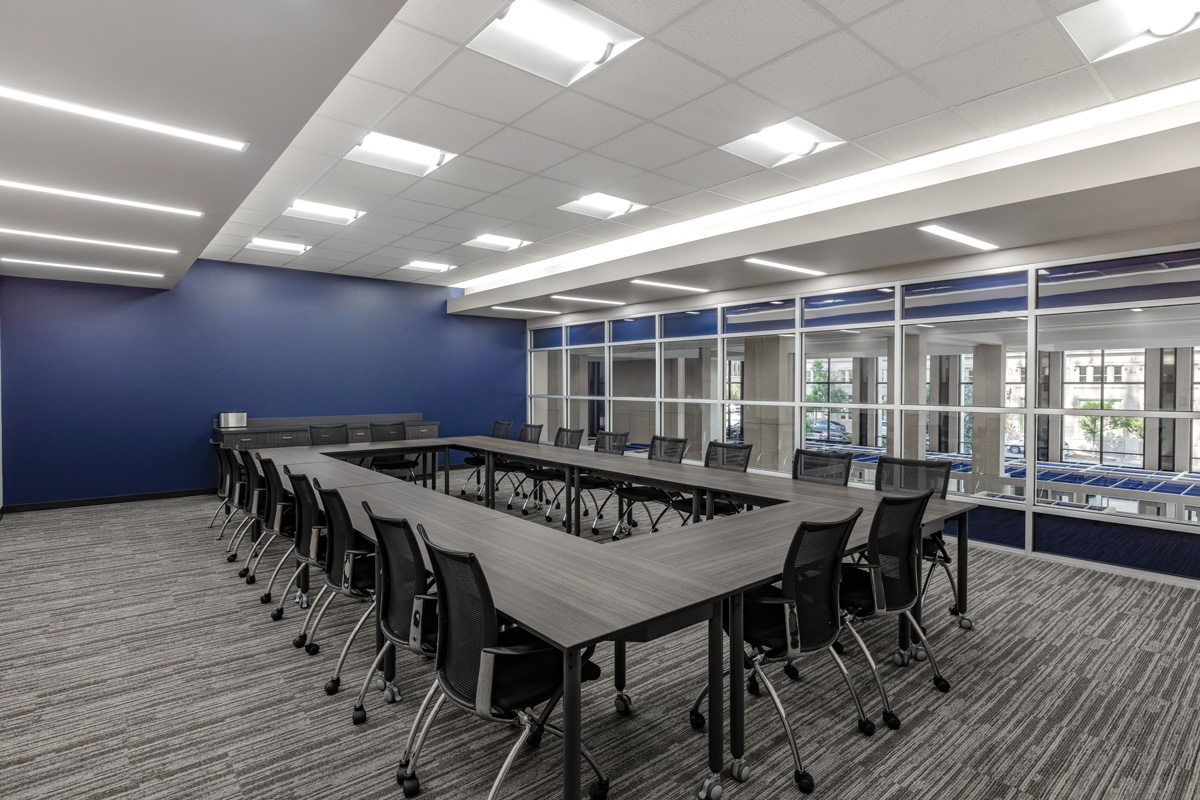

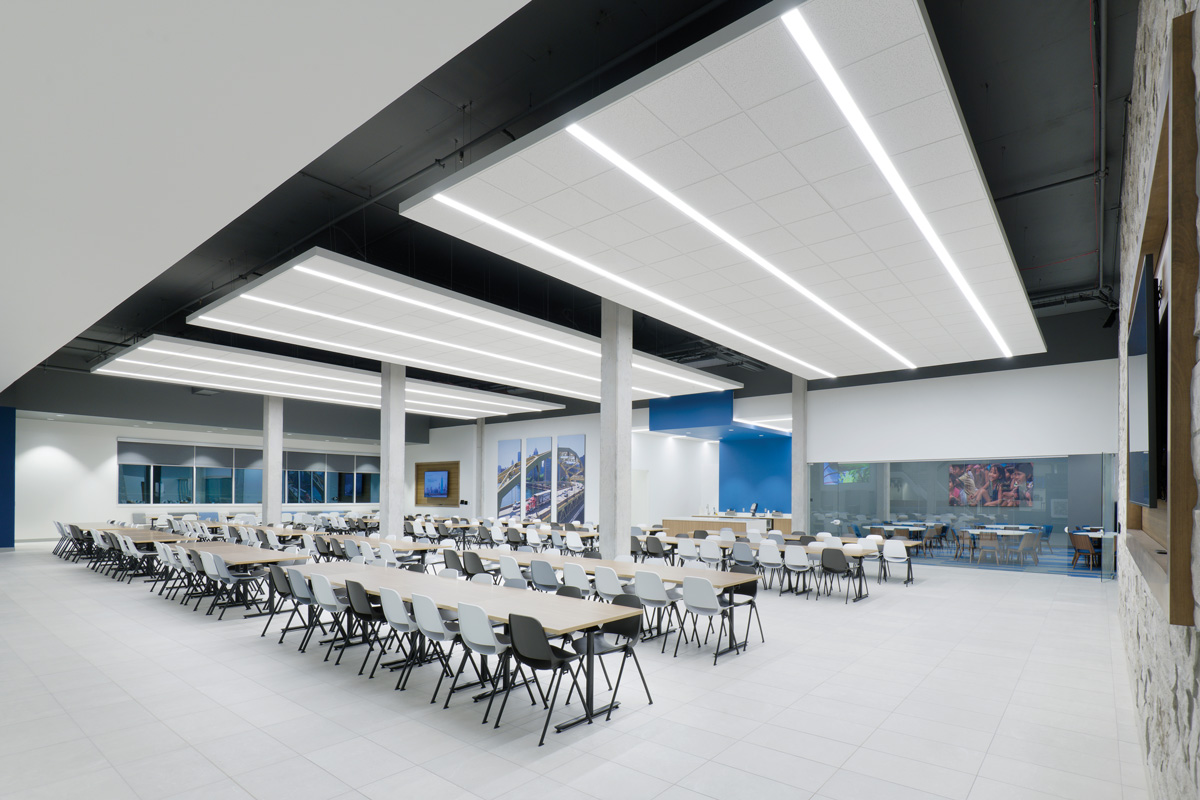

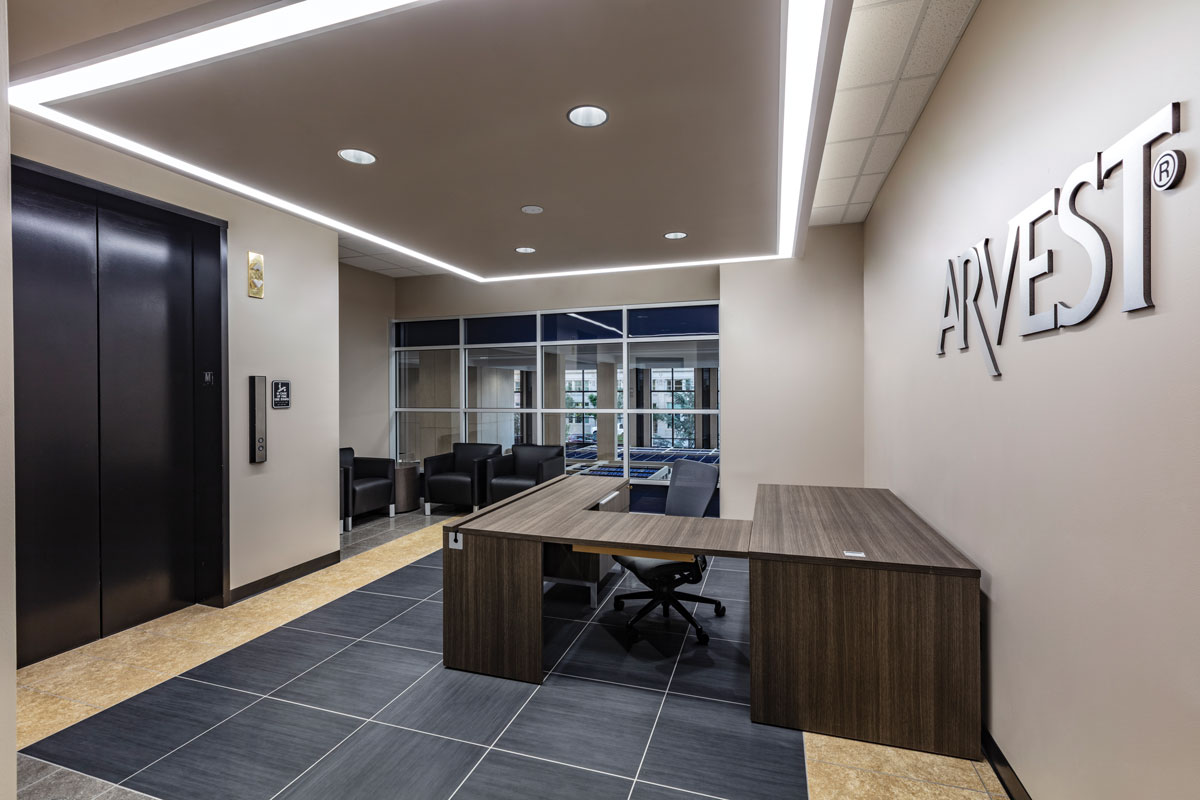

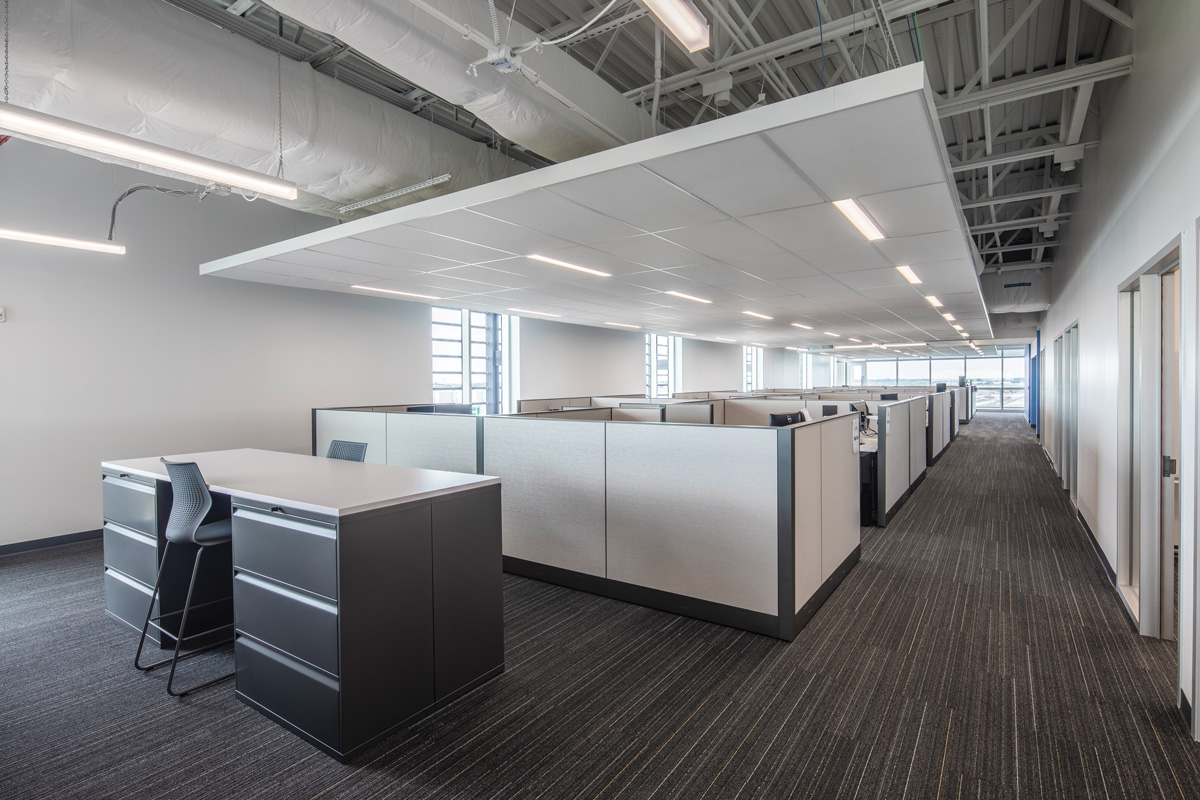

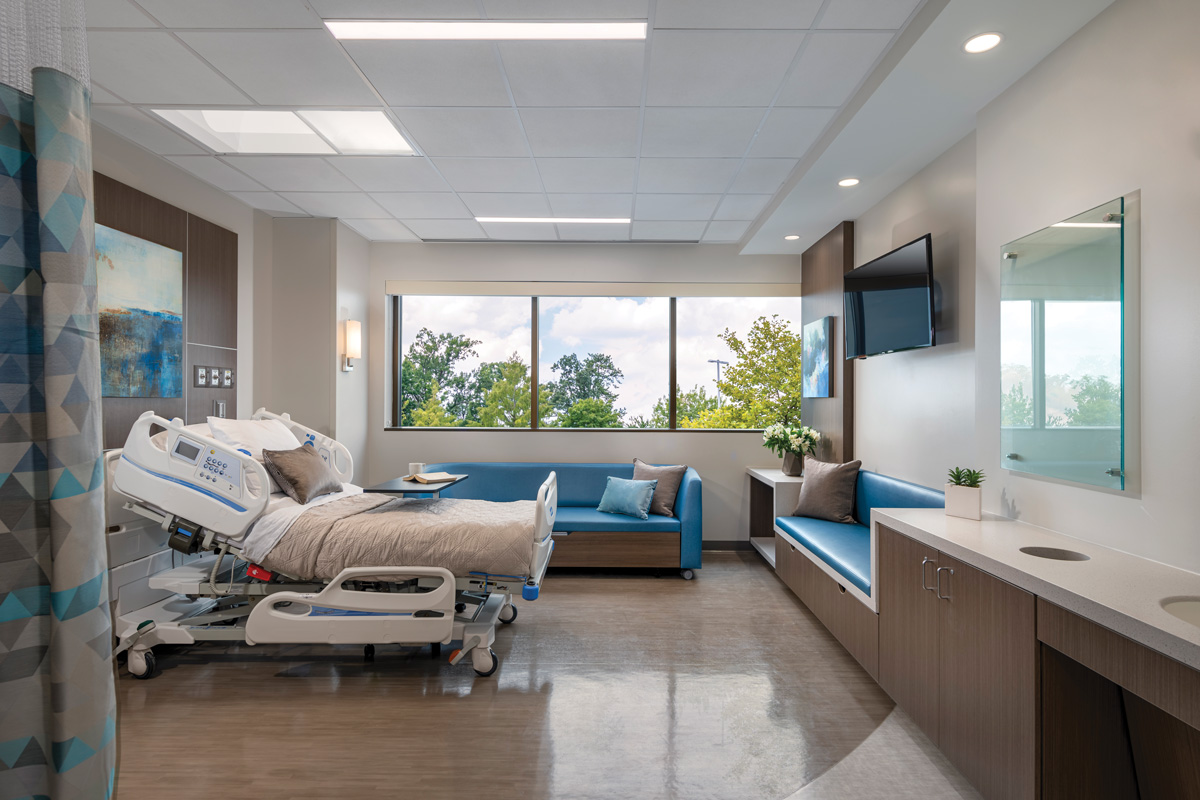

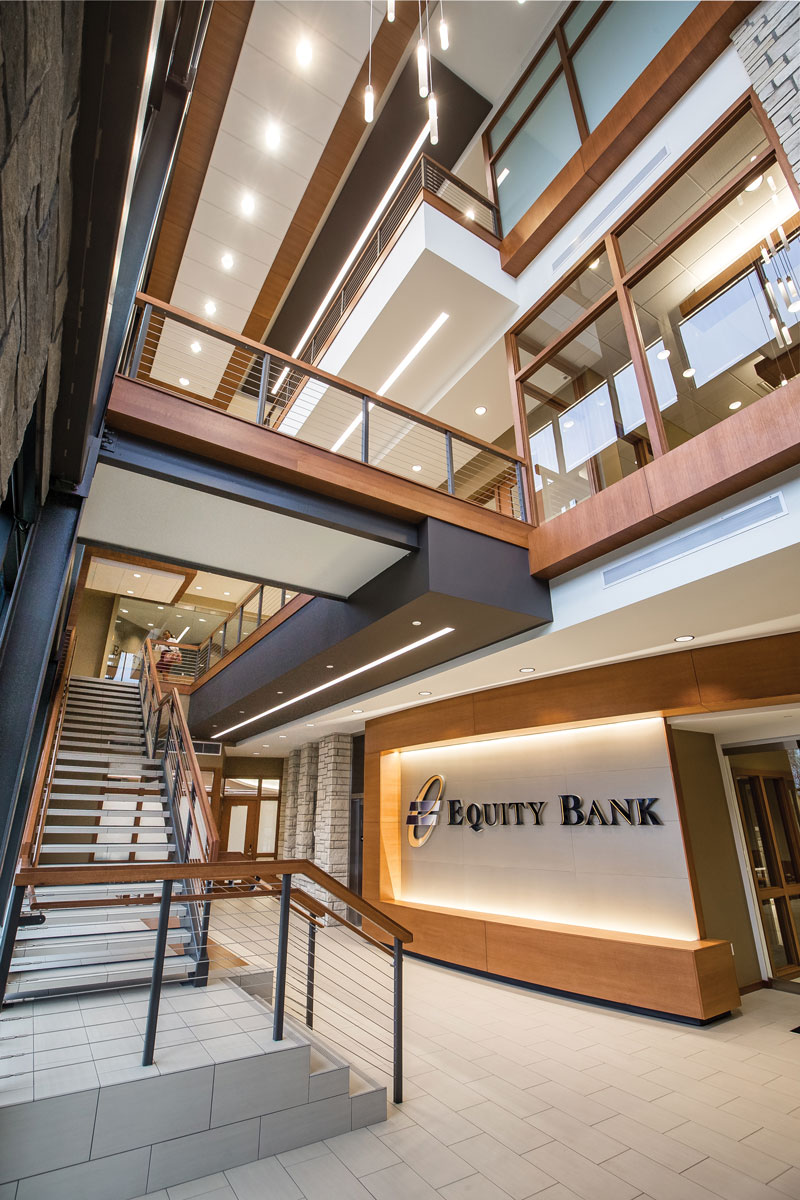

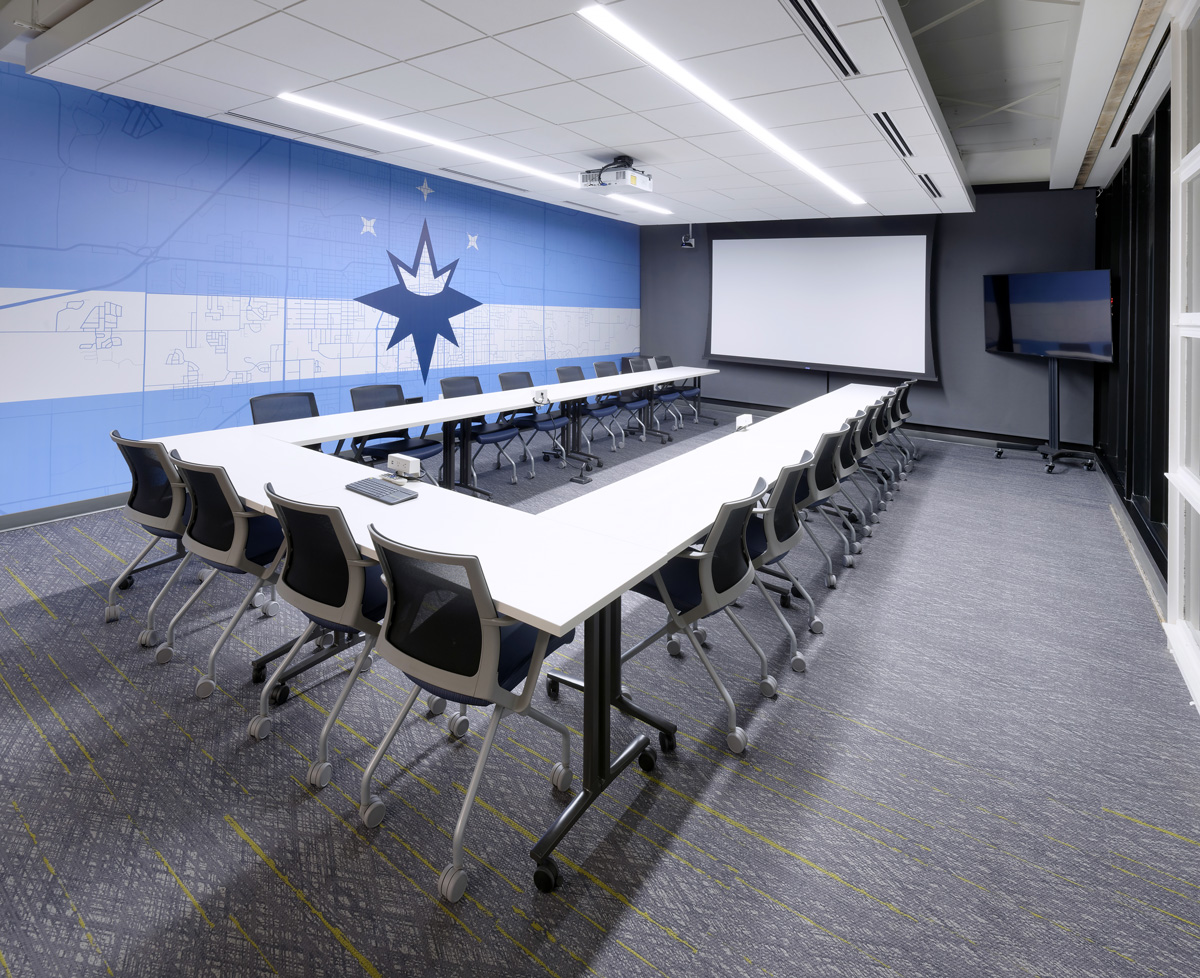

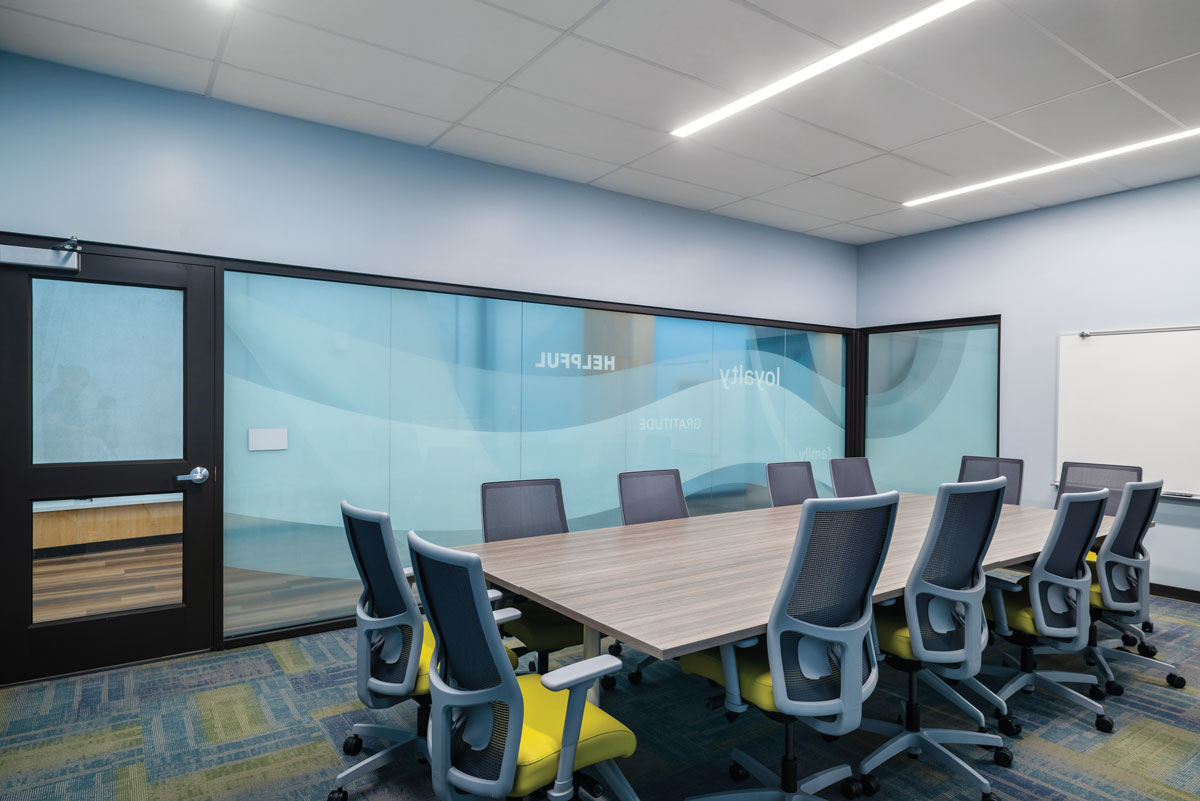

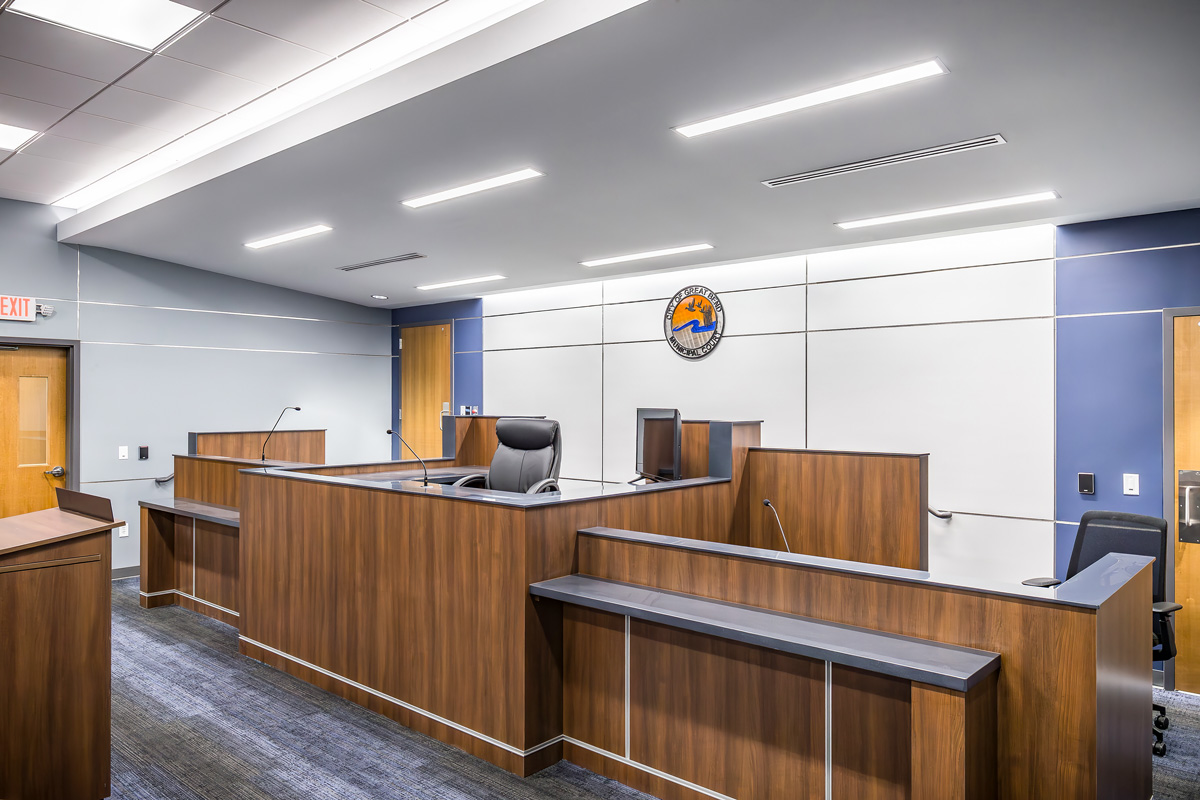

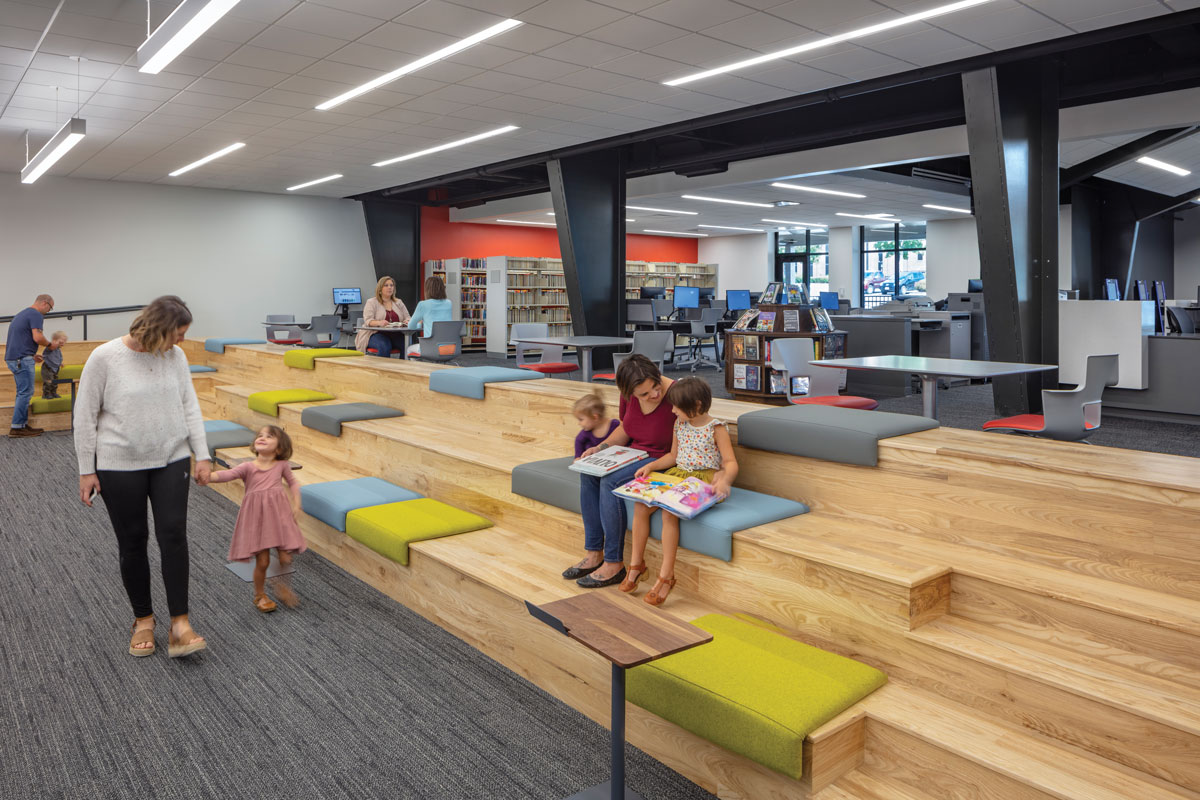

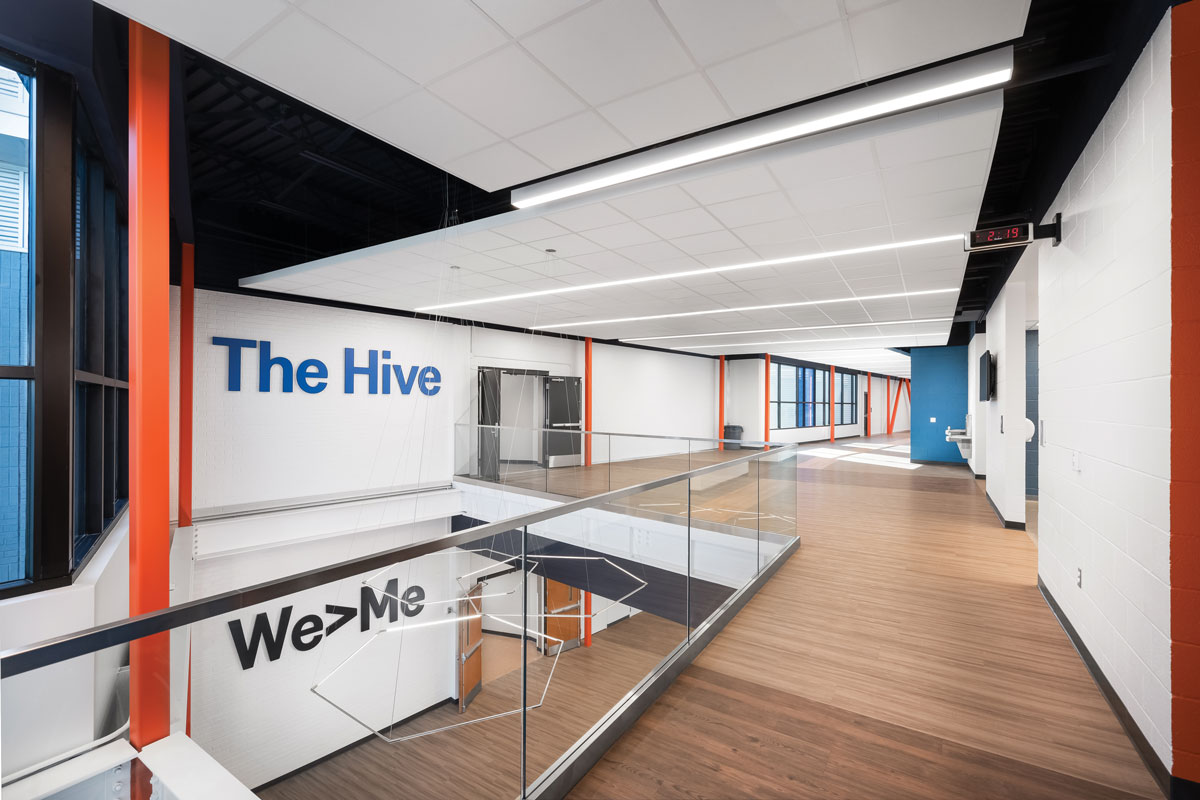

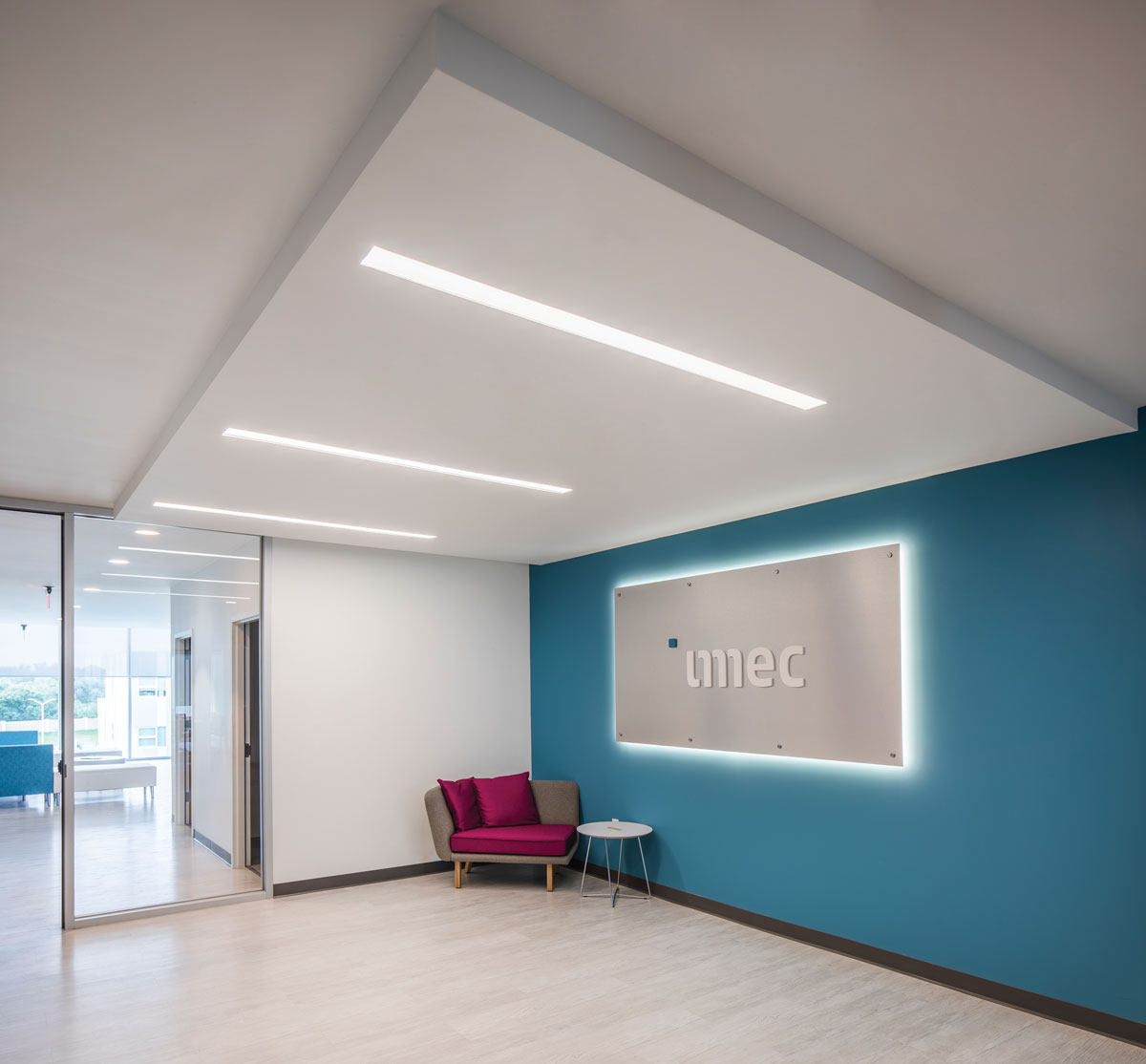

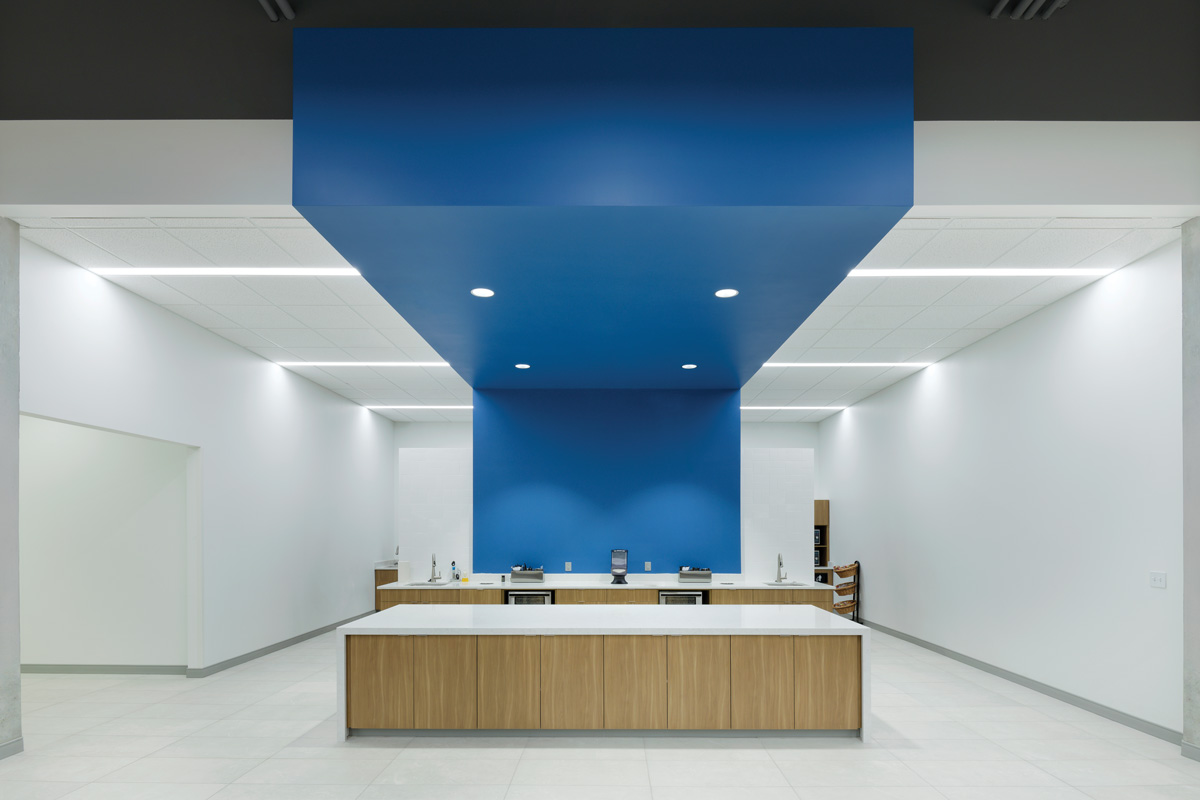

Inspiration
