VDIL Vandal-Resistant Direct/Indirect Lensed
Features
- Transparent lensed door provides a barrier between the room and the diffuser to discourage vandals and minimize contaminants

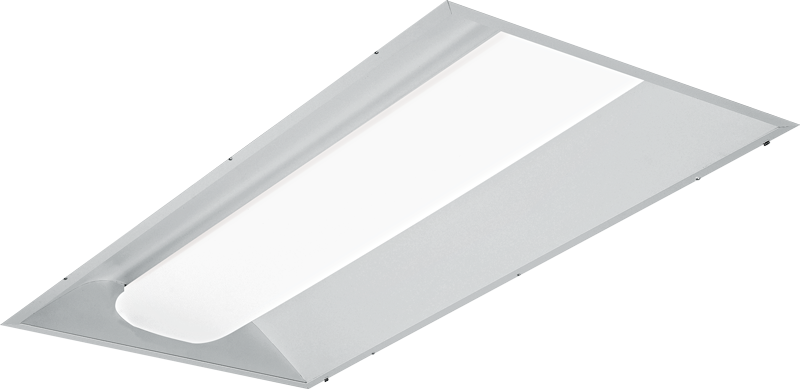

- Ideal for potentially rough environments such as recreational facilities, schools, supervised behavioral centers, or other vandal-prone areas
- Ribbed acrylic diffuser shields LEDs from direct view
- Double or triple gasketing options available
- T-slot steel hinge allows reversible hinging and latching and ensures positive retention when door is opened
- Optional anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- 2x2 and 2x4 sizes available
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Housing |
22-gauge die-formed C.R.S. |
|
Door Frame & Lens |
Transparent acrylic lens with .236 ″ thick polycarbonate underlay, mounted in .050″ thick extruded aluminum door frame, flat with mitered corners secured with six tamper-resistant, tri-groove screws. |
|
Reflector |
Precision die-formed C.R.S. with highly reflective, non-glare matte white polyester powder coated finish. |
|
Finish |
92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. L70 at 50,000 hours. 50/60 Hz constant current driver. |
|
Mounting |
NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange type available. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. • City of Chicago Environmental Air approved when specified with CP option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american. |
|
Warranty |
5-year limited warranty, see details |
