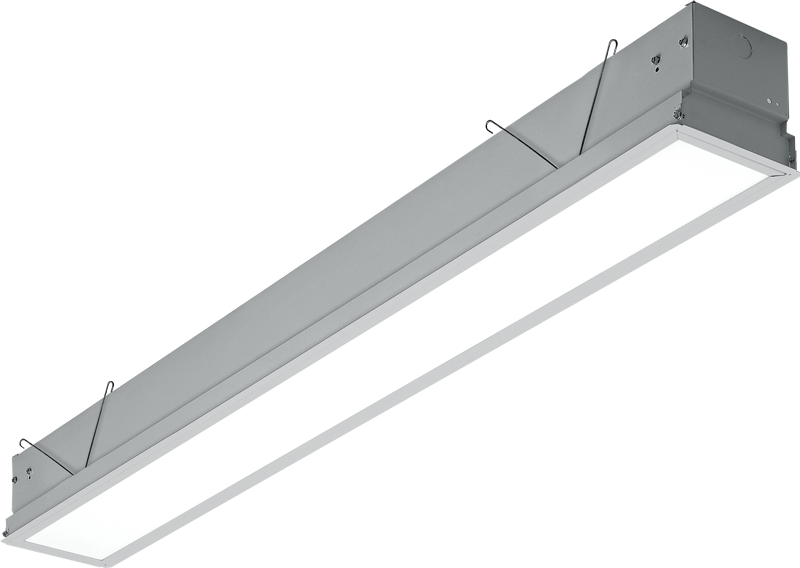

LL6 6" Wide Linear Light
Features
- Designed to deliver subtle area lighting with minimal glare for hallways, offices, and classrooms
- Flush frame level option with frosted acrylic lens creates the appearance of an unobtrusive and simple line of light – a perfect complement to unique design applications
- Fixture is Armstrong TechZone™ and USG Logix™ ceiling systems compatible
- High-performance up to 115 lm/W
- 2', 3', 4', and 5' lengths available
- Flush or tegular frosted acrylic lens options available
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Housing |
22-gauge die-formed C.R.S. |
|
Shielding |
Steel door frame with integral torsion springs to secure the frame within the fixture, .125″ thick frosted acrylic. |
|
Finish |
92% minimum average reflective white powder polyester coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. Rated for 50,000 hours at 70% lumen maintenance (L70). L70 >50,000 hours. 50/60 Hz constant current driver. |
|
Mounting |
NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall kit accessories available for flange applications, shipped separately. Fixture must be installed prior to Drywall Kit. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american. |
|
Warranty |
5-year limited warranty, see details |
