MX4UD 4″ Continuous Up/Down – Suspended

Features

  • Attractive source of direct and indirect lighting
  • Create elegant spaces with a seamless, continuous row of illumination
  • Flat and proud lenses give designers a variety of looks
  • Moveable mounting hardware easily slides along the length of the fixture providing variable mounting points
  • High-performance up to 119 lm/W
  • Linear extrusion contains snap-in light rails for ease of installation and maintenance
  • Versatile MX4 system includes recessed, surface, suspended and in-wall mounting
  • Fully illuminated corner configurations available
  • Diffuse acrylic lens provides uniform illumination for visual comfort
  • Design spaces quickly with the Linear Product Builder
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Available with BIOS® state-of-the-art LED white light circadian solutions
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Extruded aluminum with die-cast end plates.

Shielding

Extruded, flat, diffuse acrylic lens.

Finish

Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.

Mounting

Suspended. 1/16″ diameter adjustable steel leveling aircraft cable and mounting hardware necessary for grid and hardpan ceiling applications provided.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing

Extruded aluminum with die-cast end plates.

Shielding

Extruded, flat, diffuse acrylic lens.

Finish

Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Suspended. 1/16″ diameter adjustable steel leveling aircraft cable and mounting hardware necessary for grid and hardpan ceiling applications provided.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

System Requirements

• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system
• For additional PoE info, see details

Housing

Extruded aluminum with die-cast end plates.

Shielding

Extruded, flat, diffuse acrylic lens.

Finish

Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses. 50/60 Hz constant current driver.

Mounting

Suspended. 1/16″ diameter adjustable steel leveling aircraft cable and mounting hardware necessary for grid and hardpan ceiling applications provided.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Finishes

Black

Bronze

Nickel

Alum

Silver

White

200+ RAL Colors

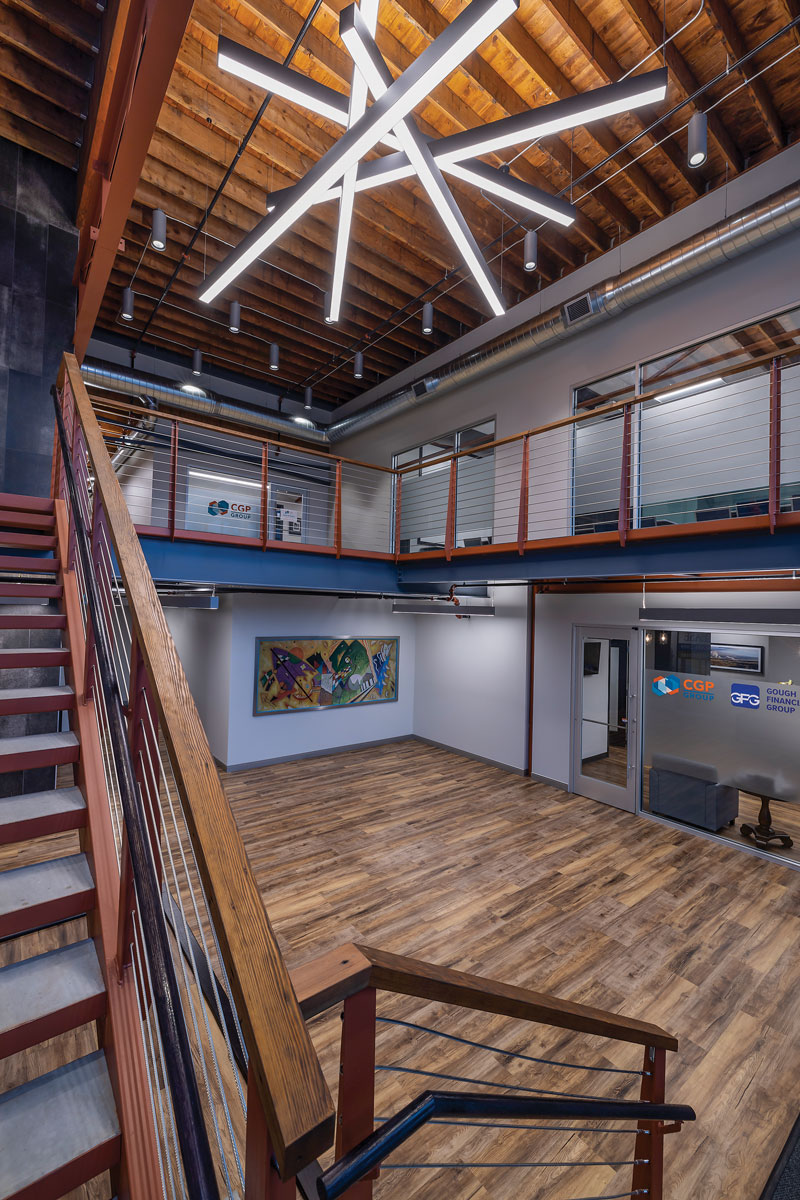

Inspiration
