AP Architectural Curved Panel

Features

  • Two design choices create aesthetic detail
  • Gently curved aperture provides soft, even illumination
  • Slim 3-3/4" depth for shallow plenum applications
  • Seamless design prevents light leak
  • Easy to install without the use of tools
  • PMMA lens reduces the risk of yellowing from UV exposure
  • Optional surface mount kit preserves continuity
  • Rated for direct contact with insulation
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • 1x4, 2x2, and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Low UGR meets LEED and WELL requirements
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Die-formed steel with extruded aluminum side rails.

Optics

PMMA light guide panel, edgelit (2x2 & 2x4), backlit (1x4).

Finish

Non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L80 >50,000 hours. 50/60 Hz constant current driver.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Surface mount and drywall kit accessories available, shipped separately.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited fixture warranty, see details

Mounting

Recessed

Surface Mount Kit

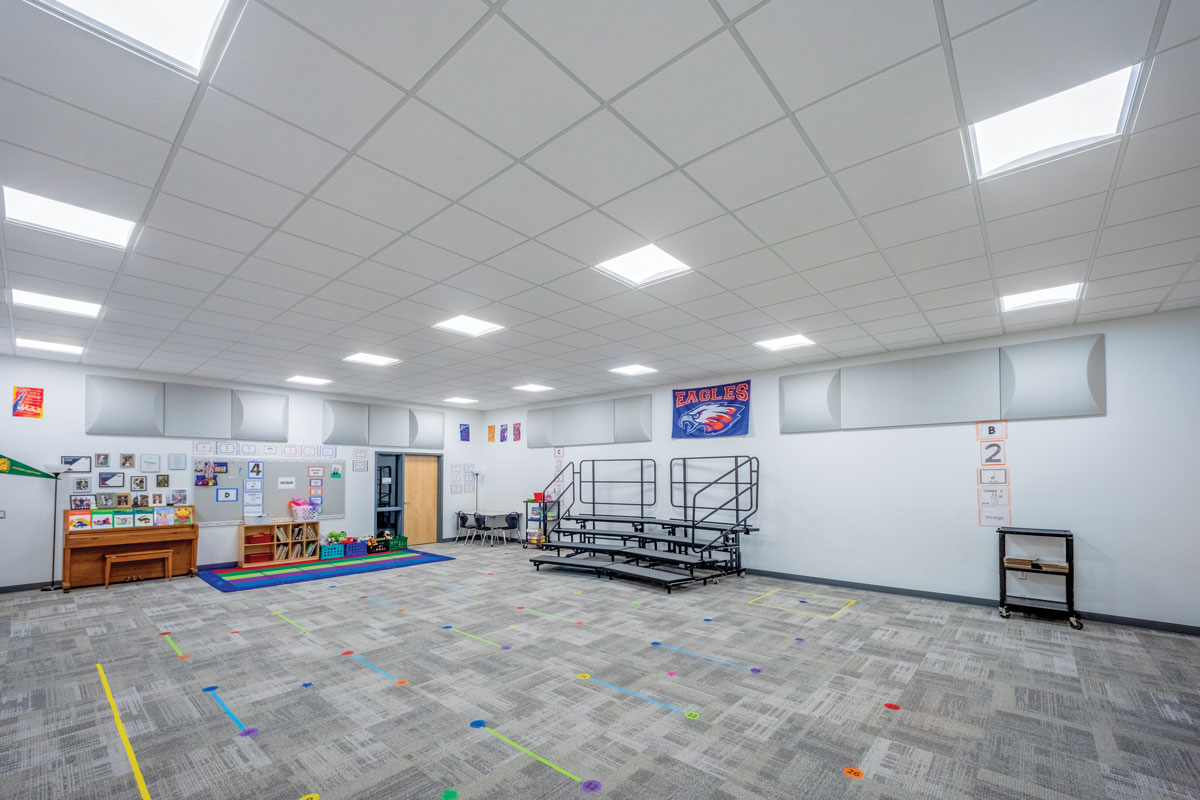

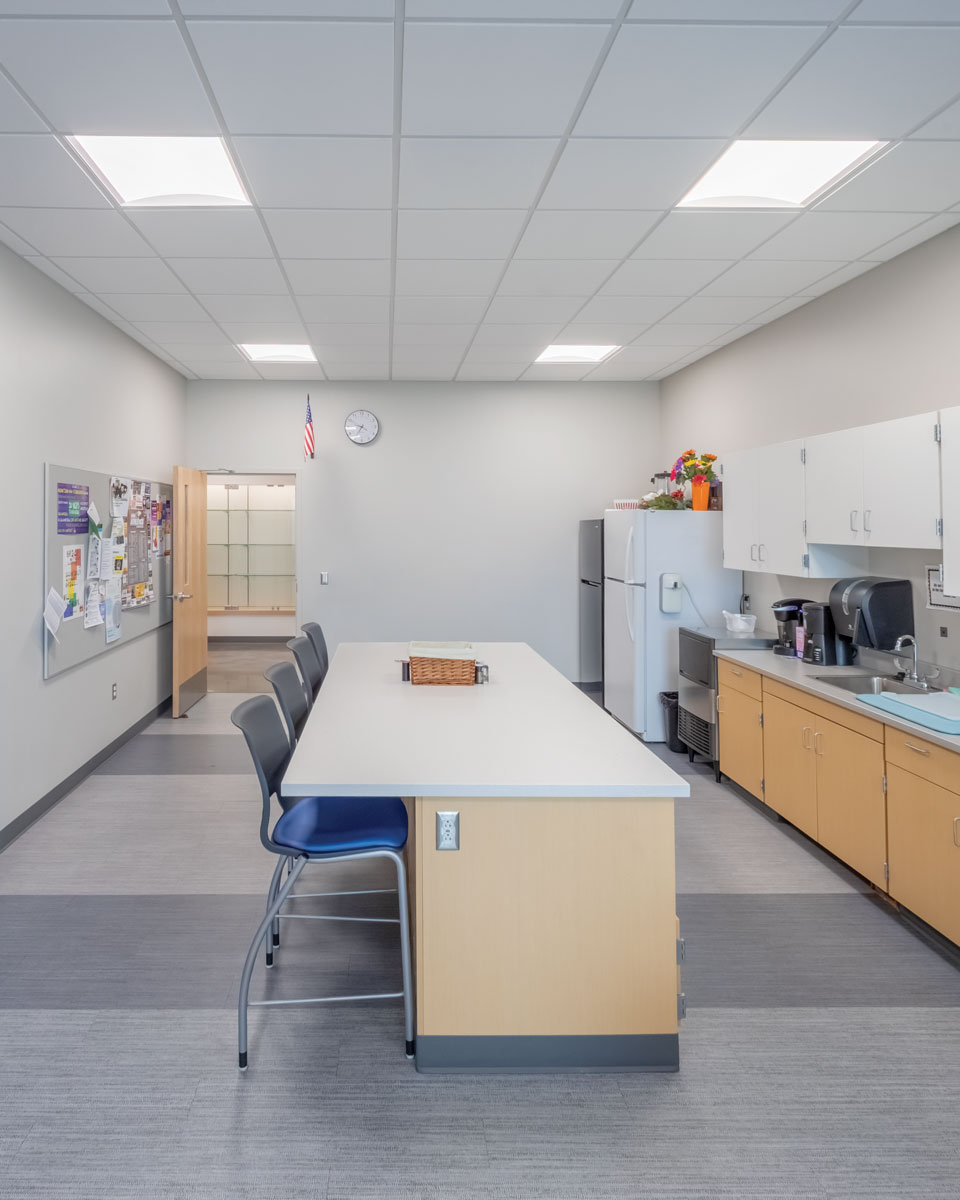

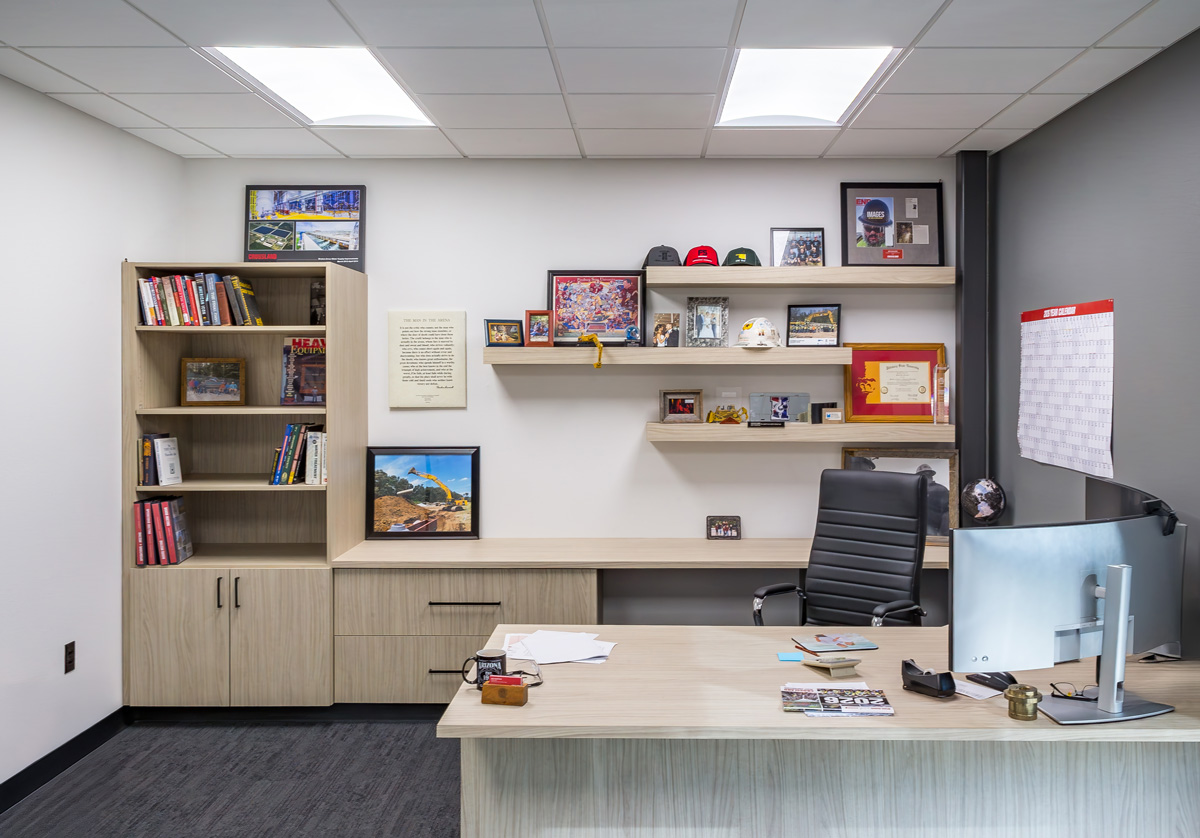

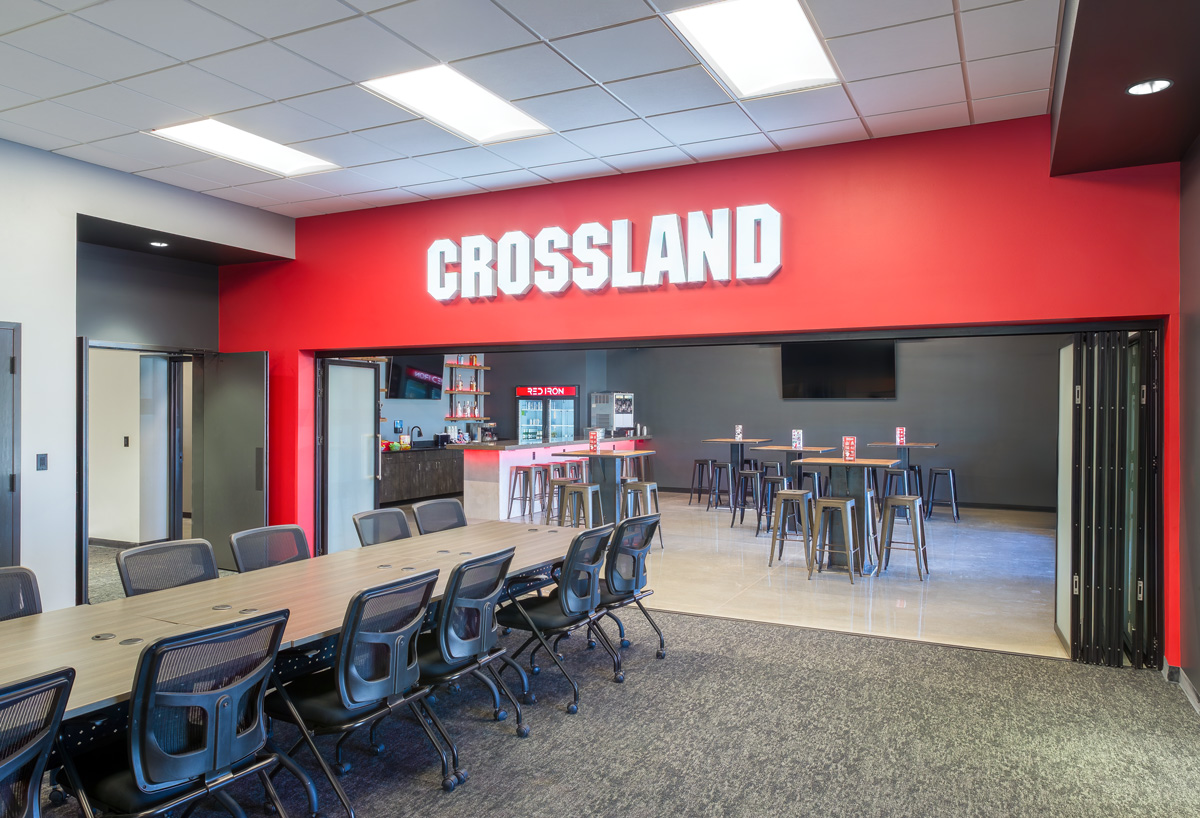

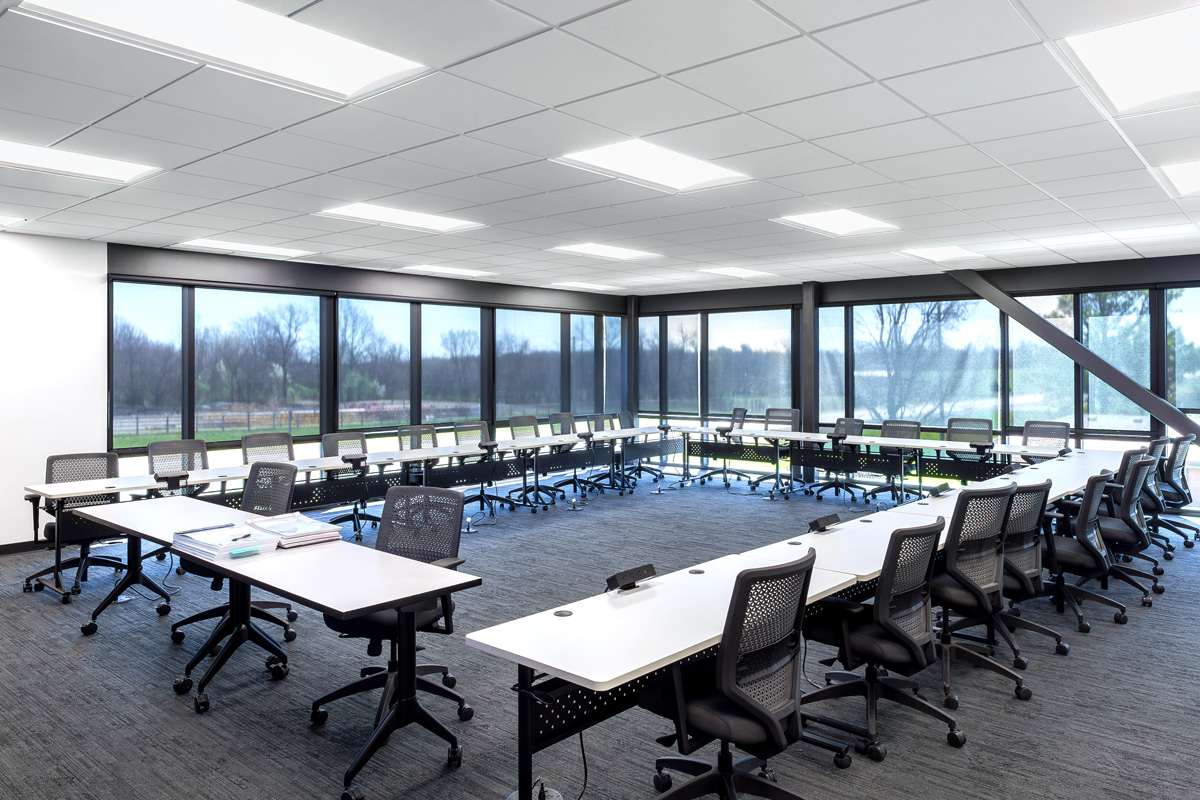

Inspiration
