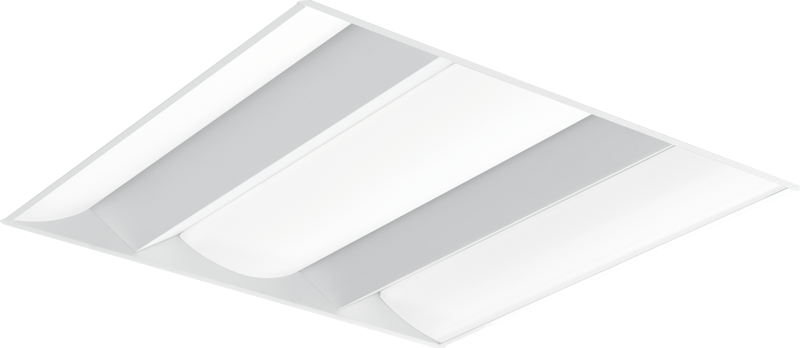

HET-AR High Efficiency Troffer – Air Return

Features

Attractive and efficient architectural fixture delivers comfortable, uniform illumination
Air return capability reduces number of unsightly ceiling vents for a cleaner appearance
Frosted acrylic diffusers combined with highly reflective matte white paint provide high optical efficiencies and visual comfort
Seamlessly integrate LED to any existing HET project
Fully room-side accessible without the use of tools
High-performance up to 135 lm/W
One-piece diffusers eliminate the need for separate overlays
Companion HES surface mount preserves continuity
Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
1x4, 2x2, and 2x4 sizes available
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	22-gauge die-formed C.R.S.
Shielding	Frosted, ribbed acrylic.
Finish	Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. Rated for 50,000 hours at 70% lumen maintenance (L70). 50/60 Hz constant current driver.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
