PT Shallow Plenum Troffer

Features

  • Available on QuickShip
  • Ultra slim 2-3/8" for minimal plenum space
  • Room-side access
  • Uniform ambient illumination
  • Companion surface and retrofit kit preserve continuity
  • Optional anti-microbial finish for healthcare applications
  • High-performance up to 134 lm/W
  • Rated for direct contact with insulation
  • Heavy duty C.R.S. construction
  • Round or square diffuse ribbed acrylic lens options enhance the space
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • 1x4, 2x2, and 2x4 sizes available
  • Easily change the color temperature on-site with FieldSELECT
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • DLC Compliant
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Available with BIOS® state-of-the-art LED white light circadian solutions
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing/Reflector

Precision die-formed 22-gauge C.R.S.

Shielding

Diffuse ribbed acrylic.

Finish

Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

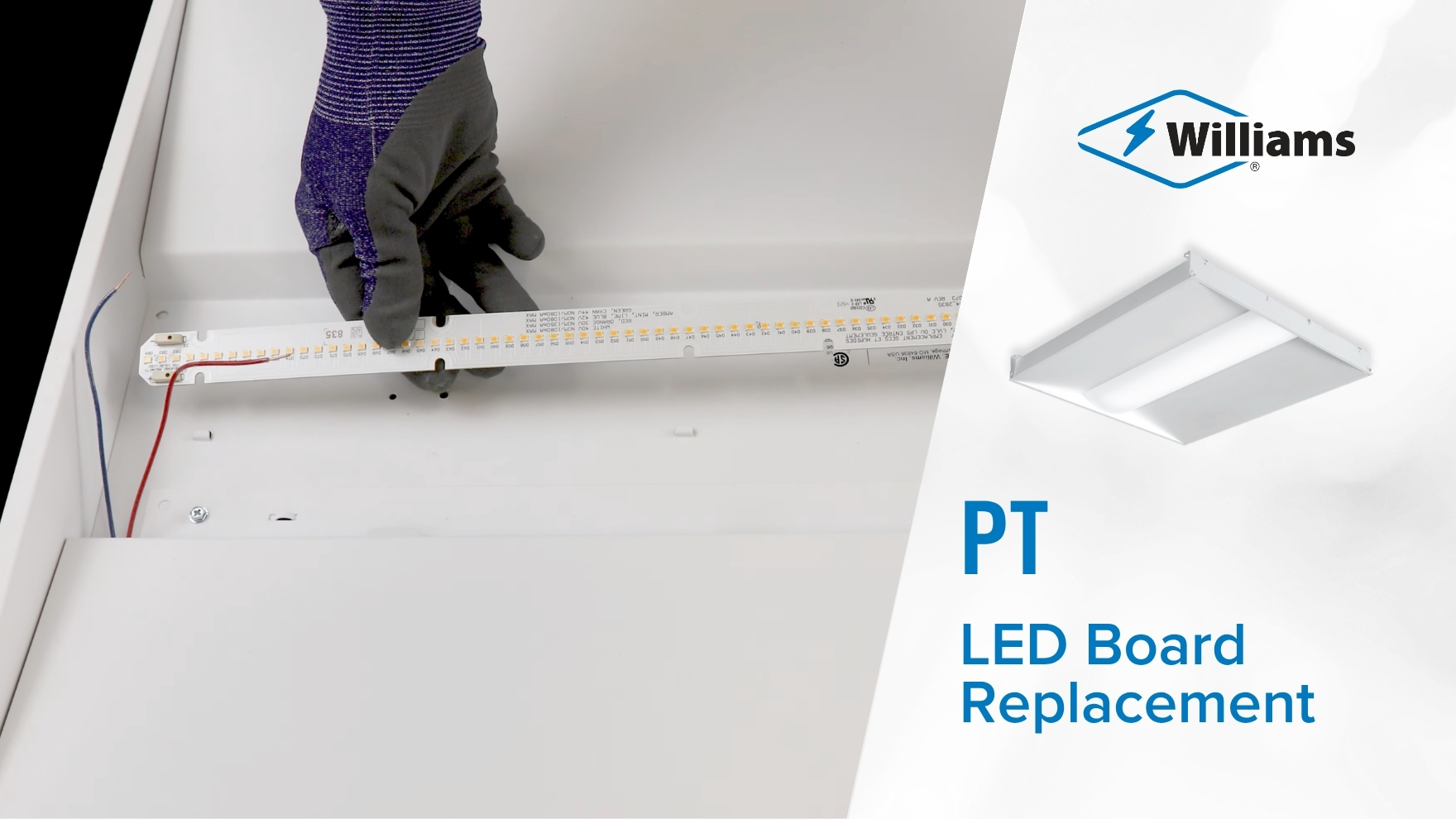

High-quality mid-power LED boards. L80 >60,000 hours.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall kit accessories available for flange applications, shipped separately.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• City of Chicago Environmental Air approved when specified with CP option.
• DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing/Reflector

Precision die-formed 22-gauge C.R.S.

Shielding

Diffuse ribbed acrylic.

Finish

Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED board. L70 > 50,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

System Requirements

• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system
• For additional PoE info, see details
• Consult factory for design support

Housing/Reflector

Precision die-formed 22-gauge C.R.S.

Shielding

Diffuse ribbed acrylic.

Finish

Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. Tunable White products use LEDs of multiple shade of white from single- CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall kit accessories available for flange applications, shipped separately.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• IC-rated for direct contact with insulation.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

Housing/Reflector

Precision die-formed 22-gauge C.R.S.

Shielding

Diffuse ribbed acrylic.

Finish

Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards with switchable CCT – 3000K, 3500K, and 4000K. L70 >50,000 hours. FieldSELECT products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdams ellipses.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately.

Listings

• cCSAus certified as luminaire suitable for dry locations.
• IC-rated for direct contact with insulation.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details
