4RCD 4″ Round Commercial Downlight
Features
-
Available on QuickShip
- Easily change between five color temperatures and three lumen outputs on-site with built-in switches
- Simple and quick installation in new construction, IC-rated, or remodel applications
- 90 CRI provides high-accuracy color rendering
- Suitable for wet locations under covered ceiling
- Durable spring clips secure fixture
- Efficacies up to 108 lm/W
- Easily change the color temperature on-site with FieldSELECT™
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Use your zip code to find your local agent.
Specifications
|
Housing |
Aluminum housing. |
|
Trim |
Aluminum white stepped baffle with diffuse lens. |
|
Electrical |
Long-life LEDs provide estimated L70 >149,000 hours. 45ºC max ambient operating temperature for non IC-rated applications. Complies with EN61000-4-5 surge protection (1.5kV). Harmonic distortion < 20%. Power factor > 0.90. |
|
Mounting |
Compatible with 3-7/8″-4-1/4" ceiling cutout. Heavy-duty mounting springs accommodate ceiling thicknesses up to 1-1/2″. New construction mounting pan accessory available. Access above ceiling required to change color and lumens after installation. Weight 0.7 lbs. |
|
Listings |
• cETLus listed as LED luminaire suitable for wet locations under covered ceiling. |
|
Warranty |
5-year limited warranty, see details. |
Downloads
- Quickship Brochure
- 4RCD-LS/9CS-SS-QS-DIM-UNV
- 4RCD-LS/9CS-WH-QS-DIM-UNV
- 4RCD-N-F1-QS

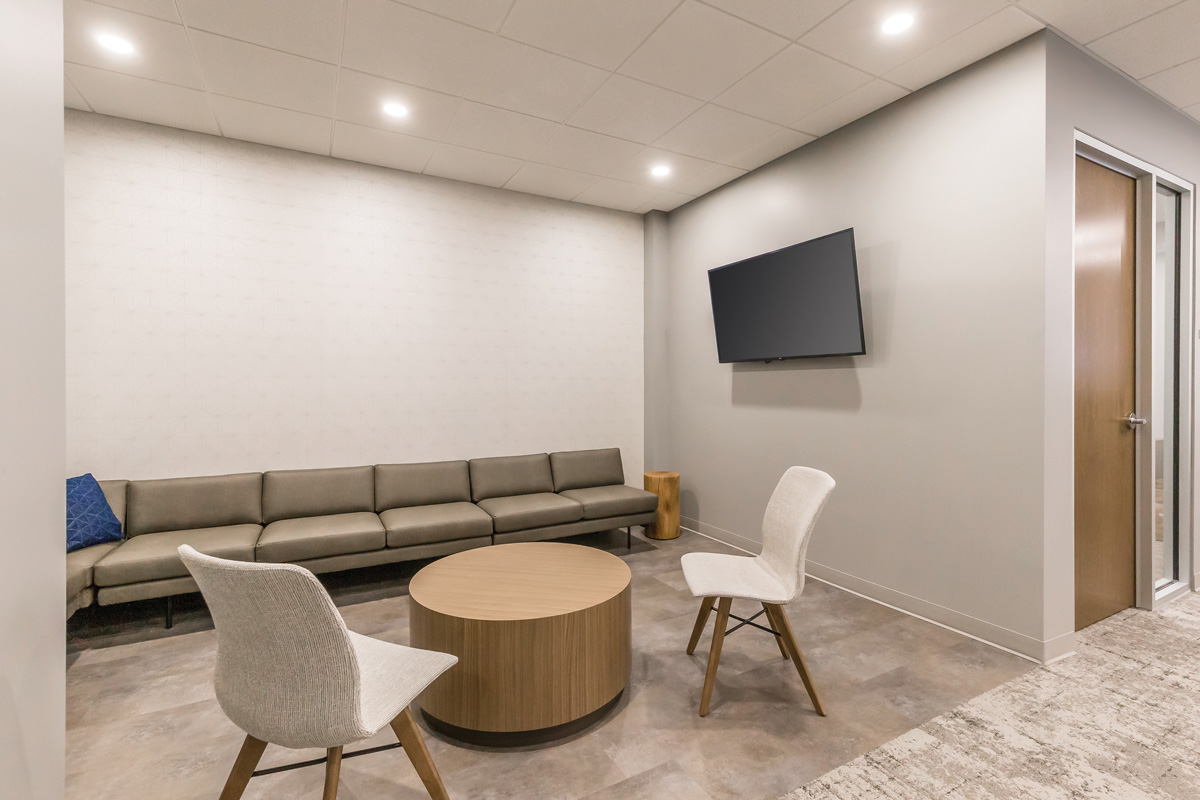

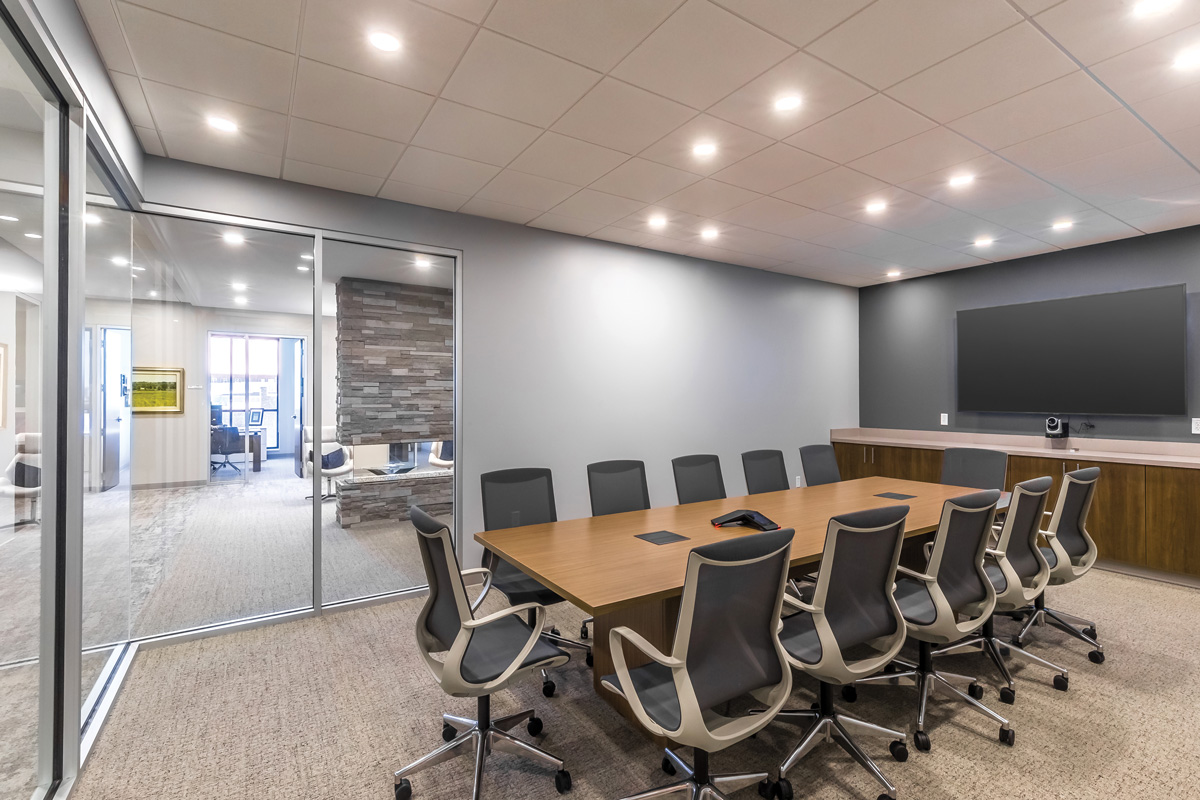

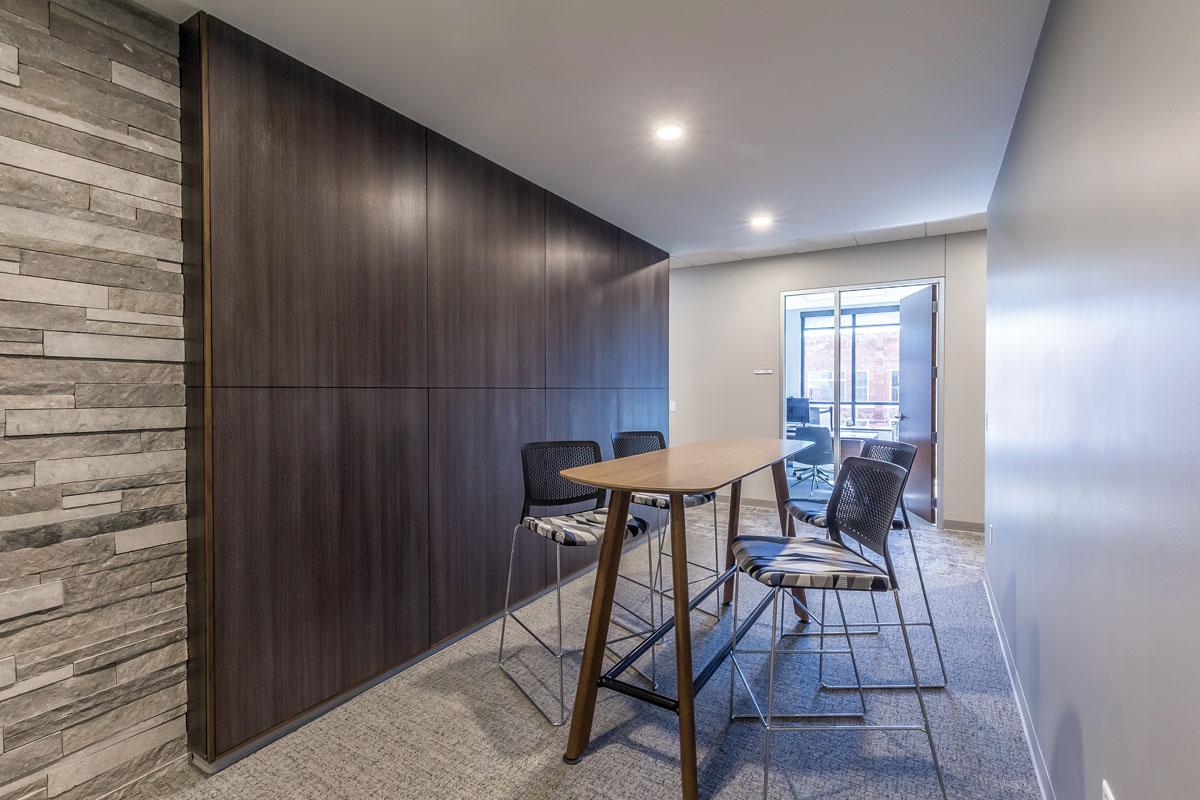

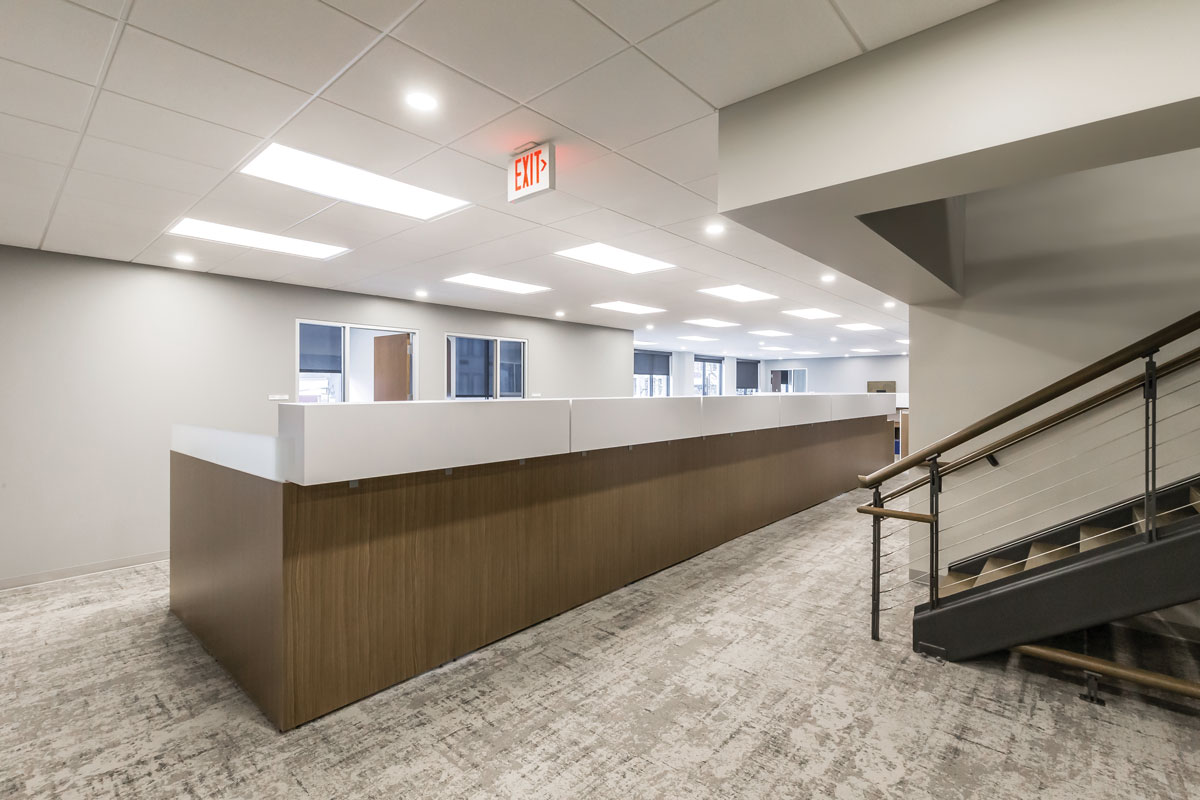

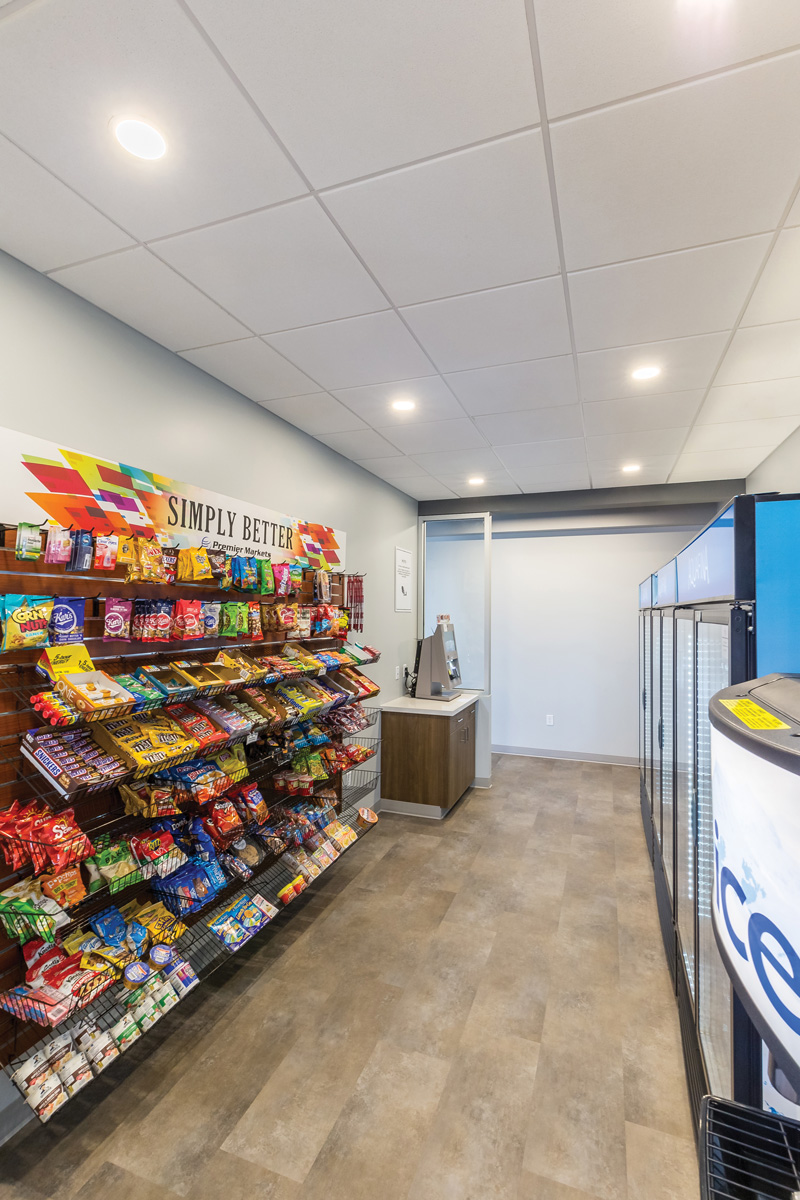

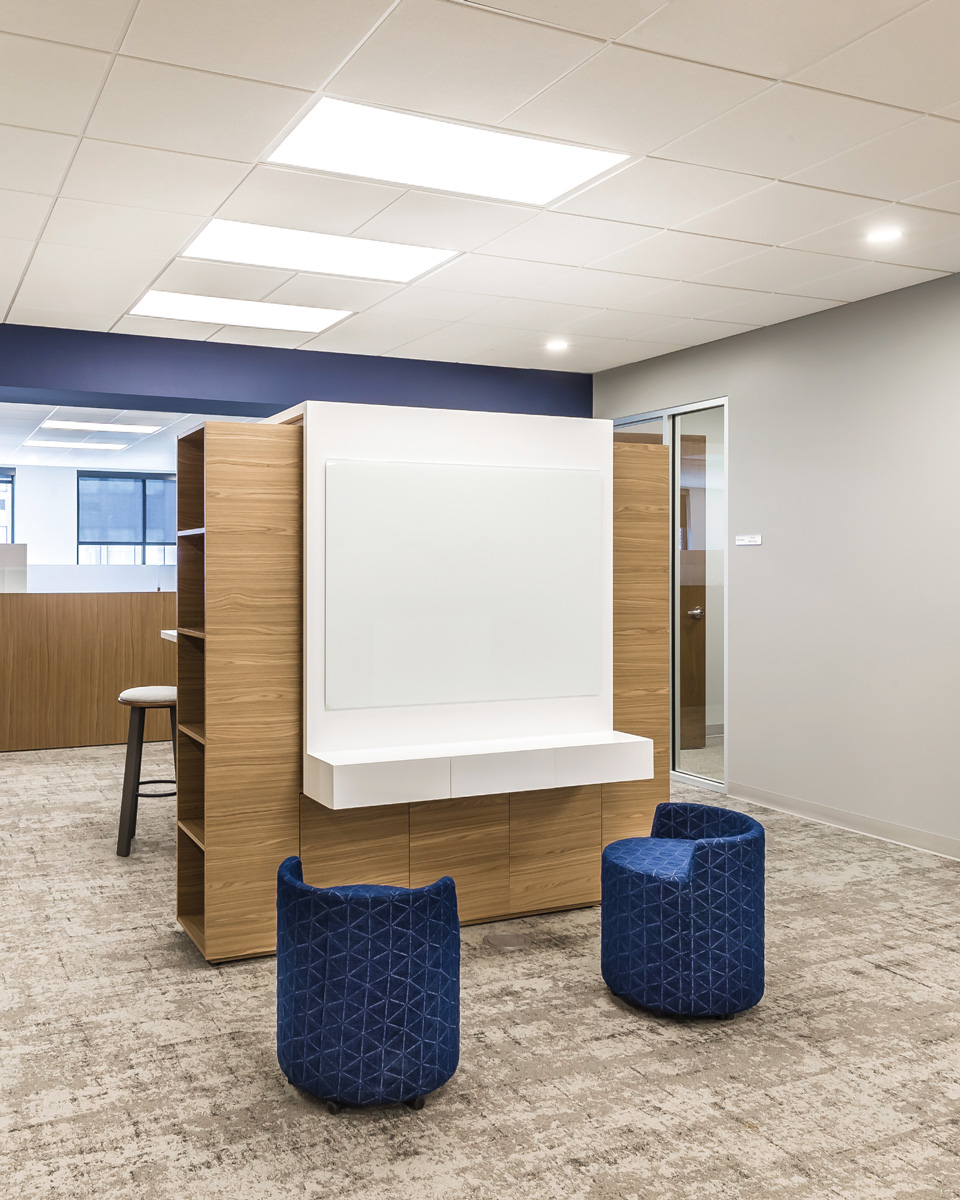

Inspiration
