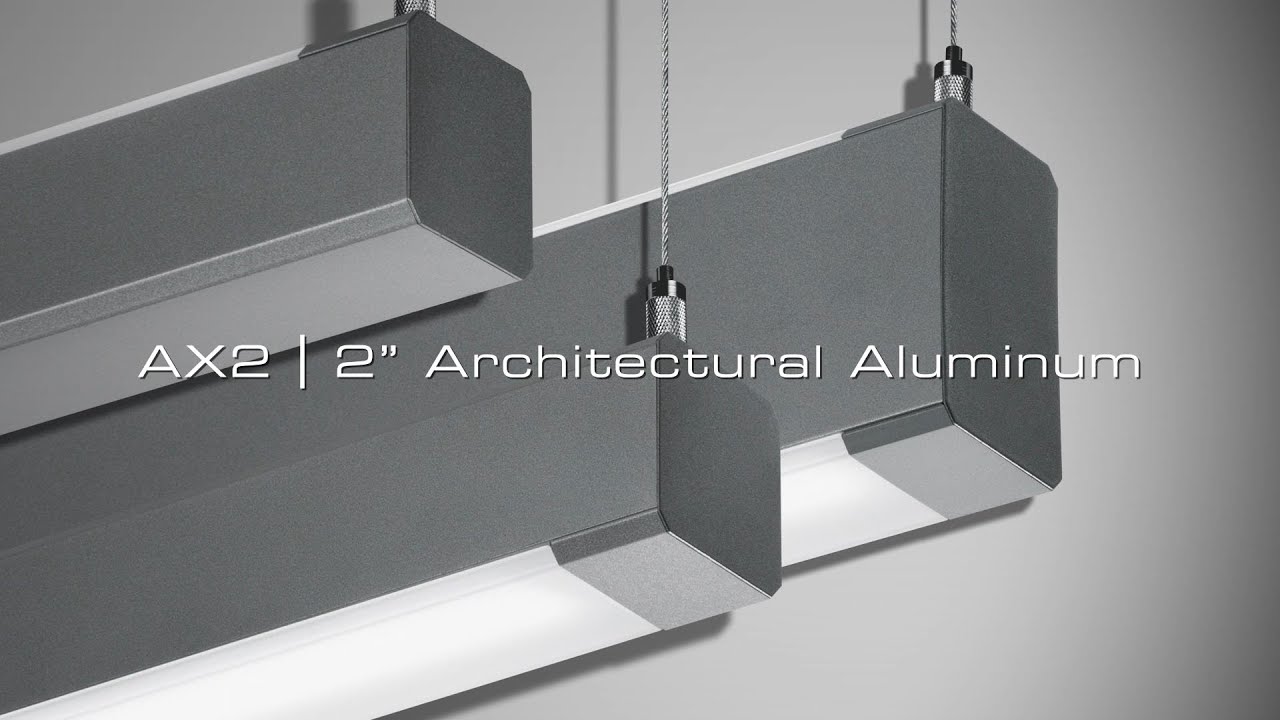

AX2 2″ Suspended Architectural

Features

Sleek, linear design incorporates clean lines and slim styling

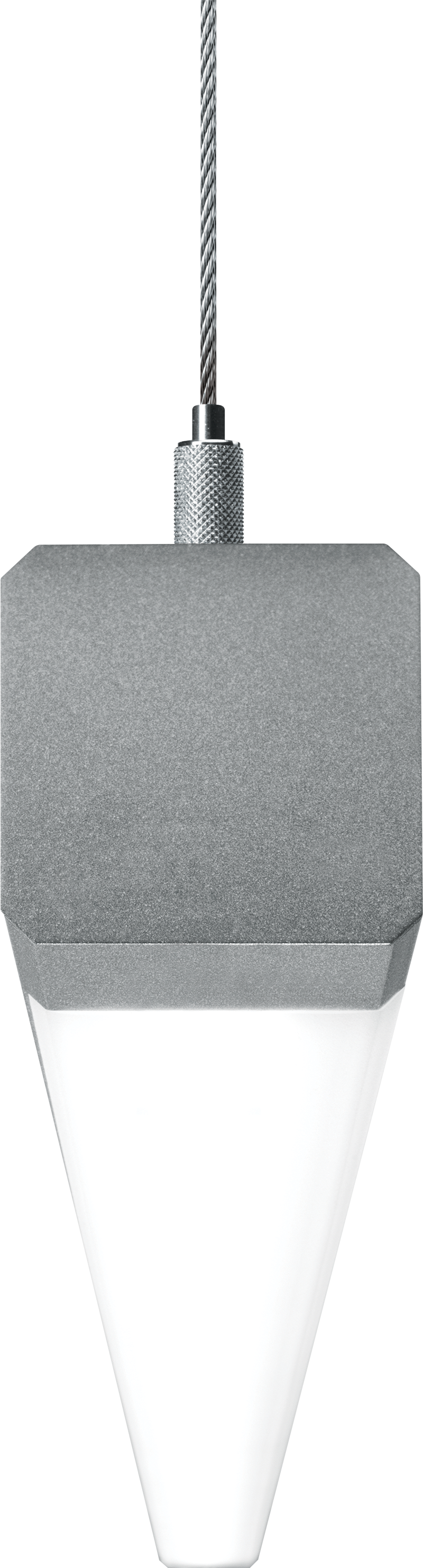

Slightly wrapped lens creates glowing edge and smooth illumination

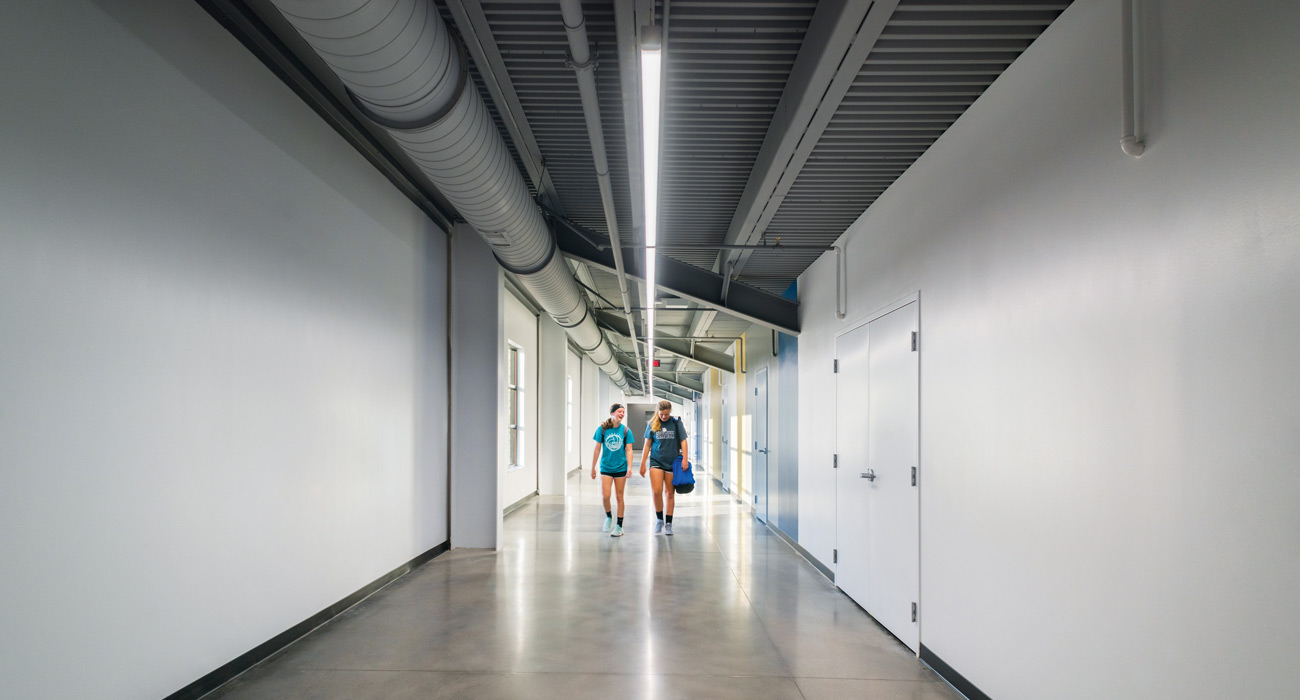

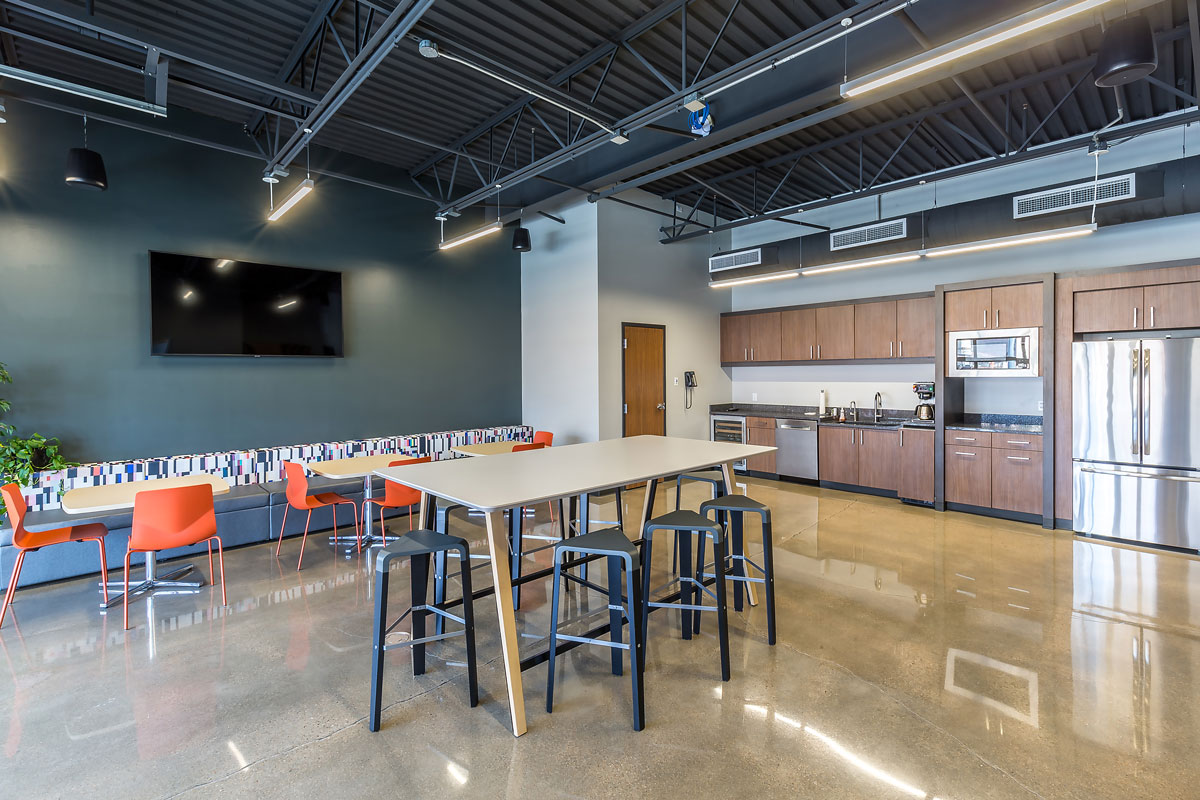

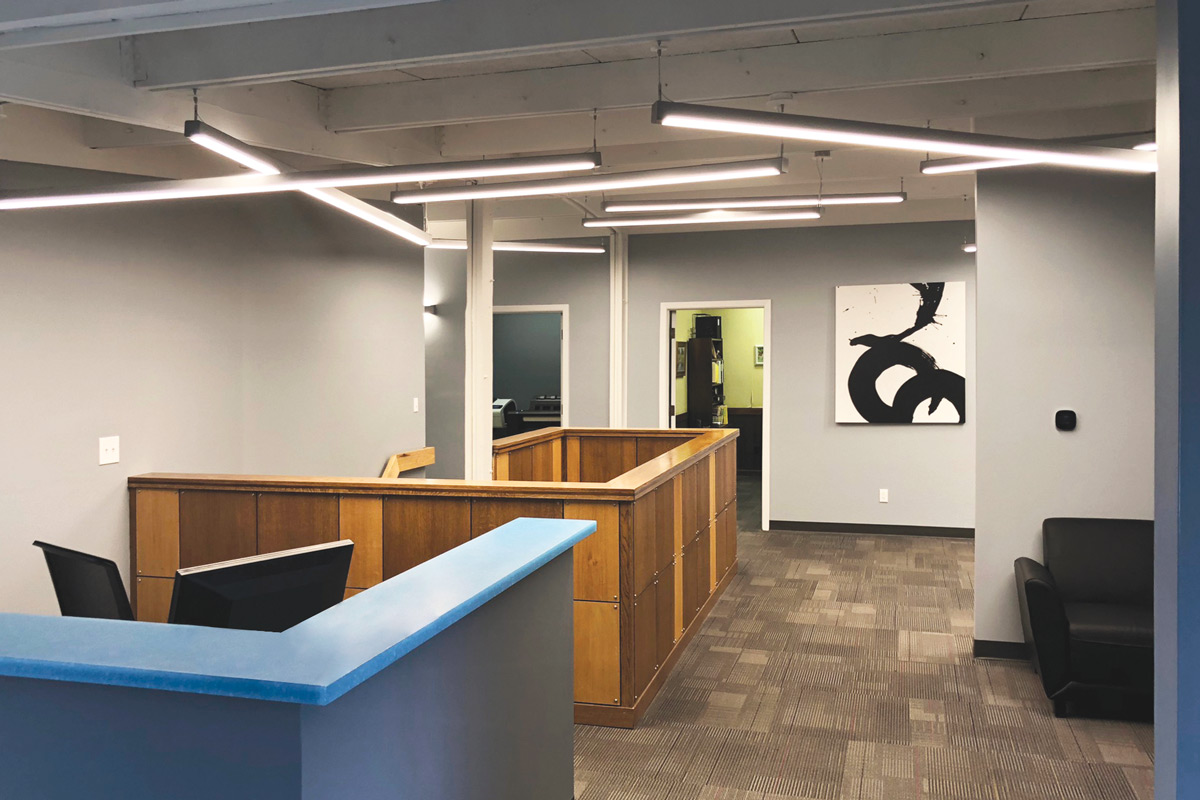

Attractive source of direct lighting for use in offices, hallways, conference rooms and medical facilities
Suspended and wall mount styles add design flexibility and continuity
2', 4', and 8' lengths available
Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
Deliver scalable, data-driven smart buildings with Platformatics PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	Extruded aluminum.
Shielding	Frosted acrylic lens.
Finish	Matte, smooth silver sparkle (ALUM) standard. All other colors default to textured finish. Polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 at 60,000 hours per IES TM-21.

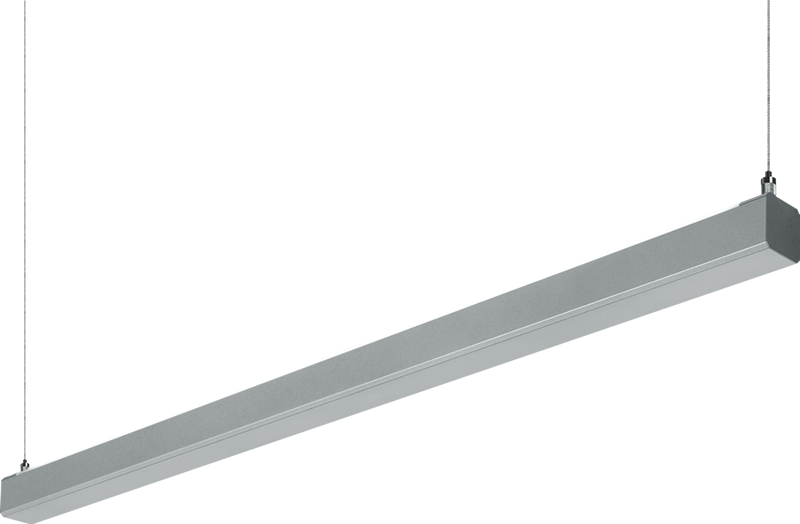

Mounting	Suspended. 1/16″ diameter adjustable steel leveling aircraft cable and mounting hardware necessary for grid ceiling applications provided.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

Housing	Extruded aluminum.
Shielding	Frosted acrylic lens.
Finish	Matte, smooth silver sparkle (ALUM) standard. All other colors default to textured finish. Polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Suspended. 1/16″ diameter adjustable steel leveling aircraft cable and mounting hardware necessary for grid ceiling applications provided.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details • Consult factory for design support

Housing	Extruded aluminum.
Shielding	Frosted acrylic lens.
Finish	Matte, smooth silver sparkle (ALUM) standard. All other colors default to textured finish. Polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Suspended. 1/16″ diameter adjustable steel leveling aircraft cable and mounting hardware necessary for grid ceiling applications provided.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
