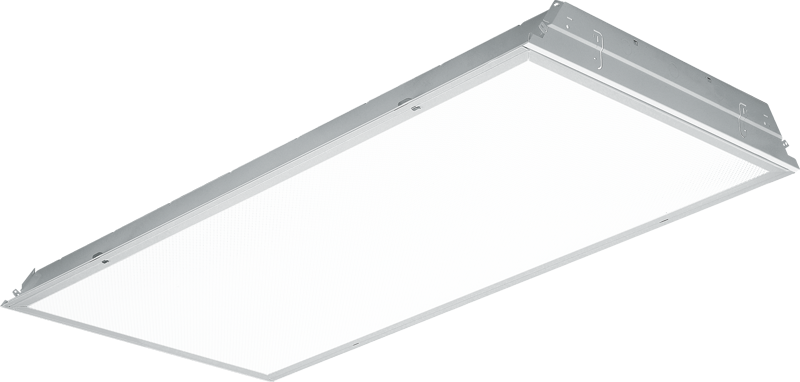

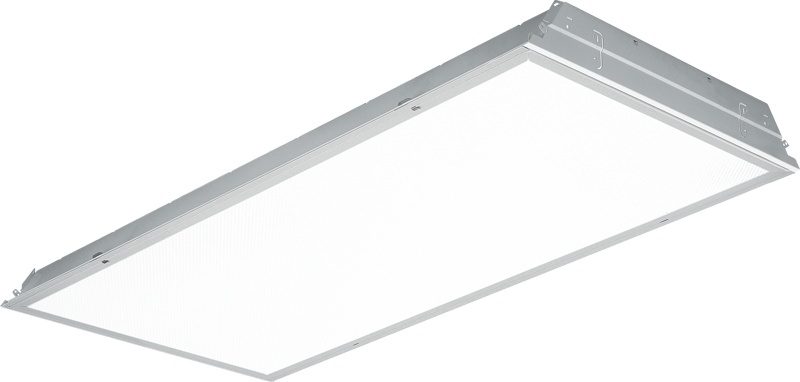

LPT Low-Profile Troffer

Features

3-7/16" deep housing installs easily within limited plenum space
Gasketed door frame features offset mitered corners to eliminate light leaks
Cam latches close securely and allow hassle-free maintenance
Reversible door hinges and latches allow access on either side
Deep reinforcement ribs provide added strength
Integral T-bar clips quickly secure fixture to structure
High-performance up to 137 lm/W

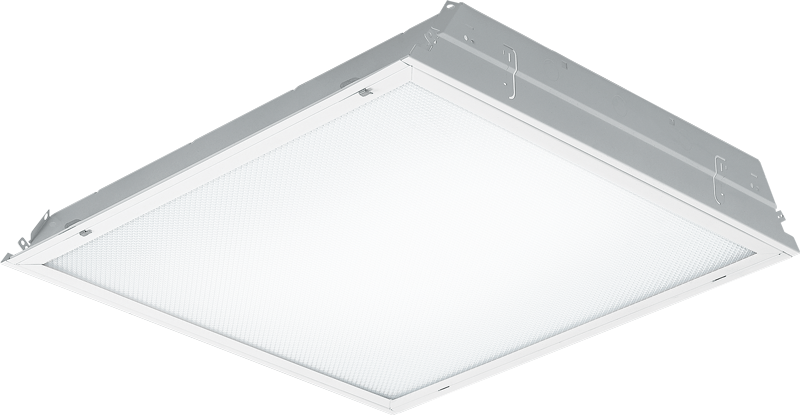

2x2 and 2x4 sizes available
Frosted or clear acrylic lens options available
Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
Rated for direct contact with insulation
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	22-gauge die-formed C.R.S.
Door Frame	22-gauge C.R.S., offset mitered corners, cam latches, and T-style hinges.
Shielding	Frosted acrylic, pattern #12, .095″ thick.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L85 at 50,000 hours. 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • IC-rated for direct contact with insulation, lumen restrictions apply. • City of Chicago Environmental Air approved when specified with CP option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Housing	22-gauge die-formed C.R.S.
Door Frame	22-gauge C.R.S., offset mitered corners, cam latches, and T-style hinges.
Shielding	Frosted acrylic, pattern #12, .095″ thick.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 > 50,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details

Housing	22-gauge die-formed C.R.S.
Door Frame	22-gauge C.R.S., offset mitered corners, cam latches, and T-style hinges.
Shielding	Frosted acrylic, pattern #12, .095″ thick.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 > 50,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses. 50/60 Hz constant current driver.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • City of Chicago Environmental Air approved when specified with CP option. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

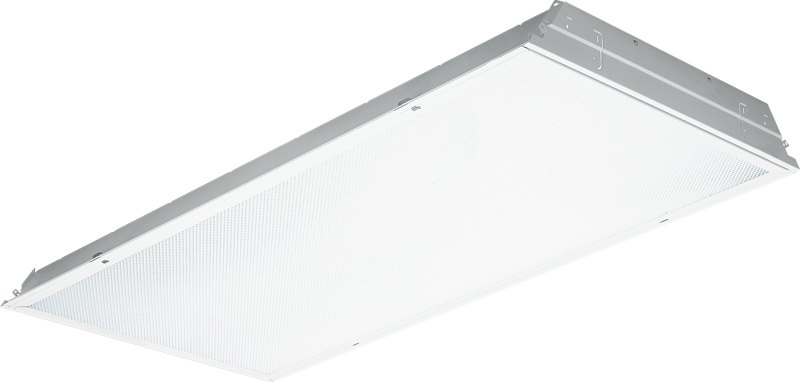

Housing	22-gauge die-formed C.R.S.
Door Frame	22-gauge C.R.S., offset mitered corners, cam latches, and T-style hinges.
Shielding	Clear acrylic, pattern #12, .125″ thick prismatic lens
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	Prewired for Type B, single or double end, non-shunted LED tubes, lamps by others. Refer to lamp manufacturer's specifications for additional requirements.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately.
Listings	• UL/CUL listed as LED recessed luminaire suitable for dry or damp locations. • Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american.
Warranty	5-year limited fixture warranty, see details
