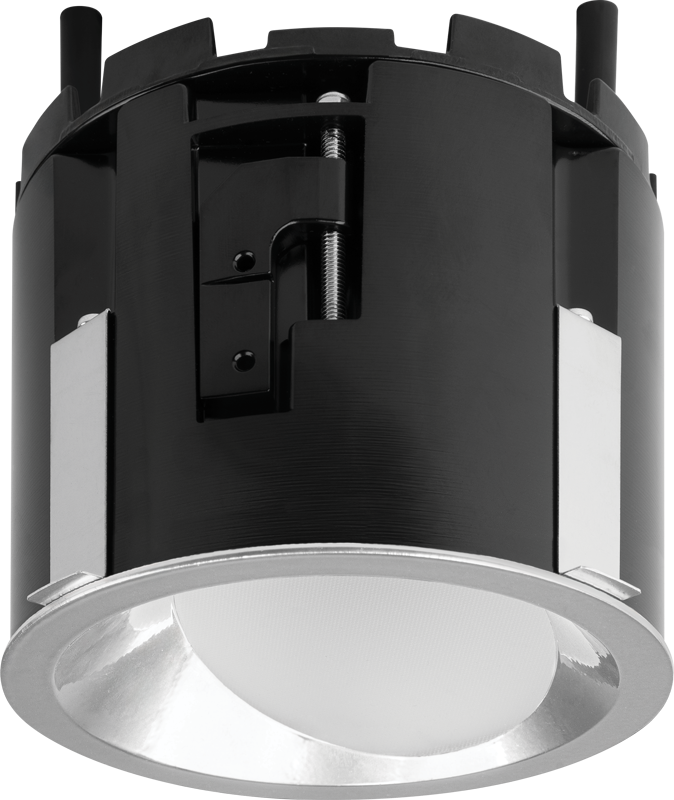

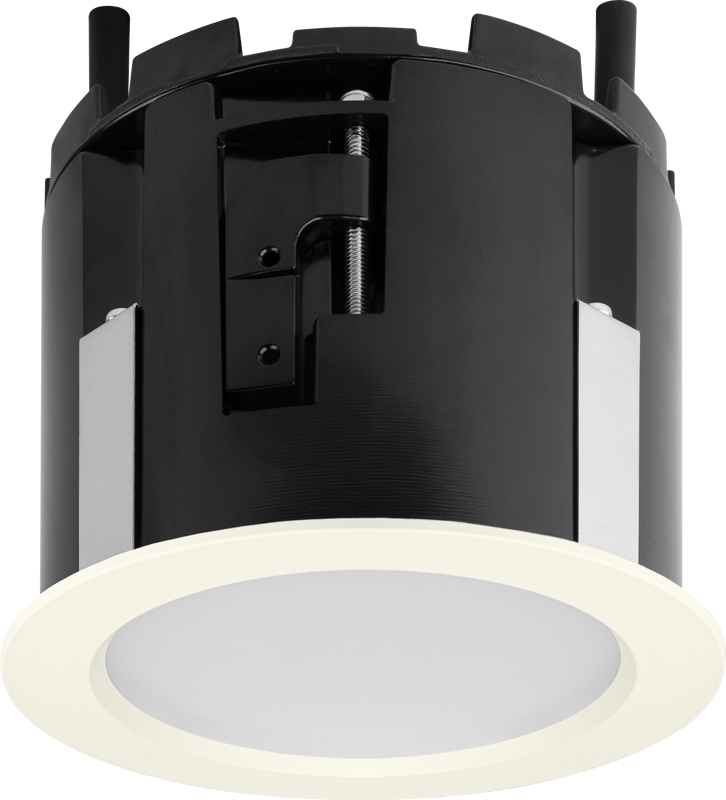

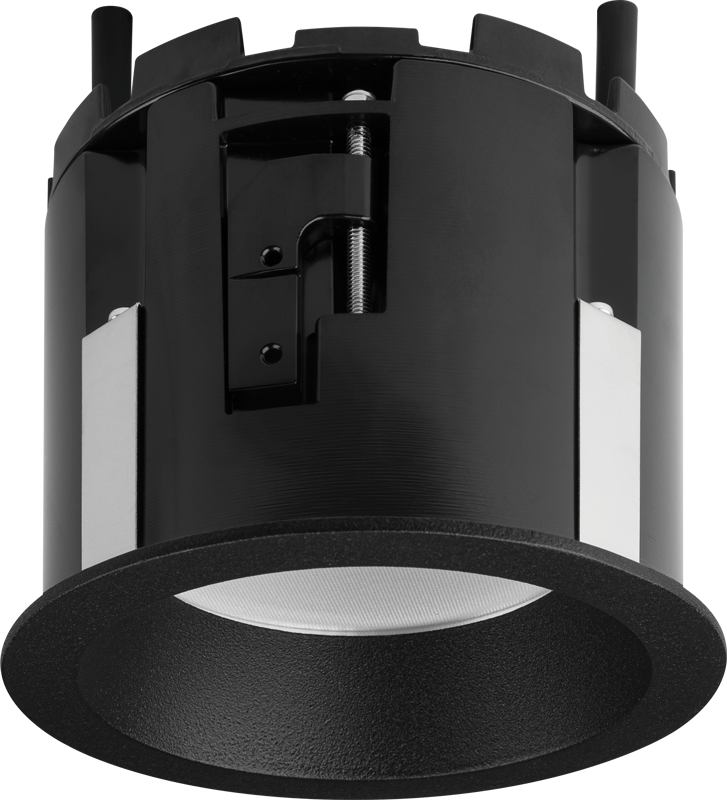

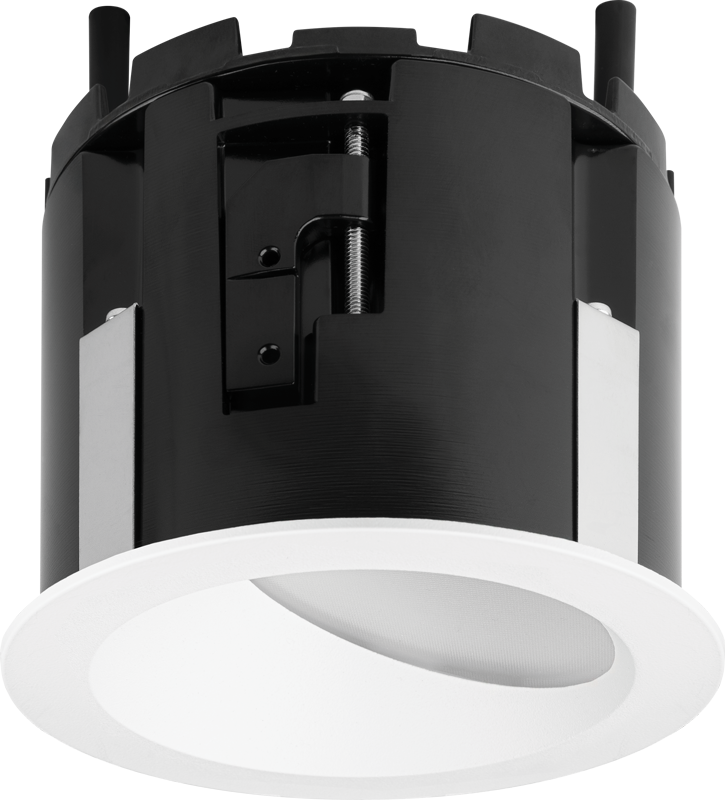

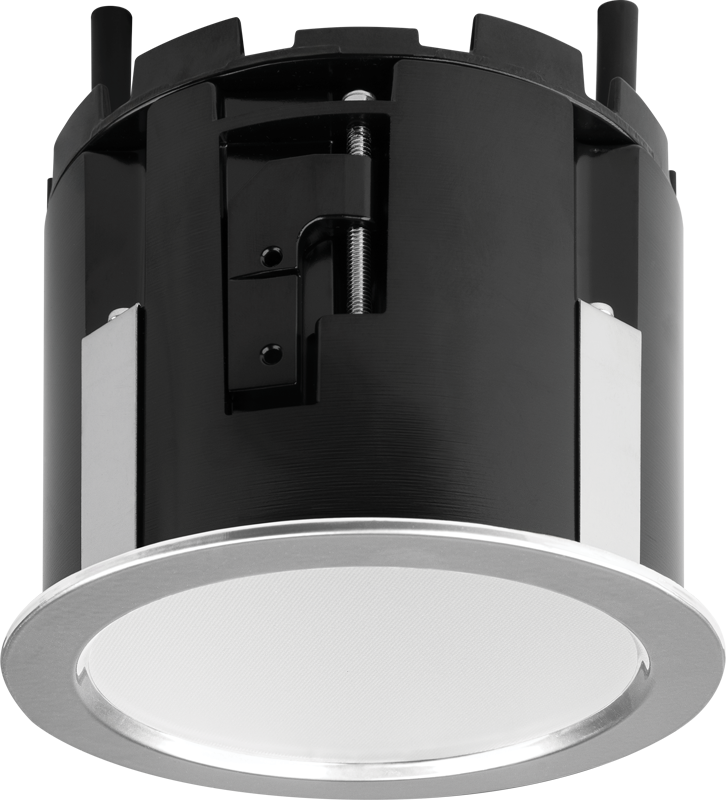

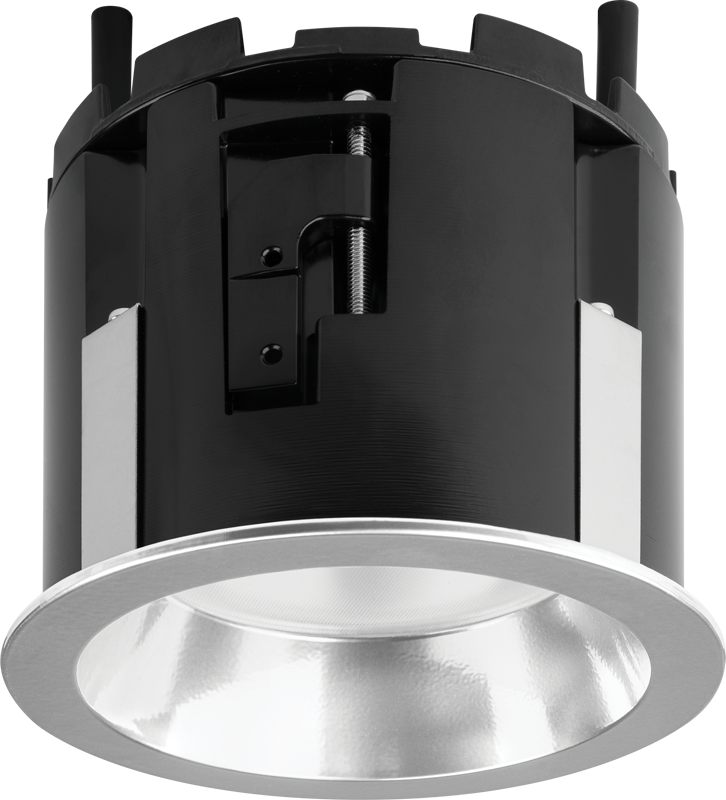

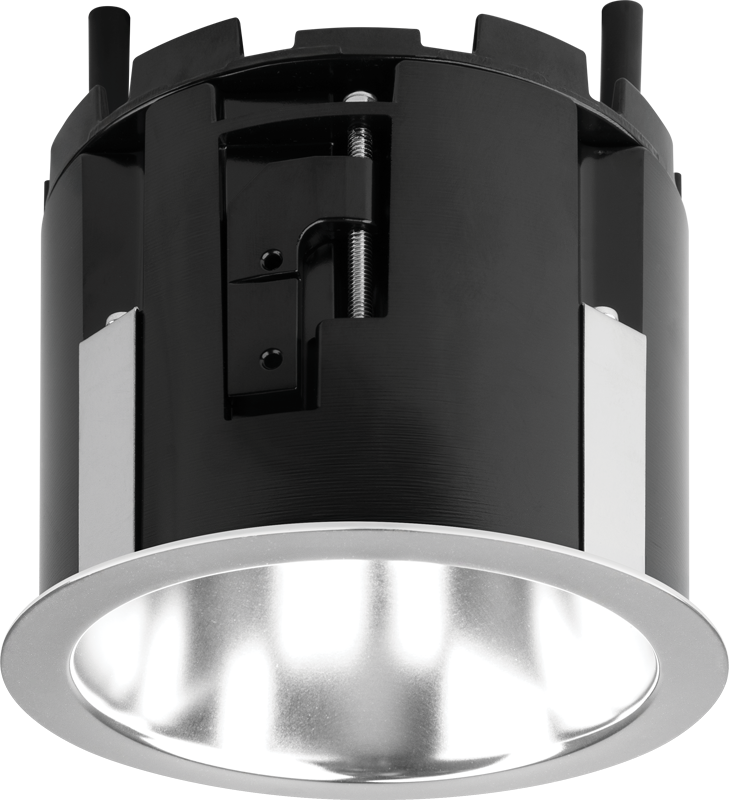

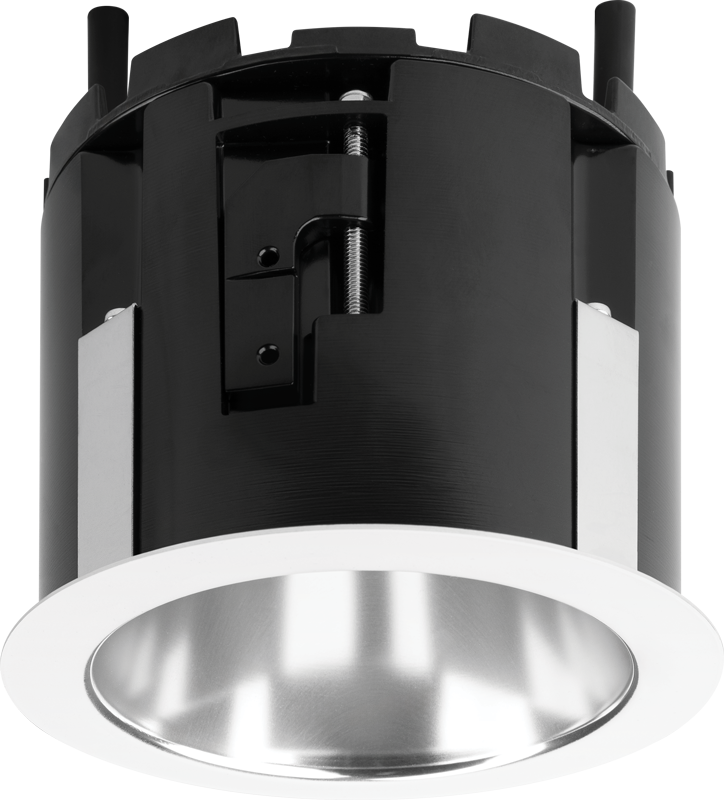

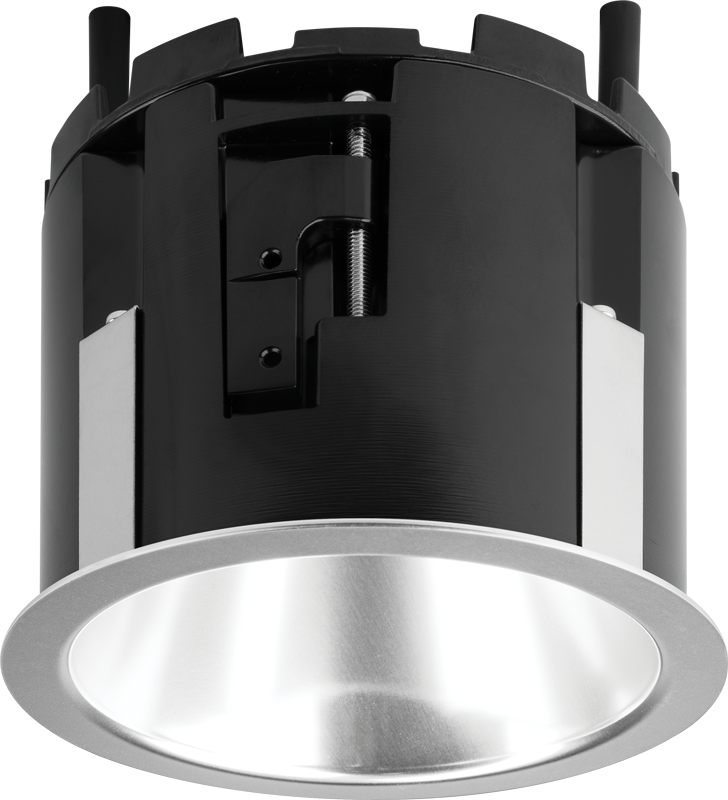

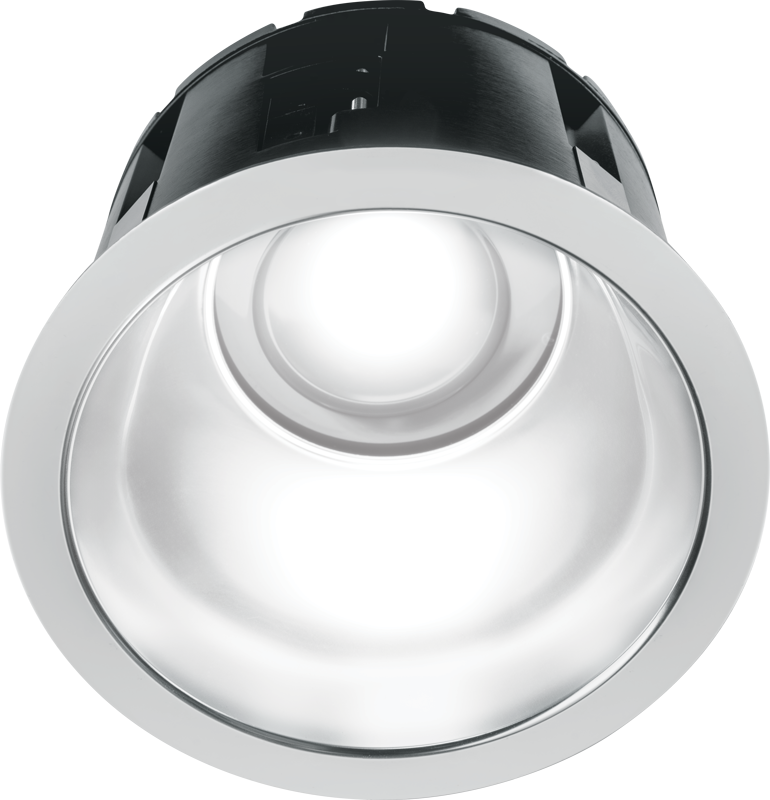

6DR 6″ Downlight – Round

Features

  • Available on QuickShip
  • Wide range of lumen options for general illumination
  • Innovative TrimLock® reflector retention system ensures the trim remains flush with the ceiling plane
  • Beam angles ranging from 10º narrow to 65º wide for tailored performance
  • Industry-leading efficacies as high as 116 lm/W
  • New construction mounting pan, IC-rated, or pan-less remodel kit available
  • Contemporary design provides glare-free illumination for a soft ceiling appearance
  • Die-cast trim includes flush, regressed or angled lens
  • Open reflector with nine finishes complements any interior style
  • Sloped adapter accommodates vaulted ceilings
  • Optional non-conductive lens for shower applications
  • IP65-rated die-cast trim includes easy-to-clean flush lens
  • Fully room-side accessible
  • ENERGY STAR® certified, Title 24 | JA8 compliant
  • Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
  • Low UGR meets LEED and WELL requirements
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
  • Create rich, vibrant designs with lasting visual impact using the full visible light spectrum
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Available with BIOS® state-of-the-art LED white light circadian solutions
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Rebate Finder

Find DLC Qualified or Energy Star certified products.

Payback Calculator

Calculate your ROI and lifetime energy use.

Specifications

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L60 - L80 lumen packages.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC or TD options.
• ENERGY STAR® certified in select configurations, see www.energystar.gov
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Title 24 (JA8) compliant in select configurations, see www.cacertappliances.energy.ca.gov.
• Complies with the Buy American Act and other federal regulations.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Low-voltage DC fixture, to be fed by Class 2 power supply. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for P46 and P62 lumen packages.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC or TD options.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

System Requirements

• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system
• For additional PoE info, see details

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>50,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L42 lumen package.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC or TD options.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing- out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Open Reflector

Low-iridescent anodized aluminum. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with micro-prismatic, acrylic lens.

Electrical

High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC or TD options.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• 24 | JA8 compliance.
• Complies with the Buy American Act and other federal regulations.
Request certification at hew.com/buy-american.

Warranty

5-year limited warranty, see details

Housing

Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.

Trimlock

Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.

Open Reflector

Low-iridescent anodized aluminum with top diffuser. Clear semi-specular finish standard.

Lensed Trim

Die-cast aluminum frame with microprismatic, acrylic lens.

Electrical

High-performance Class 2 CSP RGBW LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>60,000 hours (all colors). Reported L90: Red: >23,000 hours, Green: >44,000 hours, Blue: >60,000 hours, White: >48,000 hours

Control

DMX enabled; controllers provided by others.

Mounting

Recessed. 20 ga. galvanized steel mounting pan for new construction. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required.

Listings

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC Option or F trim type.
• IP65 rated trim when specified with IP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Complies with the Buy American Act and other federal regulations.
Request certification at hew.com/buy-american

Warranty

5-year limited warranty, see details

Reflector Finishes

Black

White

Clear Semi-Spec

Satin Glow

Clear Spec

Champagne Gold

Gold

Rose Gold

Pewter

TrimLock Details

Twist

Pull

Release

Trim Types

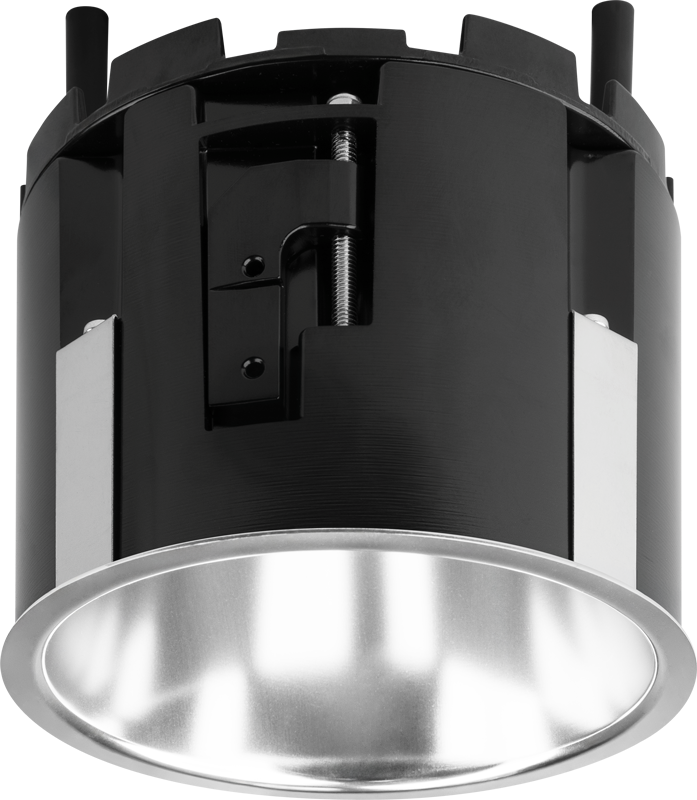

Open

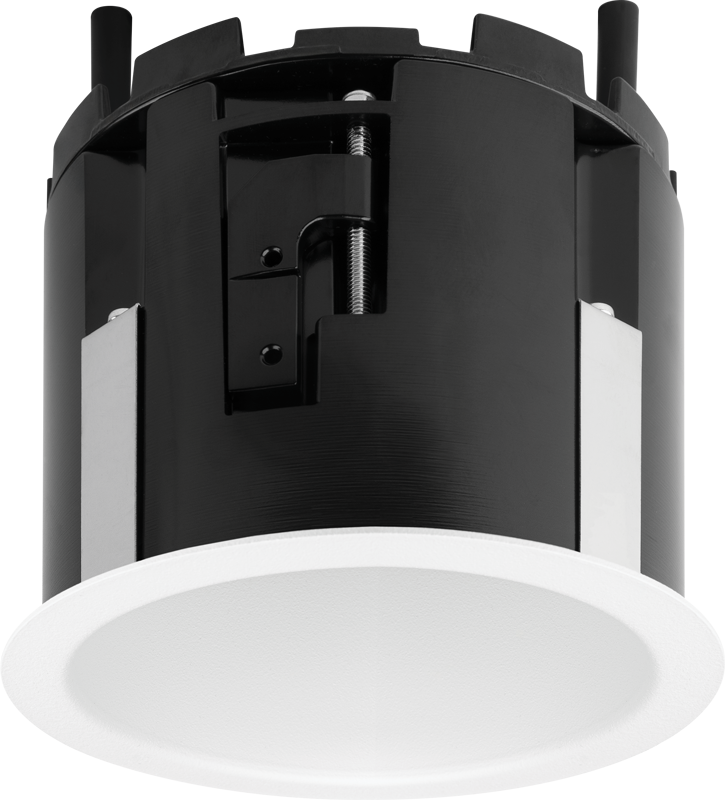

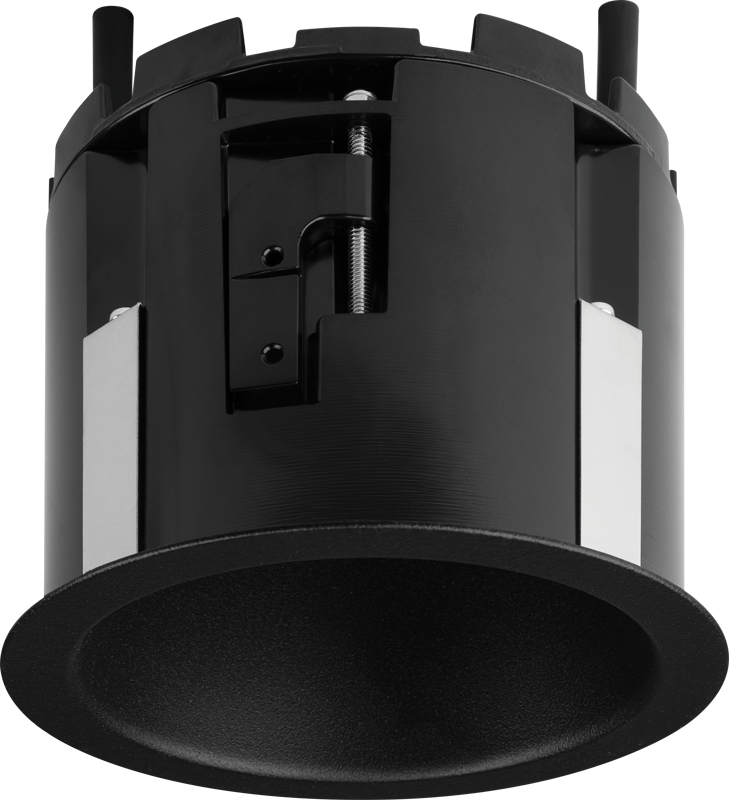

Flush

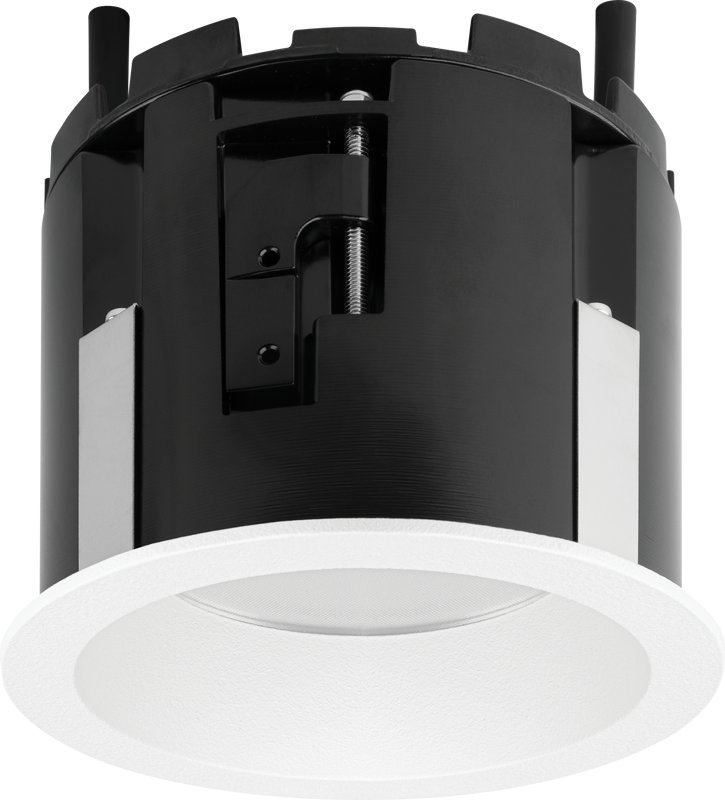

Regressed

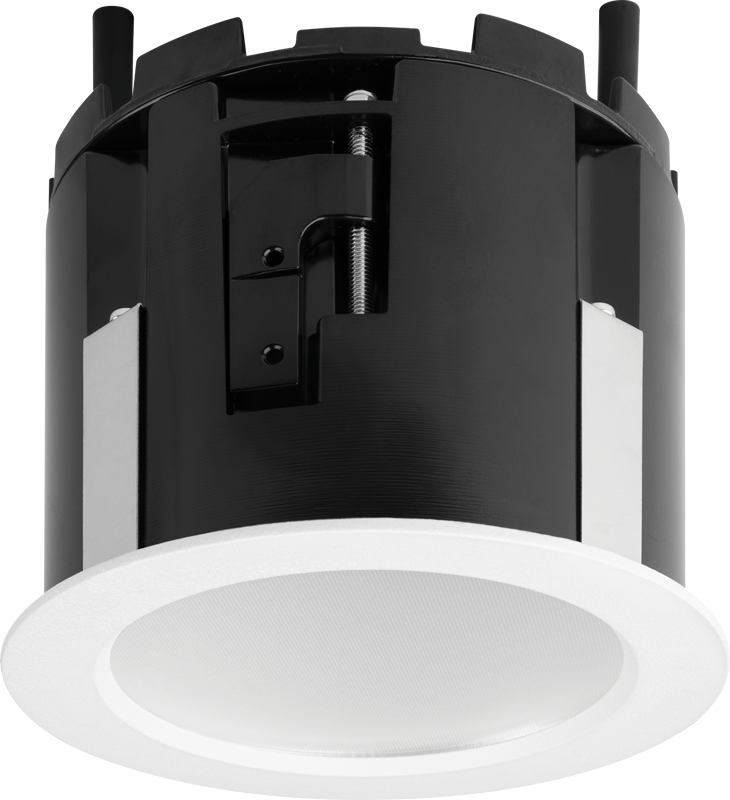

Angled

Shower

Emergency Battery Mounting Details

Regressed Test Switch

Standard Test Switch

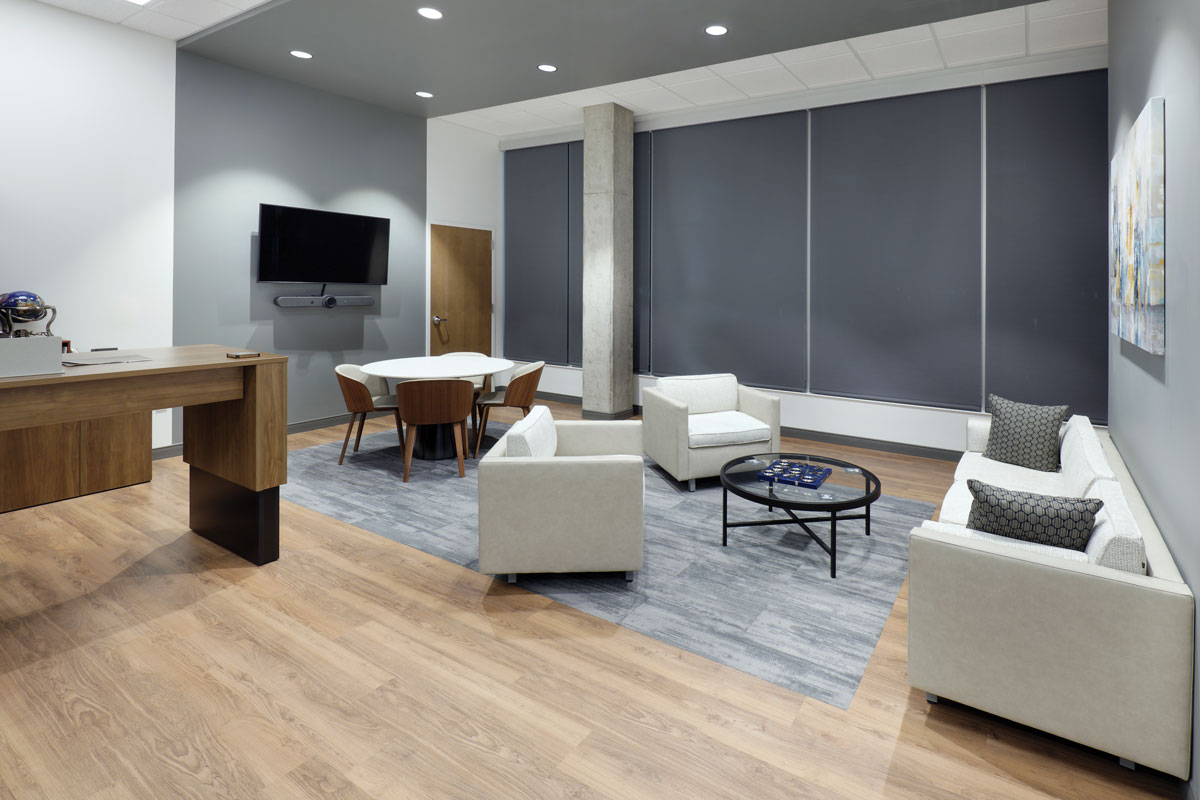

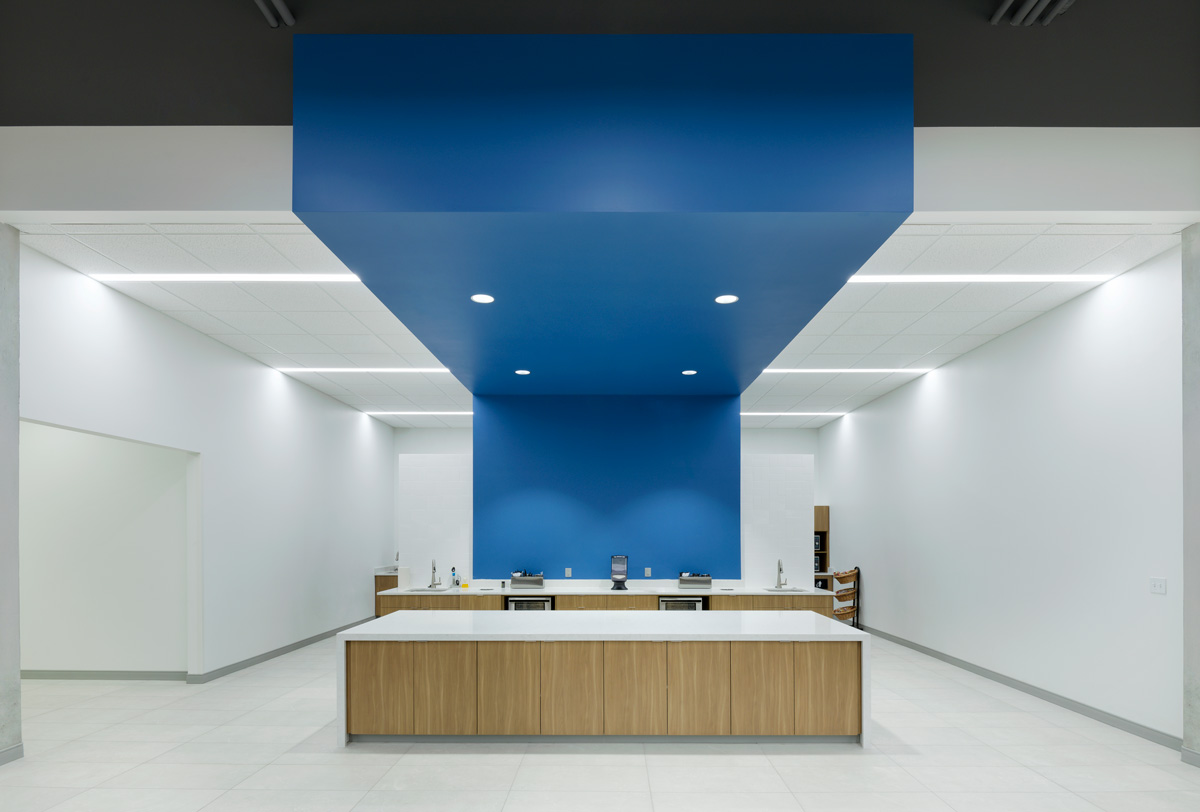

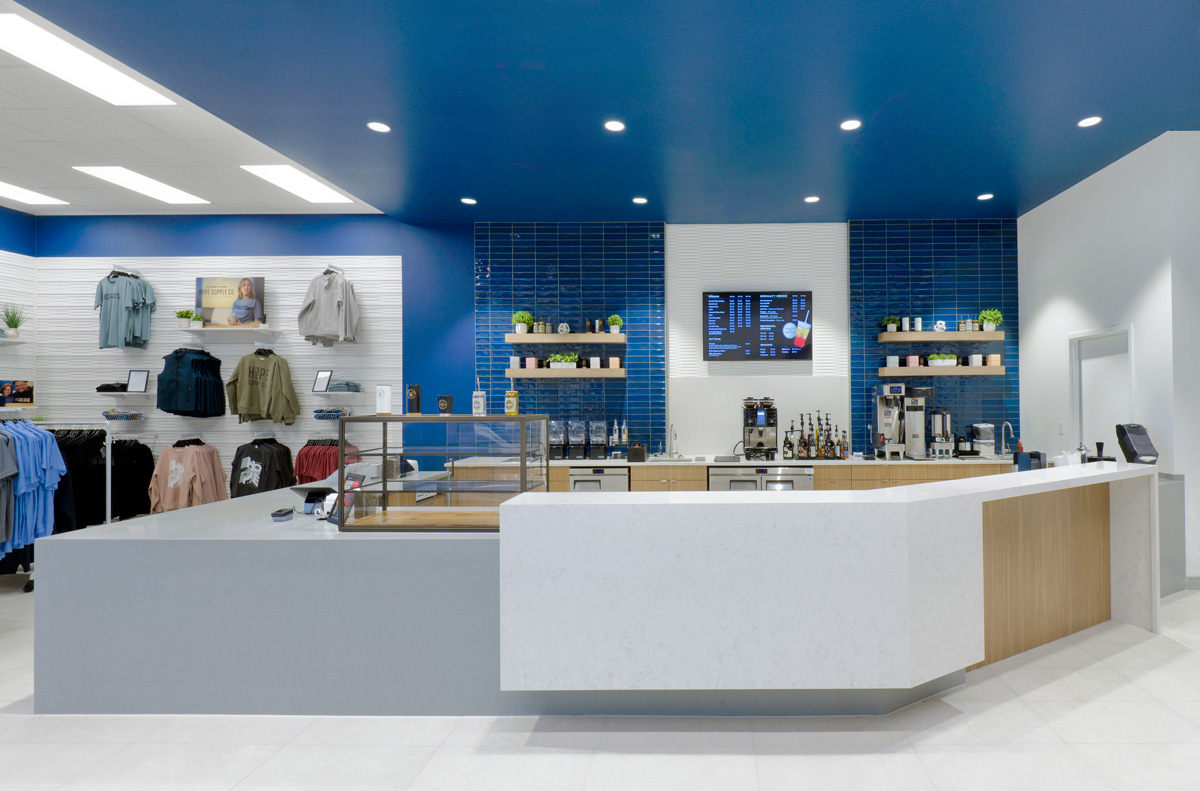

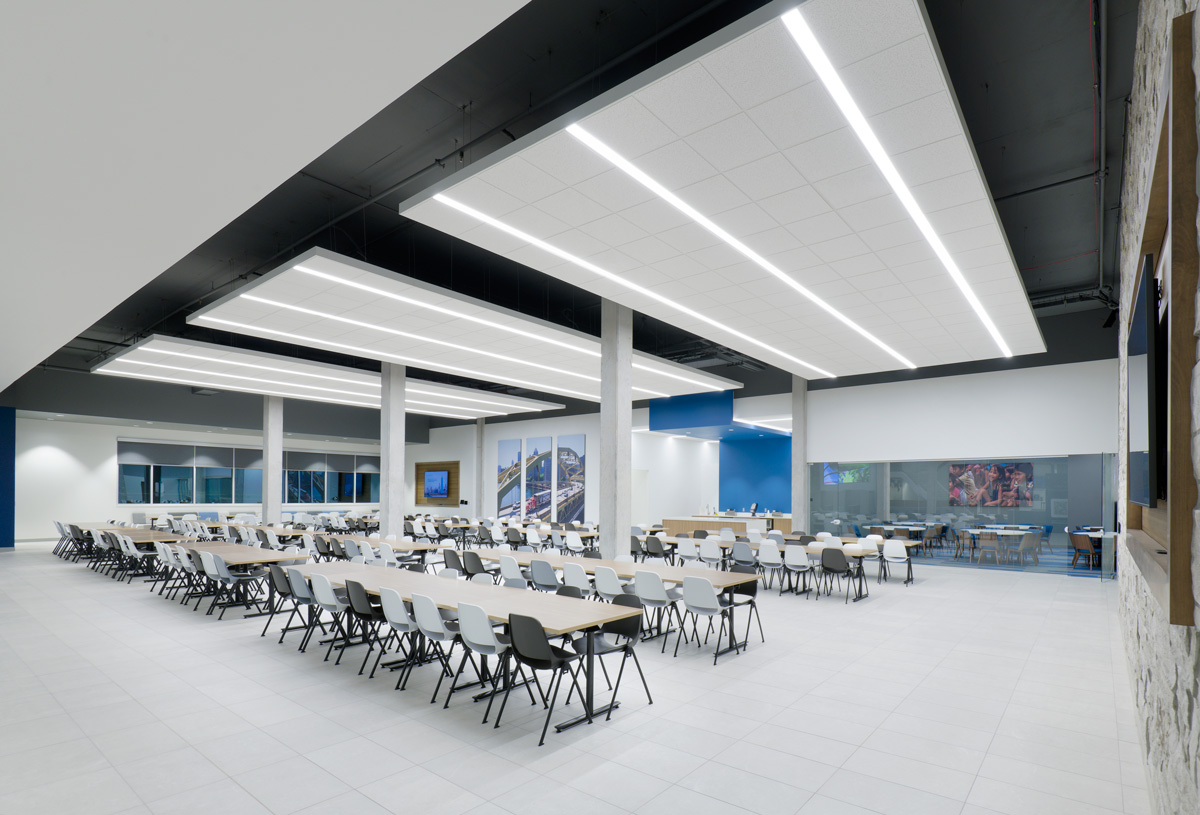

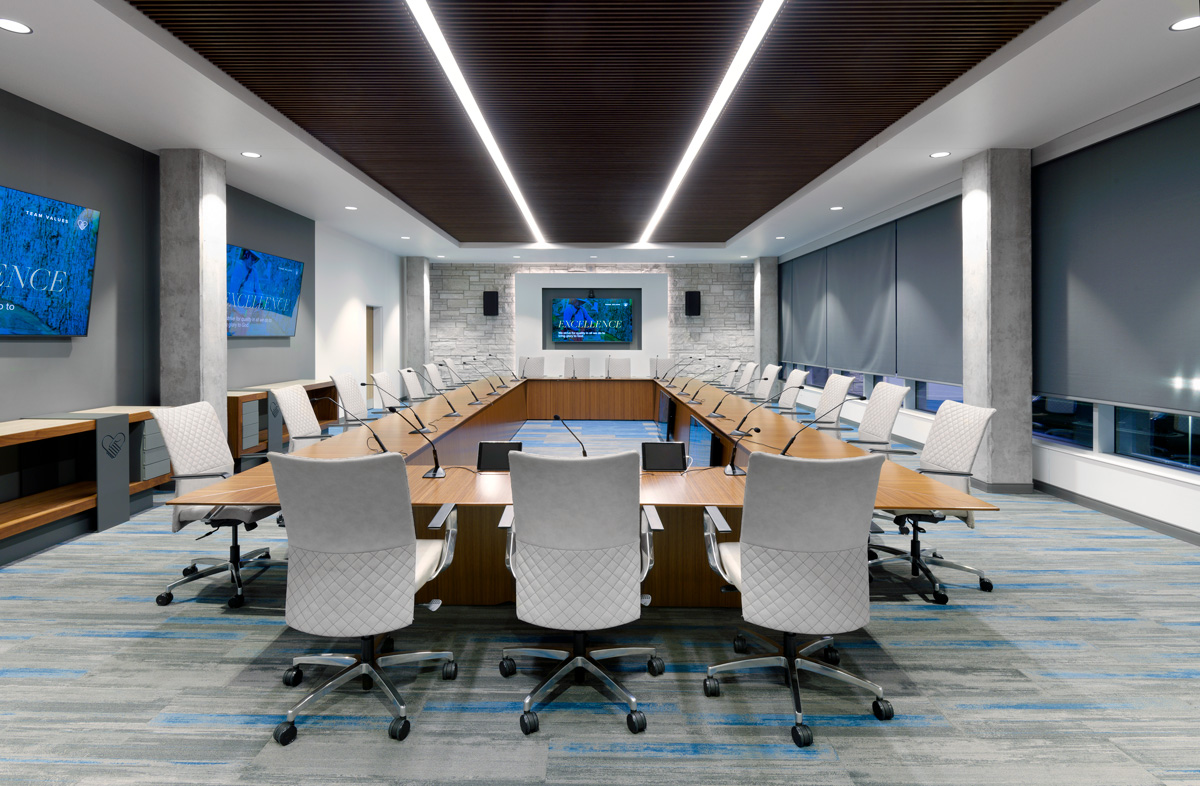

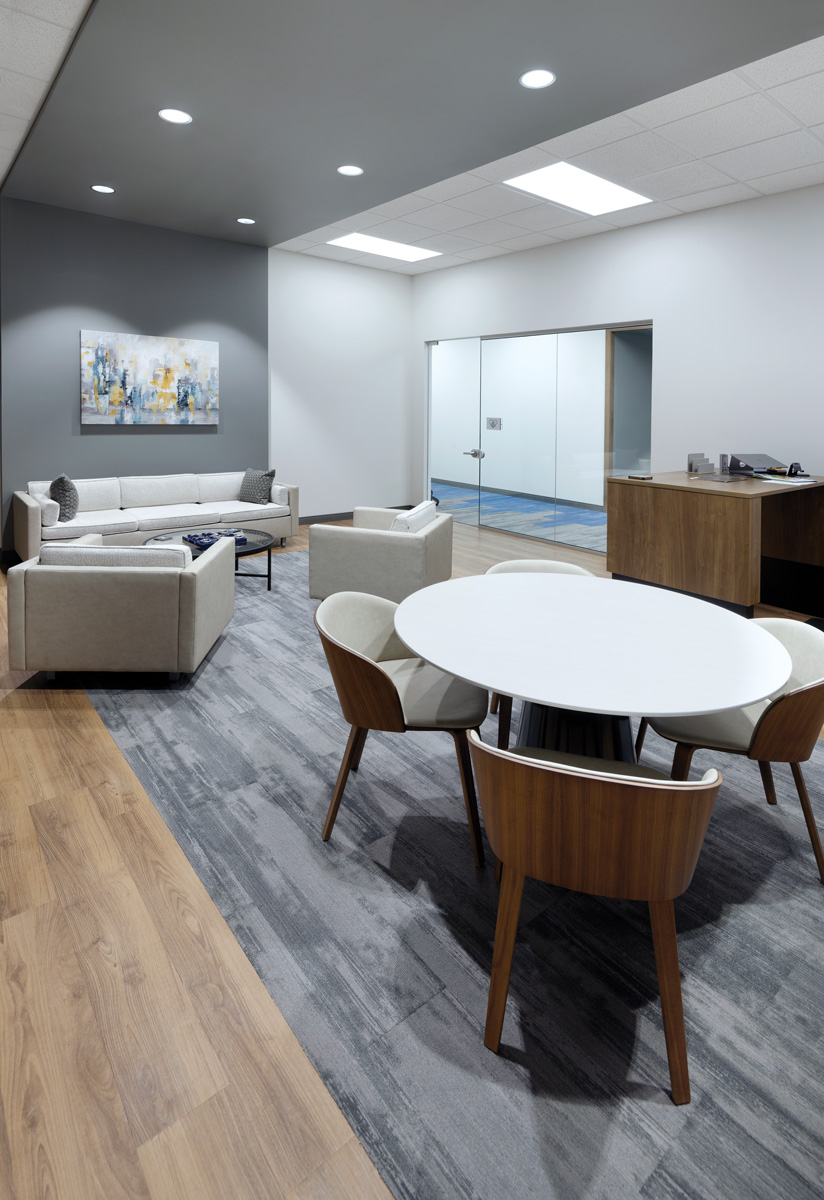

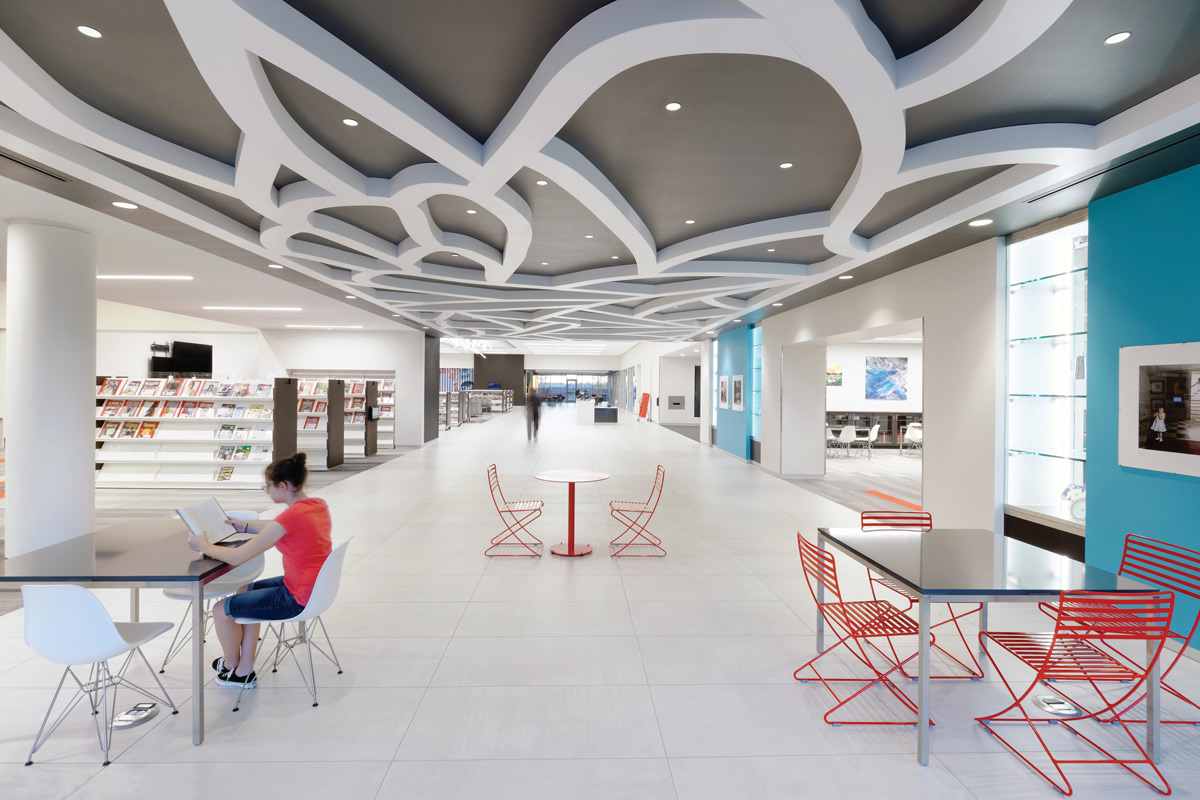

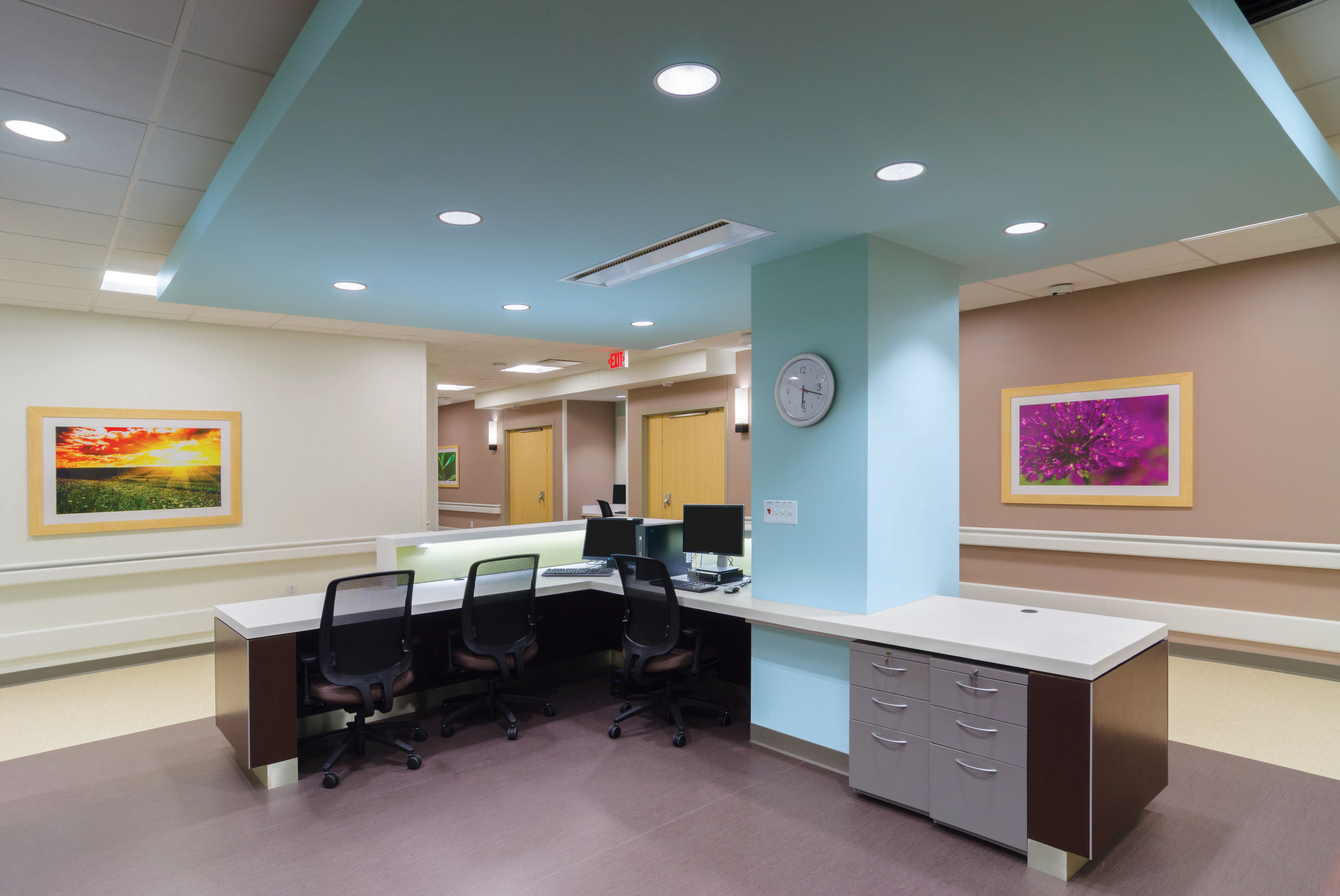

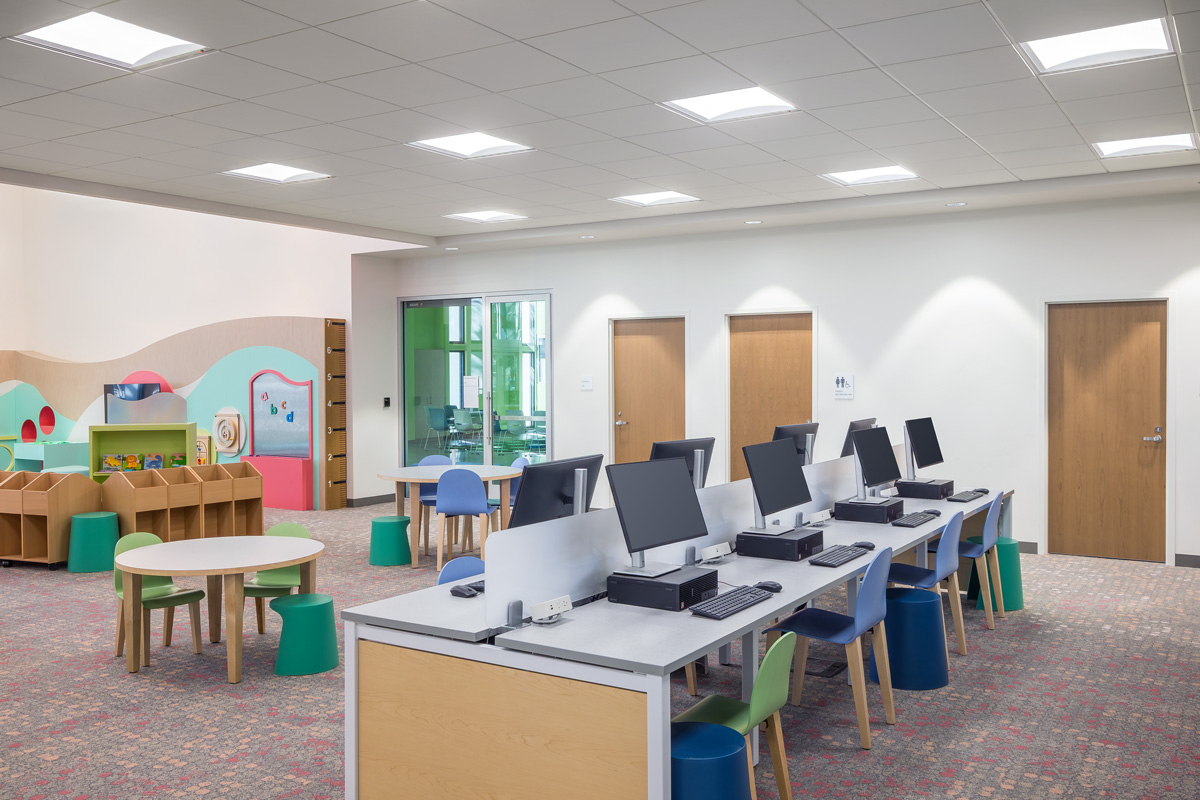

Inspiration
